LT3755IUD#PBF - Analog Devices
DC DC Cntrlr Single-OUT Step Up/Step Down 4.5V to 40V Input 16-Pin QFN EP
Technical Details
| Case/Package | QFN |
| Frequency | 1MHz |
| Height | 800µm |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Input Voltage | 40V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 40V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 1.4mA |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Output Current | 10A |
| Output Voltage | 75V |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 1MHz |
| Topology | Buck, Buck-Boost, Flyback |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

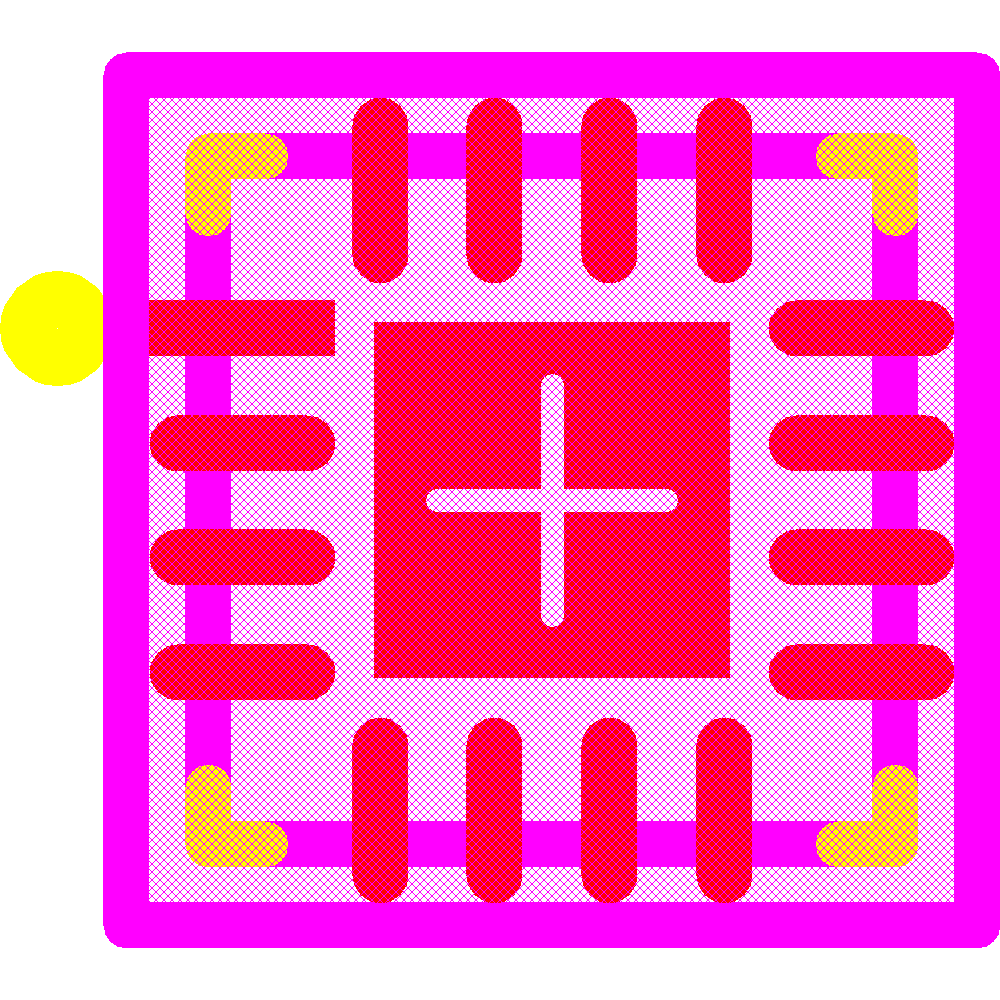

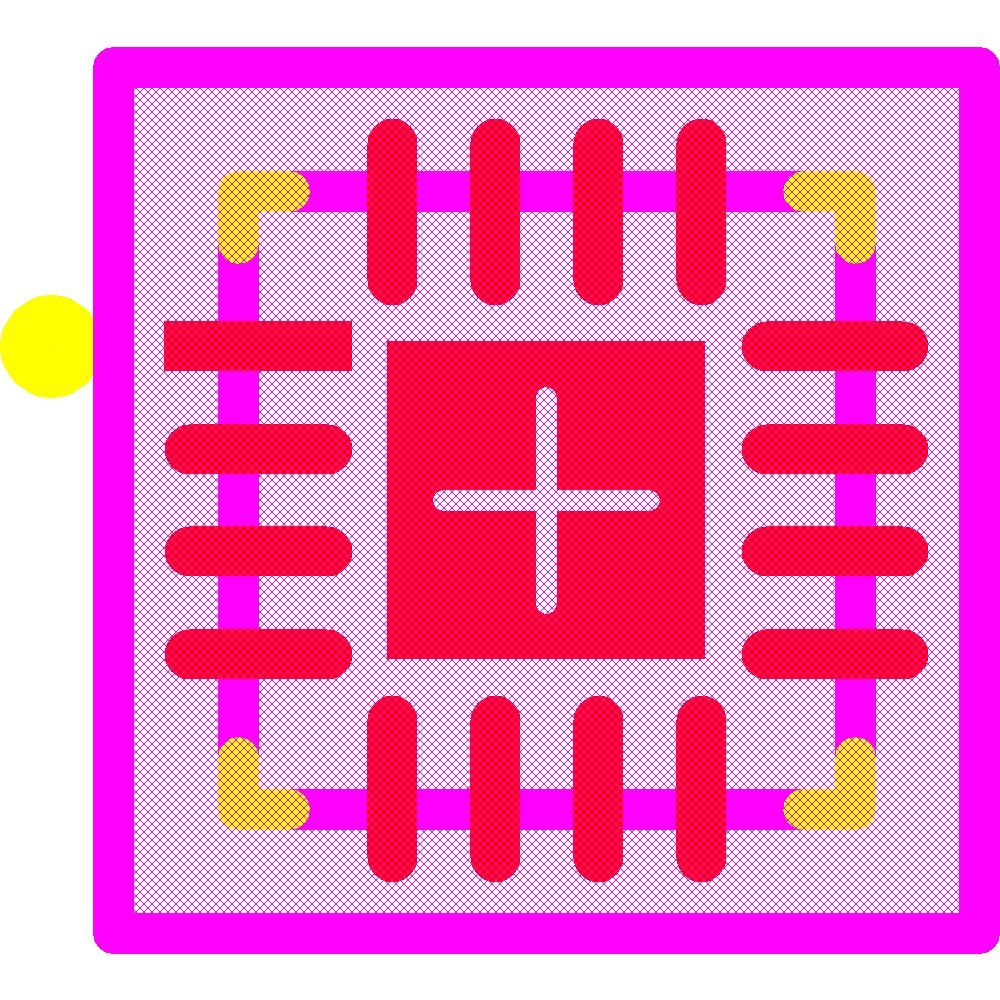

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | EOL | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Texas Instruments | Production | ||
| Analog Devices | Unknown |
