Analog Devices - LT3756EMSE#PBF

LT3756EMSE#PBF - Analog Devices

LED DRVR 18Segment 9V/12V/15V/18V/24V Automotive 16-Pin MSOP EP

 Datasheets

Technical Details

Case/Package MSOP
Frequency 1MHz
Height 1.1mm
Length 4.04mm
Lifecycle Status Production
Manufacturer Lifecycle Status PRODUCTION
Max Input Voltage 100V
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 125°C
Max Supply Current 5µA
Max Supply Voltage 100V
Min Input Voltage 6V
Min Operating Temperature -40°C
Min Supply Voltage 6V
Mount Surface Mount
Nominal Supply Current 1.4mA
Number of Channels 1
Number of Outputs 1
Number of Pins 16
Number of Segments 18
Output Current 370mA
Output Voltage 100V
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8542390000
Switching Frequency 1MHz
Topology Boost, Buck, Buck-Boost, Flyback
Width 3mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

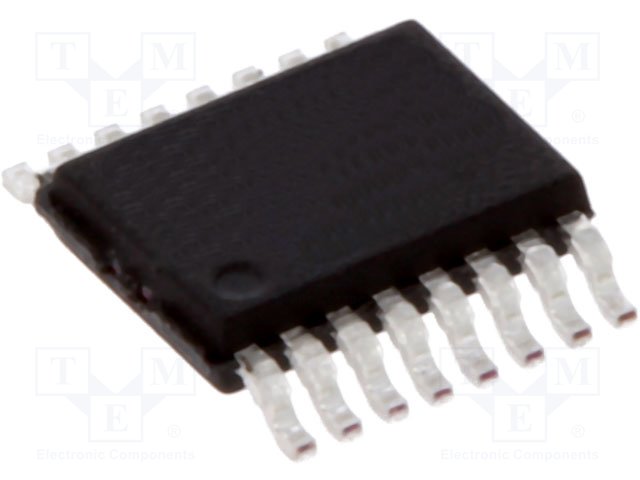

Analog Devices LT3756EMSE#PBF | TME

TME

Datasheets

 Farnell
 Analog Devices
 DigiKey

Lifecycle Status Indicator

   Production

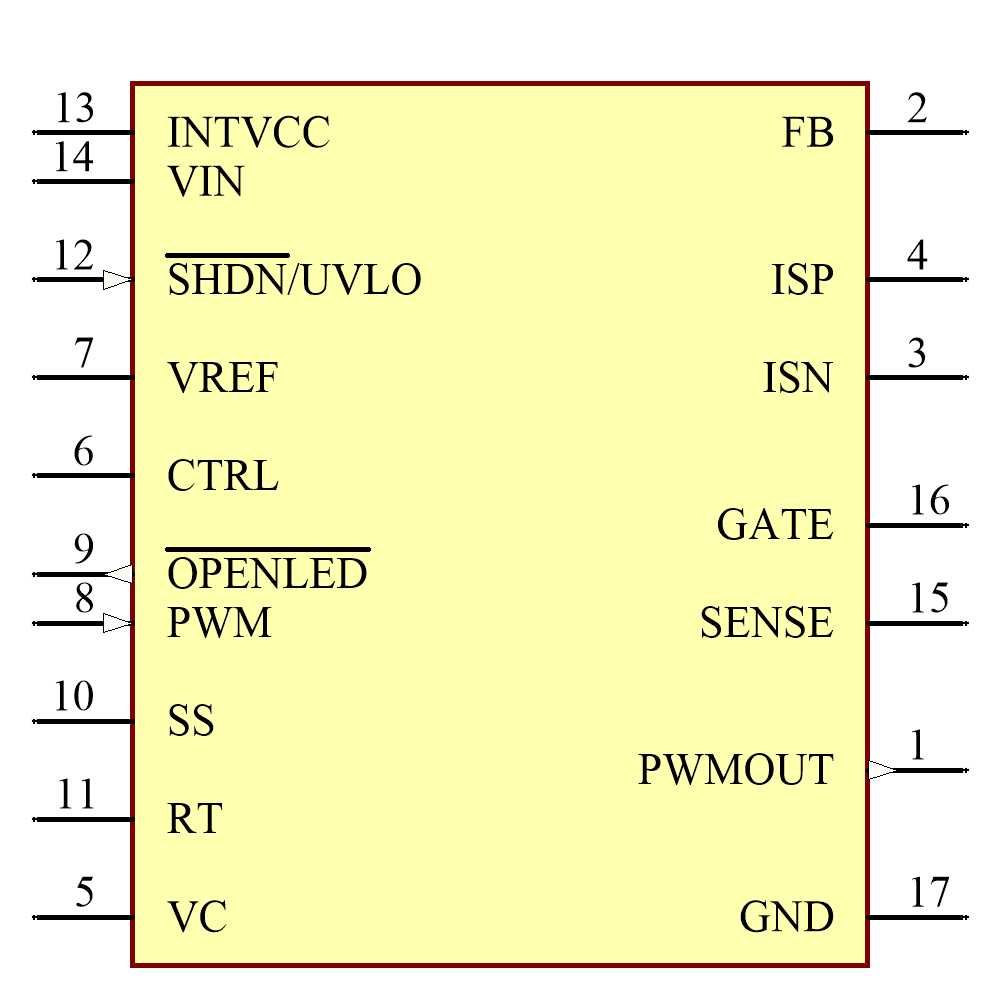

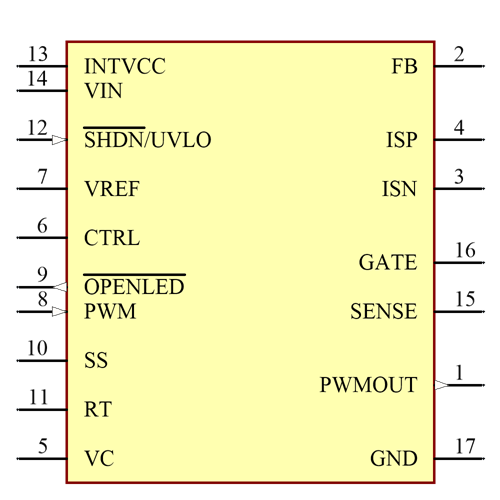

Symbol

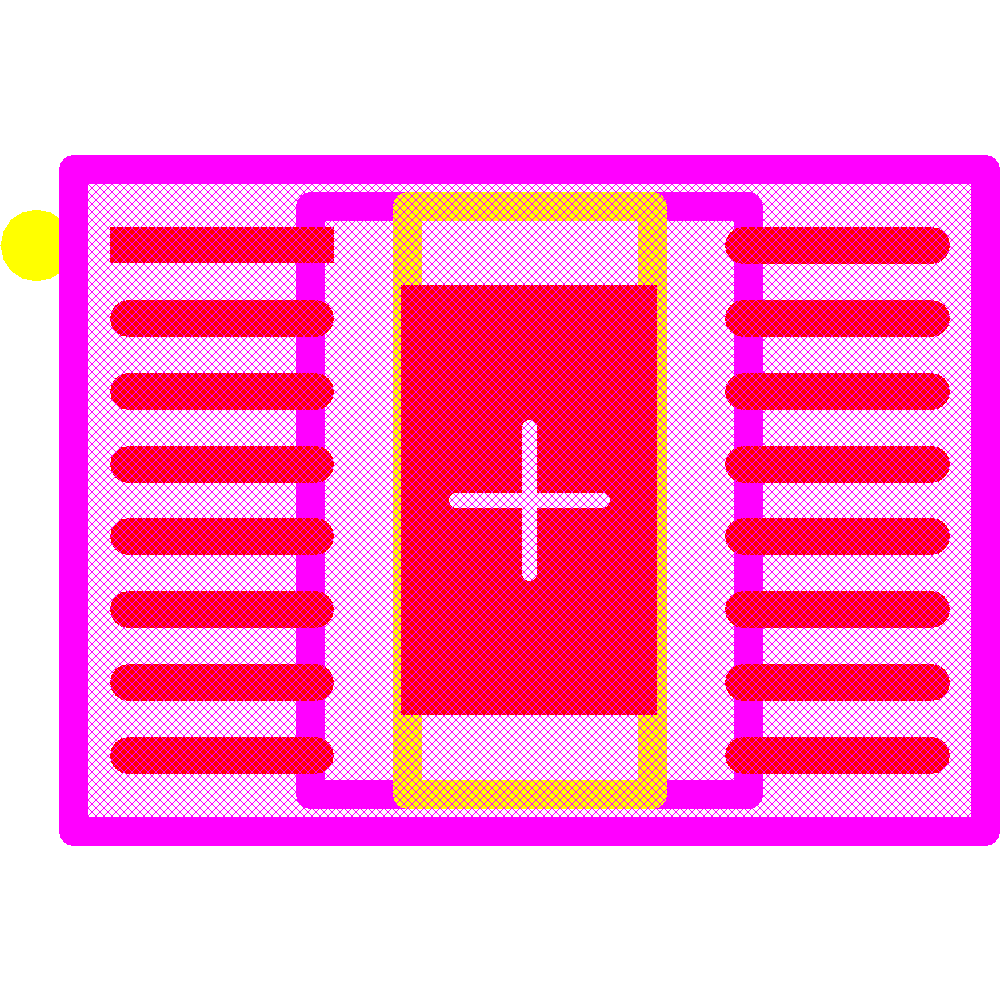

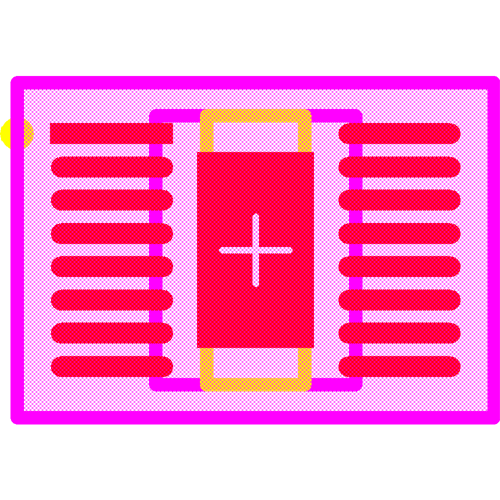

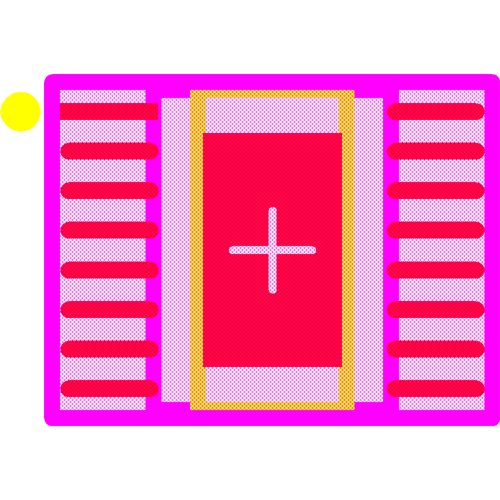

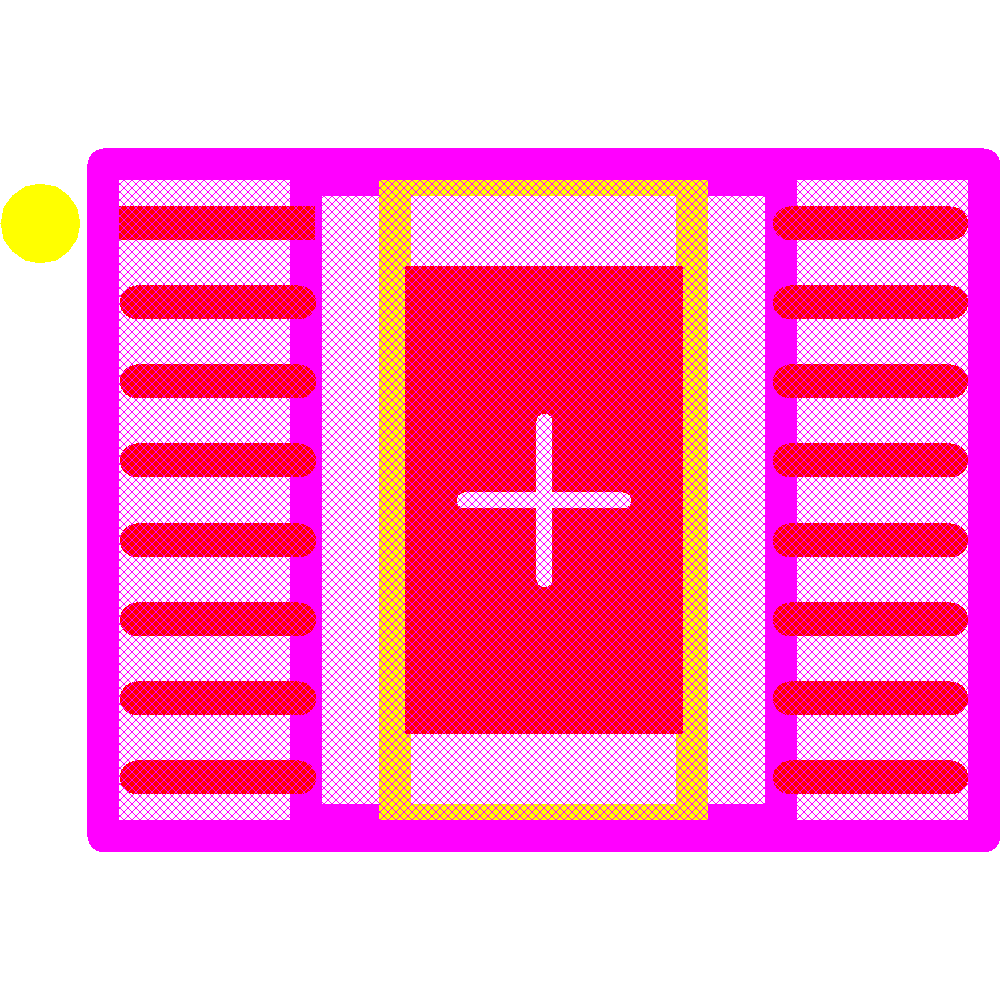

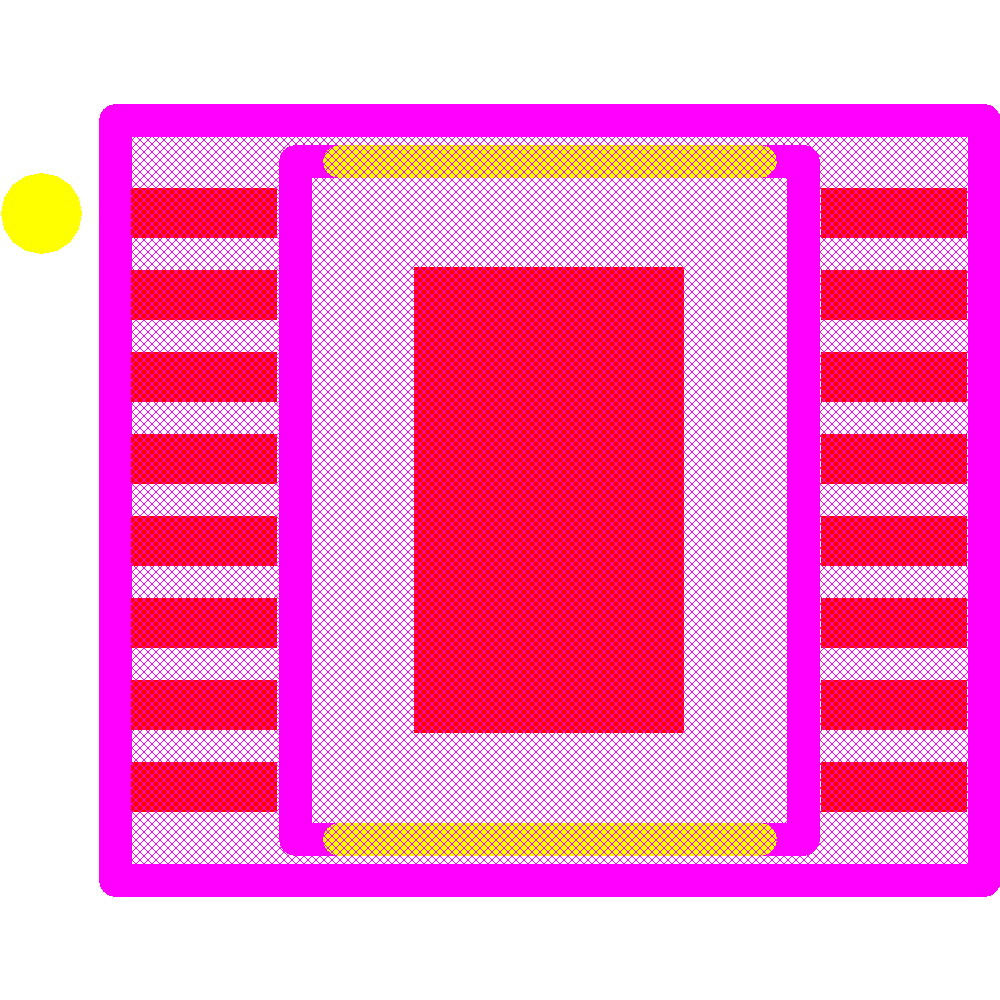

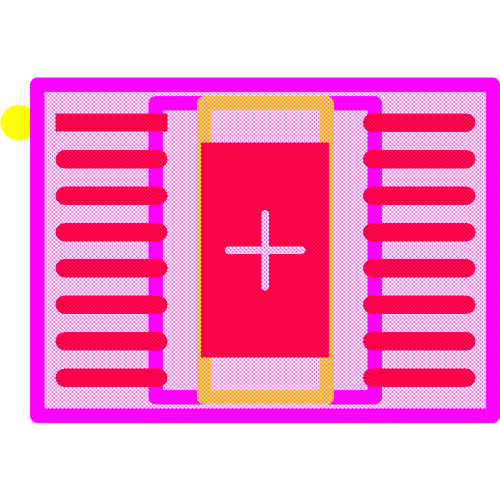

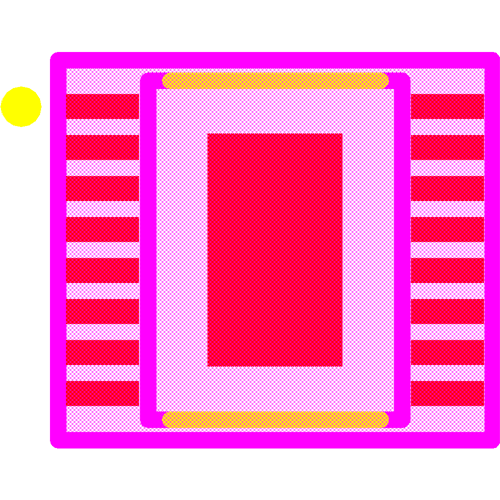

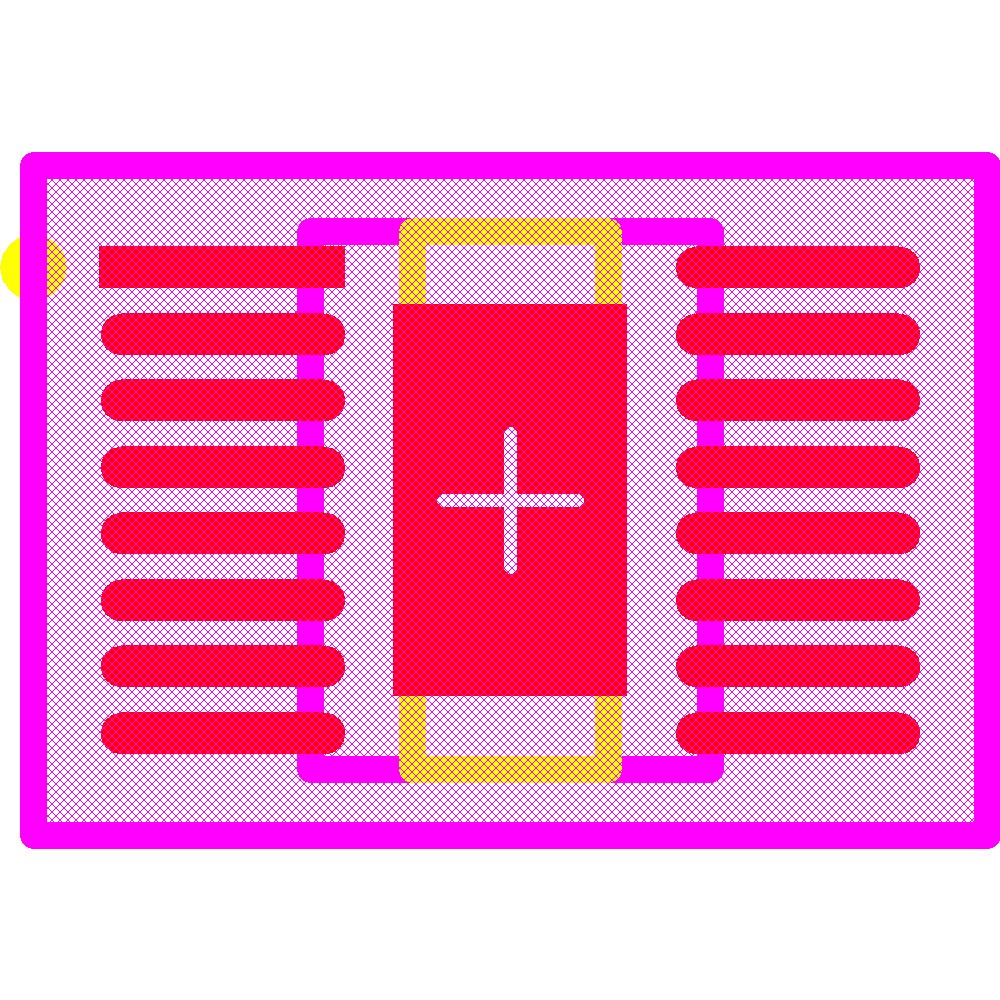

Footprint
