Analog Devices - LT3756IMSE-2#PBF

LT3756IMSE-2#PBF - Analog Devices

LED DRVR 18Segment 9V/12V/15V/18V/24V Automotive 16-Pin MSOP EP

 Datasheets

Technical Details

Case/Package MSOP
Frequency 1MHz
Lifecycle Status Production
Manufacturer Lifecycle Status PRODUCTION
Max Input Voltage 100V
Max Operating Temperature 125°C
Max Supply Voltage 100V
Min Input Voltage 6V
Min Operating Temperature -40°C
Min Supply Voltage 6V
Number of Outputs 1
Number of Pins 16
Number of Segments 18
Output Voltage 100V
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|85
Switching Frequency 1MHz
Topology Boost, Buck, Buck-Boost, SEPIC

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Analog Devices LT3756IMSE-2#PBF | Farnell

Farnell

Datasheets

 Farnell
 Analog Devices
 Arrow Electronics

Lifecycle Status Indicator

   Production

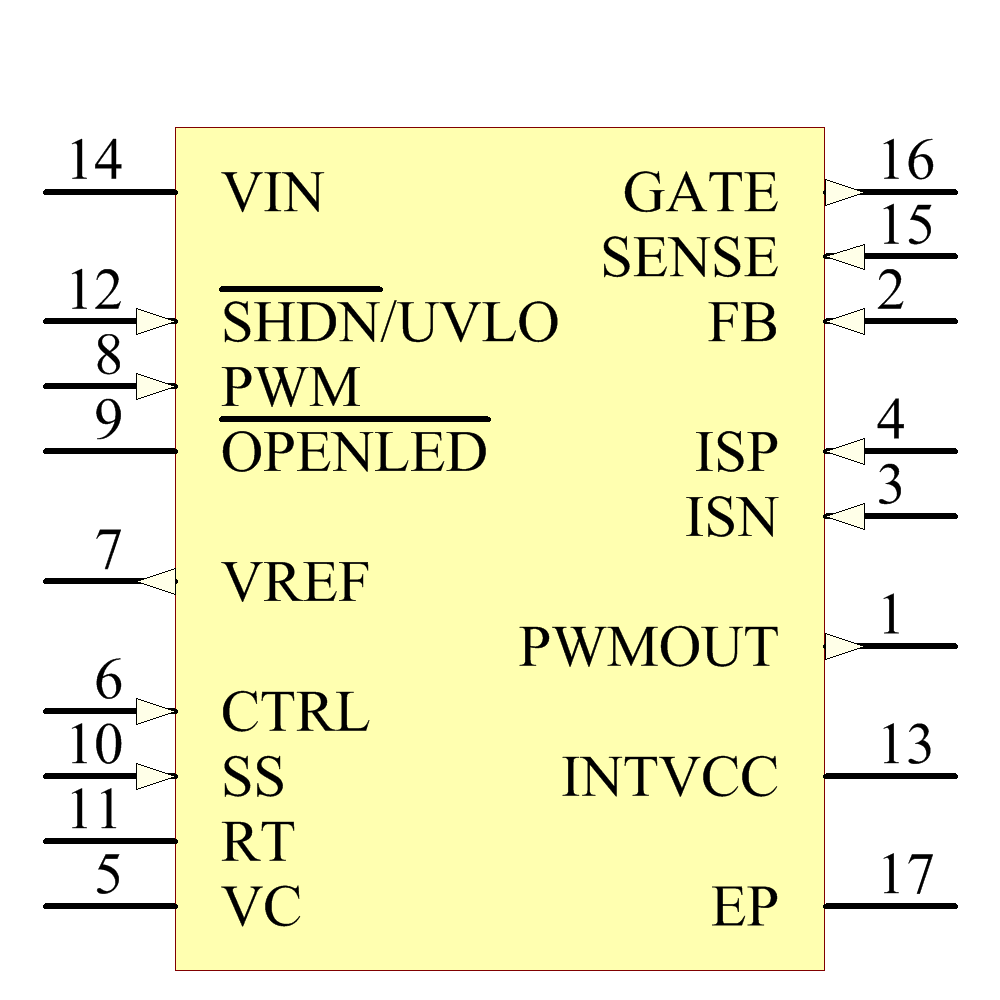

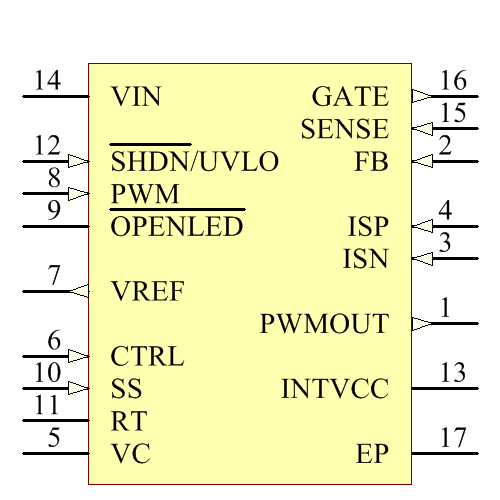

Symbol

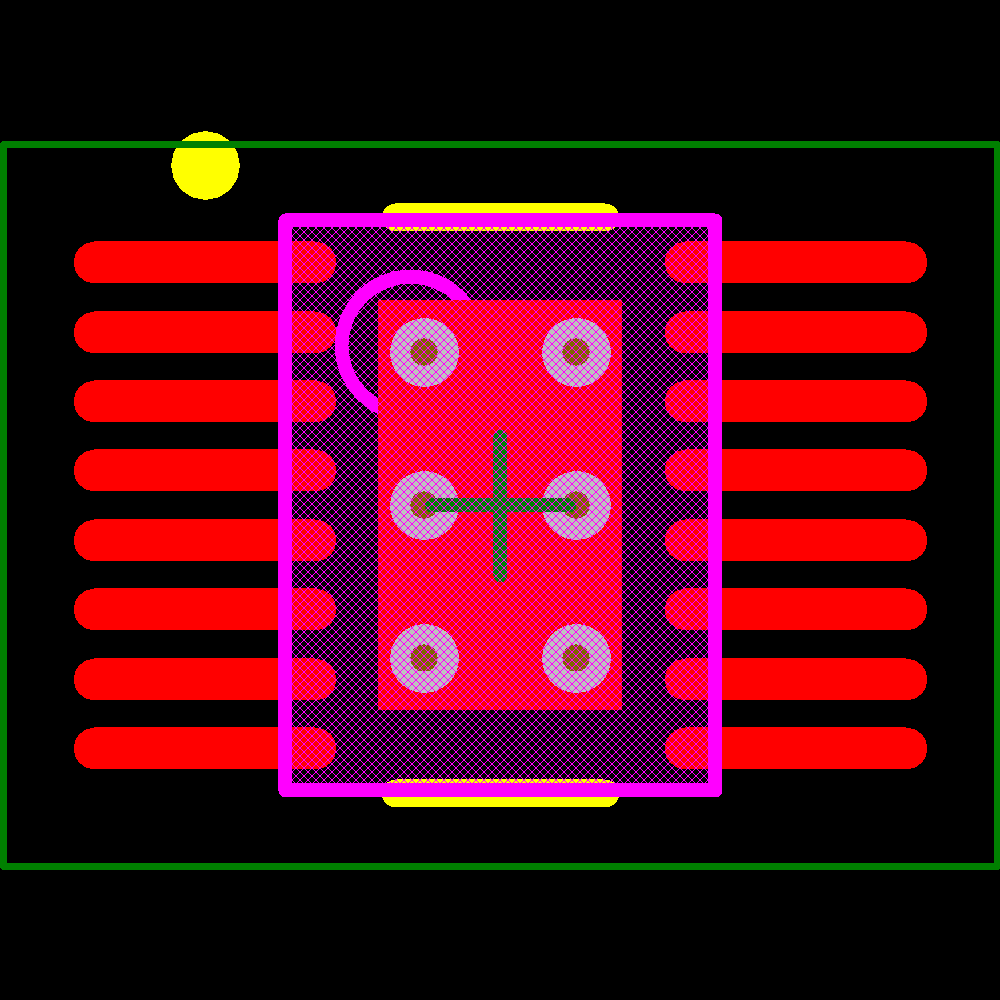

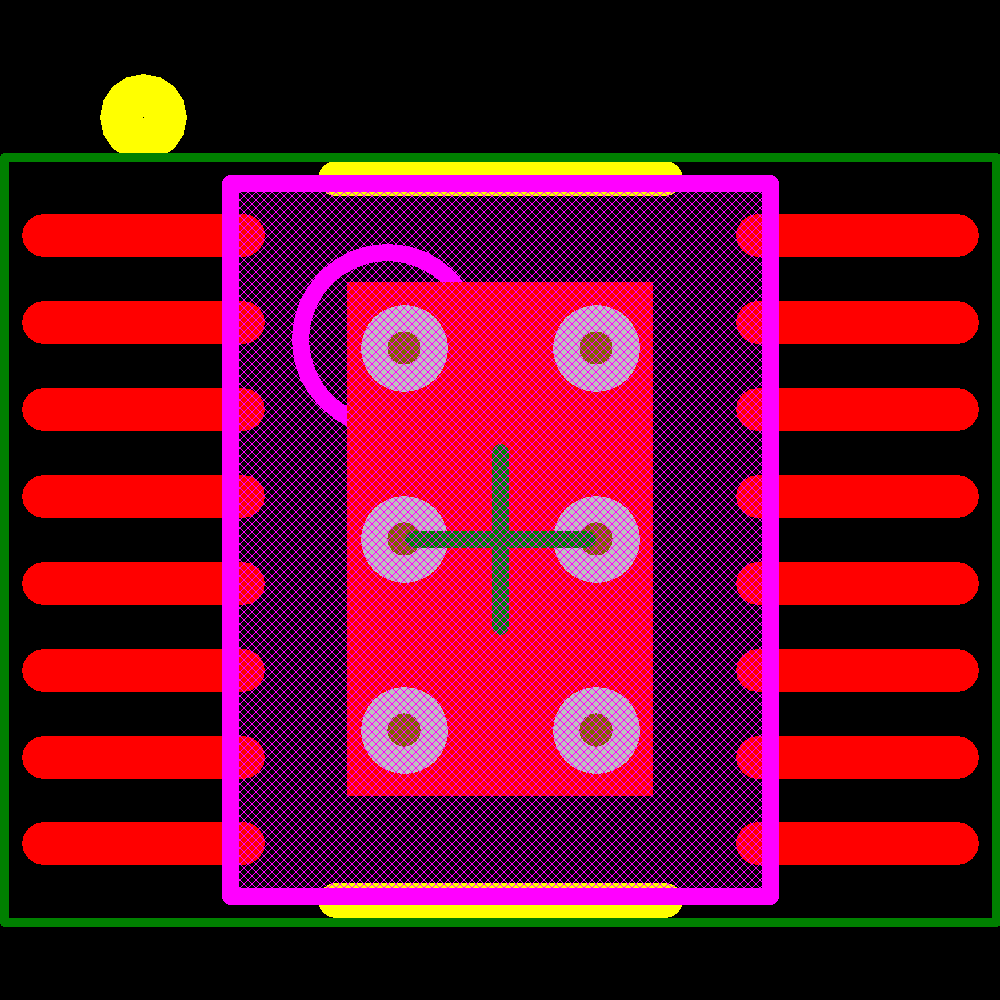

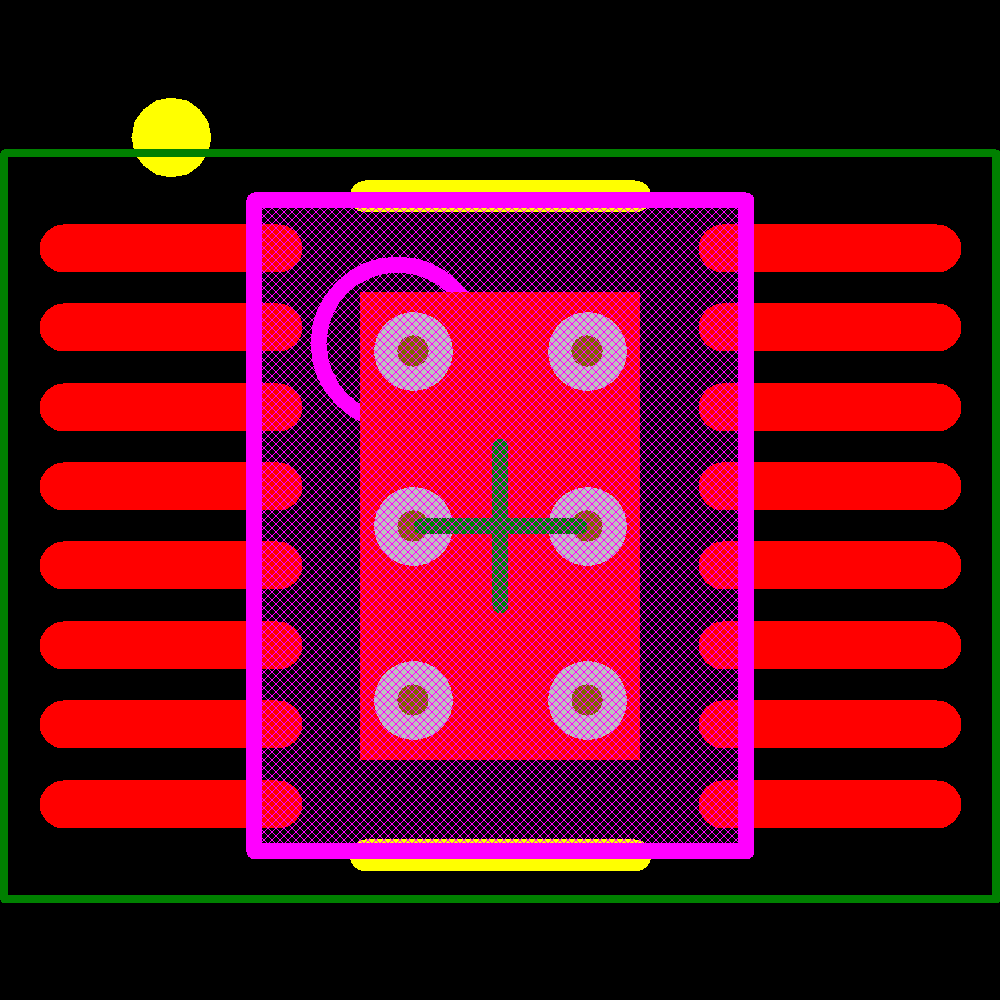

Footprint
