LT5400AHMS8E-2#PBF - Analog Devices
Array/Network Resistor, Isolated, 75V, 7.5% +/-Tol, 25ppm/Cel, Surface Mount, 1212
Technical Details
| Case/Package | MSOP |
| Circuit Type | Isolated |
| Depth | 3mm |
| Height | 1.1mm |
| Length | 2.9972mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 125°C |
| Manufacturer Package Identifier | MS8E-8-05-08-1662 |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Power Per Element | 800mW |
| Power Rating | 3.2W |
| Resistance | 100kΩ |
| RoHS | Compliant |
| Temperature Coefficient | 25ppm/°C |
| Termination | SMD/SMT |
| Tolerance | 7.5% |
| Voltage Rating | 75V |
| Width | 2.9972mm |
Compliance
RoHS : Unconfirmed

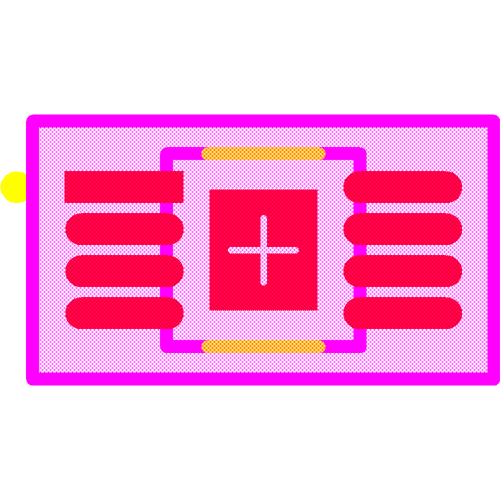

Images
