LTC3204EDC-5#TRMPBF - Analog Devices

Switched Capacitor Regulator, 0.3A, 1800kHz Switching Freq-Max, PDSO6

Technical Details

Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Output Current	150mA
Max Supply Voltage	5.5V
Min Input Voltage	2.7V
Min Operating Temperature	-40°C
Min Supply Voltage	2.7V
Number of Outputs	1
Number of Pins	6
Operating Supply Current	48µA
Output Current	150mA
Output Type	Fixed
Output Voltage	5V
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|85
Switching Frequency	1.2MHz
Synchronous Rectifier	No

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Analog Devices LTC3204EDC-5#TRMPBF | Analog Devices

Analog Devices

Datasheets

Lifecycle Status Indicator

Production

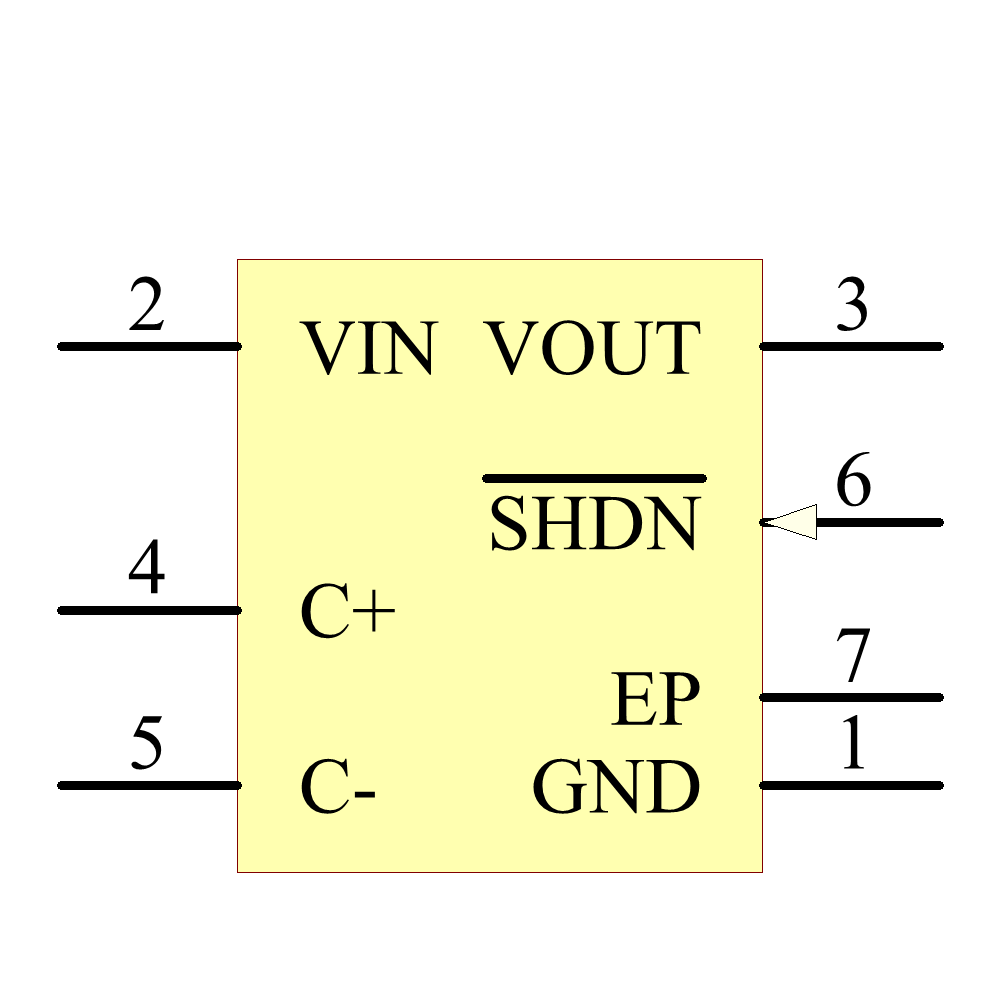

Symbol

LTC3204EDC-5#TRMPBF Symbol - Analog Devices

LTC3204EDC-5#TRMPBF Symbol - Analog Devices

LTC3204EDC-5#TRMPBF Symbol - Analog Devices

LTC3204EDC-5#TRMPBF Symbol - Analog Devices

‹ ›

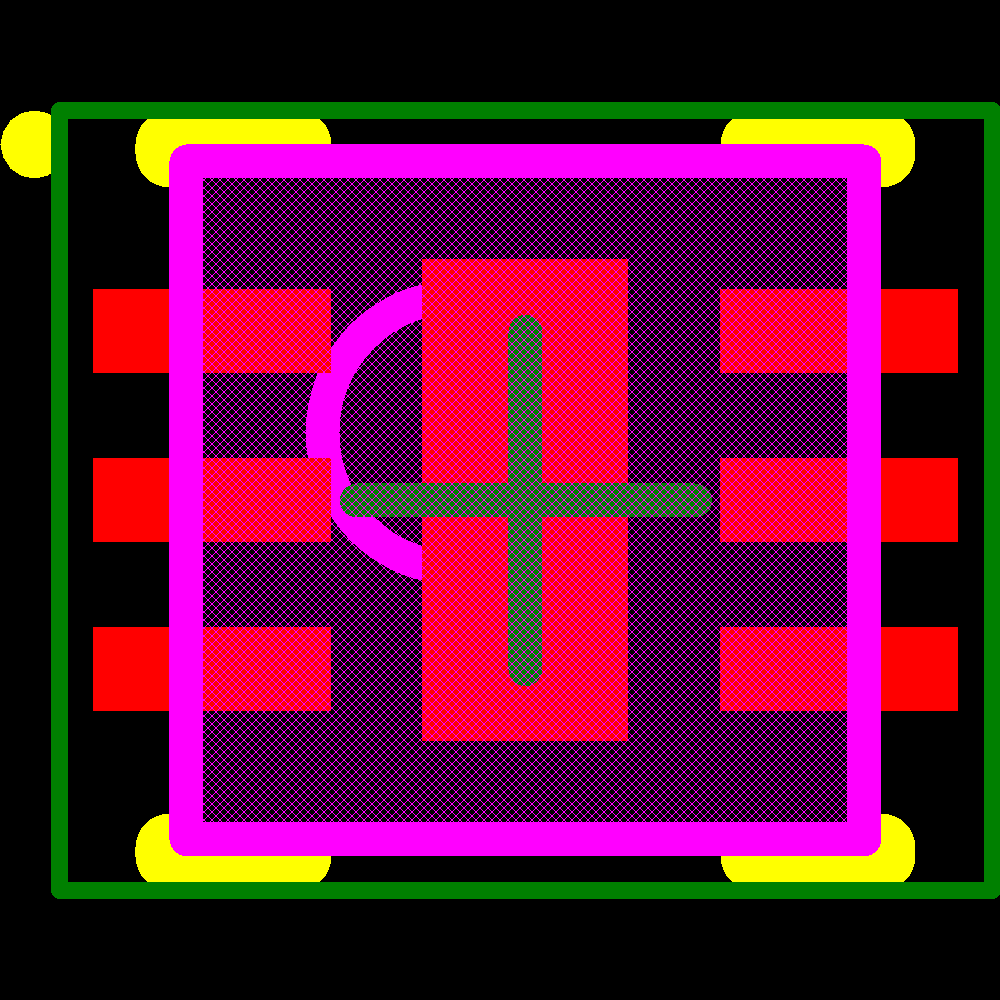

Footprint
