Analog Devices - LTC3417AEFE#PBF

LTC3417AEFE#PBF - Analog Devices

Conv DC-DC 2.25V to 5.5V Synchronous Step Down Dual-Out 0.8V to 5V 1.5A/1A 20-Pin TSSOP EP

 Datasheets

Technical Details

Case/Package TSSOP
Current - Output 1 1.5A
Current - Output 2 1A
Efficiency 95%
Height 1.2mm
Lead Free Lead Free
Length 6.6mm
Lifecycle Status Production
Manufacturer Lifecycle Status PRODUCTION
Max Duty Cycle 100%
Max Input Voltage 5.5V
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 85°C
Max Output Current 1.4A
Max Output Voltage 5V
Max Supply Voltage 5.5V
Min Input Voltage 2.25V
Min Operating Temperature -40°C
Min Output Voltage 800mV
Min Supply Voltage 2.25V
Number of Channels 1
Number of Outputs 2
Number of Pins 20
Output Configuration Positive
Output Current 1.5A
Output Type Adjustable
Output Voltage 5V
Packaging Cut Tape
REACH SVHC No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|85
Switching Frequency 4MHz
Synchronous Rectifier Yes
Topology Buck
Voltage - Output 1 5V
Voltage - Output 2 5V
Width 4.3mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : No

Images

Analog Devices LTC3417AEFE#PBF | Analog Devices

Analog Devices

Datasheets

 Farnell
 Analog Devices
 Rochester Electronics

Lifecycle Status Indicator

   Production

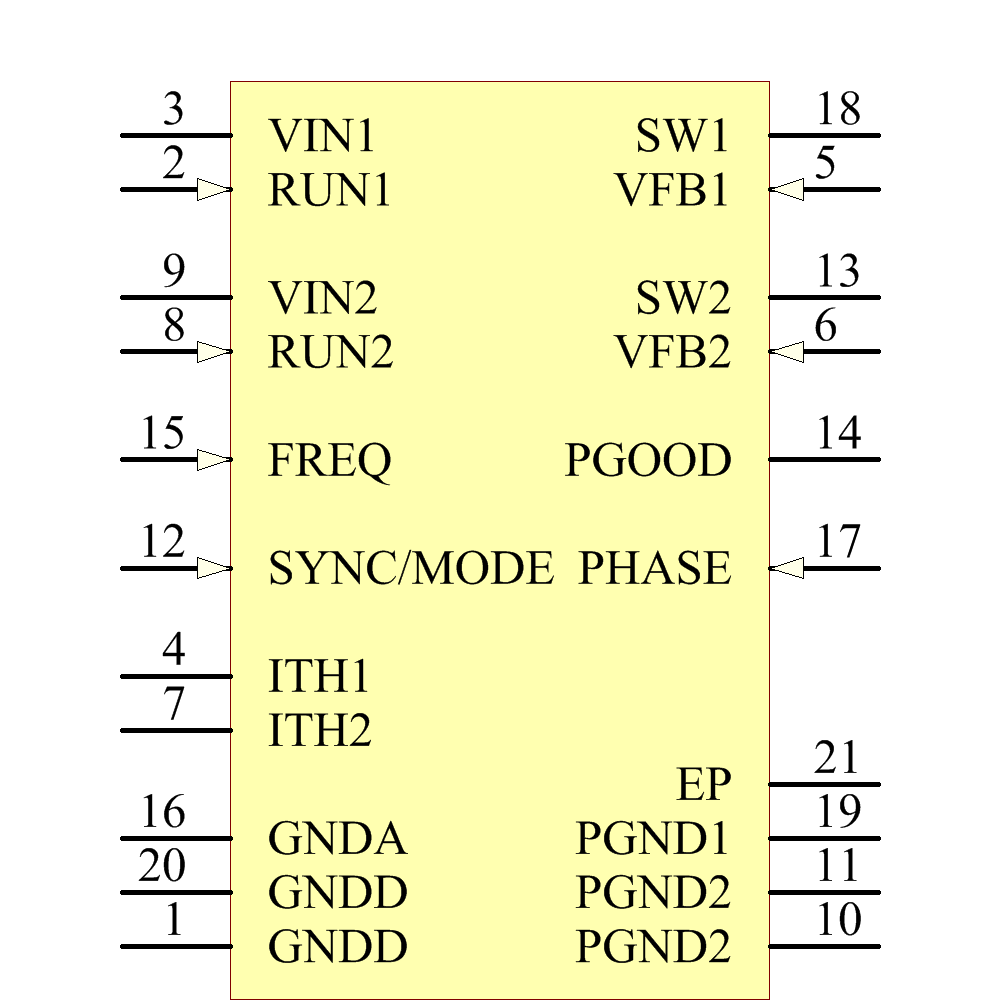

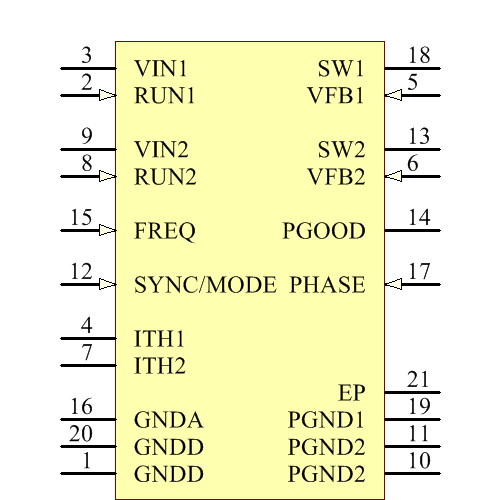

Symbol

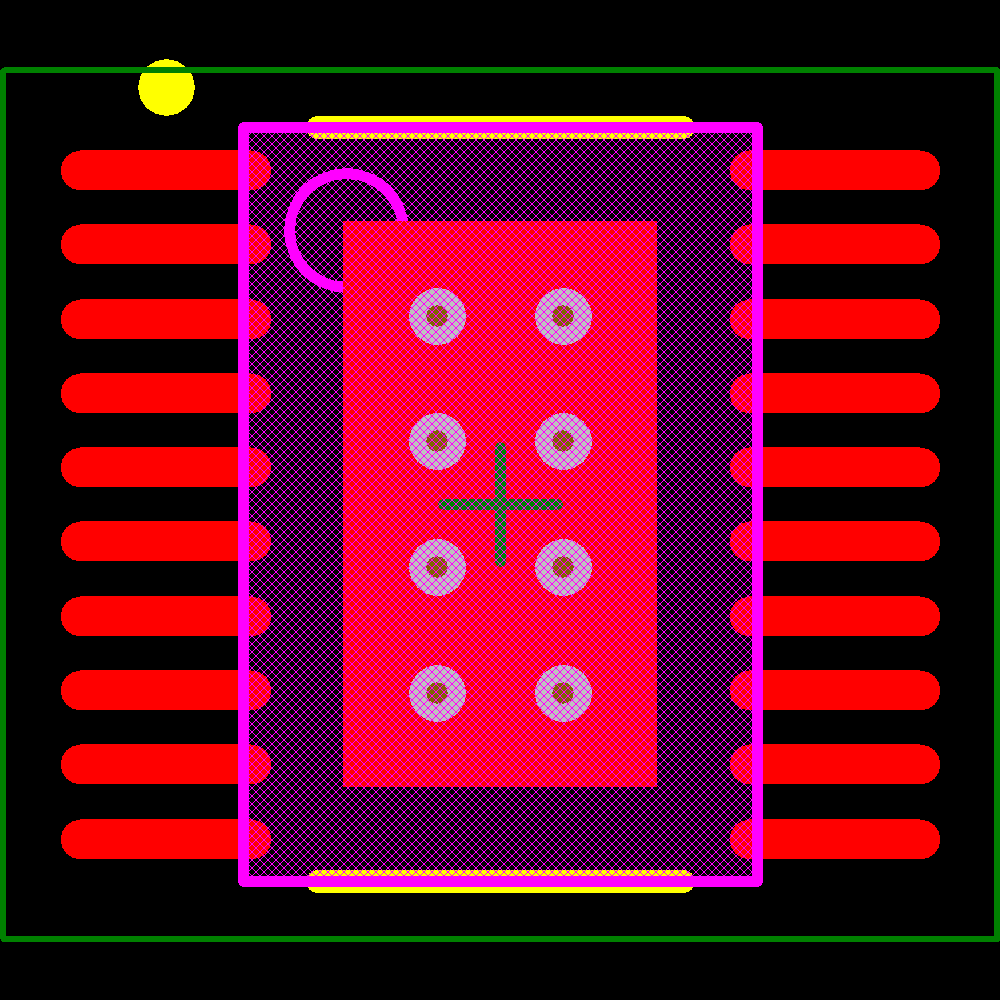

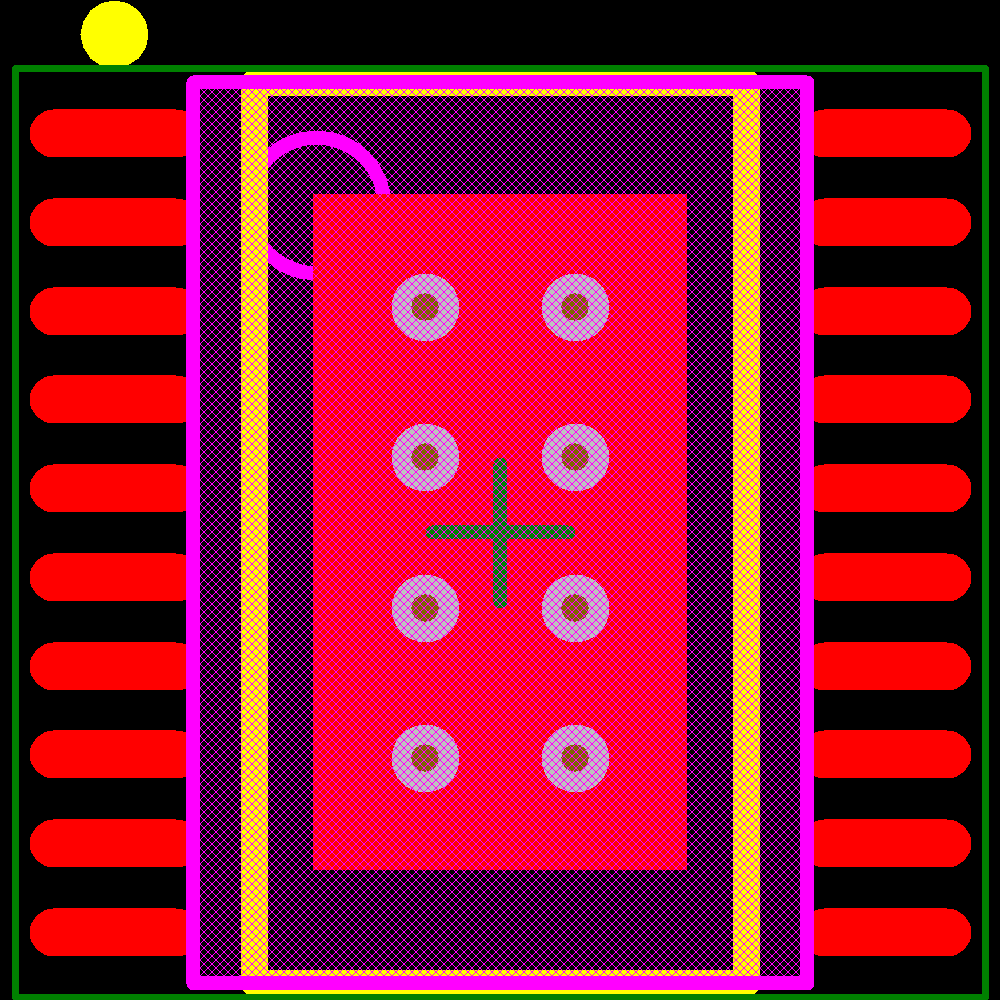

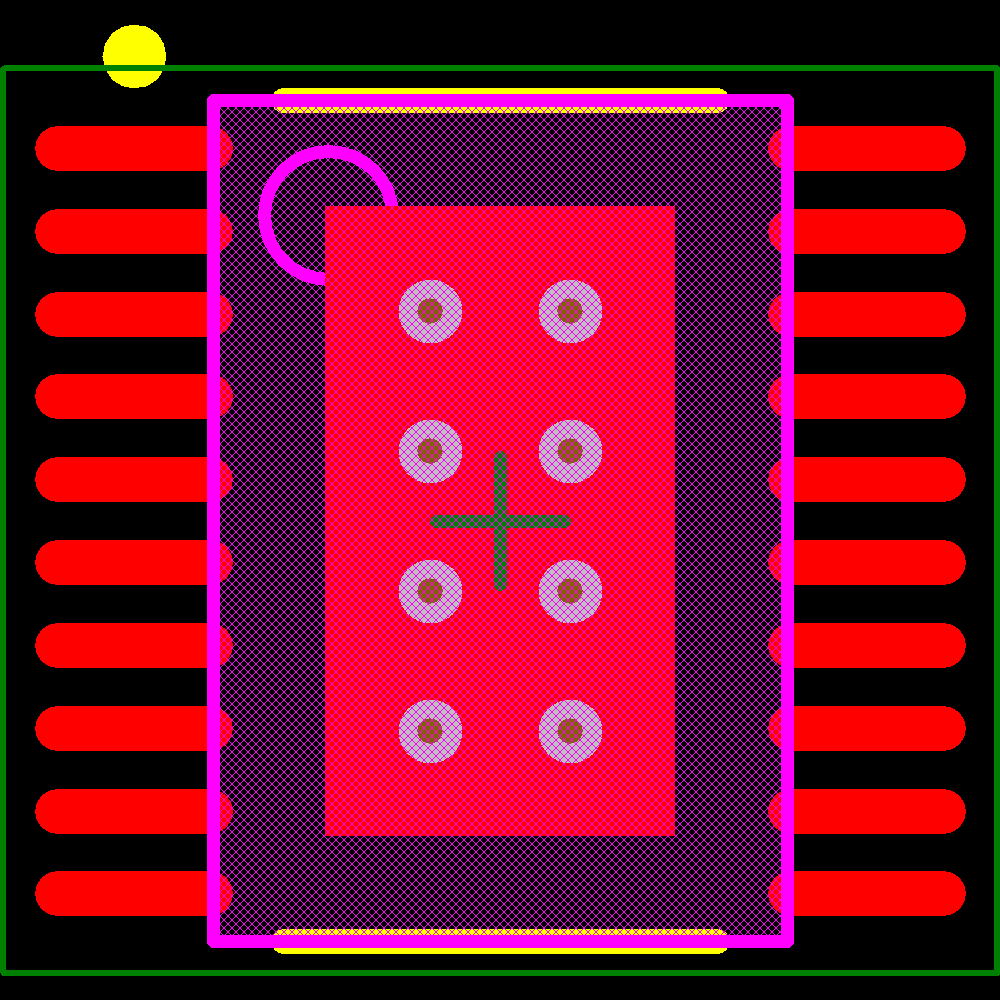

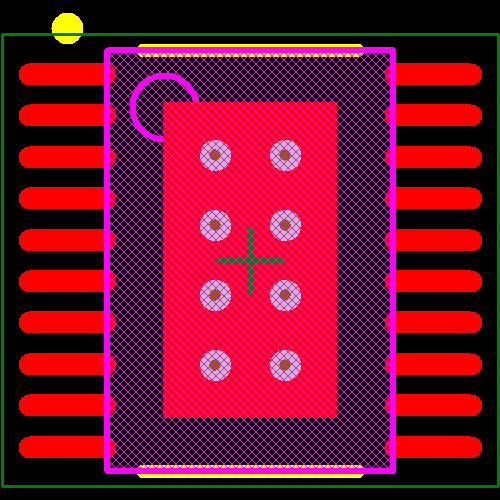

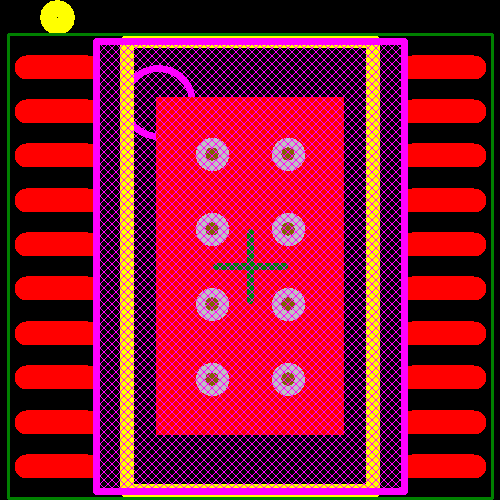

Footprint
