LTC3417EFE#PBF - Analog Devices

Conv DC-DC 2.25V to 5.5V Synchronous Step Down Dual-Out 0.8V to 5V 1.4A/0.8A 20-Pin TSSOP EP

Technical Details

Ambient Temperature Range High	85°C
Case/Package	TSSOP
Current - Output 1	1.4A
Current - Output 2	800mA
Efficiency	95%
Height	1.2mm
Lead Free	Lead Free
Length	6.6mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Duty Cycle	100%
Max Input Voltage	5.5V
Max Junction Temperature (Tj)	125°C
Max Operating Temperature	85°C
Max Output Current	1.4A
Max Output Voltage	5V
Max Supply Voltage	5.5V
Min Input Voltage	2.25V
Min Operating Temperature	-40°C
Min Output Voltage	800mV
Min Supply Voltage	2.25V
Mount	Surface Mount
Number of Channels	1
Number of Outputs	2
Number of Pins	20
Output Configuration	Positive
Output Current	1.4A
Output Type	Adjustable
Output Voltage	5V
Packaging	Cut Tape
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000, 8542390000\|8542390000\|8542390000, 8542390000\|8542390000\|8542390000\|8542390000
Switching Frequency	4MHz
Synchronous Rectifier	Yes
Topology	Buck
Voltage - Output 1	5V
Voltage - Output 2	5V
Width	4.48mm

Compliance

RoHS : Unconfirmed

REACH SVHC : No

Images

Analog Devices LTC3417EFE#PBF | Farnell

Farnell

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

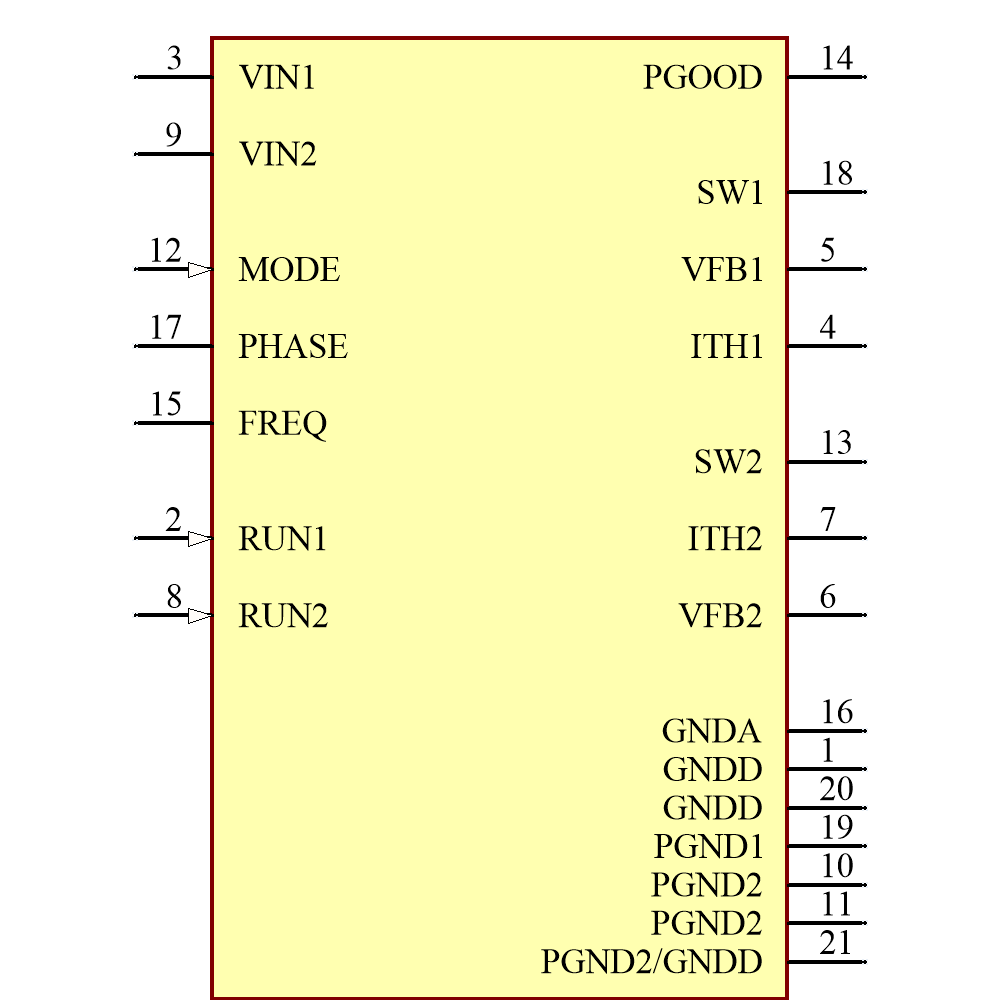

LTC3417EFE#PBF Symbol - Analog Devices

LTC3417EFE#PBF Symbol - Analog Devices

LTC3417EFE#PBF Symbol - Analog Devices

LTC3417EFE#PBF Symbol - Analog Devices

‹ ›

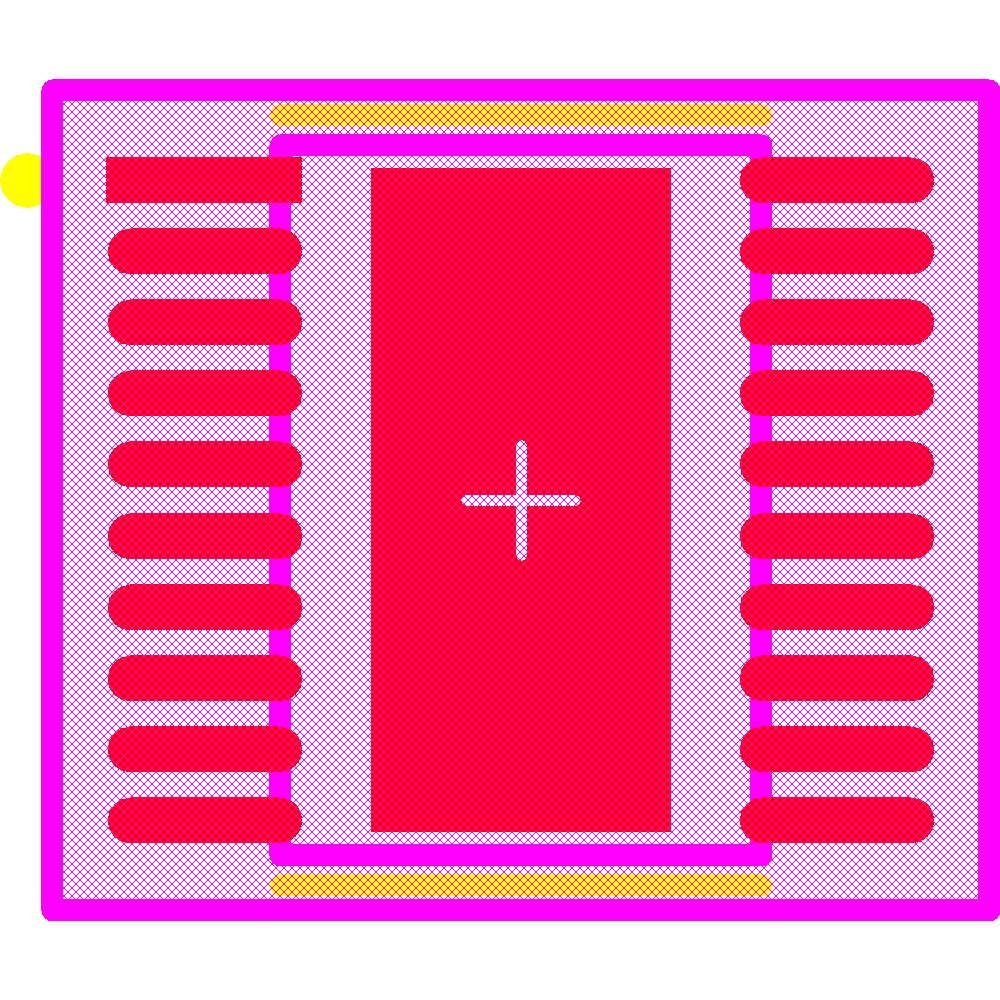

Footprint

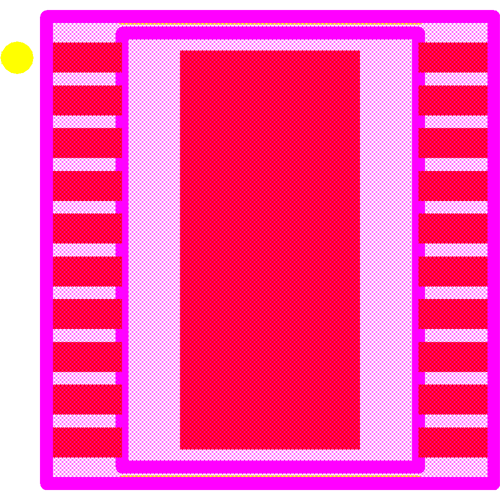

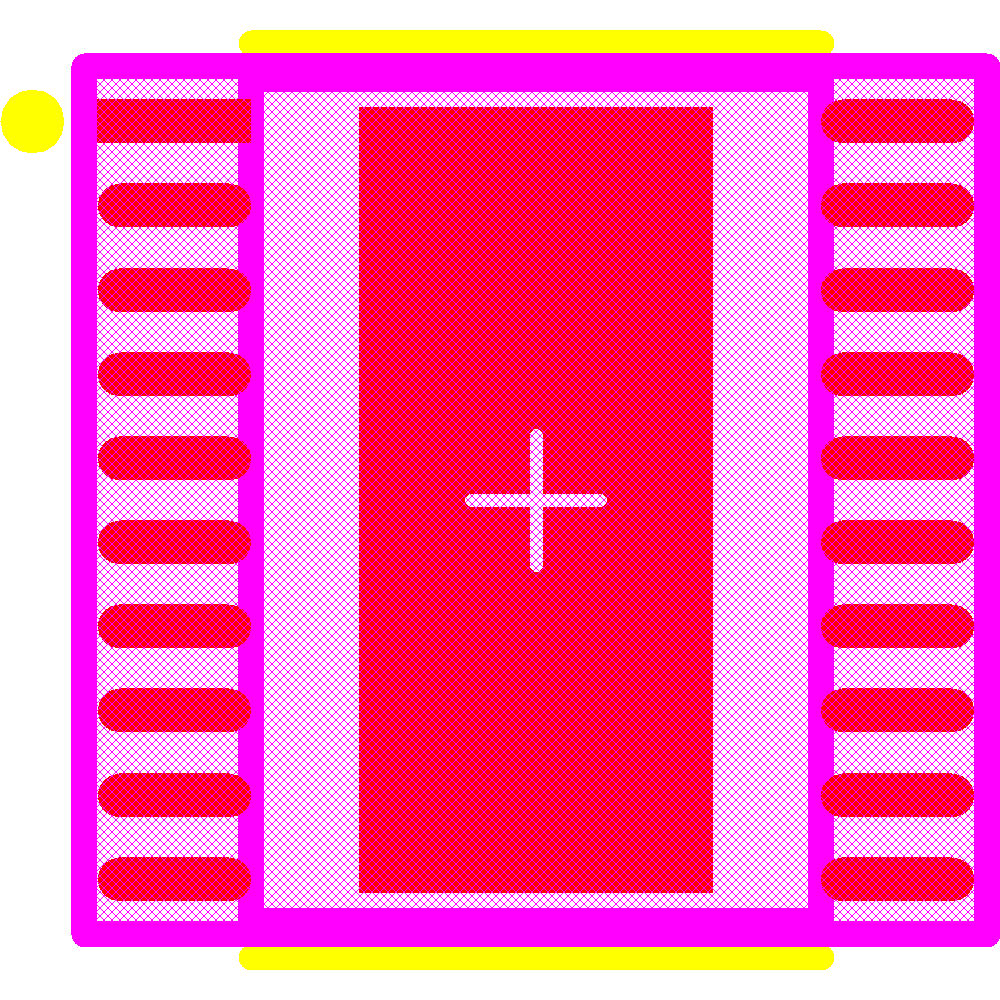

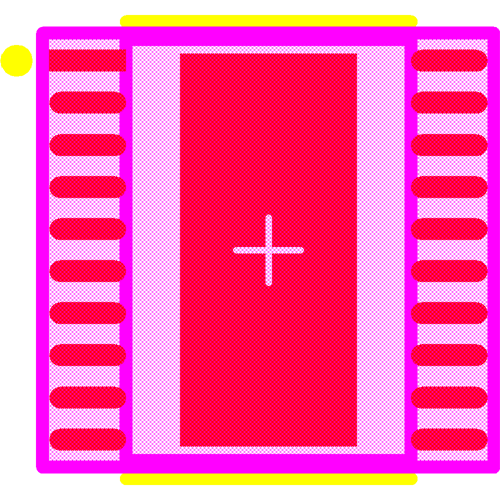

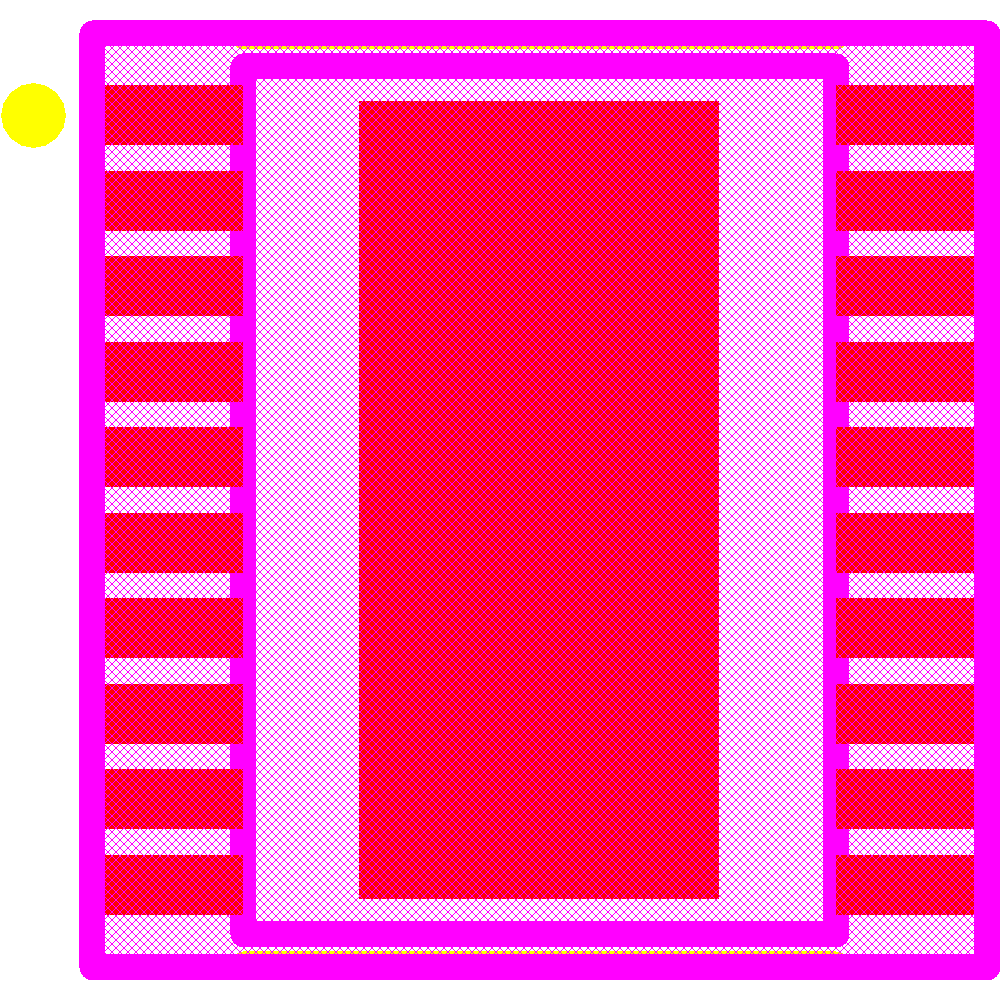

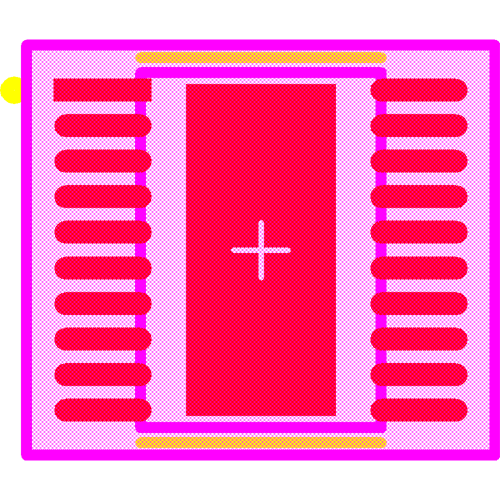

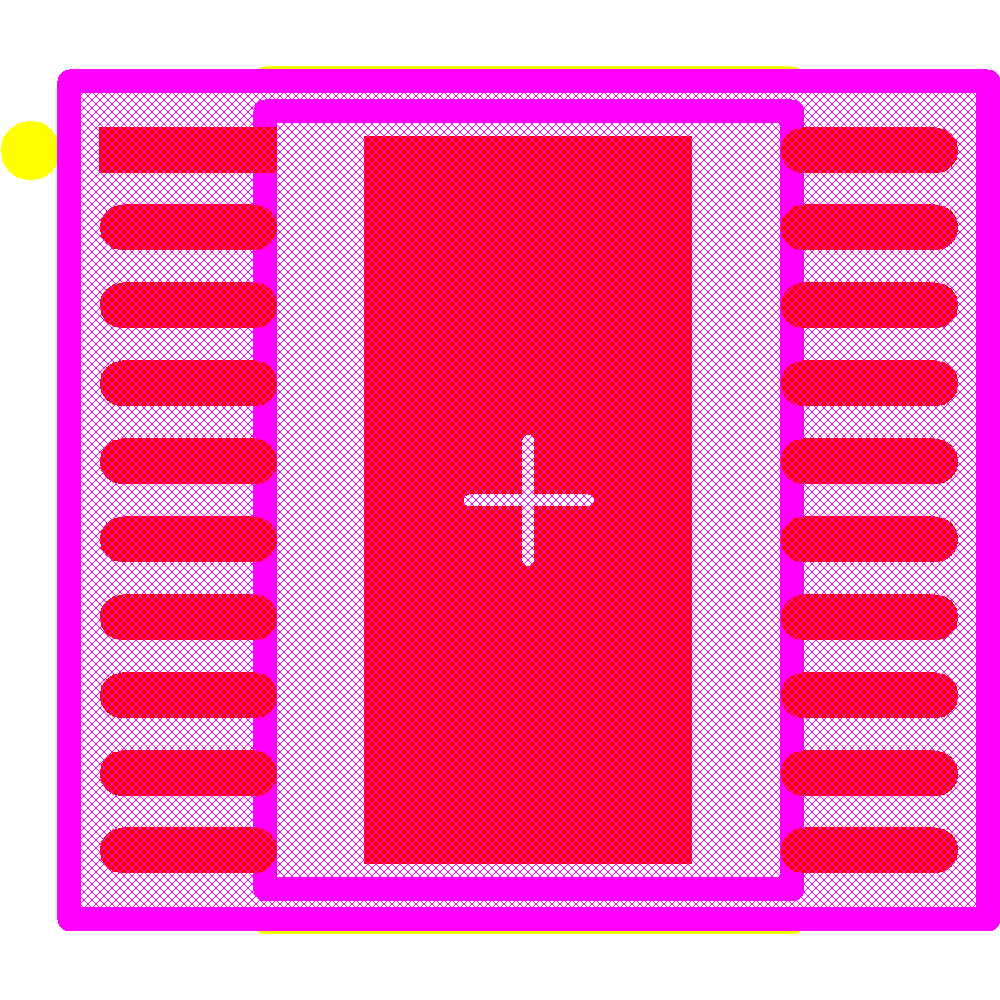

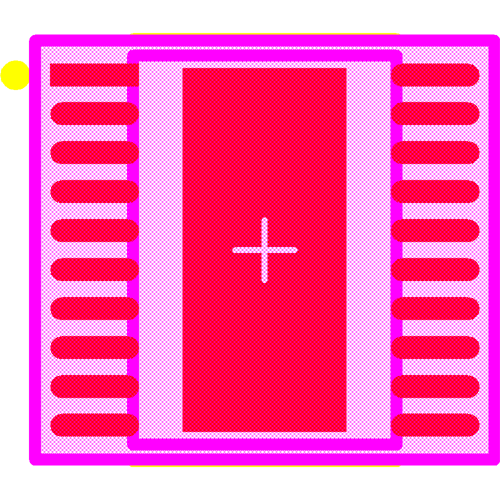

LTC3417EFE#PBF Footprint - Analog Devices
