LTC3453EUF#PBF - Analog Devices
Tube LTC3453 Step-Down (Buck) Step-Up (Boost) Surface Mount led driver 0.8mm 125mA 3.6V 1MHz
Technical Details
| Case/Package | QFN |
| Efficiency | 90% |
| Frequency | 1.1MHz |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Nominal Supply Current | 1mA |
| Number of Outputs | 4 |
| Number of Pins | 16 |
| Number of Segments | 4 |
| Output Current | 500mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Switching Frequency | 1MHz |
| Termination | SMD/SMT |
| Topology | Buck-Boost |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

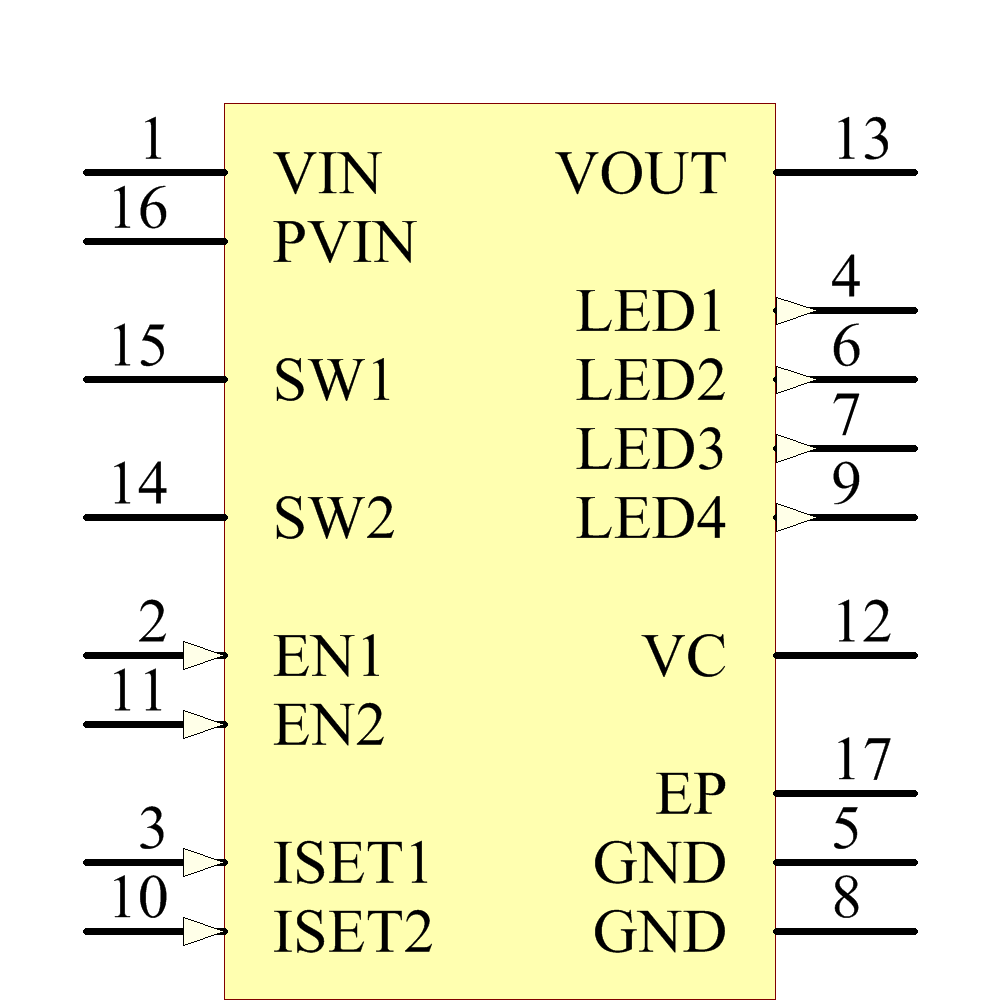

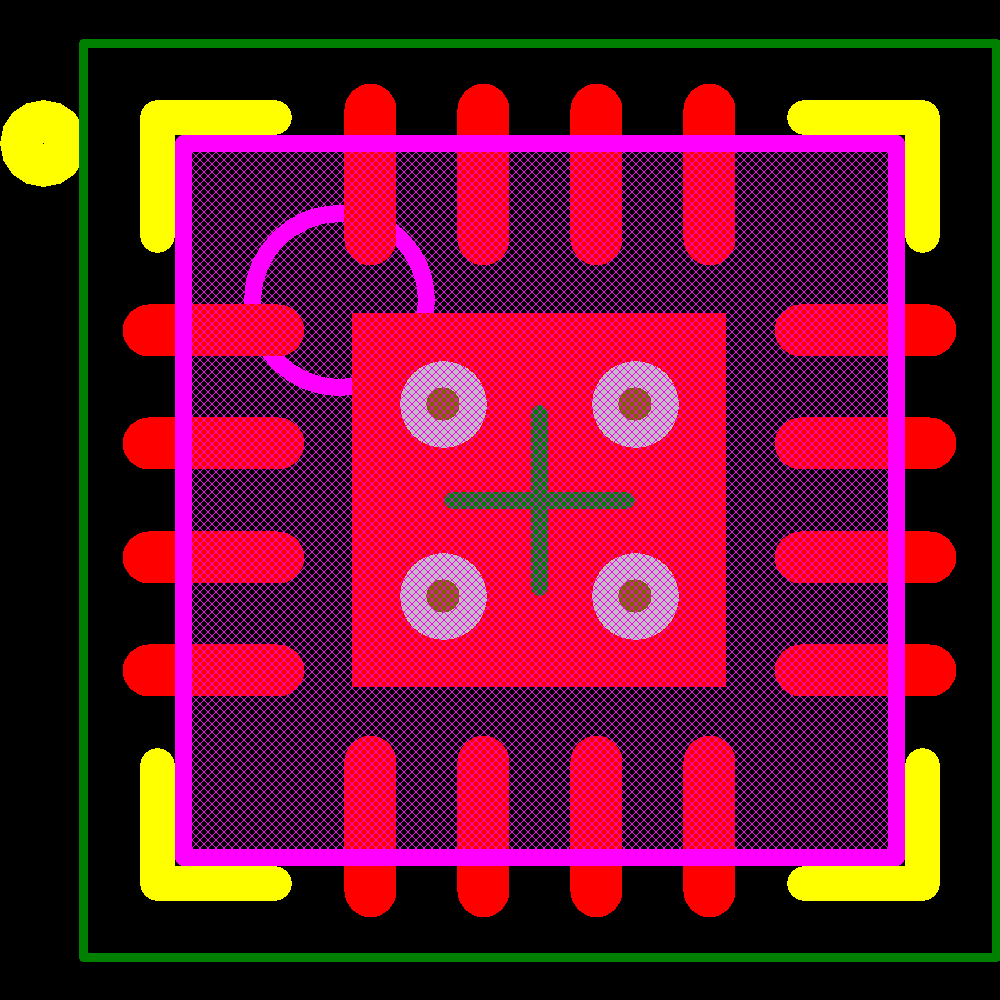

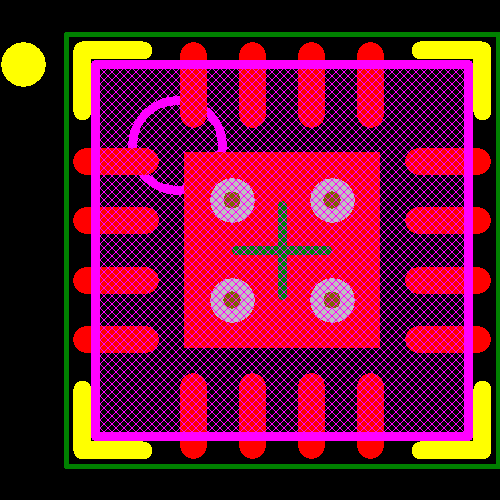

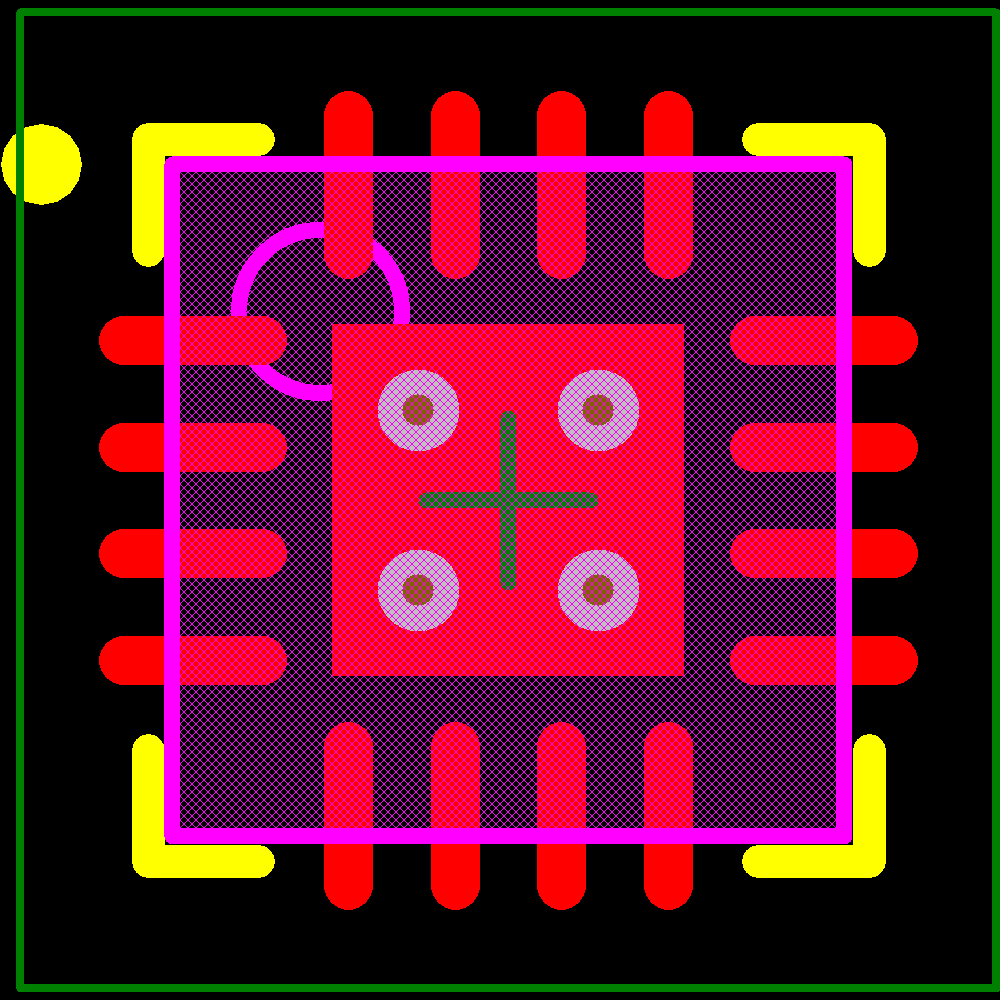

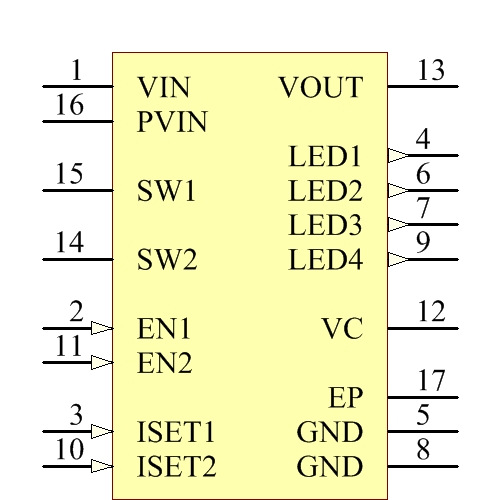

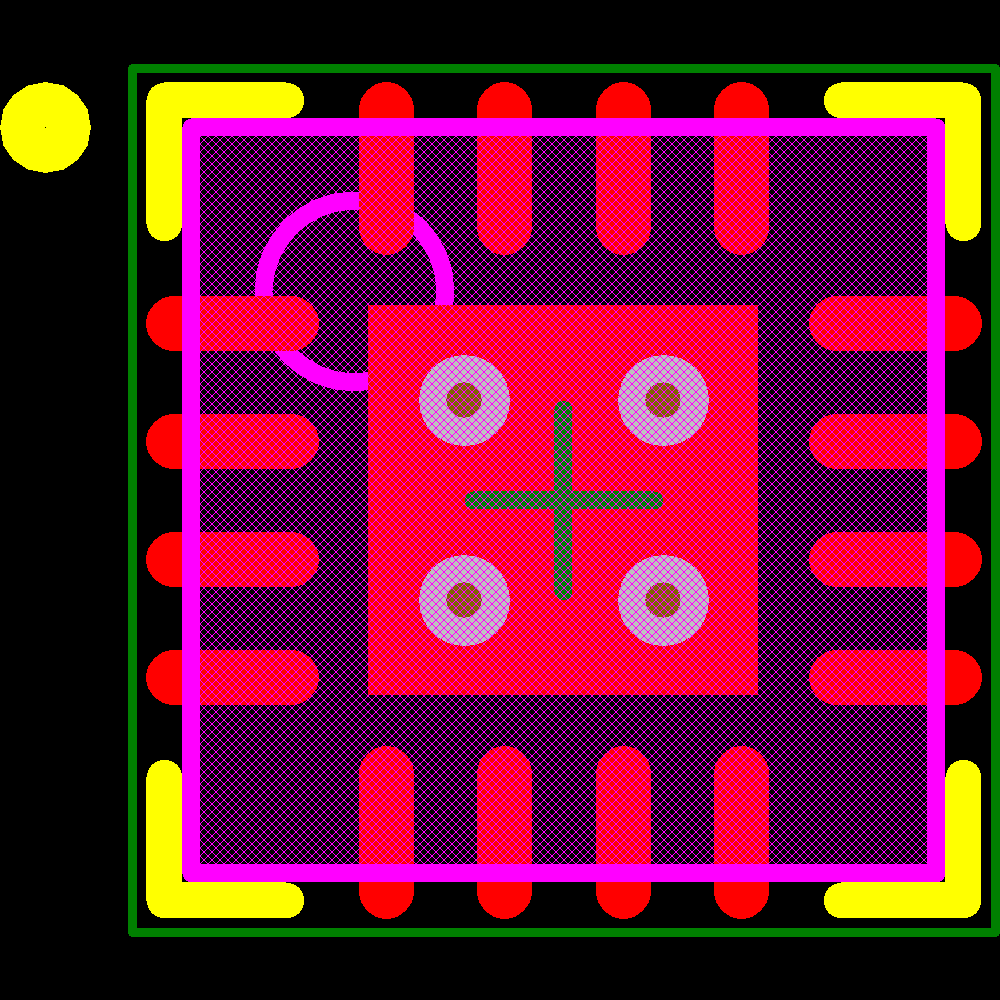

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices / Linear Technology | Unknown | ||
| Semtech | Obsolete | ||
| Texas Instruments | Production | ||
| Analog Devices | EOL | ||
| onsemi | EOL | ||
| onsemi | Obsolete | ||
| Renesas | Production | ||
| Renesas | Obsolete | ||
| Renesas | Production | ||
| Renesas | Obsolete |
