LTC3646EDE-1#TRPBF - Analog Devices
IC REG BUCK ADJ 1A 14DFN Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1A 14-WFDFN Exposed Pad
Technical Details
| Case/Package | DFN |
| Efficiency | 95% |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Operating Temperature | 85°C |
| Min Input Voltage | 4V |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 15V |
| Packaging | Tape and Reel |
| RoHS | Compliant |
| Switching Frequency | 3MHz |
| Synchronous Rectifier | Yes |
Compliance
RoHS : Unconfirmed

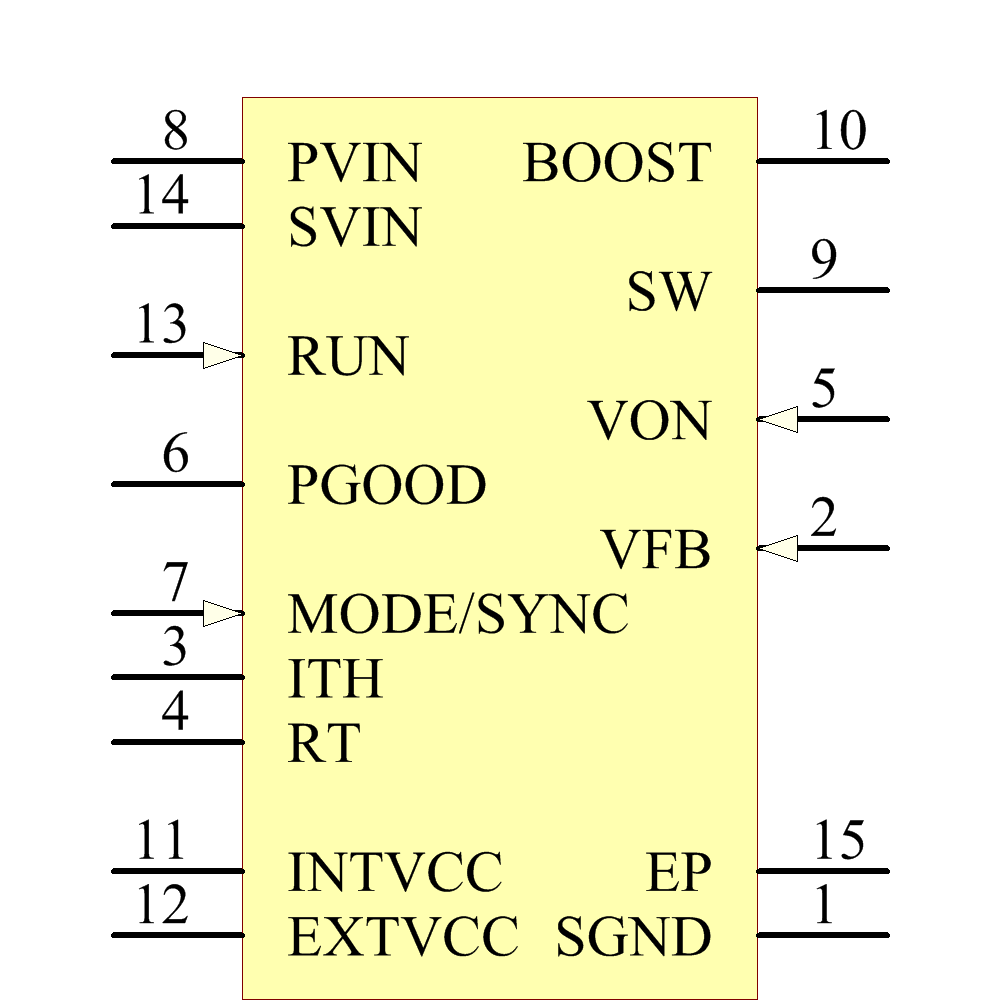

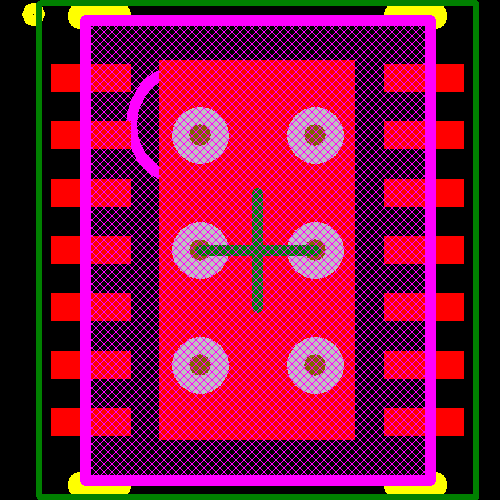

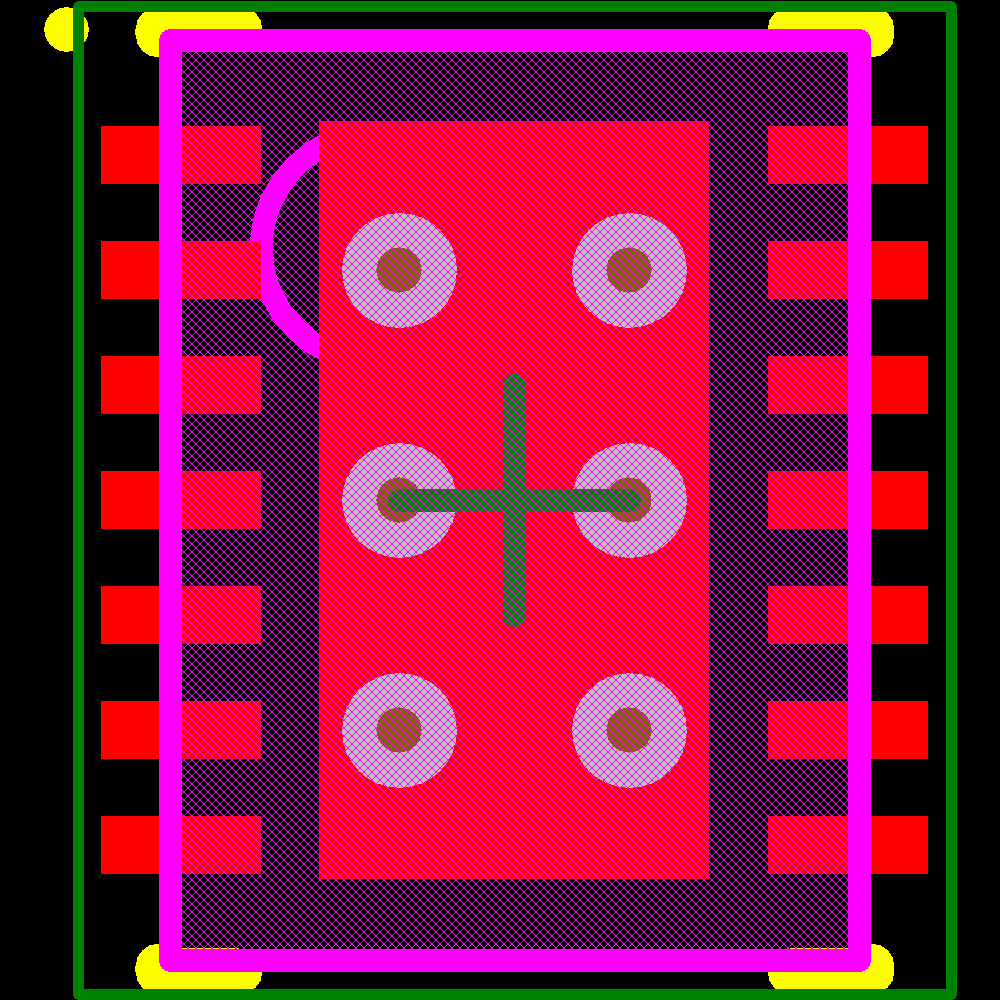

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Richtek | Production | ||
| Richtek | Obsolete | ||
| Analog Devices | Obsolete | ||
| Richtek | Obsolete | ||
| Richtek | Production | ||
| Richtek | Obsolete | ||
| Monolithic Power Systems | Production | ||
| Richtek | Production | ||
| Richtek | Obsolete | ||
| Richtek | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Analog Devices |
US: 0
|
$ | 3.93 | |||||||
| DigiKey |
DE: 0
|
$ | 5.5549 | |||||||
| Richardson RFPD |
US: -3
|
$ | 5.21 | |||||||
| Arrow Electronics |
US: 0
|
$ | 4.913 | |||||||
