LTC3853IUJ#PBF - Analog Devices
IC REG CTRLR BUCK 40QFN Buck Regulator Positive Output Step-Down DC-DC Controller IC 40-QFN (6x6)
Technical Details
| Case/Package | QFN |
| Duty Cycle | 98% |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Frequency | 830kHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 24V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Number of Channels | 1 |
| Number of Outputs | 3 |
| Number of Pins | 40 |
| Output Current | 25A |
| Output Voltage | 13.5V |
| Packaging | Cut Tape |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 830kHz |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

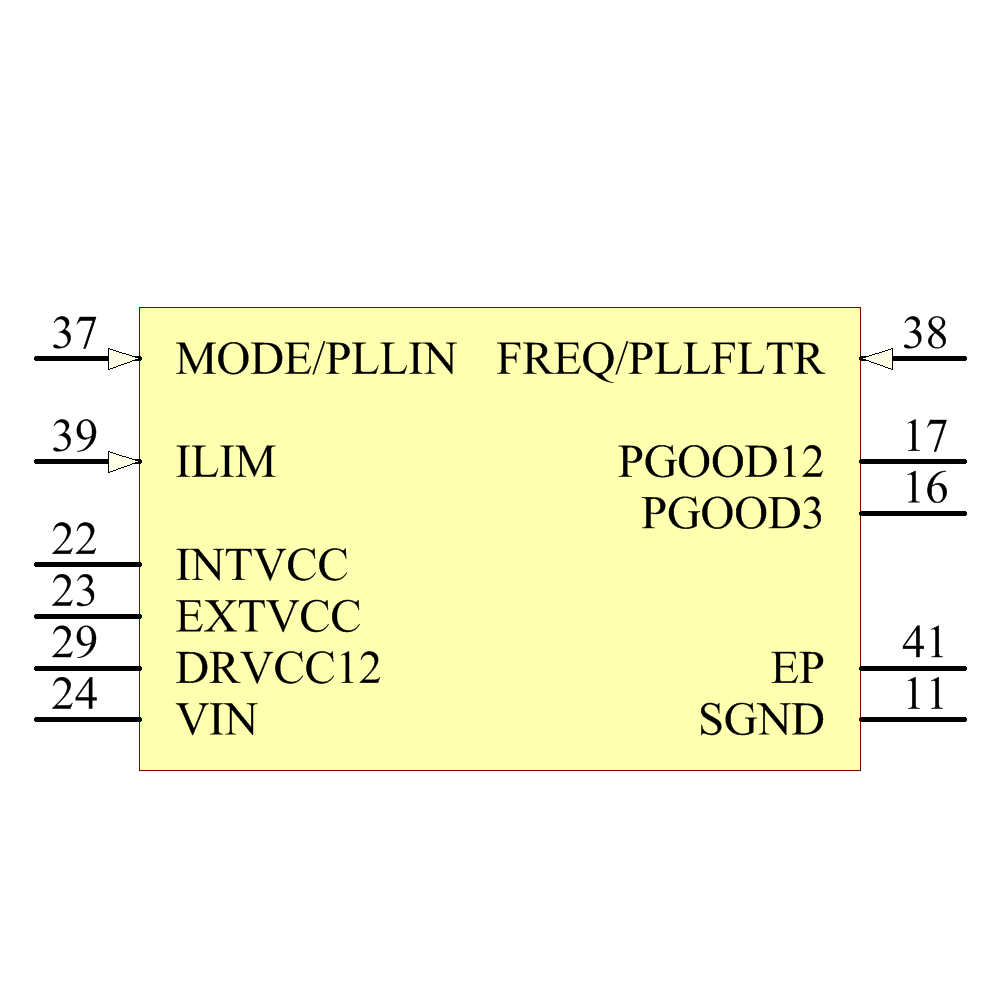

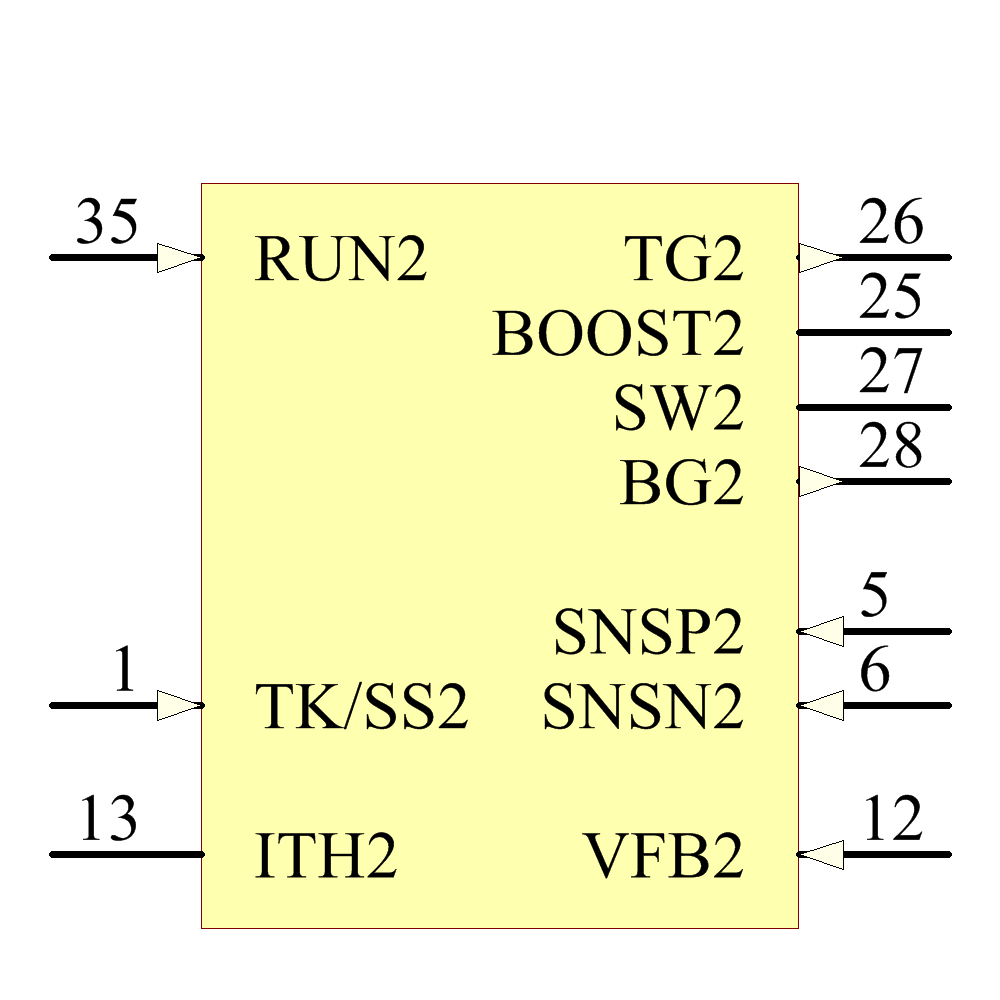

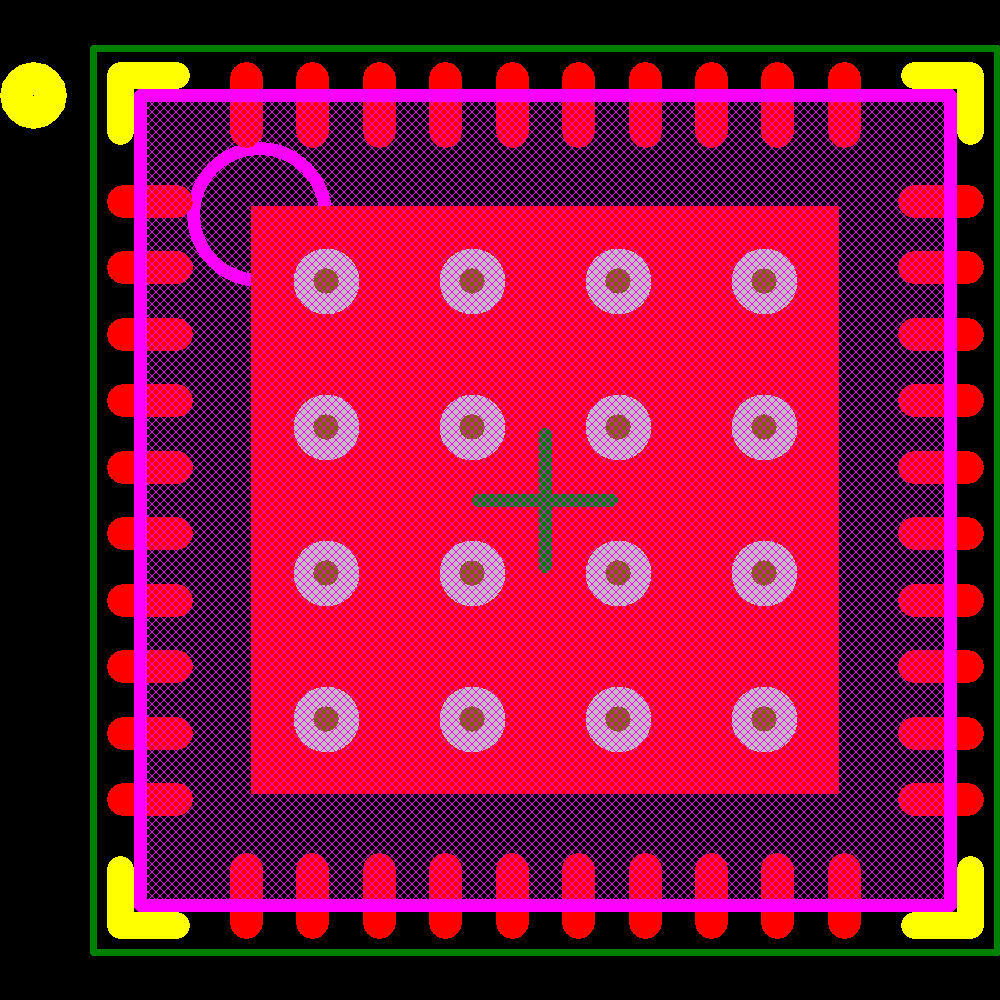

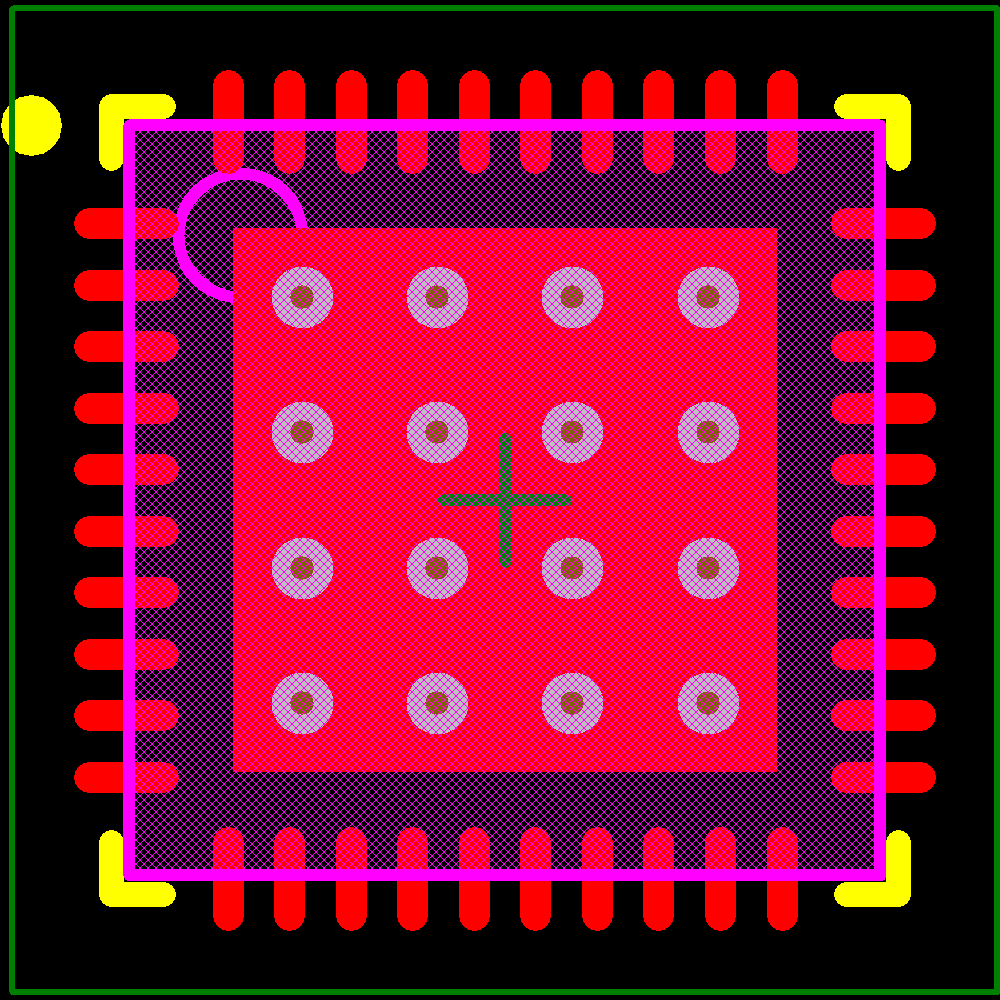

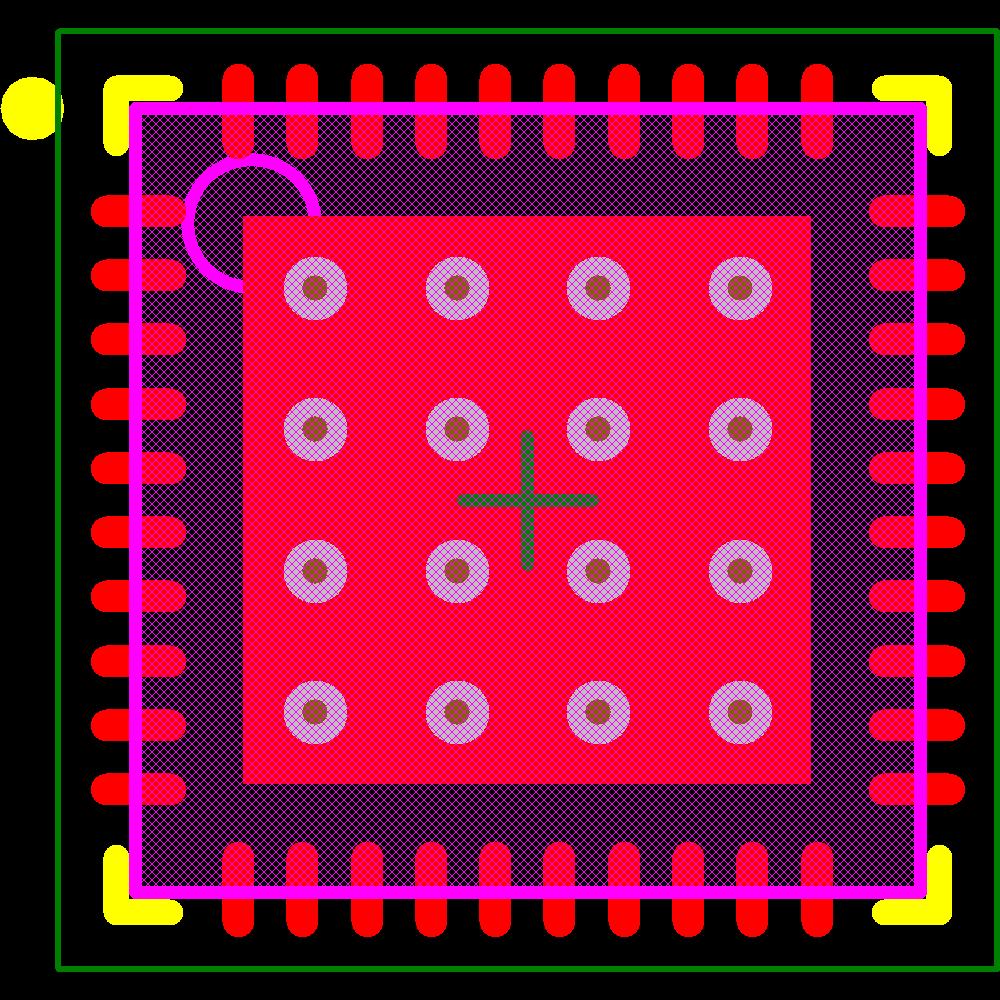

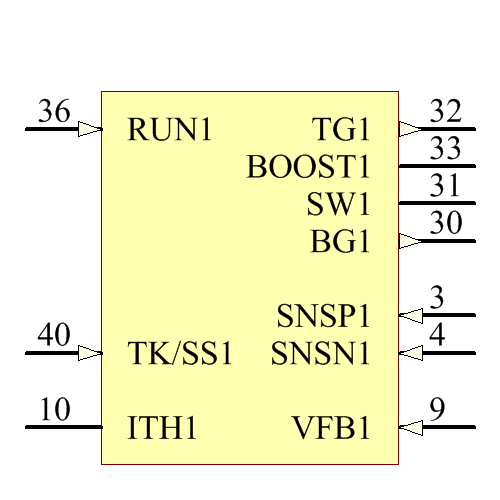

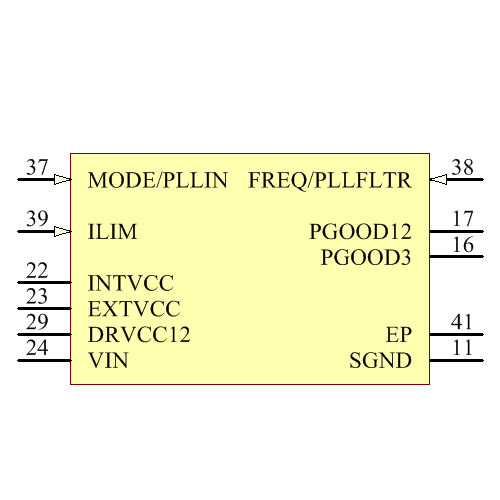

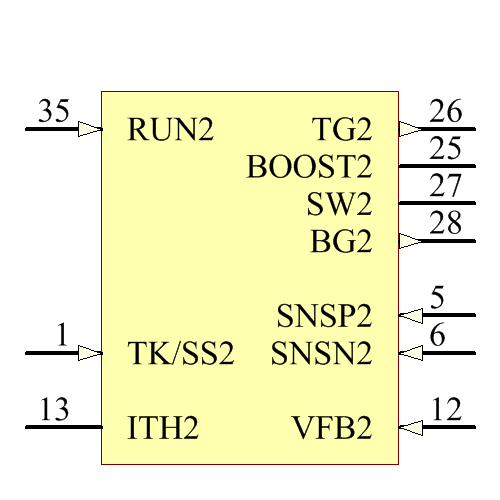

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
