LTC4441EMSE#PBF - Analog Devices
IC GATE DRVR LOW-SIDE 10MSOP Low-Side Gate Driver IC Non-Inverting 10-MSOP-EP
Technical Details
| Case/Package | MSOP |
| Fall Time | 8ns |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Operating Temperature | 85°C |
| Max Output Current | 6A |
| Max Supply Voltage | 25V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 5V |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Number of Pins | 10 |
| Output Current | 100mA |
| Propagation Delay | 36ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| Rise Time | 13ns |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Turn-On Delay Time | 36ns |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

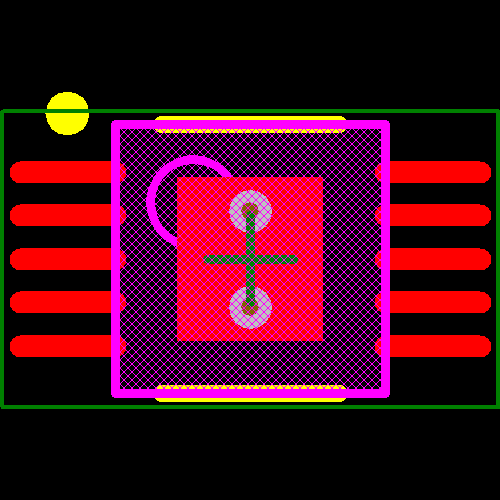

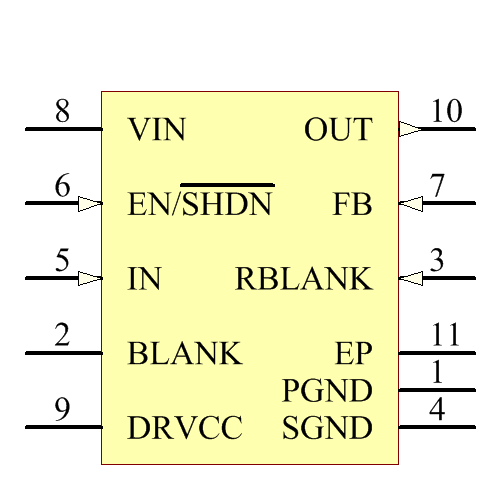

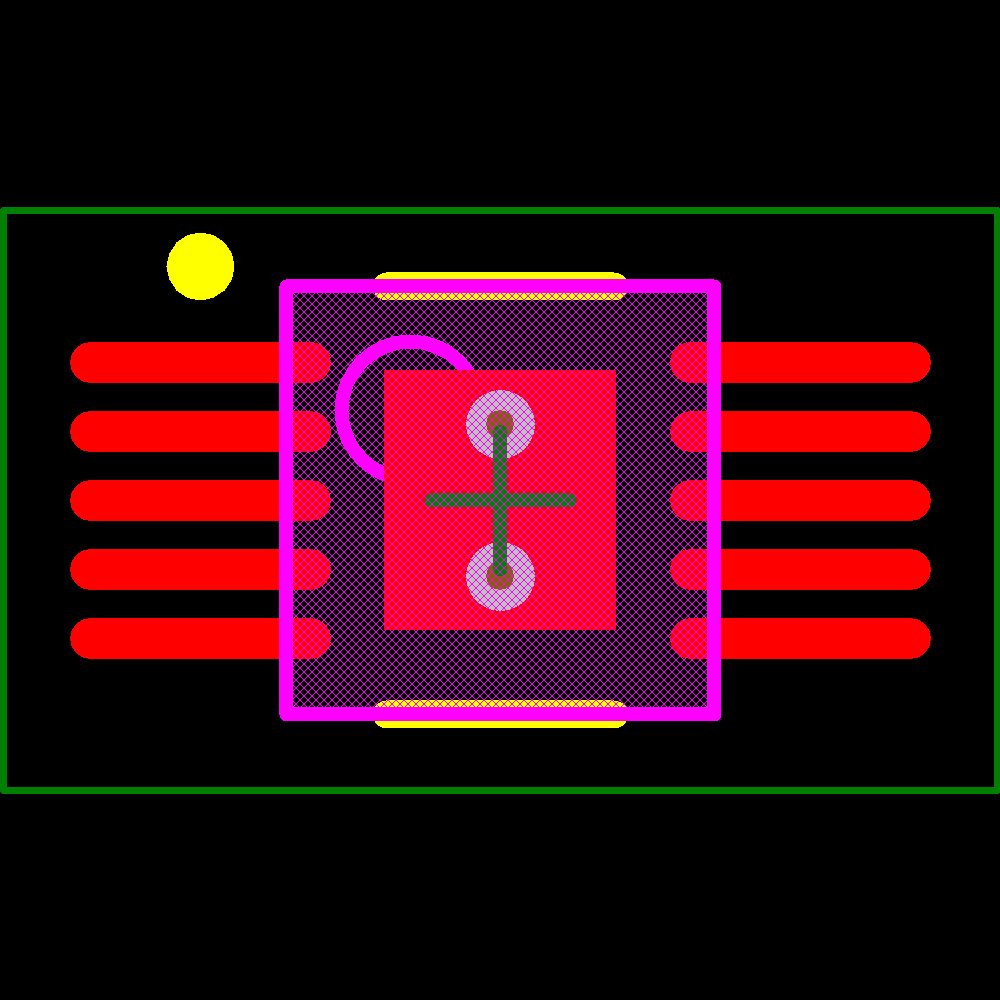

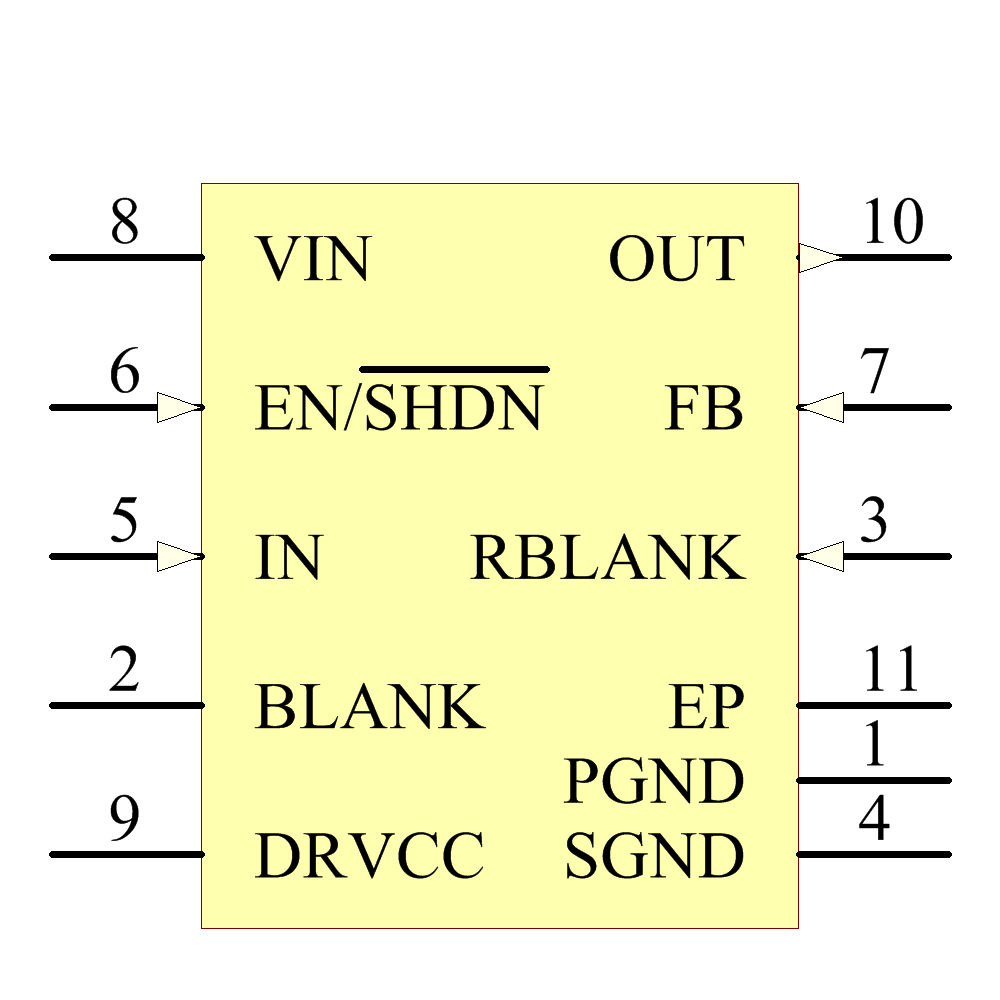

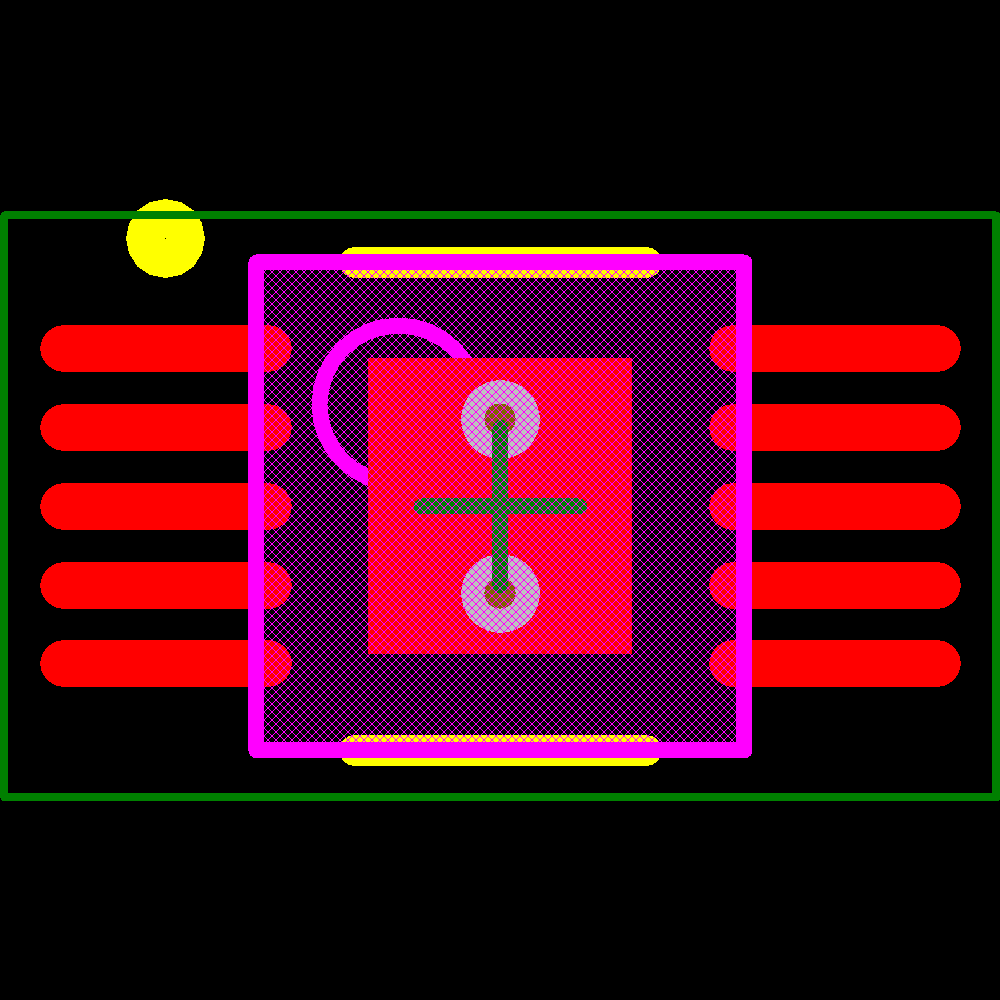

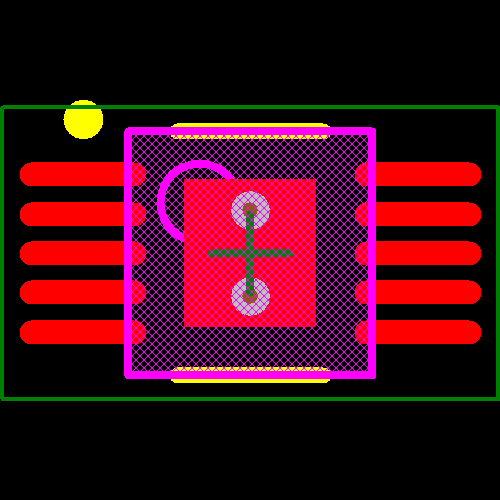

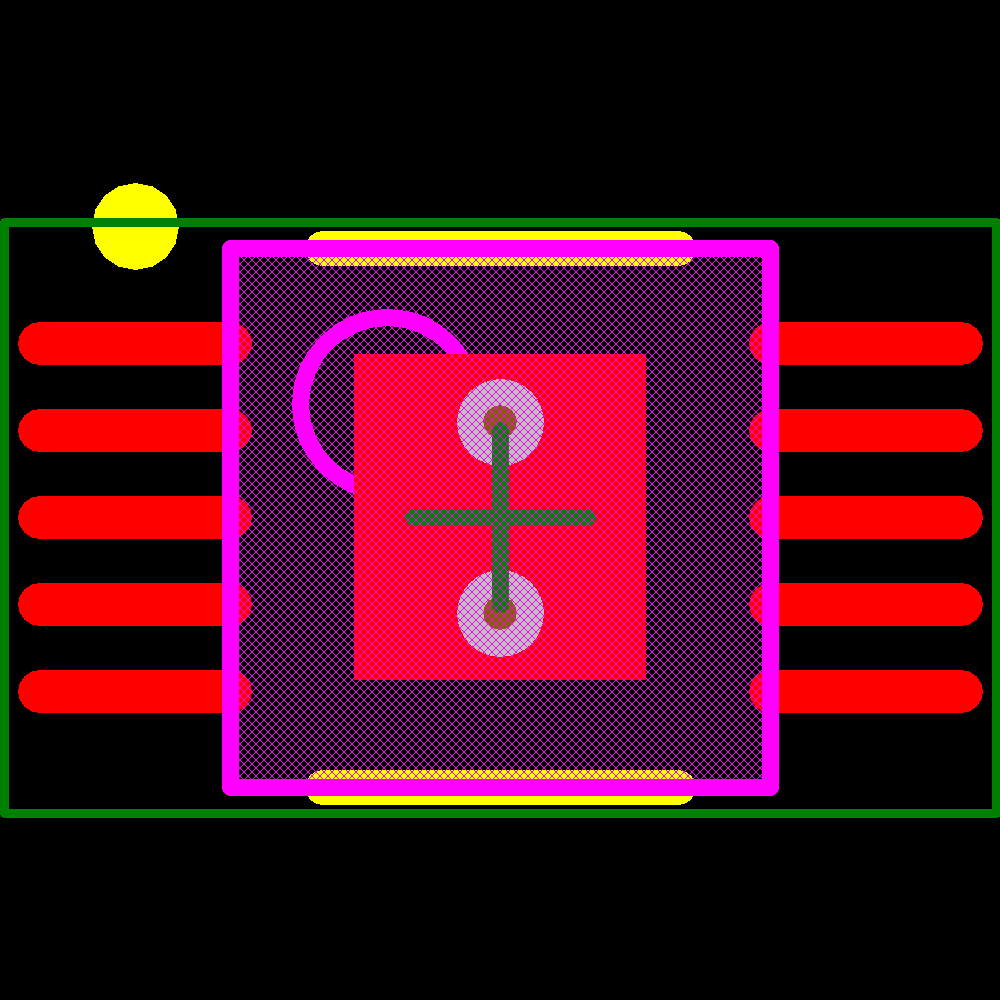

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | EOL | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices / Linear Technology | Unknown |
