Analog Devices - LTC691CSW#PBF

LTC691CSW#PBF - Analog Devices

IC SUPERVISOR 1 CHANNEL 16SOIC Supervisor Open Drain or Open Collector 1 Channel 16-SO

 Datasheets

Technical Details

Frequency 250MHz
Height 2.34mm
Lead Free Lead Free
Length 10.49mm
Lifecycle Status Production
Manufacturer Lifecycle Status PRODUCTION
Max Operating Temperature 70°C
Max Power Dissipation 500mW
Max Reset Threshold Voltage 4.75V
Max Supply Current 1.5mA
Max Supply Voltage 5.5V
Min Operating Temperature 0°C
Min Reset Threshold Voltage 4.5V
Min Supply Voltage 4.75V
Nominal Supply Current 1.5mA
Number of Elements 1
Number of Pins 16
Number of Voltages Monitored 1
Power Dissipation 500mW
Radiation Hardening No
REACH SVHC No
Reset Active High/Active Low
Reset Timeout 35ms
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|85
Threshold Voltage 4.65V
Type Simple Reset/Power-On Reset
Watchdog Timer Yes
Width 7.6mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

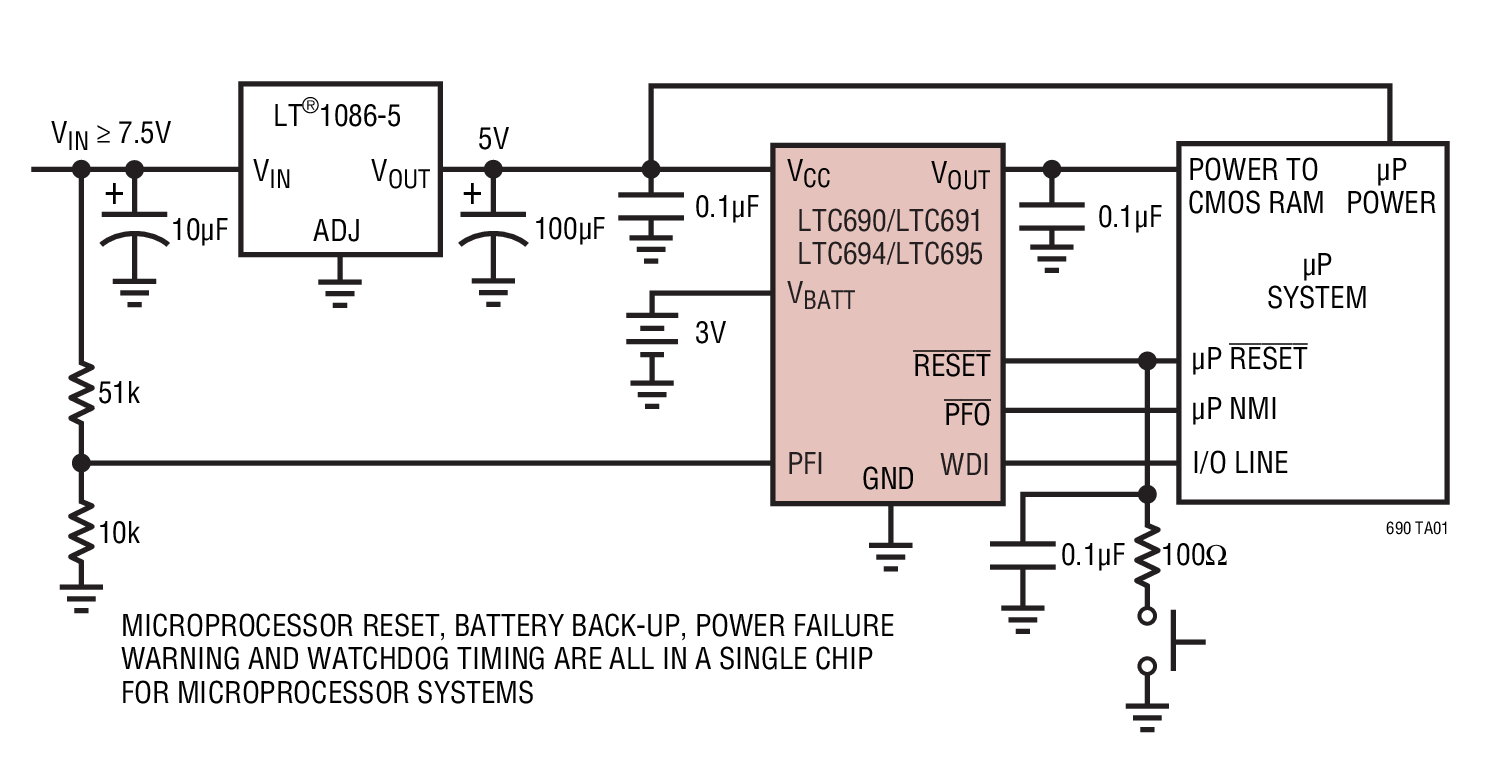

Images

Analog Devices LTC691CSW#PBF | Analog Devices

Analog Devices

Datasheets

 Farnell
 Analog Devices
 Rochester Electronics

Lifecycle Status Indicator

   Production

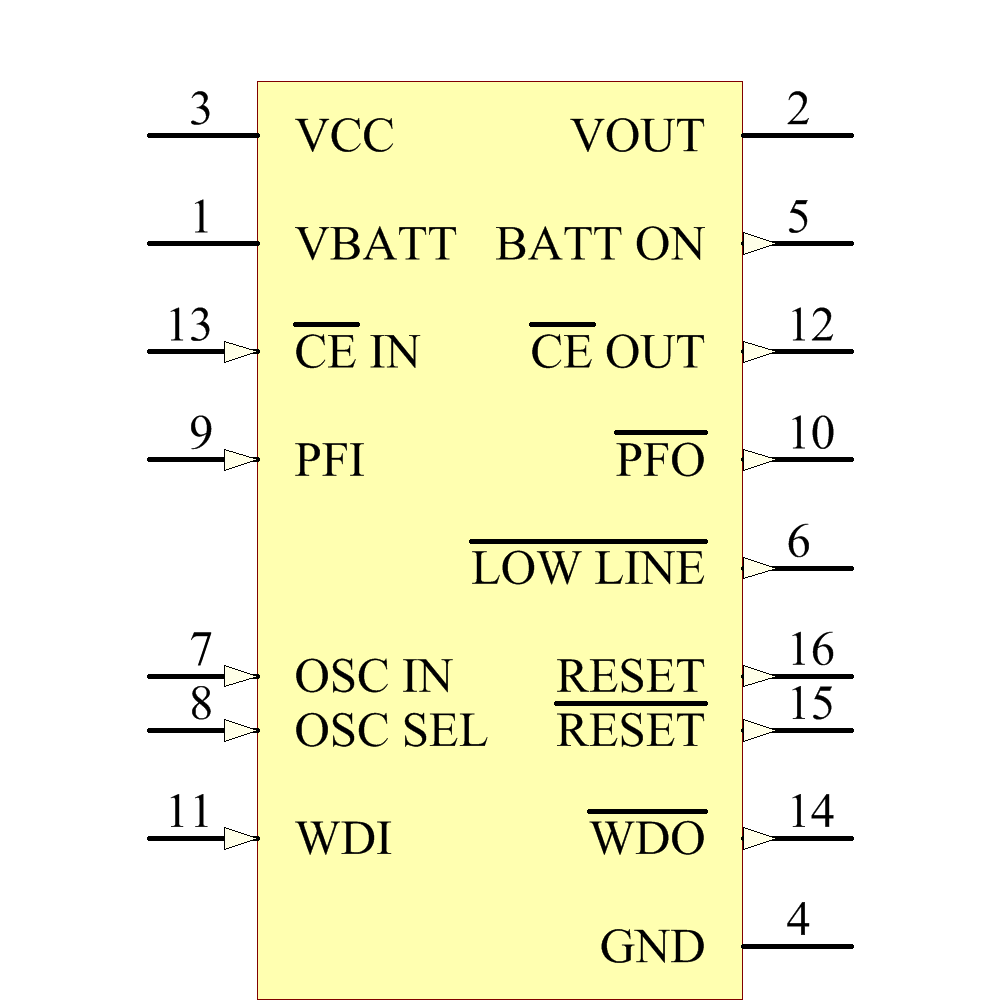

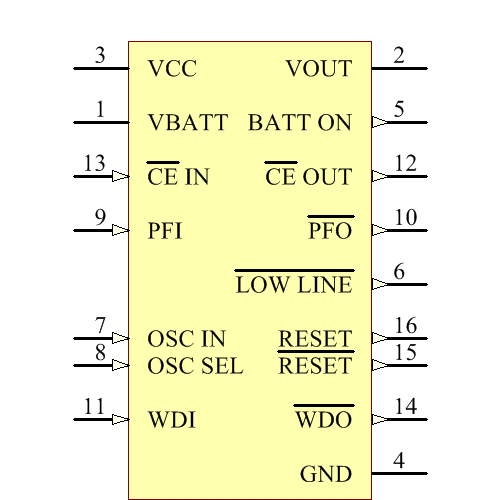

Symbol

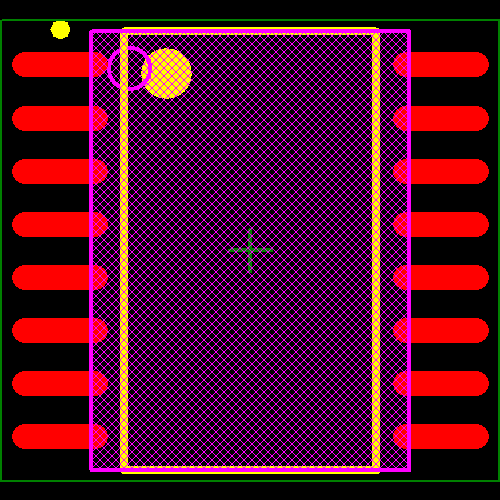

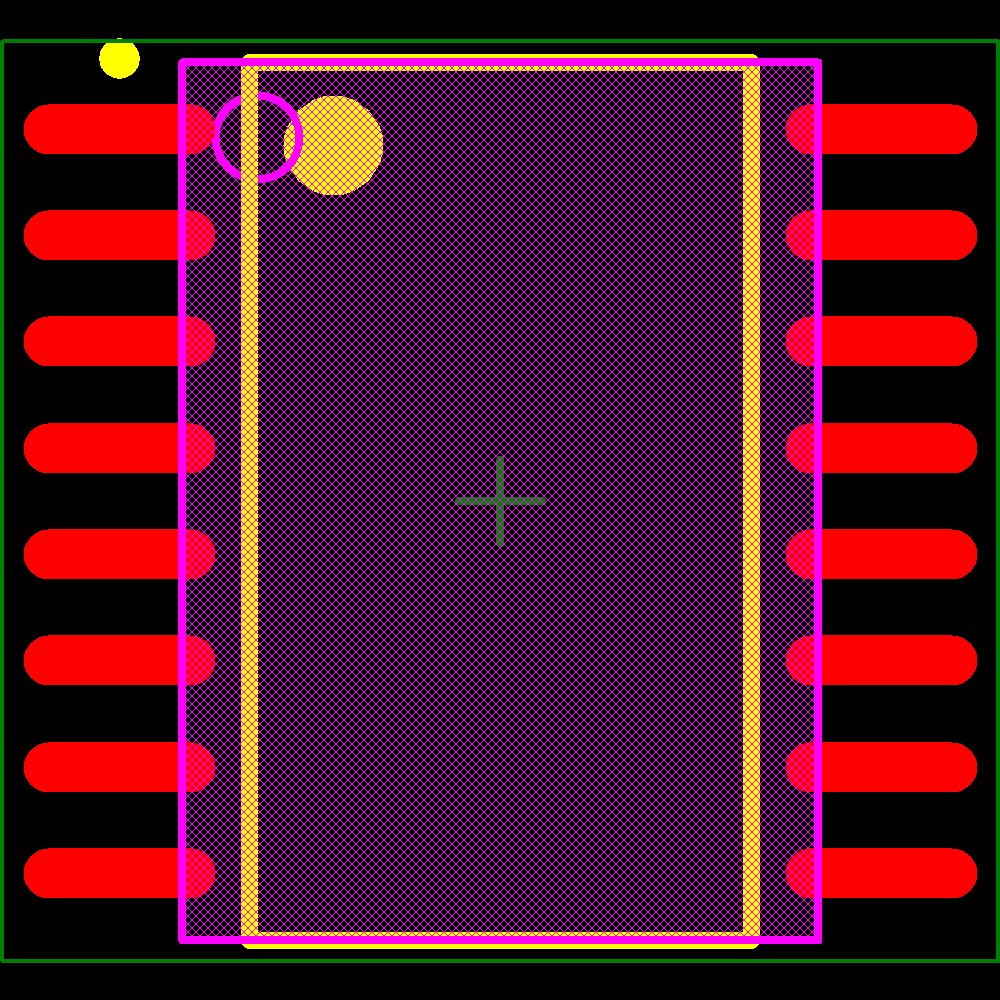

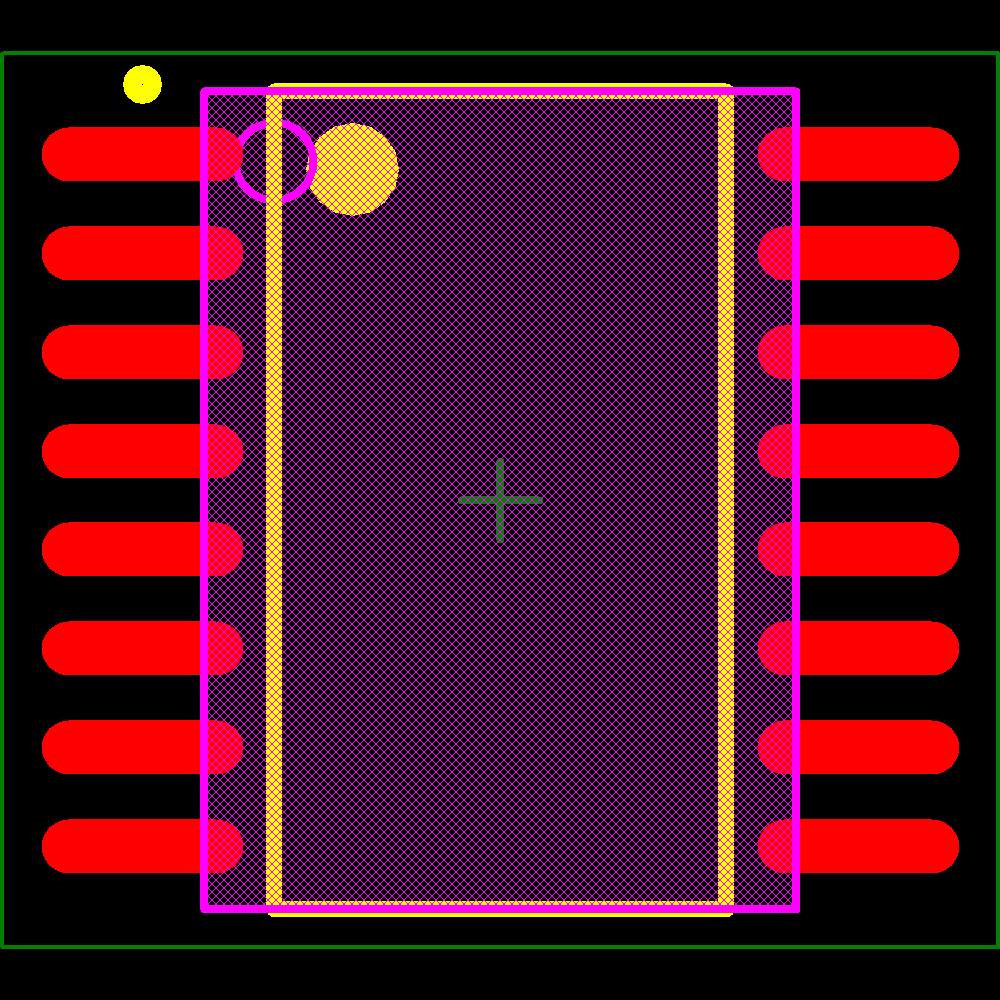

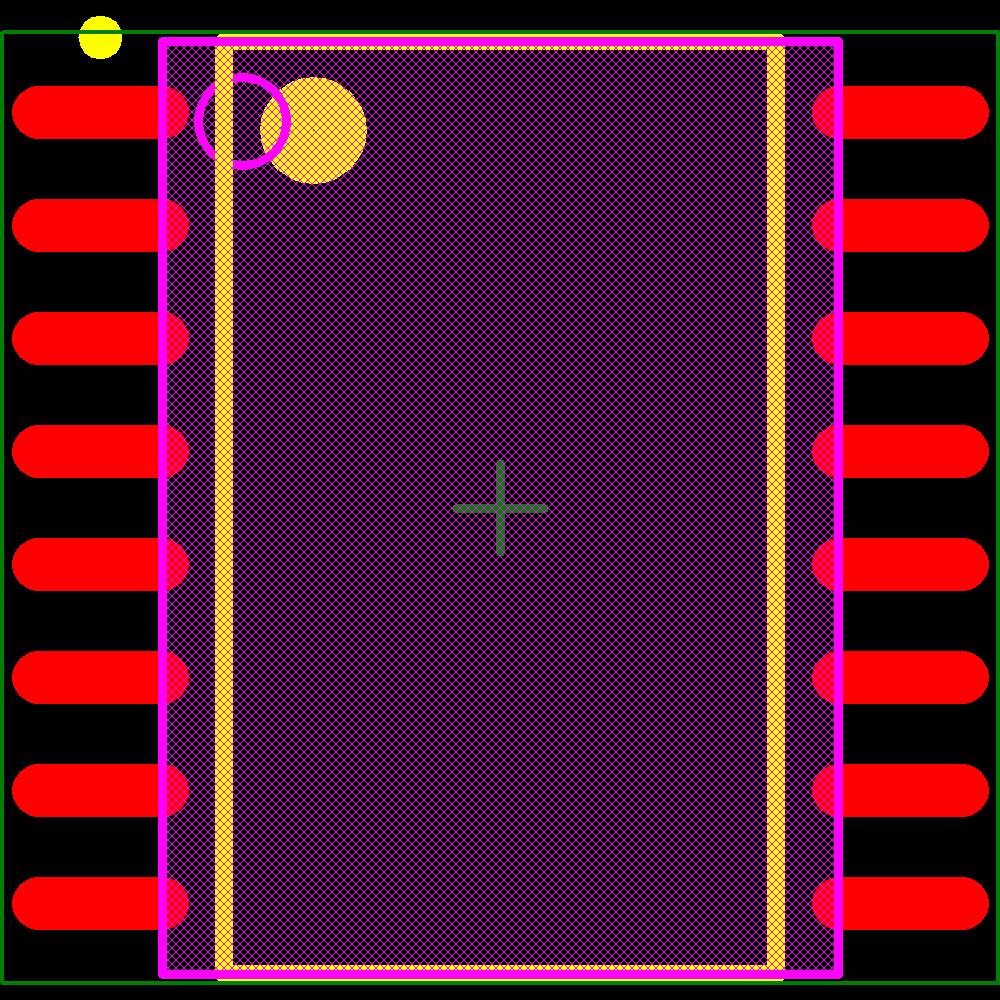

Footprint
