LTC695ISW#TRPBF - Analog Devices
IC SUPERVISOR 1 CHANNEL 16SOIC Supervisor Open Drain or Open Collector 1 Channel 16-SO
Technical Details
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Operating Temperature | 85°C |
| Max Reset Threshold Voltage | 4.75V |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 4.5V |
| Min Supply Voltage | 4.75V |
| Nominal Supply Current | 1.5mA |
| Number of Elements | 1 |
| Number of Pins | 16 |
| Number of Voltages Monitored | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Reset | Active High/Active Low |
| Reset Timeout | 140ms |
| RoHS | Compliant |
| Threshold Voltage | 4.65V |
| Type | Simple Reset/Power-On Reset |
| Watchdog Timer | Yes |
Compliance
RoHS : Unconfirmed

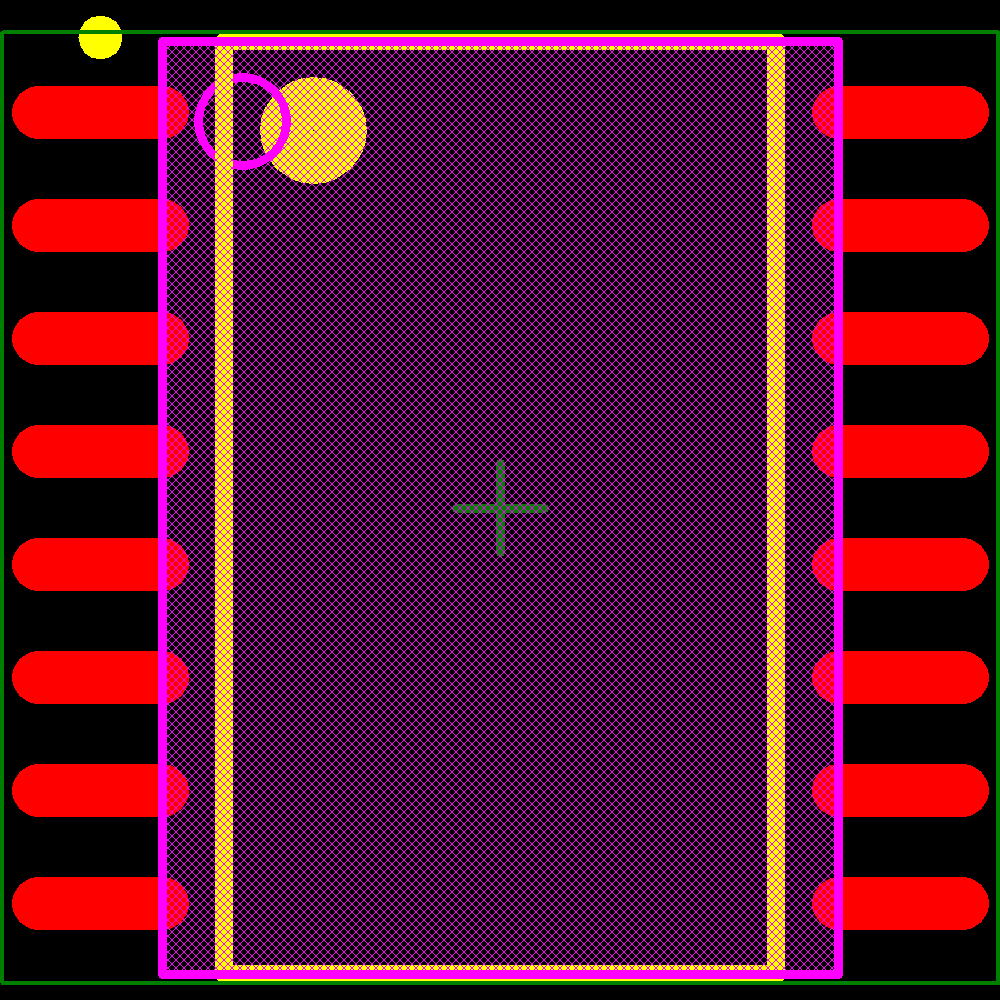

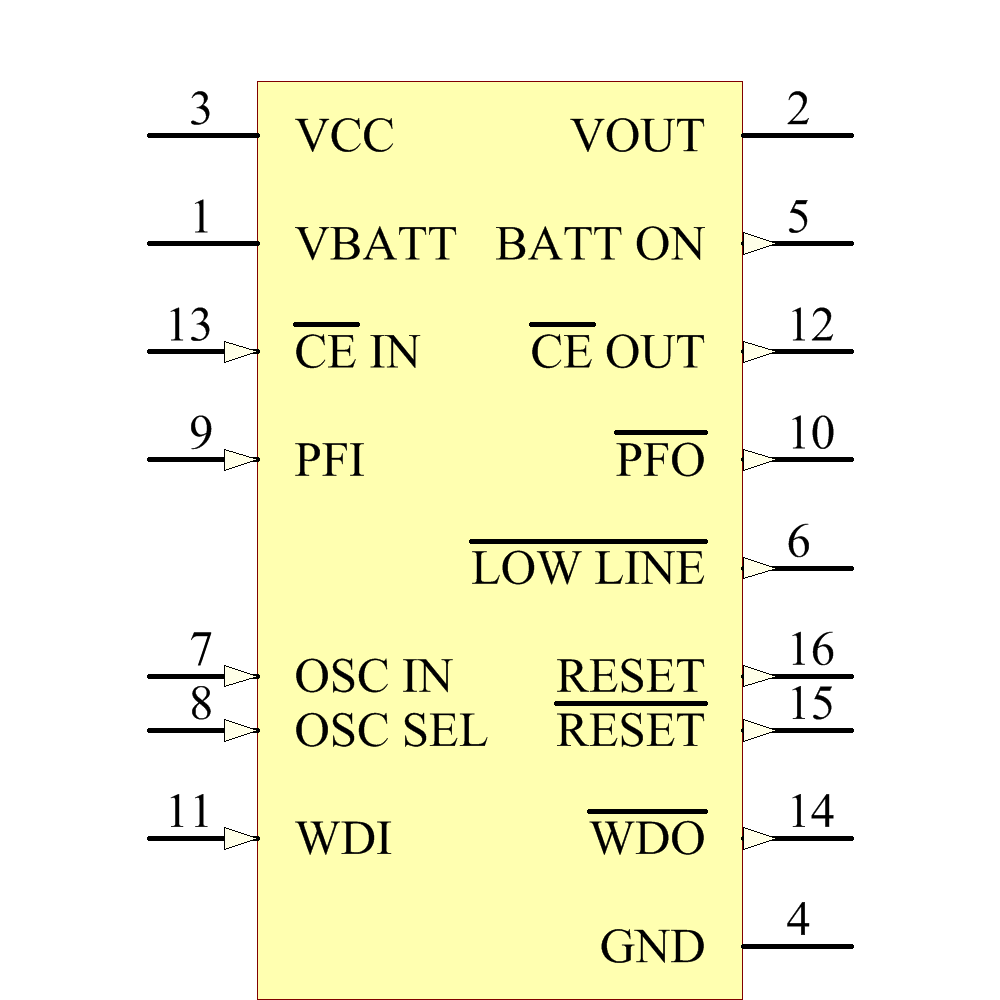

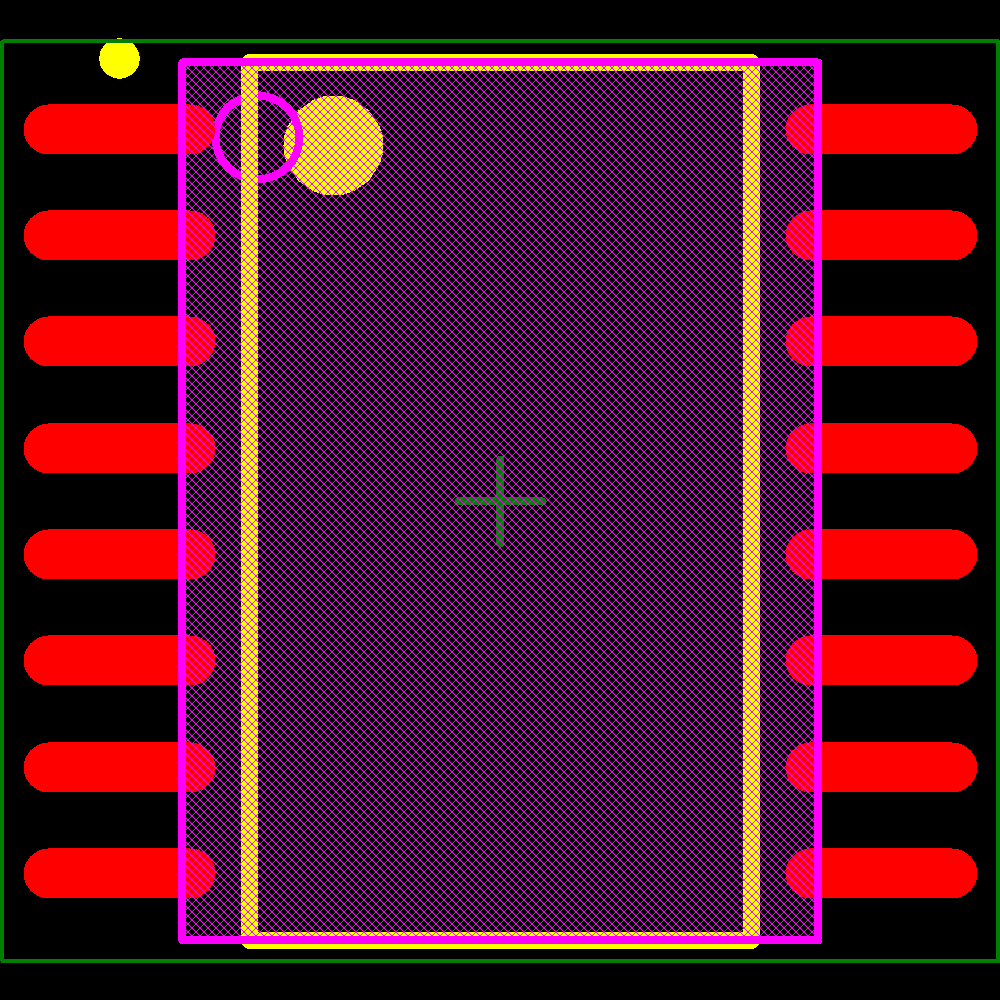

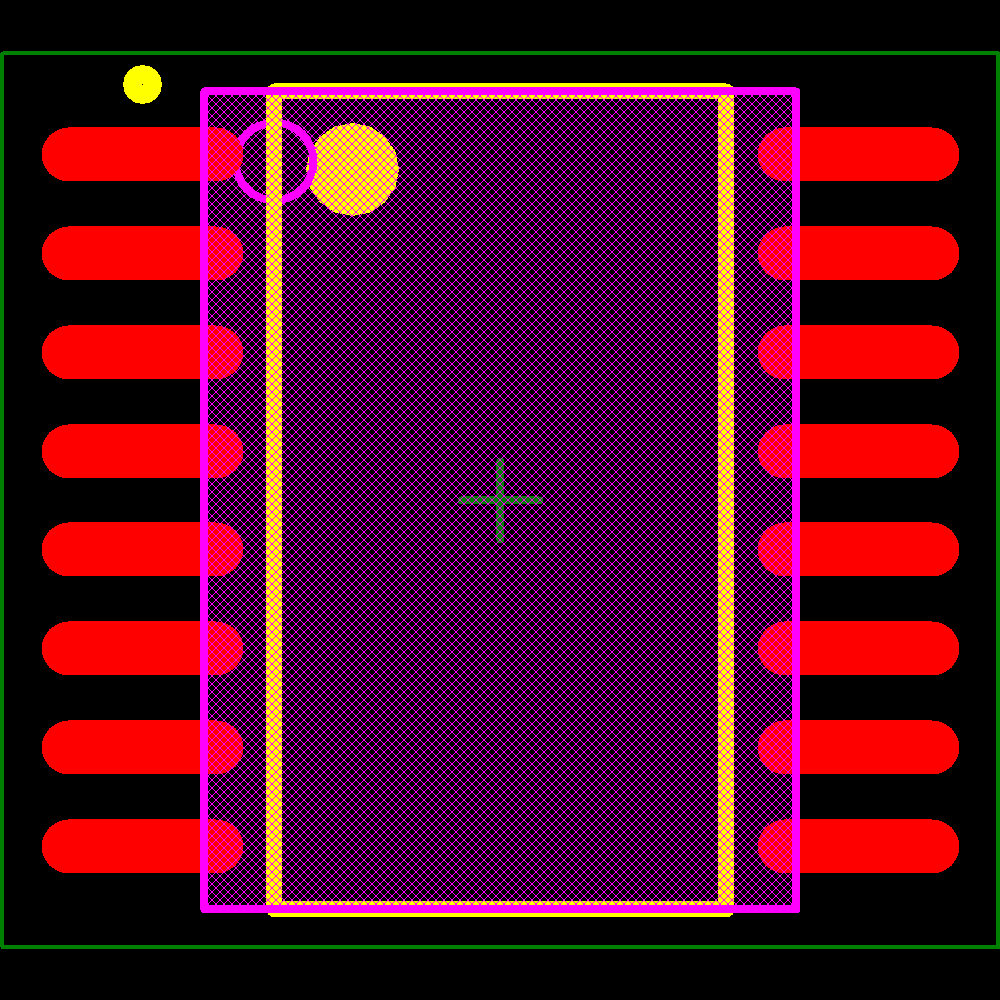

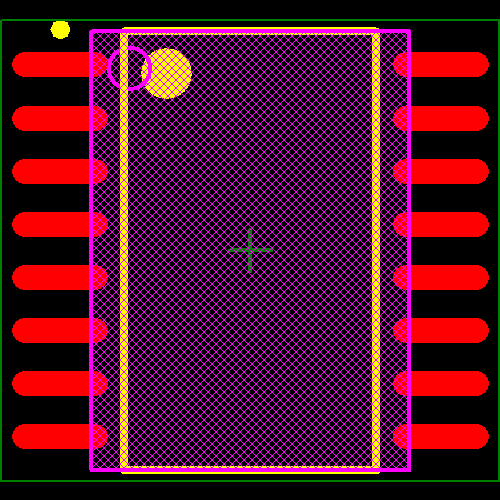

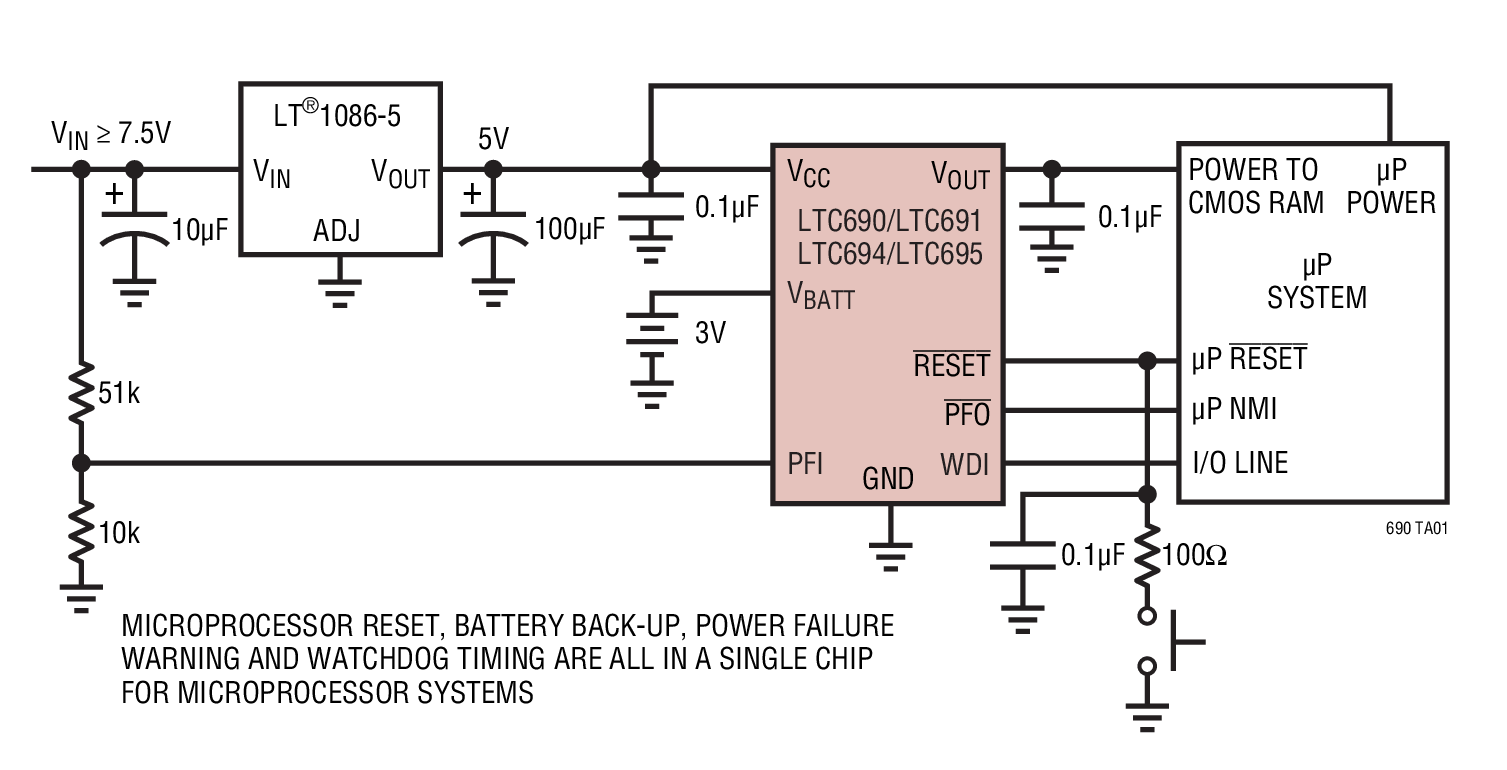

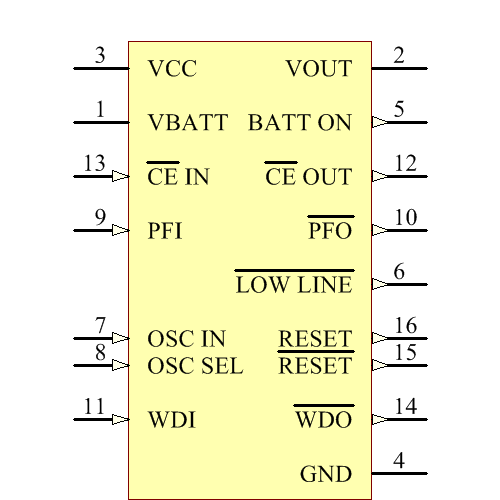

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Analog Devices |
US: 0
|
$ | 10.01 | 10.01 | ||||||
| DigiKey |
DE: 0
|
$ | 11.6671 | 11.6671 | ||||||
| Richardson RFPD |
US: -3
|
$ | 10.83 | 10.83 | ||||||
| Arrow Electronics |
US: 0
|
$ | 10.213 | 10.213 | ||||||
