Integrated Circuits (ICs)  >  Power Management ICs  >  LED Drivers

Analog Devices - LTM8042EV-1#PBF

LTM8042EV-1#PBF - Analog Devices

LTM8042/LTM8042-1 - μModule (Power Module) Boost LED Driver and Current Source

 Datasheets

Technical Details

Case/Package LGA
Dimming Analog, PWM
Features OTP, SCP
Height 2.92mm
Length 14.986mm
Lifecycle Status Production
Manufacturer Lifecycle Status PRODUCTION
Max Input Voltage 30V
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 125°C
Max Output Current 350mA
Max Power Dissipation 11W
Max Supply Voltage 30V
Min Input Voltage 3V
Min Operating Temperature -40°C
Min Supply Voltage 3V
Number of Outputs 1
Number of Pins 77
Number of Segments 8
Operating Supply Current 4.2mA
Output Current 500mA
Output Voltage 32V
REACH SVHC No
RoHS Compliant
Switching Frequency 2MHz
Topology Boost, Buck, Buck-Boost
Weight 907.18474mg
Width 8.89mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : No

Images

Datasheets

 Analog Devices
 DigiKey
 Mouser

Lifecycle Status Indicator

   Production

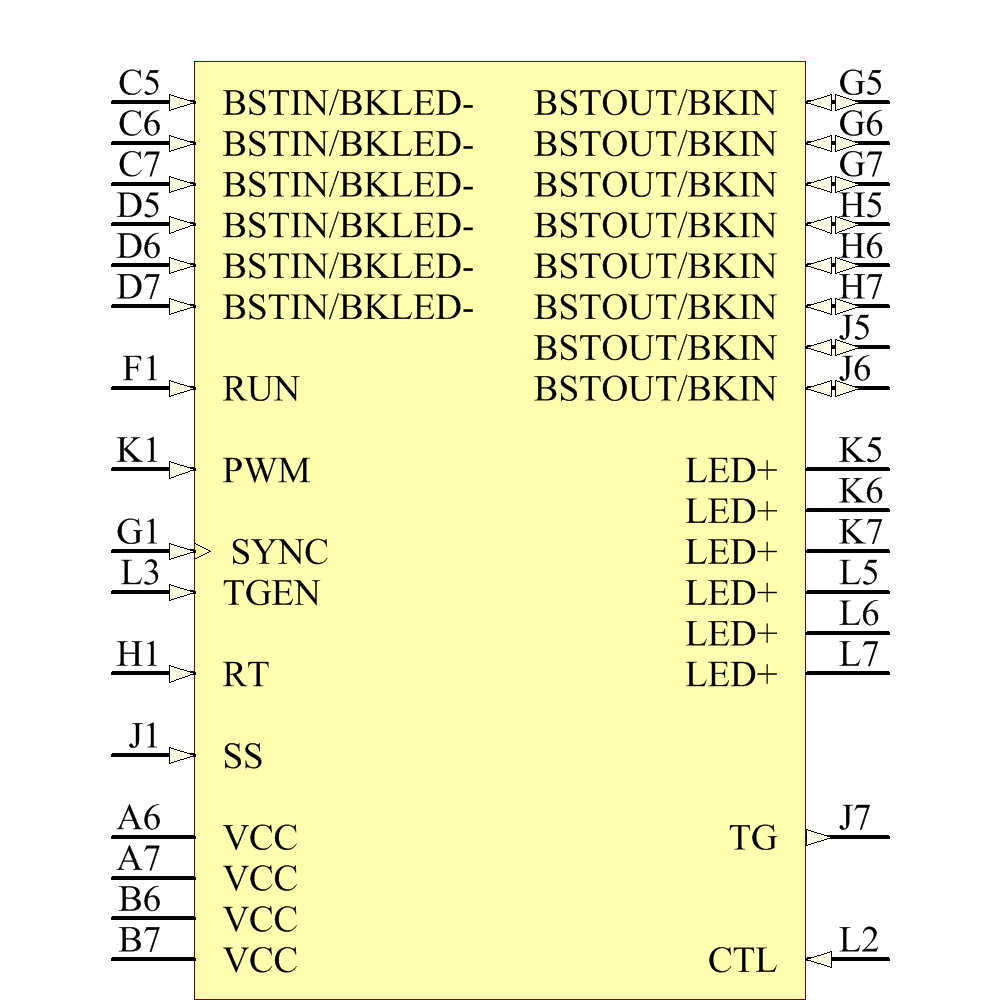

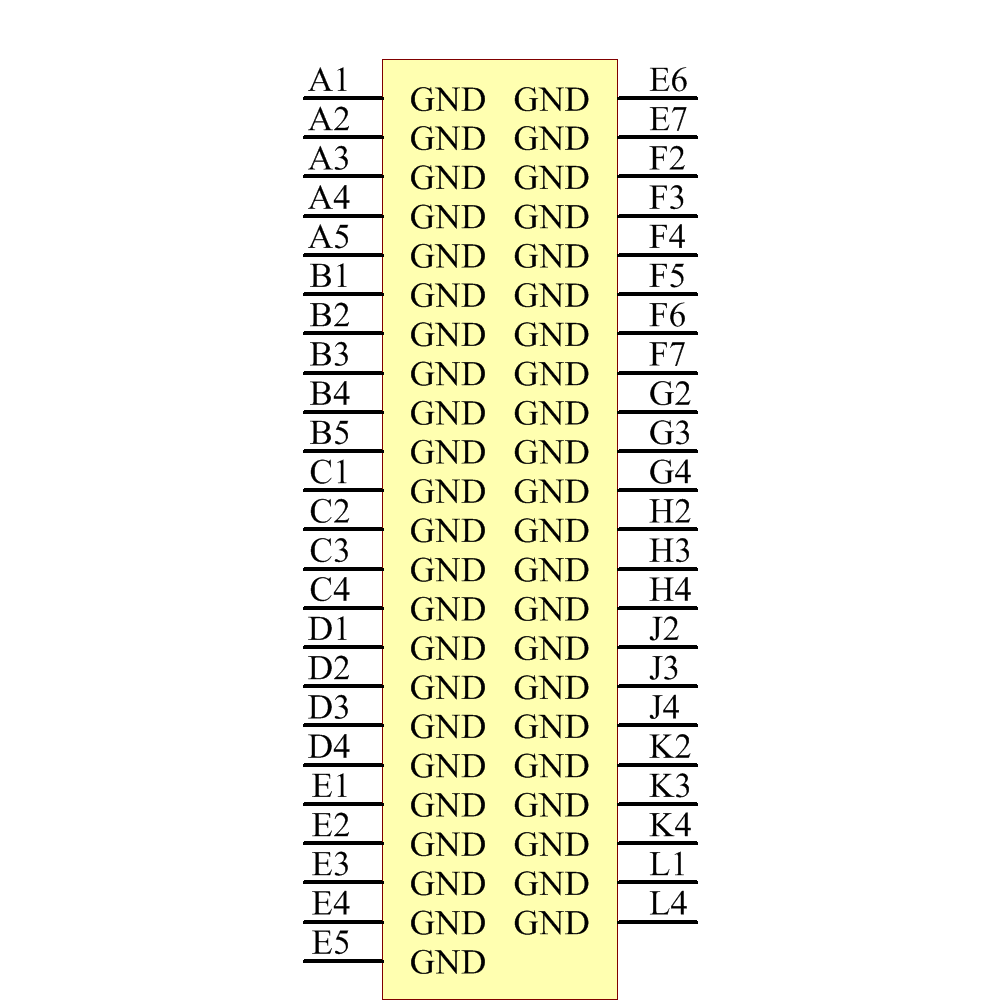

Symbol

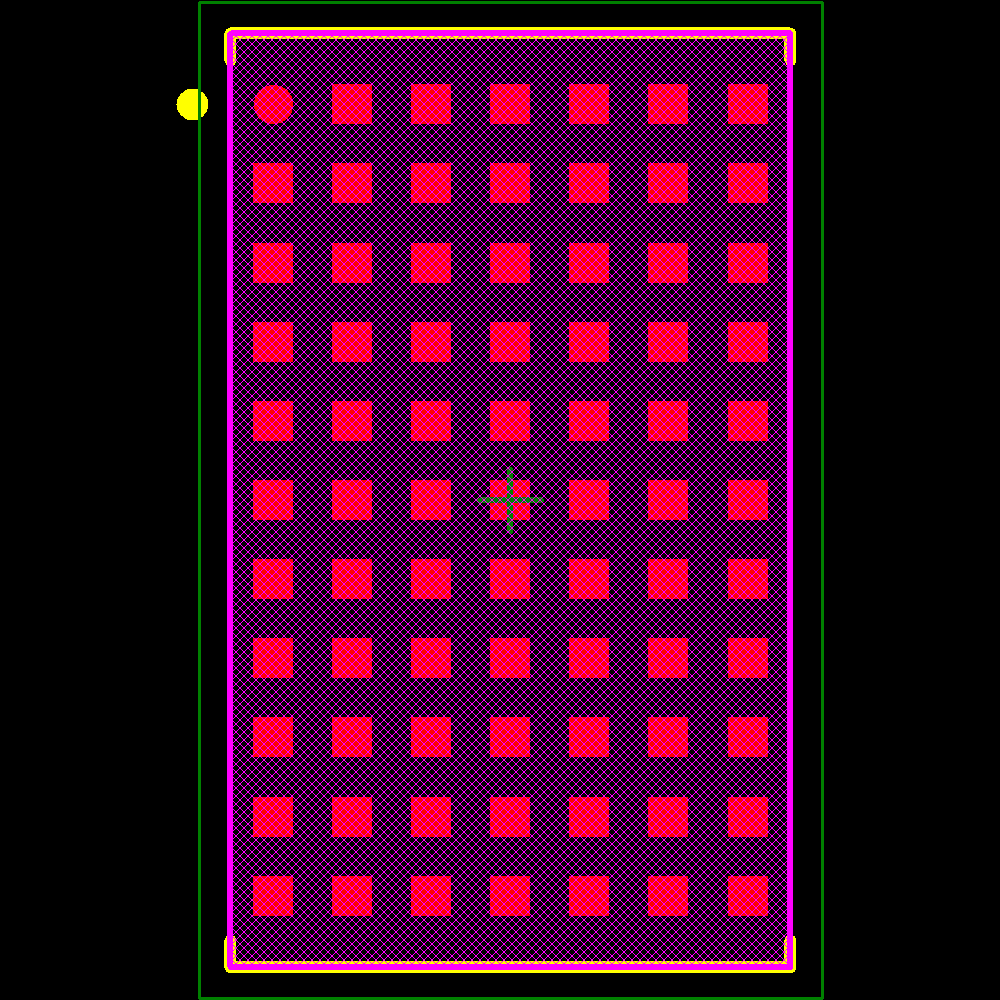

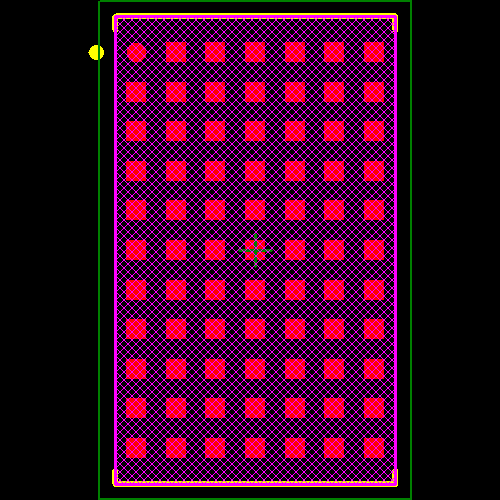

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Analog Devices
LTM8042EV#PBF
Production
Analog Devices
LTM8042IV#PBF
Production
Analog Devices
LTM8042IV-1#PBF
Production

Authorized Distributors
