MAX15012CASA+ - Analog Devices
Tube MAX15012 Half-Bridge 2008 gate driver 7ns -40C~150C TJ 2A 2A 1.5385W
Technical Details
| Case/Package | SOIC |
| Fall Time | 7ns |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Operating Temperature | 125°C |
| Max Output Current | 2A |
| Max Power Dissipation | 1.5385W |
| Max Supply Current | 3mA |
| Max Supply Voltage | 12.6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Nominal Supply Current | 140µA |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Number of Pins | 8 |
| Output Current | 2A |
| Radiation Hardening | No |
| REACH SVHC | No |
| Rise Time | 7ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 30ns |
| Turn-On Delay Time | 30ns |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

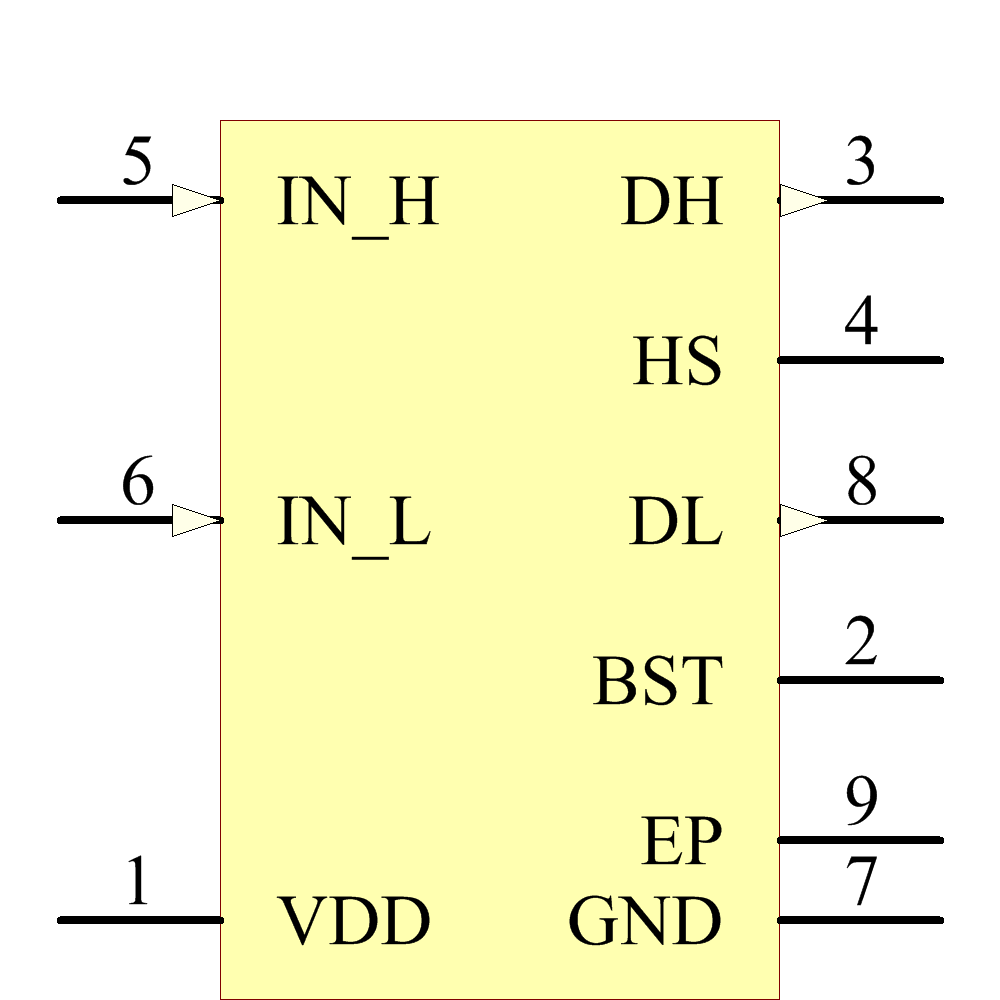

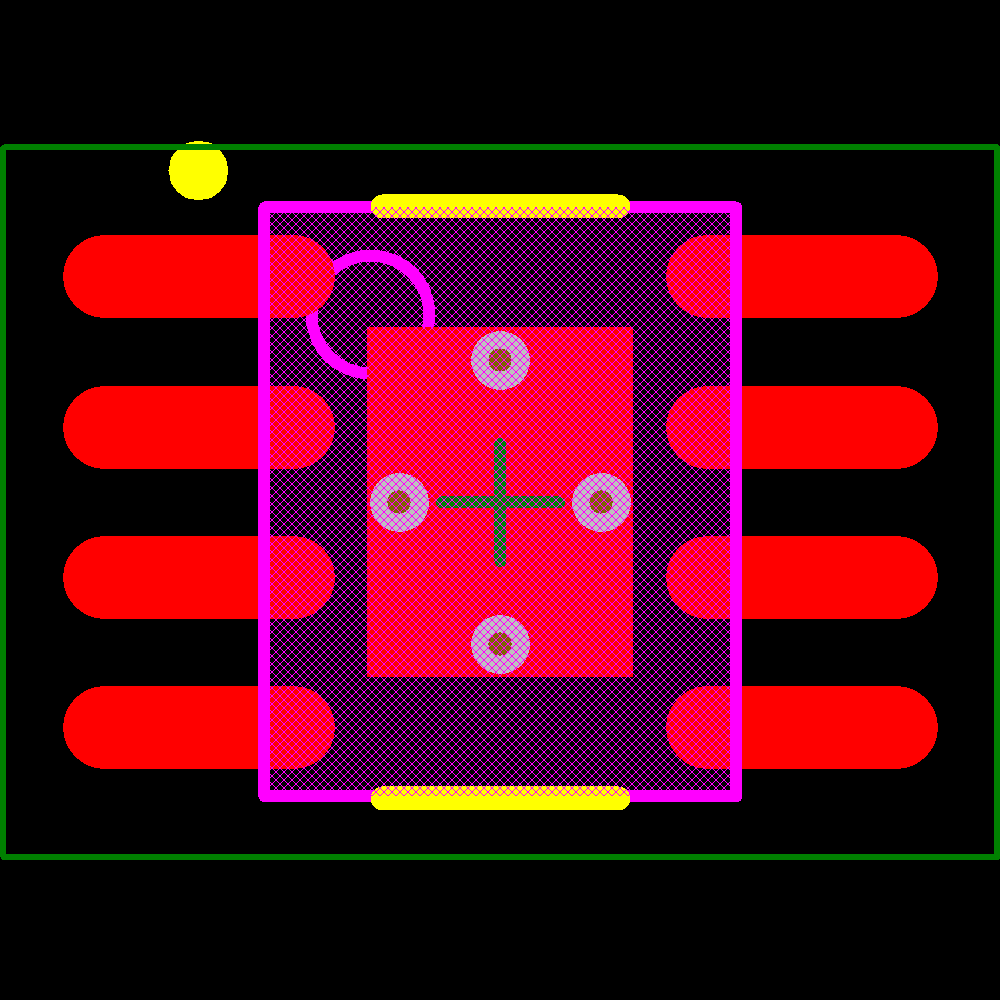

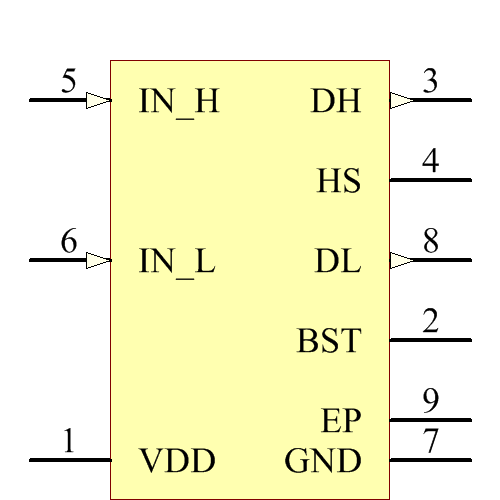

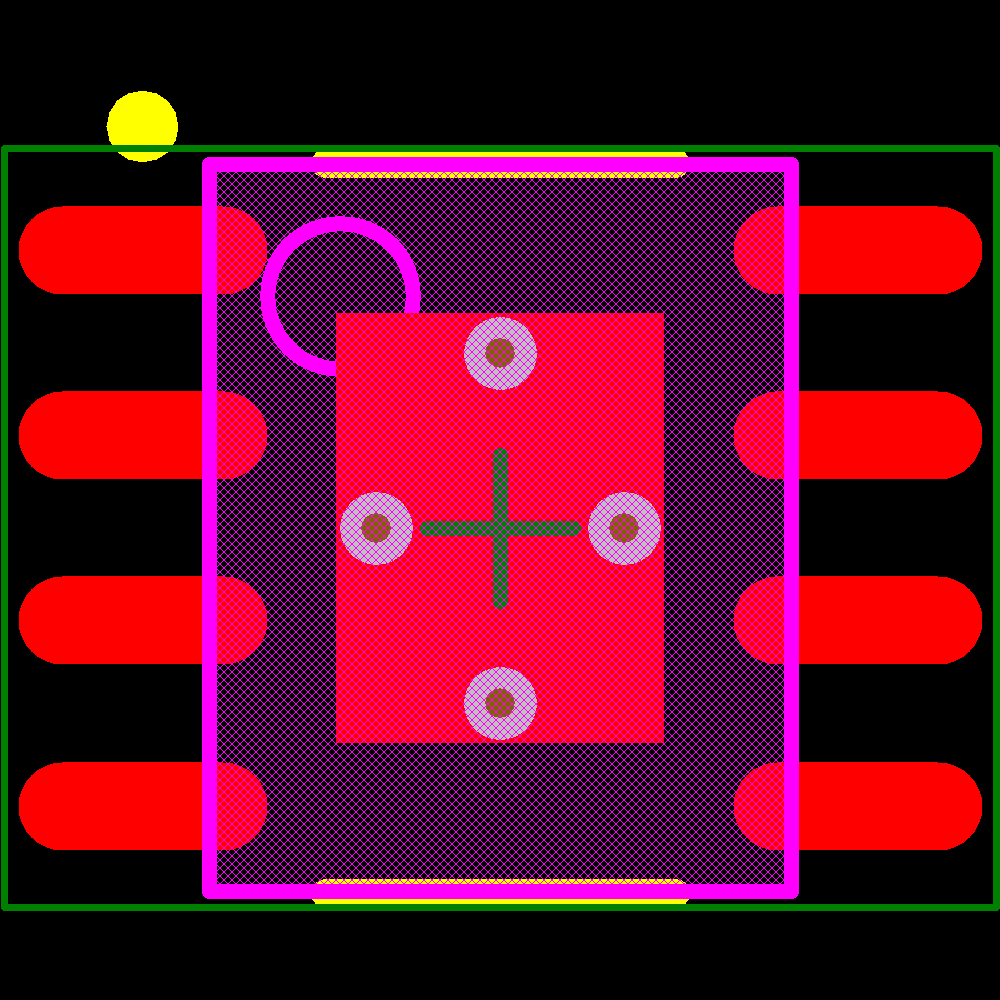

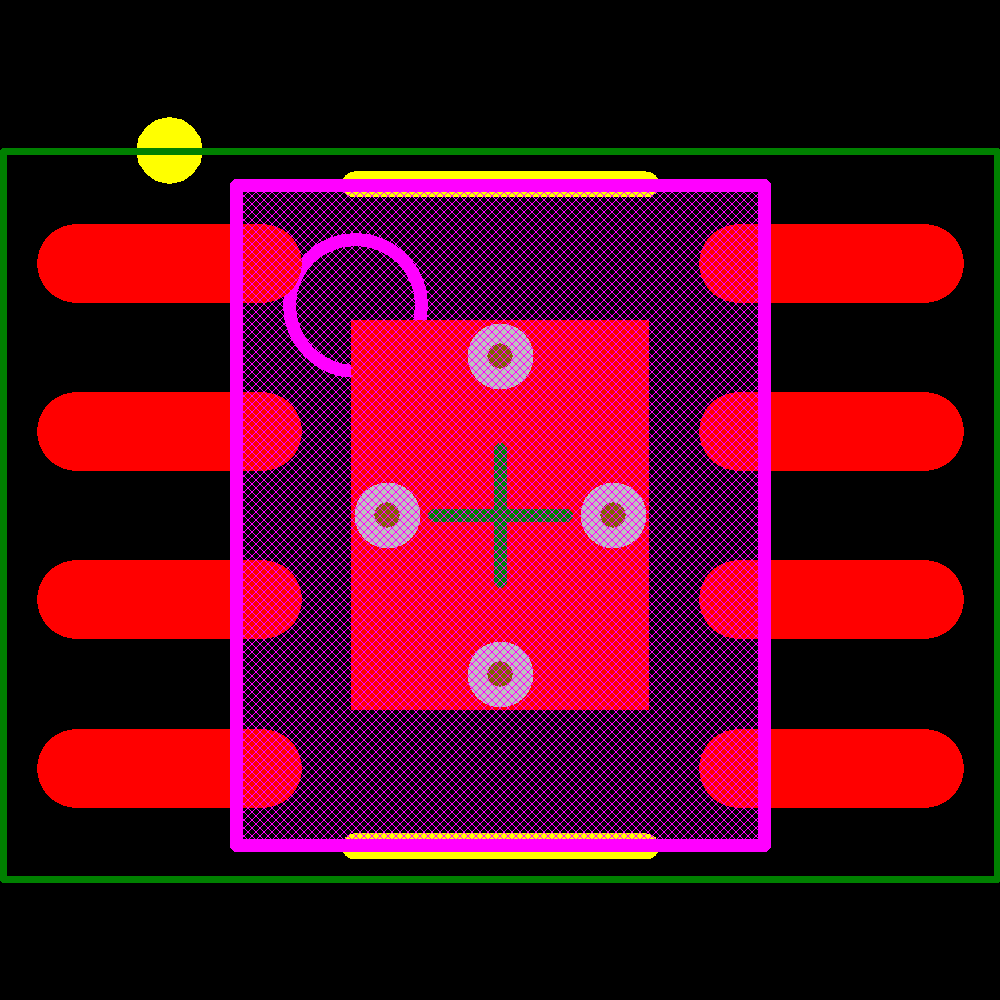

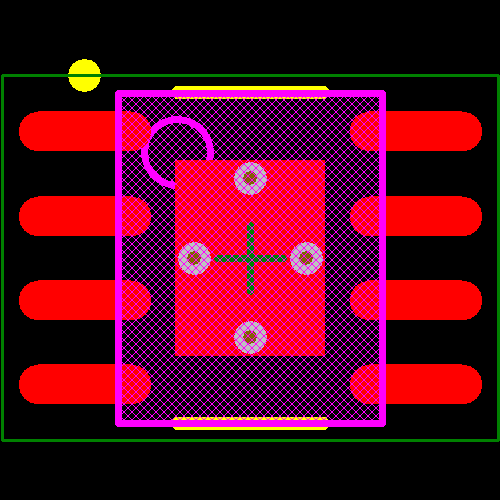

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| STMicroelectronics | Production | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| STMicroelectronics | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
