MAX1615EUK+ - Analog Devices
High-Input-Voltage, Low-Cost, Low-Power, Low-Dropout Linear Regulators for Notebooks in SOT23-5
Technical Details
| Accuracy | 2% |
| Case/Package | SOT-23 |
| Dropout Voltage | 350mV |
| Height | 1.45mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 571mW |
| Max Supply Voltage | 28V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4V |
| Nominal Supply Current | 6.2µA |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Regulators | 1 |
| Output Current | 100mA |
| Output Voltage | 5V |
| Packaging | Cut Tape |
| Polarity | Positive |
| RoHS | Compliant |
| Watchdog Timer | No |
Compliance
RoHS : Unconfirmed

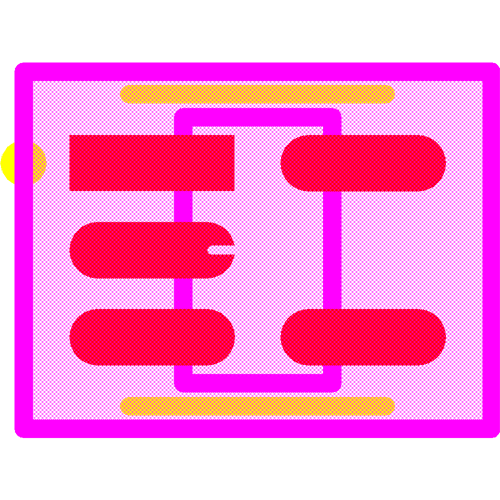

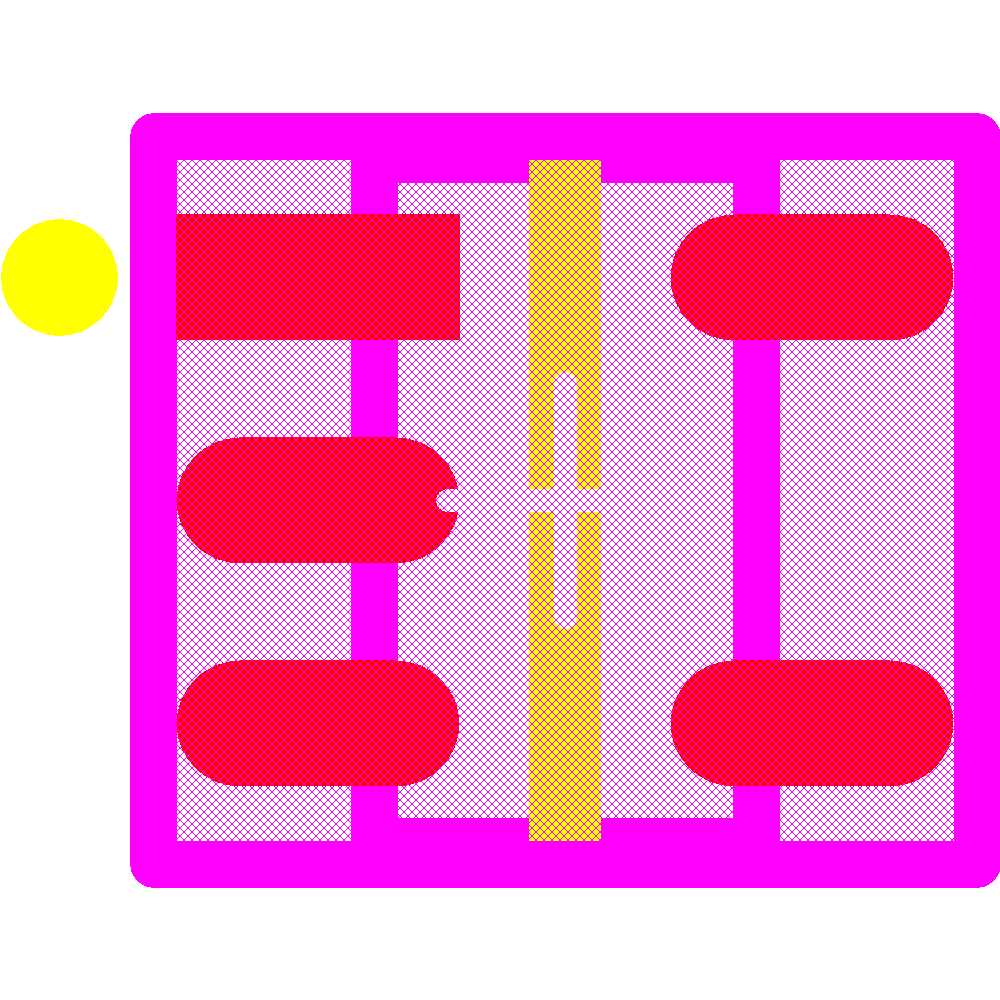

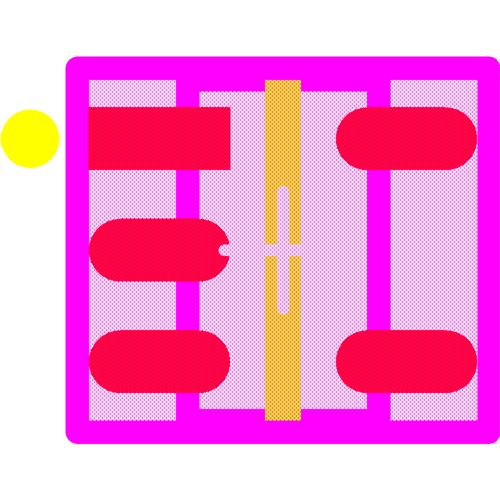

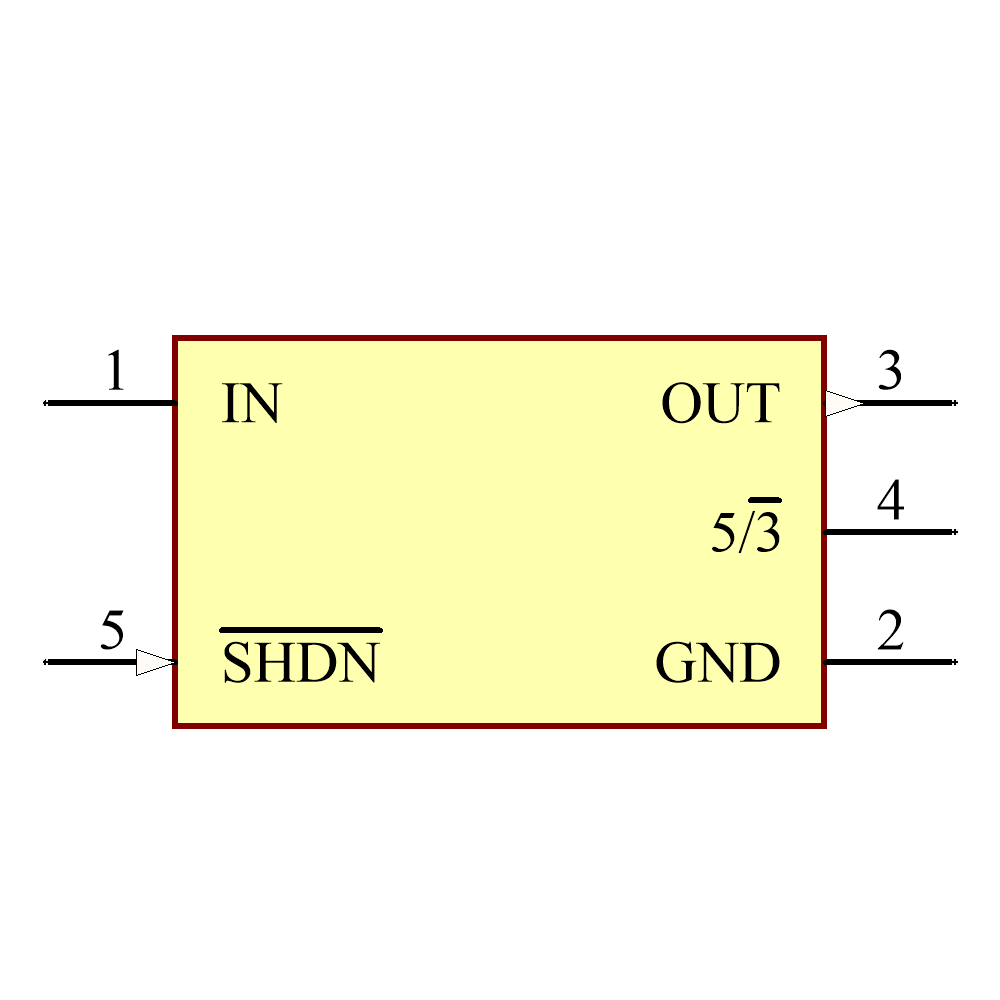

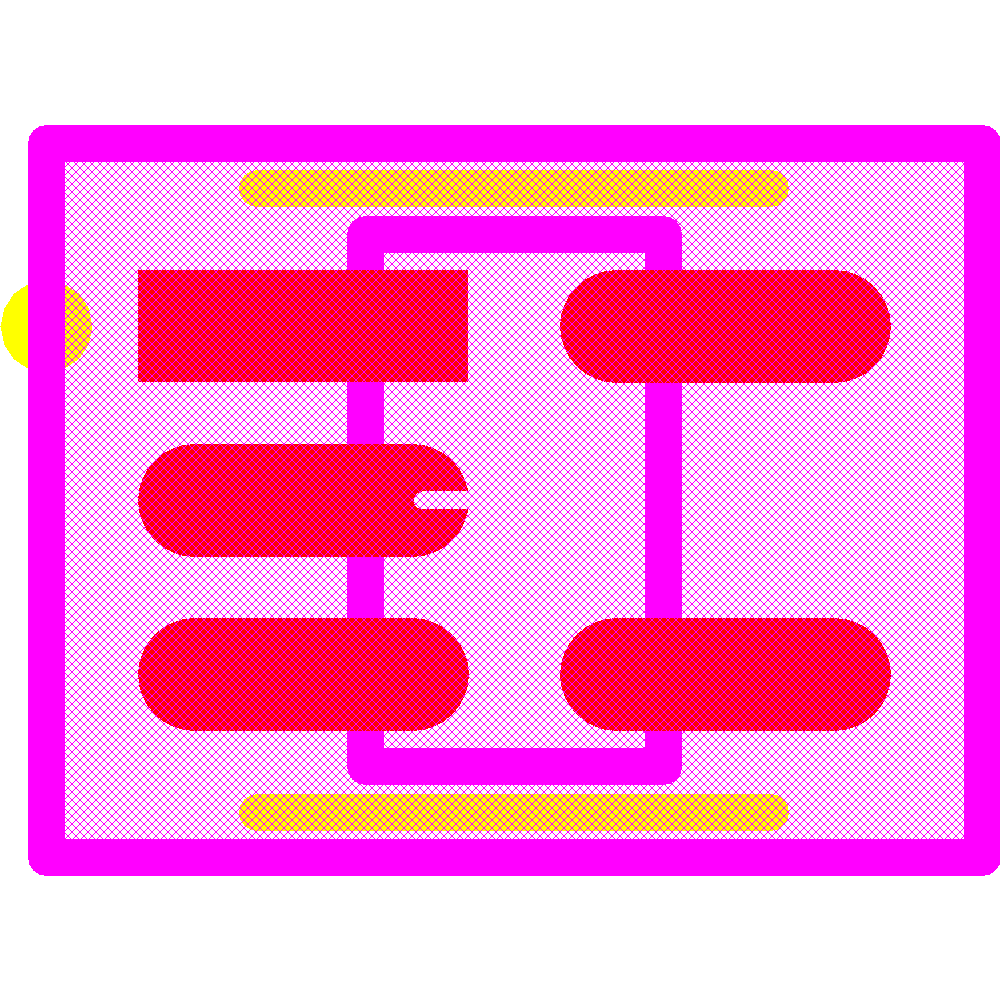

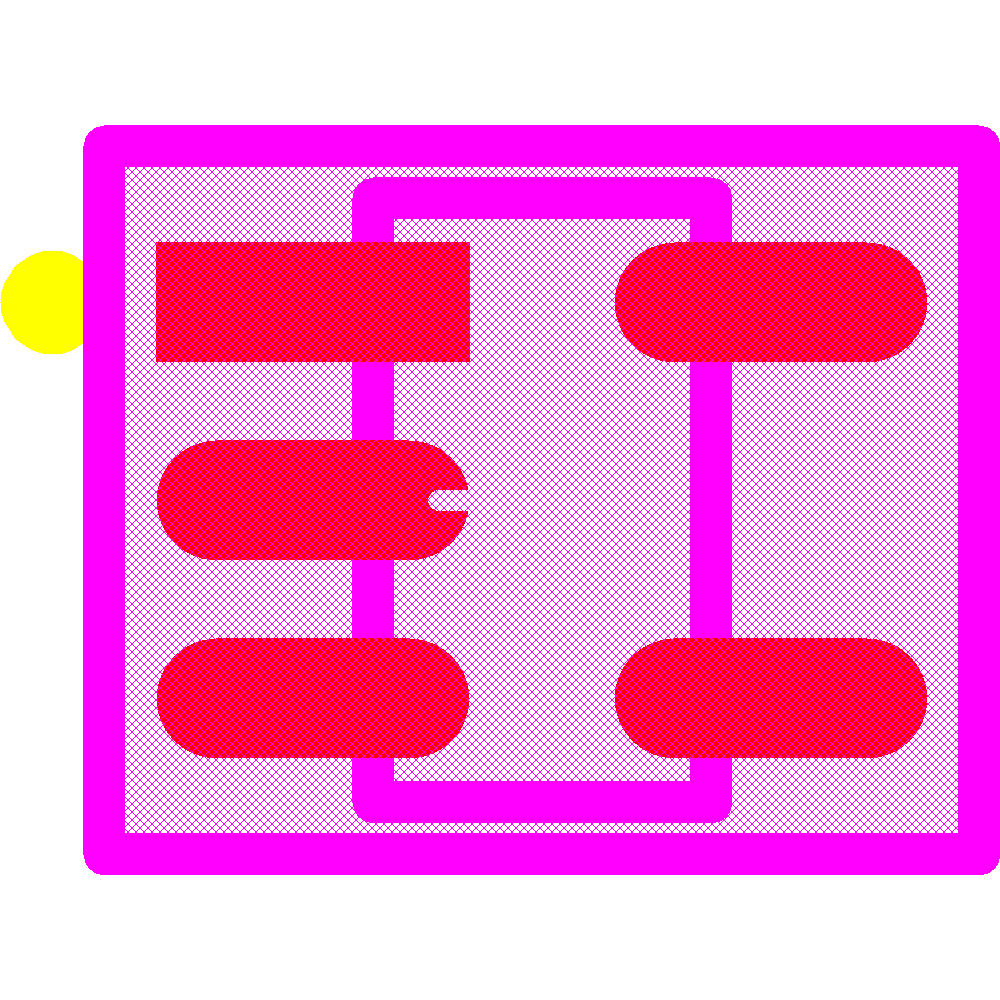

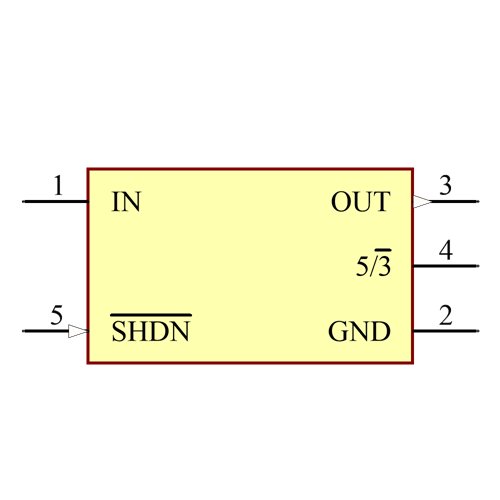

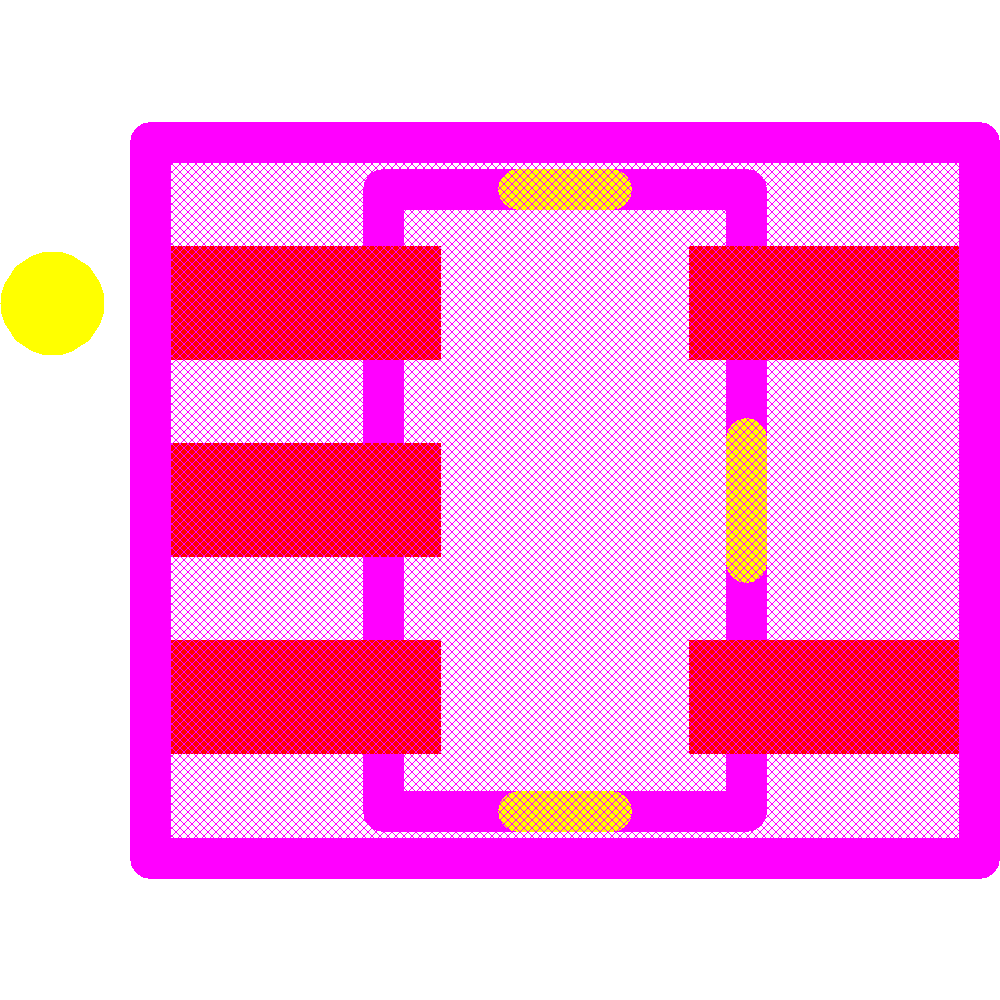

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Obsolete | ||
| onsemi | Production | ||
| onsemi | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Production | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| Analog Devices | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Analog Devices |
US: 0
|
$ | ||||||||
