Technical Details
| Case/Package | TSSOP |
| Dimming | PWM |
| Frequency | 1MHz |
| High Level Output Current | 1.8mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 2.162W |
| Max Supply Voltage | 26.5V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 8 |
| Number of Pins | 28 |
| Operating Supply Voltage | 5.5V |
| Output Current per Channel | 55mA |
| Output Voltage | 36V |
| Packaging | Tape & Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Topology | Flyback, SEPIC |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

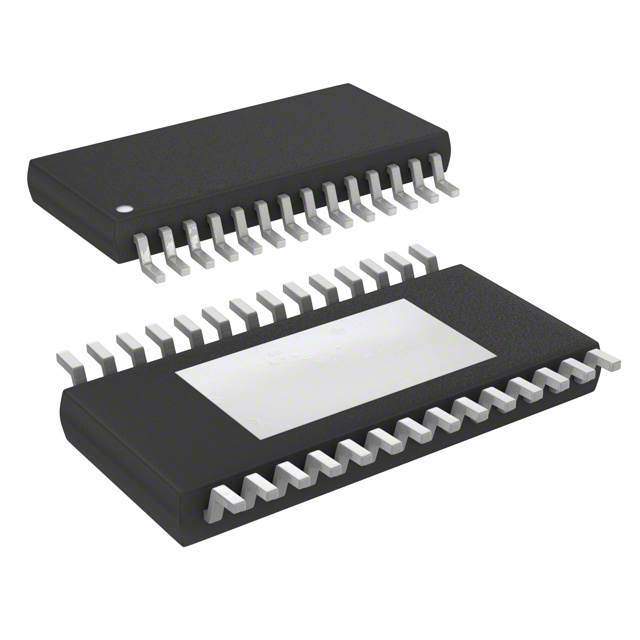

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete |
