MAX3461ESD - Analog Devices
Line Transceiver 1-Driver 1-Receiver RS-485/RS-422 TIA/EIA-422-B/TIA/EIA-485-A 20Mbps 14-Pin SOIC
Technical Details
| Case/Package | SOIC |
| Data Rate | 20Mbps |
| Logic Function | Receiver, Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Nominal Supply Current | 4mA |
| Number of Drivers | 1 |
| Number of Pins | 14 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Propagation Delay | 20ns |
| Radiation Hardening | No |
| RoHS | Compliant |
| Simplex/Duplex | Full Duplex |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

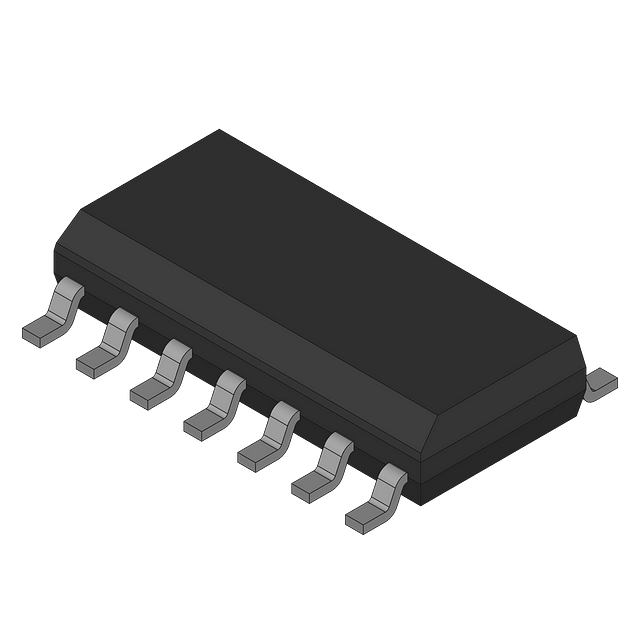

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Unknown | ||
| Renesas | Obsolete | ||
| Analog Devices | Unknown | ||
| Renesas | Obsolete | ||
| Analog Devices | Obsolete | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Texas Instruments | Unknown |
