MAX490CSA - Analog Devices
TOTEM-POLE COMPLEMENTARY Full Duplex Non-RoHS Compliant Transceiver 0C~70C 5V 2.5Mbps 60ns
Technical Details
| Case/Package | SOP |
| Country of Origin | Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA |
| Data Rate | 2.5Mbps |
| Export Control Classification Number (ECCN) Code | 5A991.B.4 |
| Height | 1.5mm |
| Height - Seated (Max) | 1.75mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Interface | RS-422, RS-485 |
| Introduction Date | 1994-01-01 |
| Lead Free | Contains Lead |
| Length | 4.9mm |
| Lifecycle Status | Obsolete |
| Logic Function | Receiver, Transceiver |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 70°C |
| Max Supply Current | 500µA |
| Max Supply Voltage | 5.25V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Drivers | 1 |
| Number of Pins | 8 |
| Number of Receivers | 1 |
| Number of Terminals | 8 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 500µA |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| Propagation Delay | 60ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Simplex/Duplex | Full Duplex |
| Temperature Grade | Commercial |
| Terminal Pitch | 1.27mm |
| Weight | 506.605978mg |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

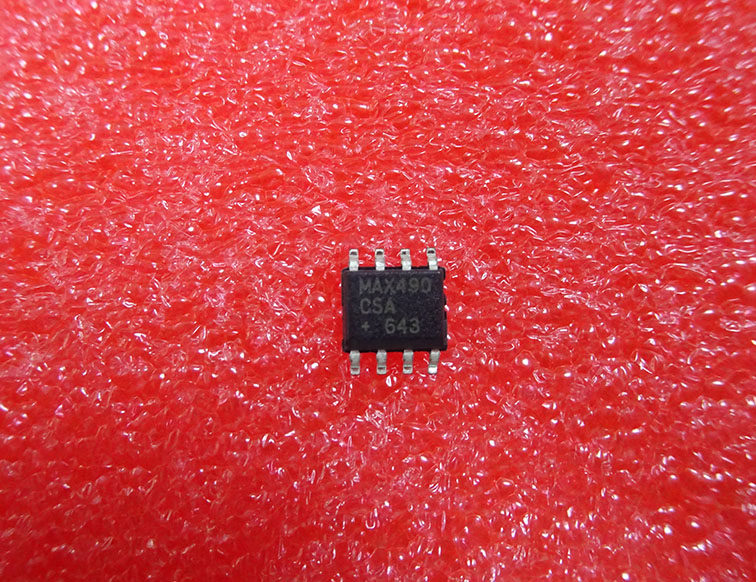

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Renesas | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Sipex | Obsolete | ||
| Analog Devices | Production | ||
| Renesas | Production | ||
| Renesas | Production | ||
| MaxLinear | Production |
