MAX5069BAUE+T - Analog Devices
High-Frequency, Current-Mode PWM Controller with Accurate Oscillator and Dual FET Drivers
Technical Details
| Case/Package | TSSOP |
| Clock Sync | Yes |
| Duty Cycle | 100% |
| Evaluation Kit | Yes |
| Features | UVLO |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Duty Cycle | 100% |
| Max Frequency | 2.5MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Operating Supply Voltage | 72V |
| Output Current | 1A |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 1.25MHz |
| Synchronous Rectifier | No |
| Topology | Push-Pull |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

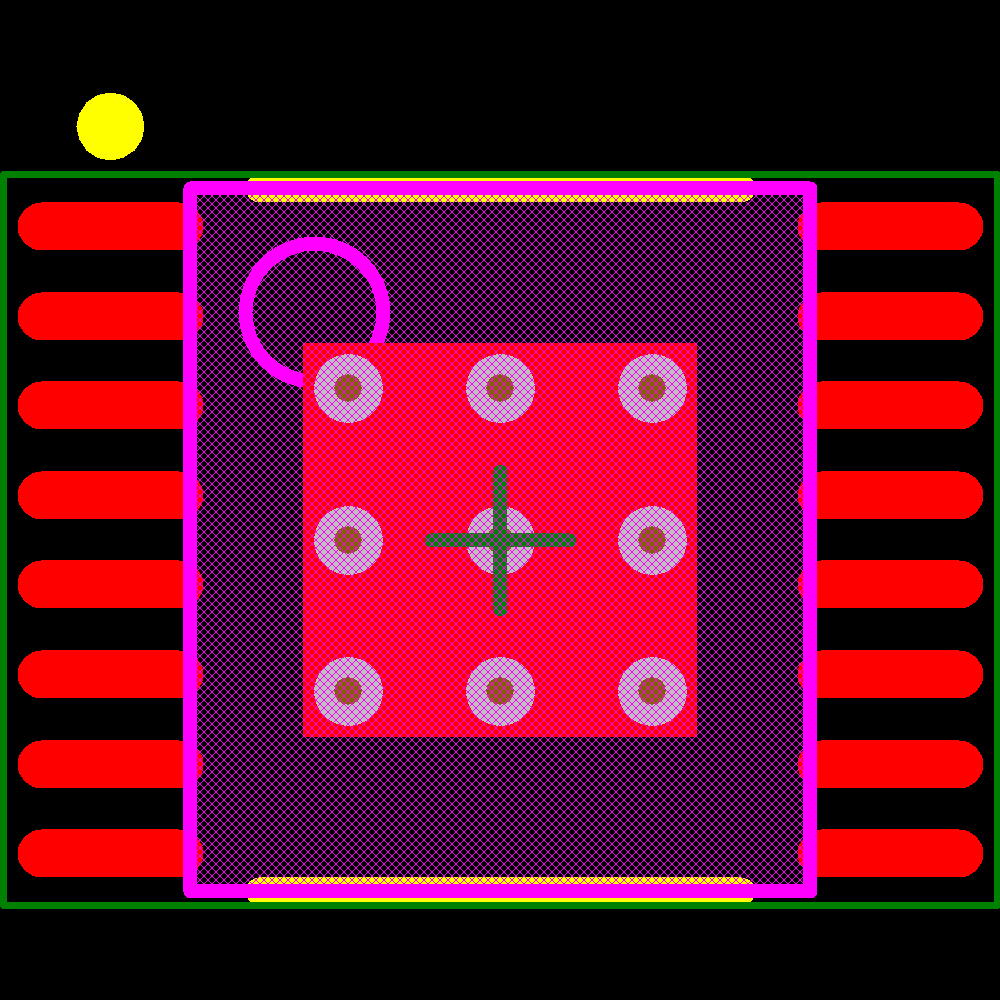

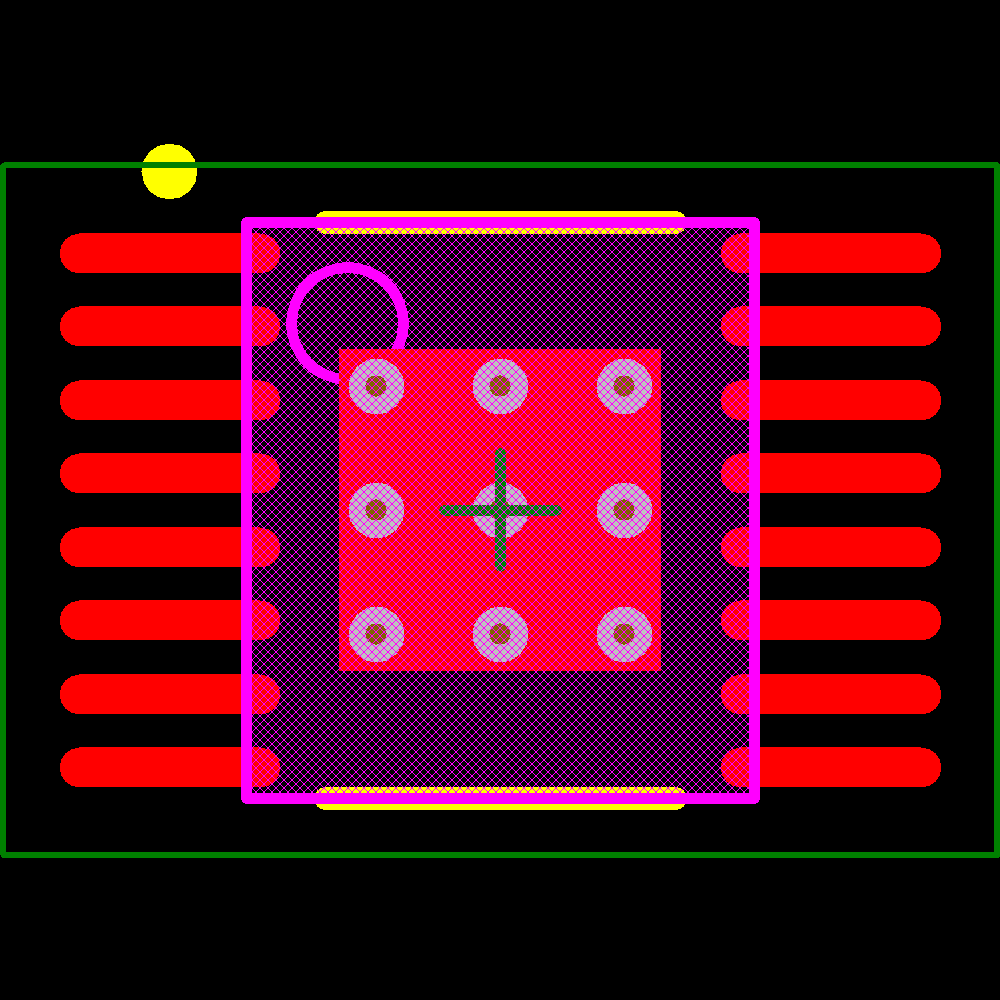

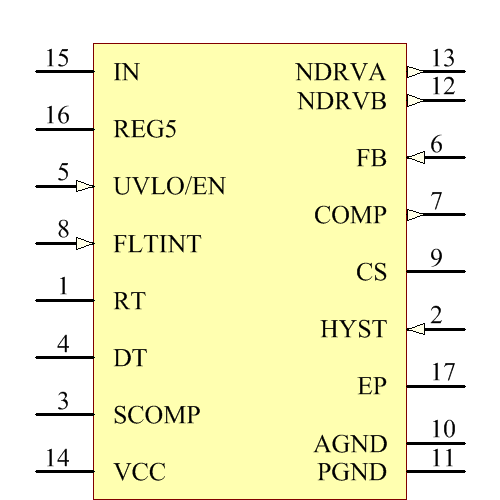

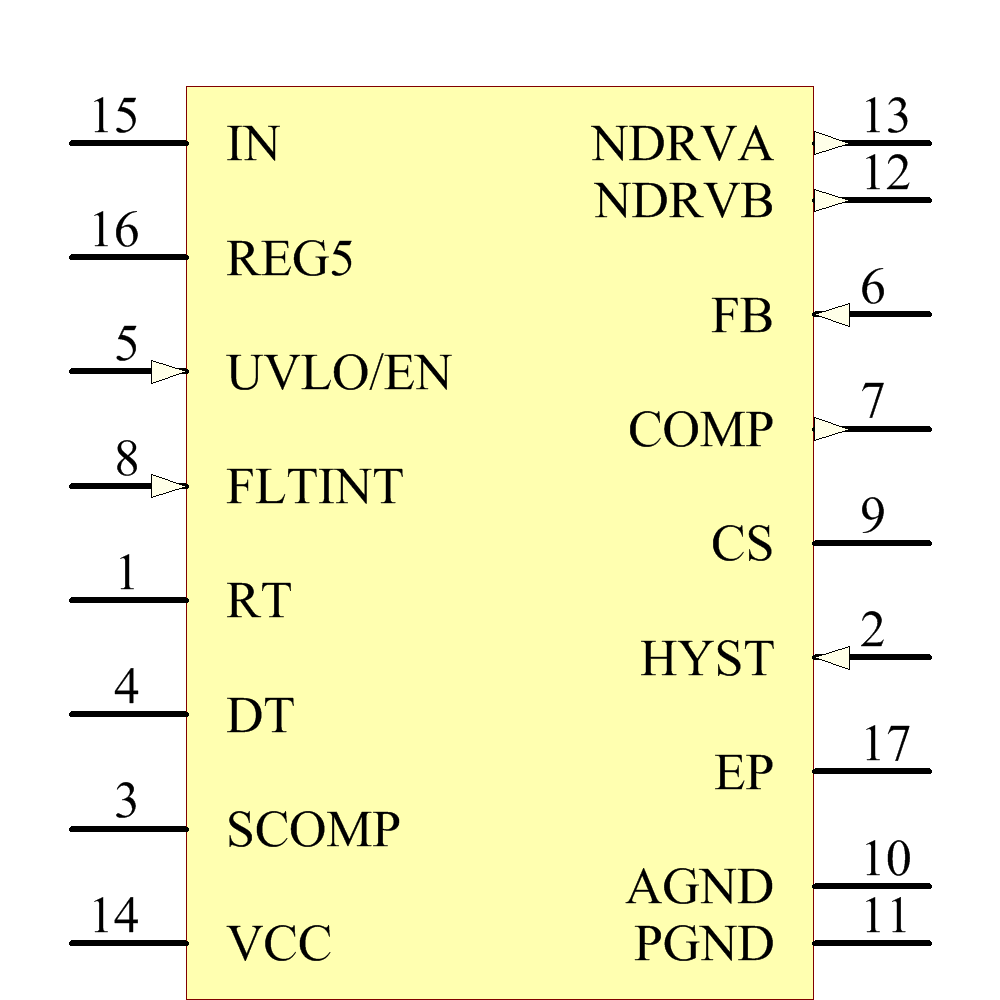

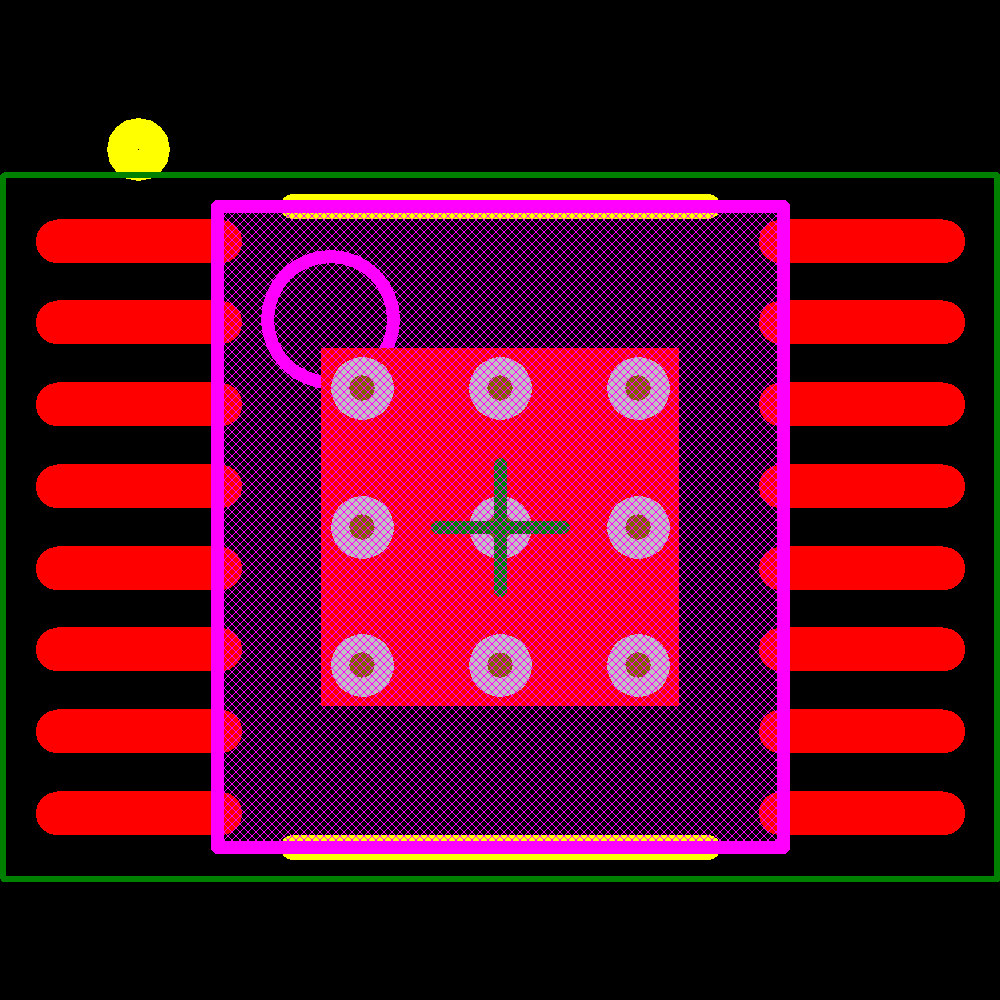

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete | ||
| Analog Devices | Unknown | ||
| Texas Instruments | Unknown | ||
| onsemi | EOL | ||
| Analog Devices | Unknown | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Analog Devices |
US: 2500
|
$ | 6.07 | |||||||
| DigiKey |
DE: 0
|
$ | 8.5155 | |||||||
| Farnell |
DE: 0
|
$ | 10.0592 | |||||||
| Arrow Electronics |
US: 0
|
$ | 7.588 | |||||||
