MAX6315US29D3+T - Analog Devices

Processor Supervisor 2.93V 1V to 5.5V 4-Pin(3+Tab) SOT-143 T/R

Technical Details

Case/Package	SOT-143-4
Height	1.22mm
Lead Free	Lead Free
Length	2.92mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Operating Temperature	125°C
Max Power Dissipation	320mW
Max Reset Threshold Voltage	2.98V
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Reset Threshold Voltage	2.88V
Min Supply Voltage	1V
Mount	Surface Mount
Nominal Supply Current	15µA
Number of Outputs	1
Number of Pins	4
Number of Voltages Monitored	1
Operating Supply Current	5µA
Output Current	20mA
Overvoltage Threshold	2.98V
Packaging	Cut Tape
Radiation Hardening	No
REACH SVHC	Unknown
Reset	Active Low
Reset Timeout	200ms
RoHS	Compliant
Schedule B	8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|85
Threshold Voltage	2.93V
Type	Simple Reset/Power-On Reset
Undervoltage Threshold	2.88V
Watchdog Timer	No
Width	1.3mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Unknown

Images

Analog Devices MAX6315US29D3+T | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

MAX6315US29D3+T Symbol - Analog Devices

MAX6315US29D3+T Symbol - Analog Devices

MAX6315US29D3+T Symbol - Analog Devices

MAX6315US29D3+T Symbol - Analog Devices

‹ ›

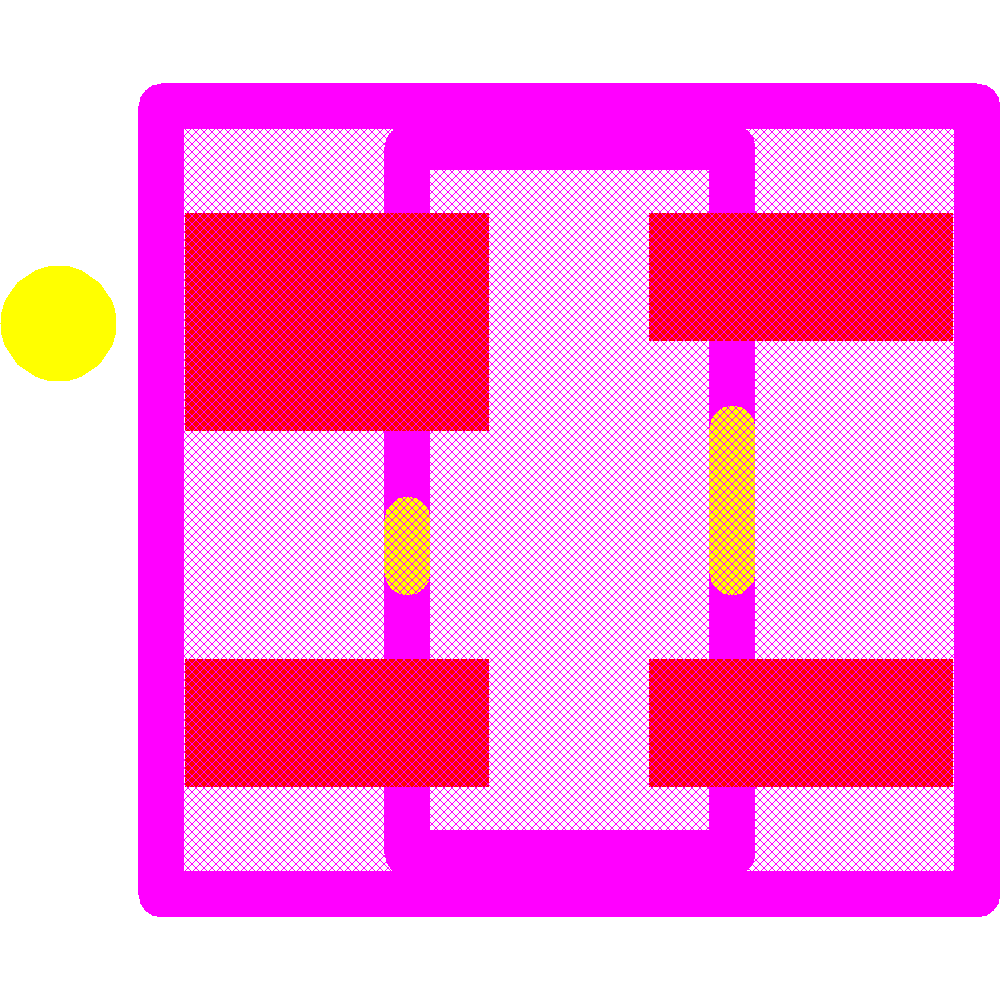

Footprint
