MAX6315US46D4+ - Analog Devices
Open-Drain Output SOT Reset IC with Customized Reset Thresholds and Timeout Delays
Technical Details
| Case/Package | SOT-143-4 |
| Height | 1.22mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 320mW |
| Max Reset Threshold Voltage | 4.71V |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 4.55V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 4 |
| Number of Voltages Monitored | 1 |
| Output Current | 20mA |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reset | Active Low |
| Reset Timeout | 1.57s |
| RoHS | Compliant |
| Threshold Voltage | 4.63V |
| Type | Simple Reset/Power-On Reset |
| Watchdog Timer | No |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

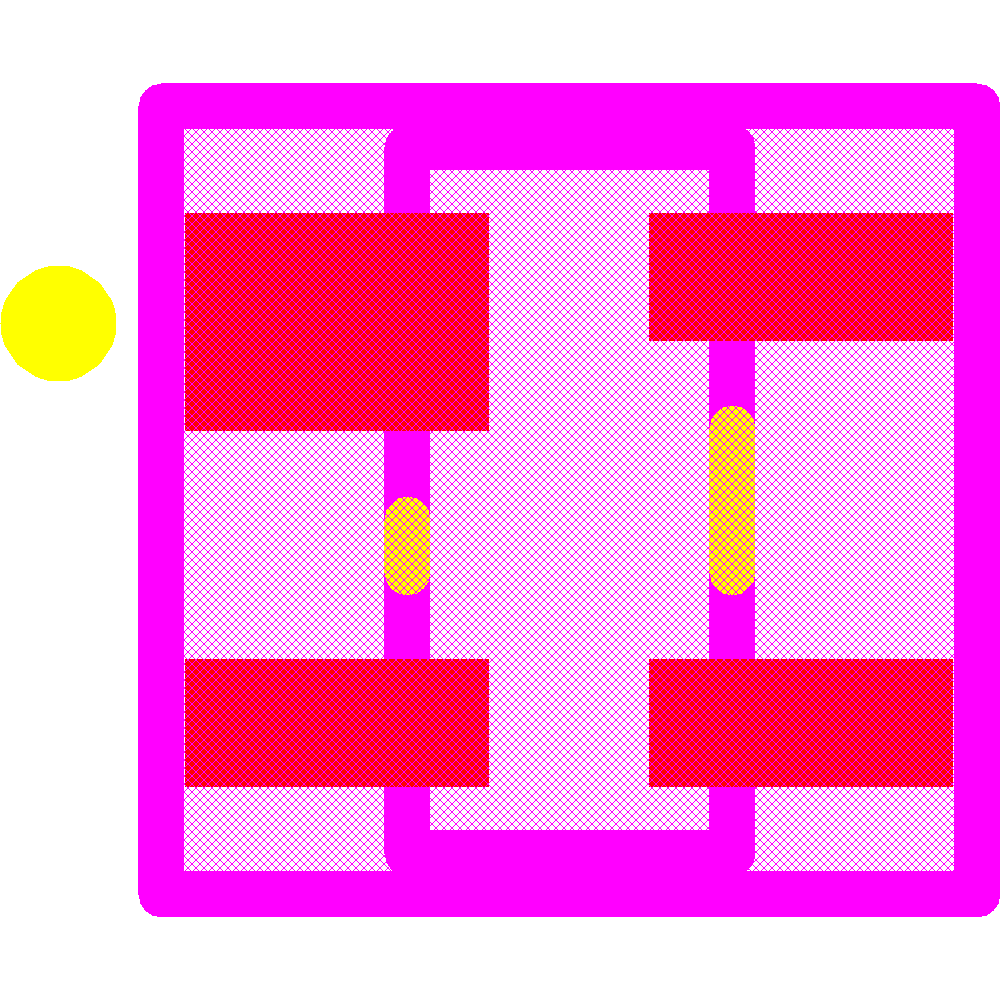

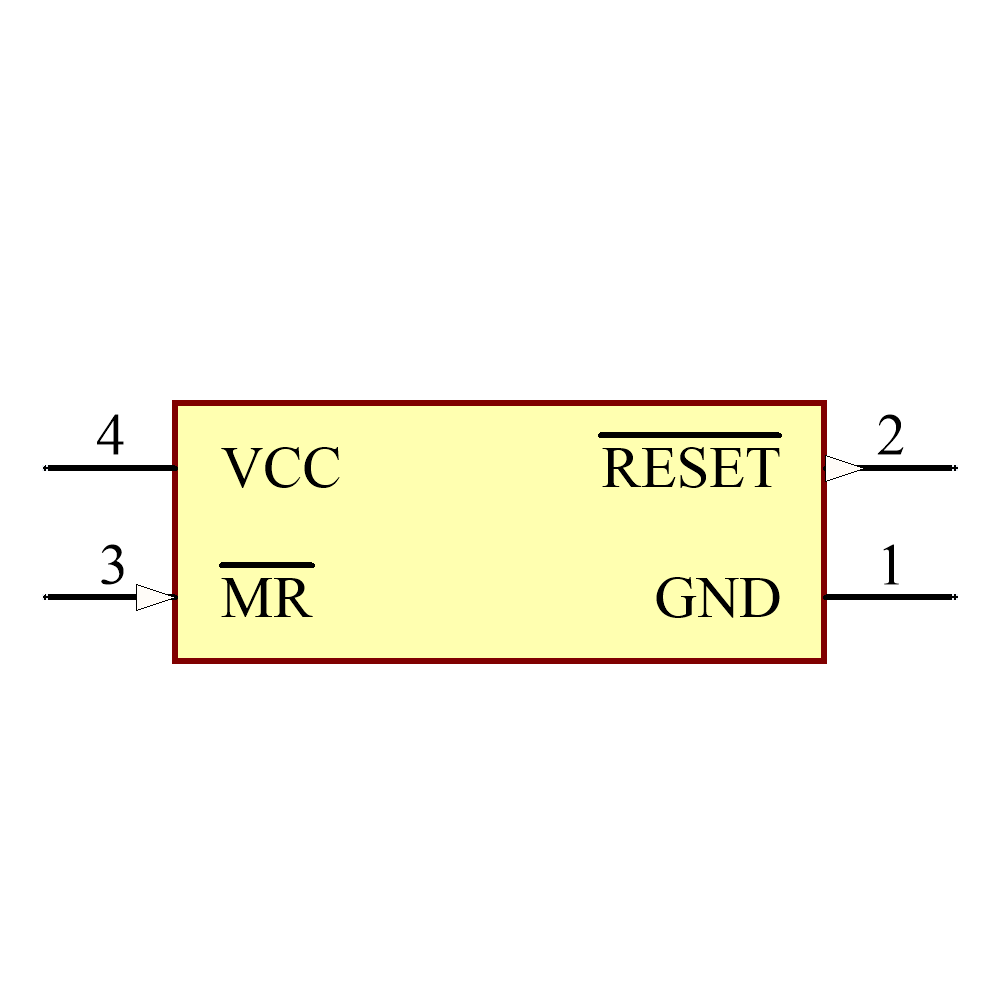

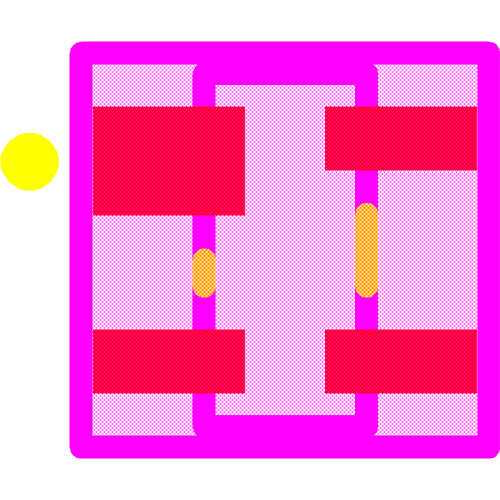

Images
