Integrated Circuits (ICs) > Power Management ICs > Voltage Supervisors

MAX6324FUT26+T - Analog Devices

Processor Supervisor 2.63V 2.5V/3V/3.3V/5V 6-Pin SOT-23 T/R

Case/Package	SOT-23-6
Height	1.45mm
Lead Free	Contains Lead, Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	125°C
Max Power Dissipation	696mW
Max Reset Threshold Voltage	2.7V
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Reset Threshold Voltage	2.55V
Min Supply Voltage	1.2V
Mount	Surface Mount
Number of Outputs	1
Number of Pins	6
Number of Voltages Monitored	1
Operating Supply Current	27µA
Output Current	20mA
Overvoltage Threshold	2.7V
Packaging	Tape & Reel (TR)
Radiation Hardening	No
Reset	Active Low
Reset Timeout	180ms
RoHS	Compliant
Threshold Voltage	2.63V
Type	Simple Reset/Power-On Reset
Undervoltage Threshold	2.55V
Watchdog Timer	Yes

RoHS : Unconfirmed

Radiation Hardening : No

Analog Devices MAX6324FUT26+T | Rochester Electronics

Rochester Electronics

Production

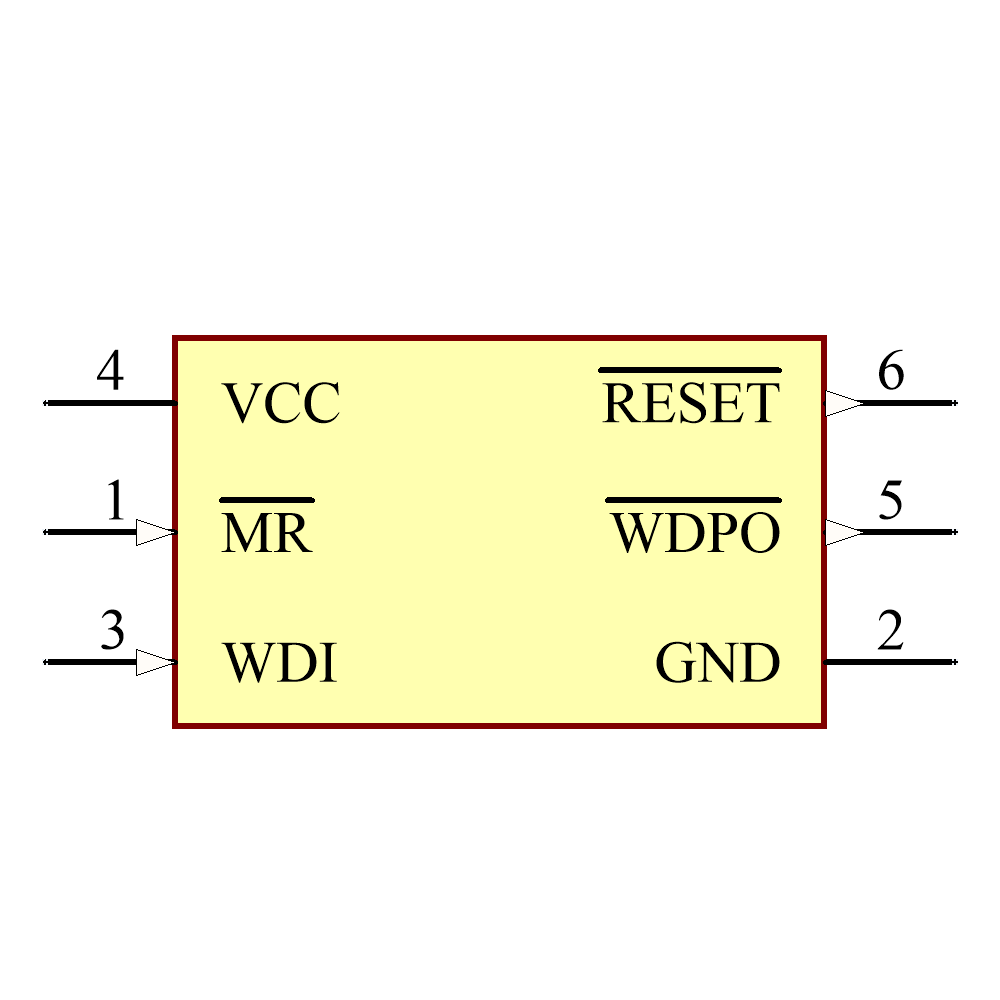

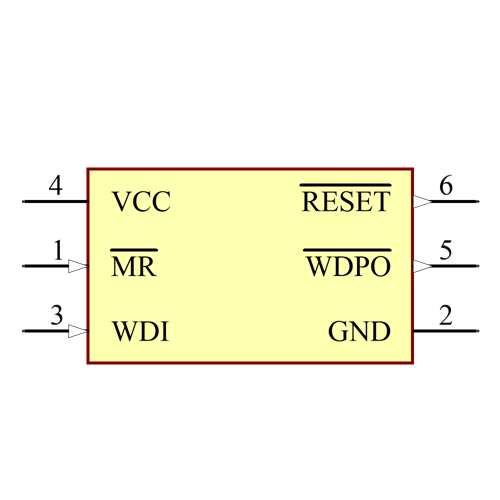

Symbol

‹ ›

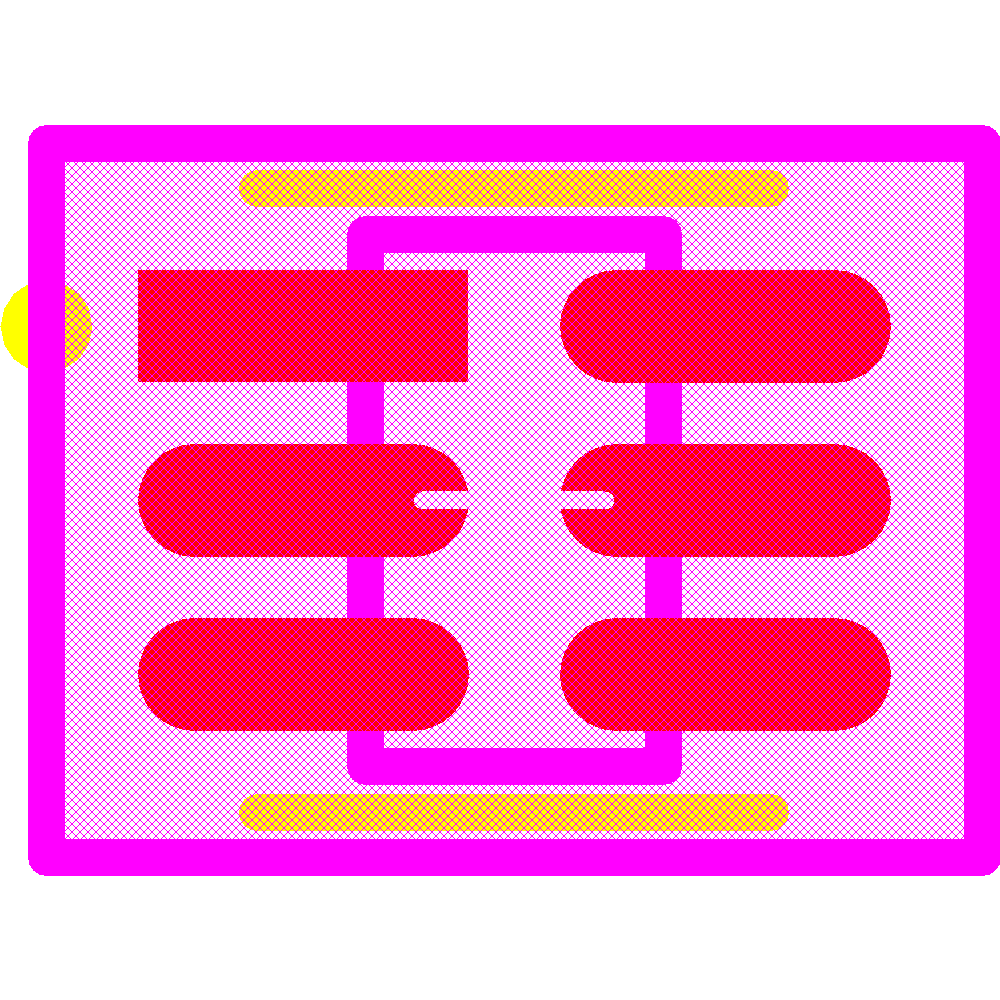

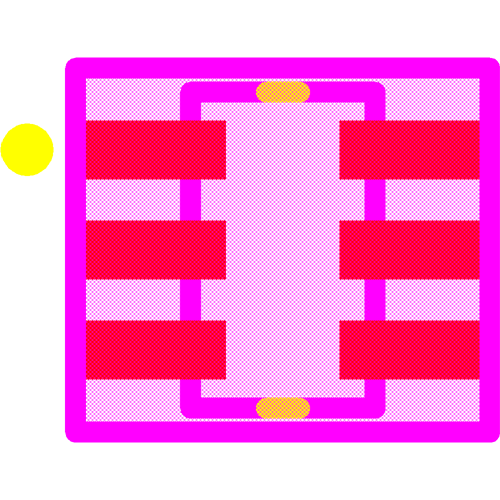

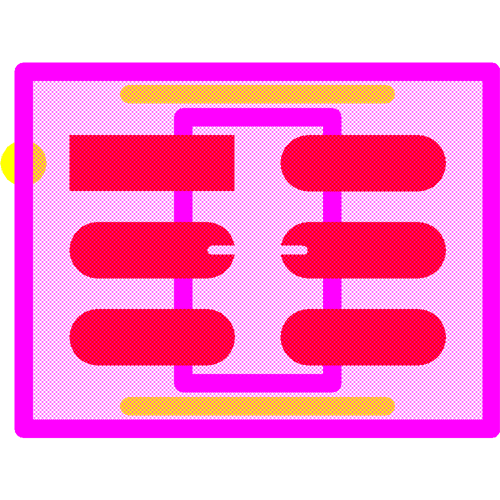

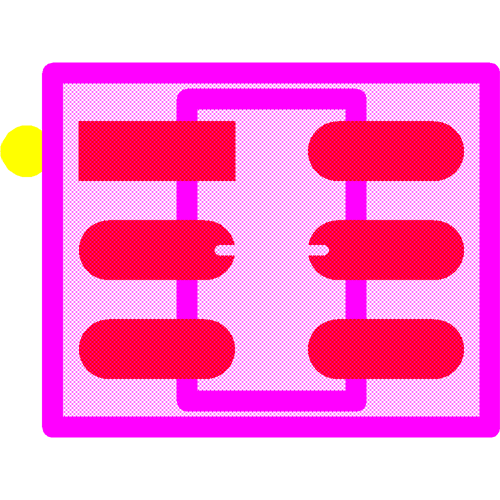

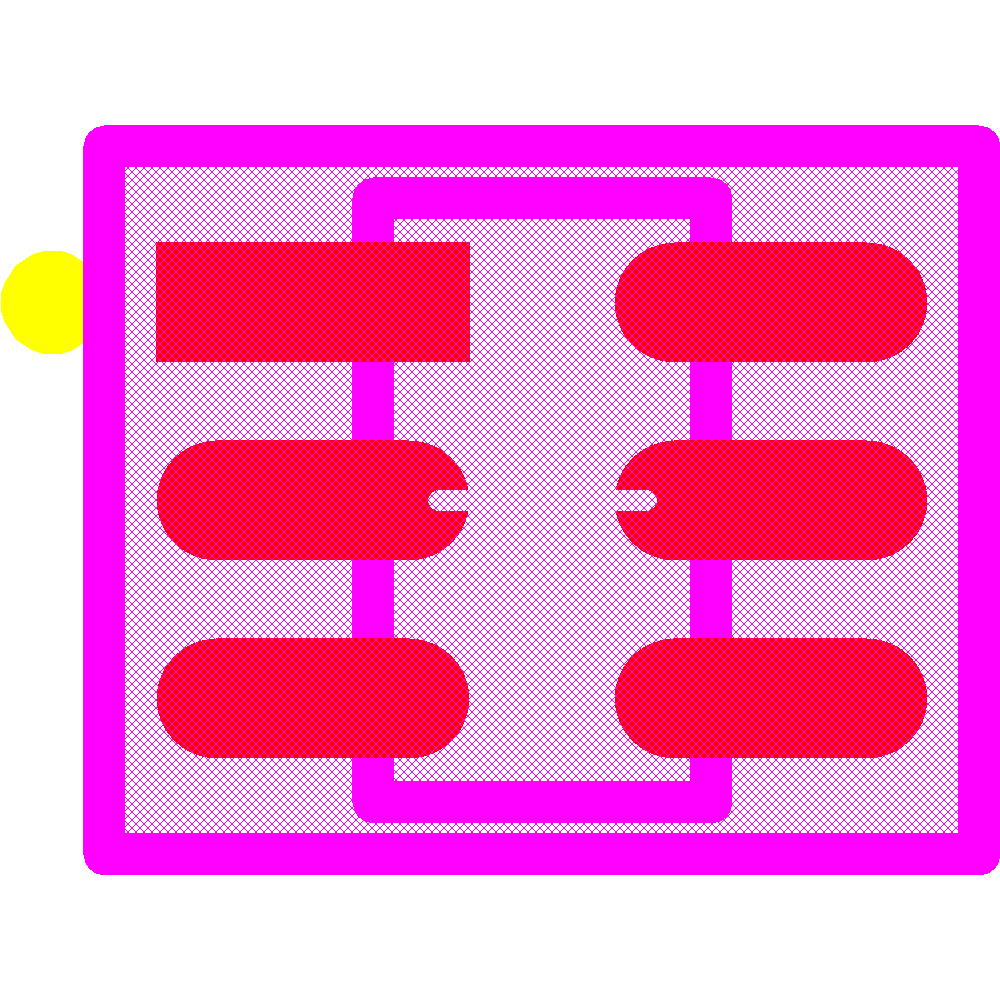

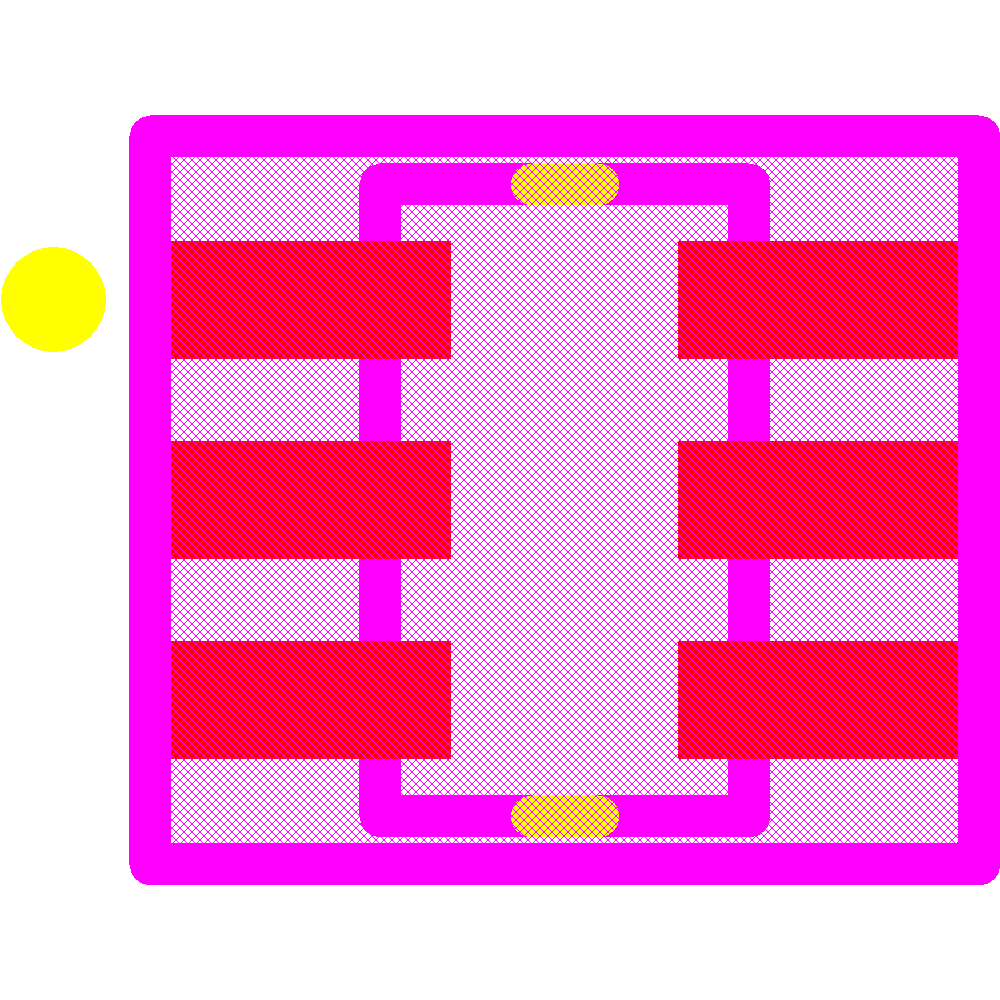

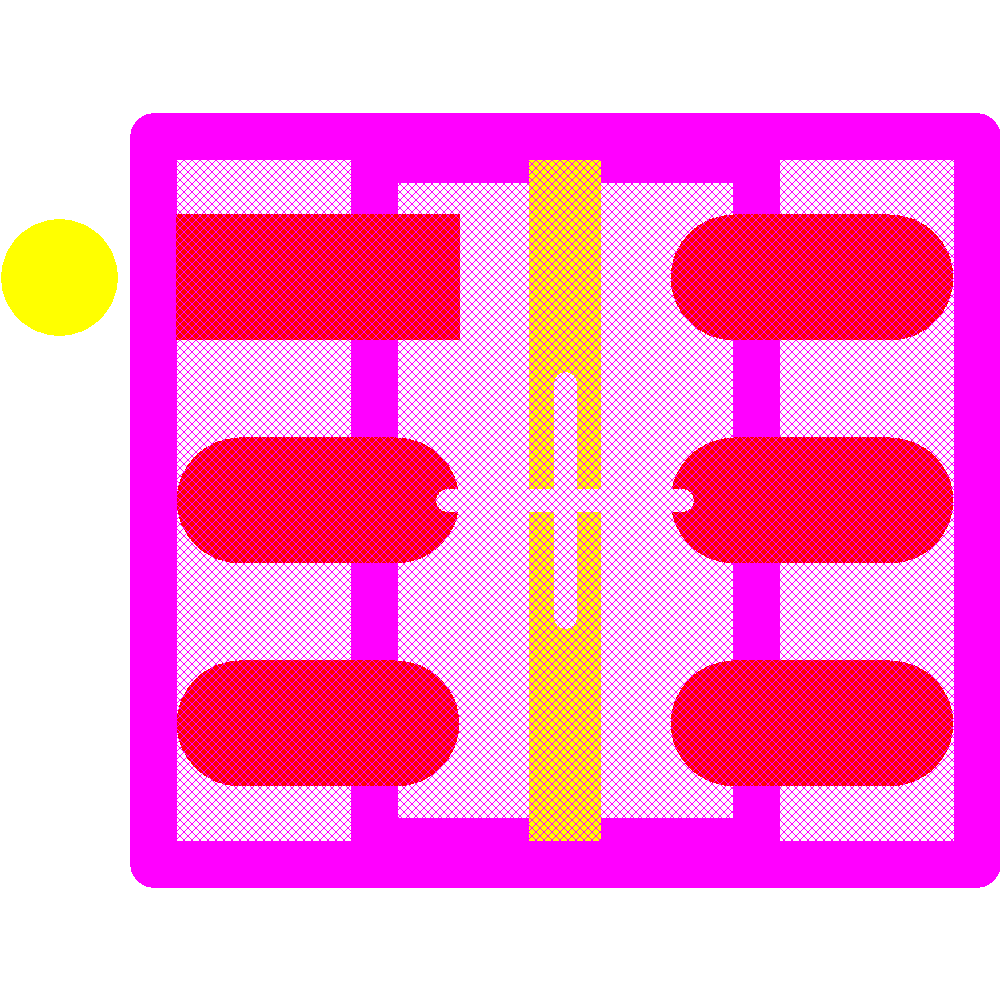

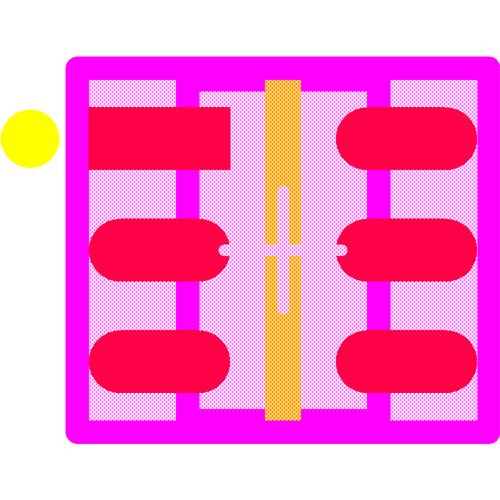

Footprint

‹ ›
