MAX6337US17D3+T - Analog Devices
4-Pin, Ultra Low-Voltage, Low-Power µP Reset Circuits with Manual Reset
Technical Details
| Case/Package | SOT-143-4 |
| Height | 1.22mm |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 320mW |
| Max Reset Threshold Voltage | 1.73V |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 1.67V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 4 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 3.3µA |
| Output Current | 20mA |
| Overvoltage Threshold | 1.73V |
| Packaging | Tape & Reel |
| Radiation Hardening | No |
| Reset | Active Low |
| Reset Timeout | 150ms |
| RoHS | Compliant |
| Threshold Voltage | 1.7V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 1.67V |
| Watchdog Timer | No |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

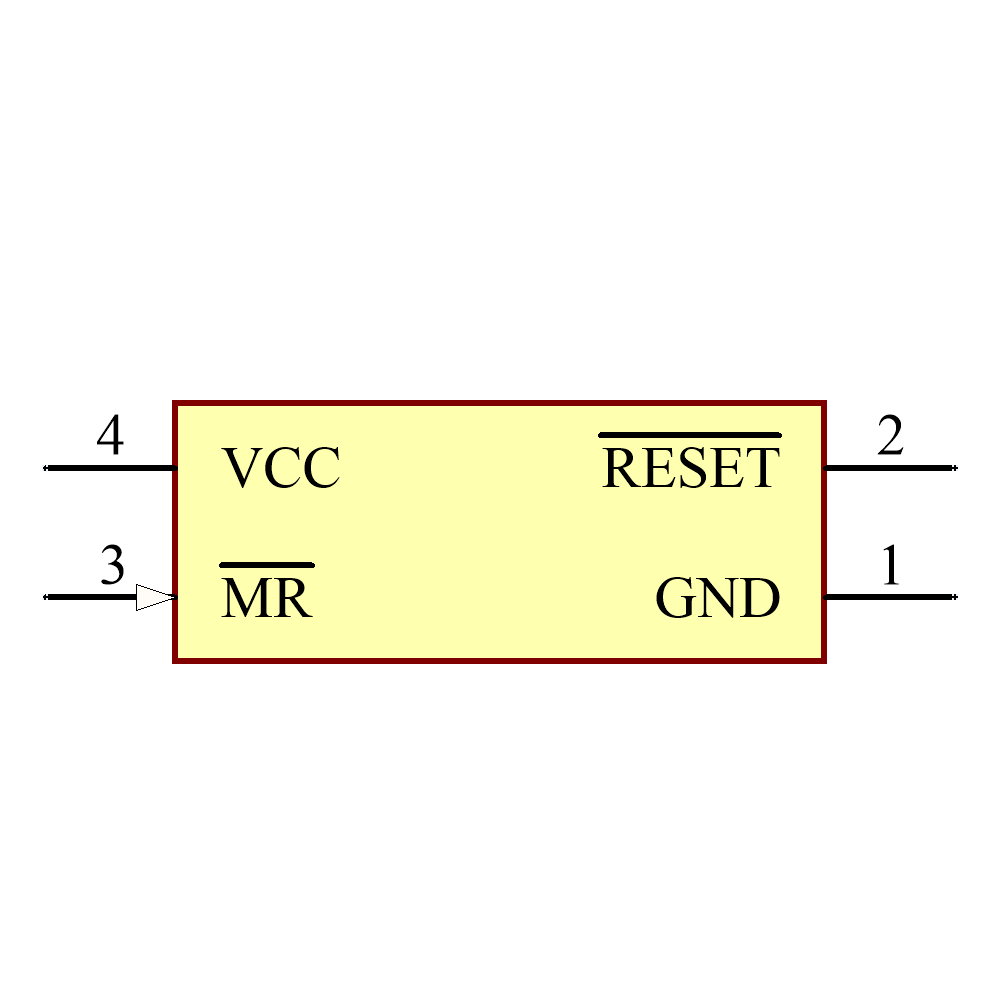

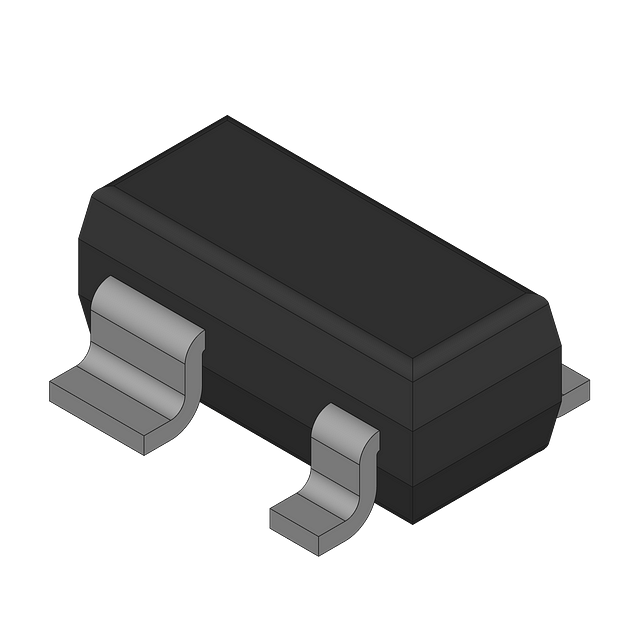

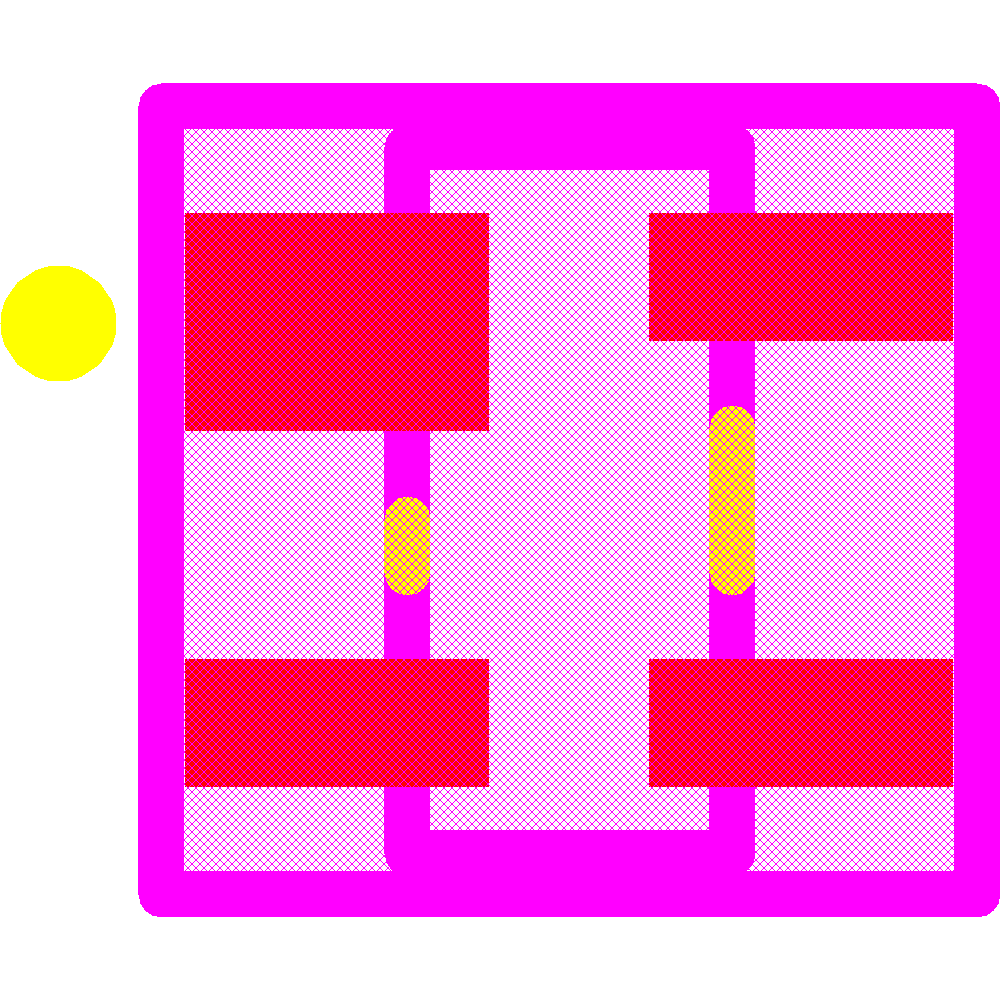

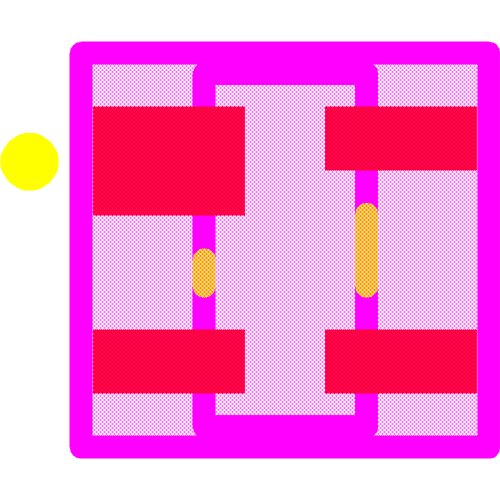

Images
Rochester Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 10000
|
$ | 1.92 | 1.82 | 1.63 | 1.54 | ||||
| Analog Devices |
US: 0
|
$ | ||||||||
