MAX6755UKLD3+T - Analog Devices
Single-/Dual-Voltage Window Detectors Monitor Under-/Overvoltage Down to 0.4V
Technical Details
| Case/Package | SOT-23-5 |
| Height | 1.45mm |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 312mW |
| Max Reset Threshold Voltage | 5.75V |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 4.25V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Nominal Supply Current | 13µA |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 13µA |
| Output Current | 20mA |
| Overvoltage Threshold | 5.75V |
| Reset | Active High |
| Reset Timeout | 185ms |
| RoHS | Compliant |
| Threshold Voltage | 5V |
| Type | Simple Reset/Power-On Reset, Voltage Detector |
| Undervoltage Threshold | 4.25V |
| Watchdog Timer | No |
Compliance
RoHS : Unconfirmed

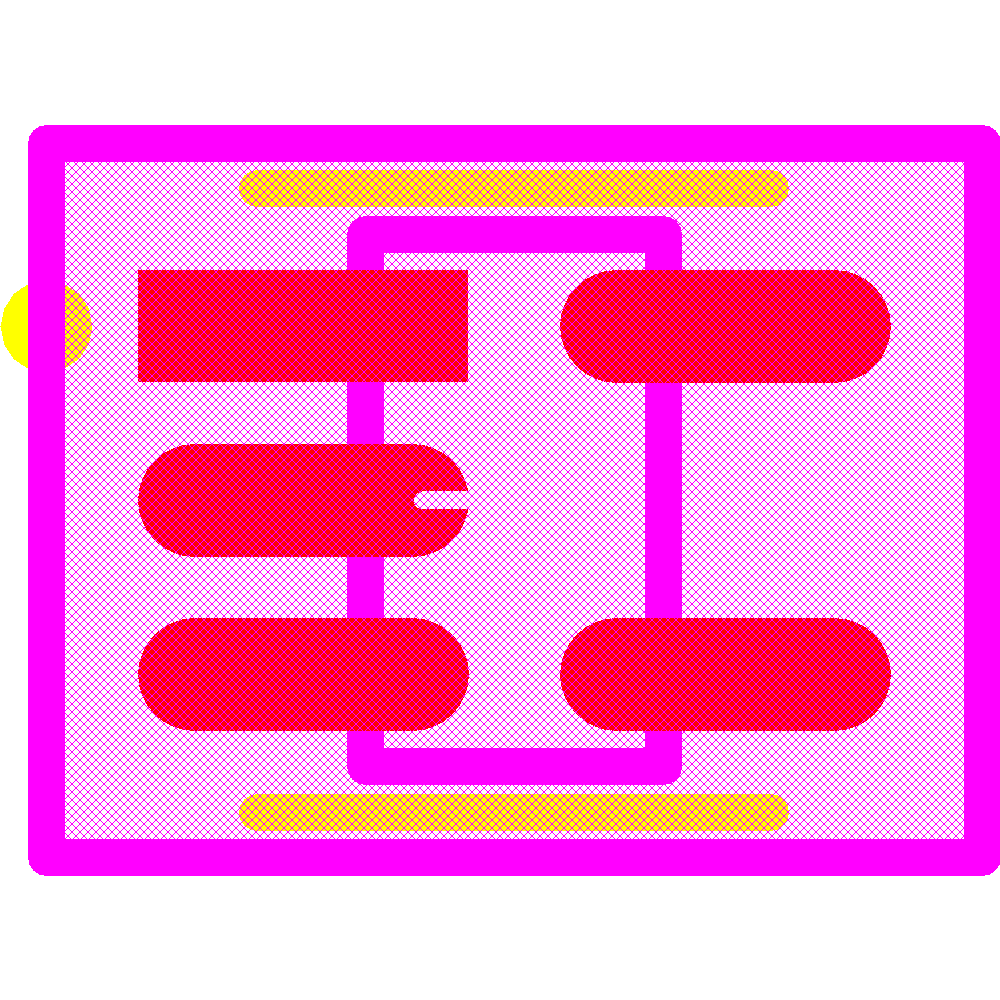

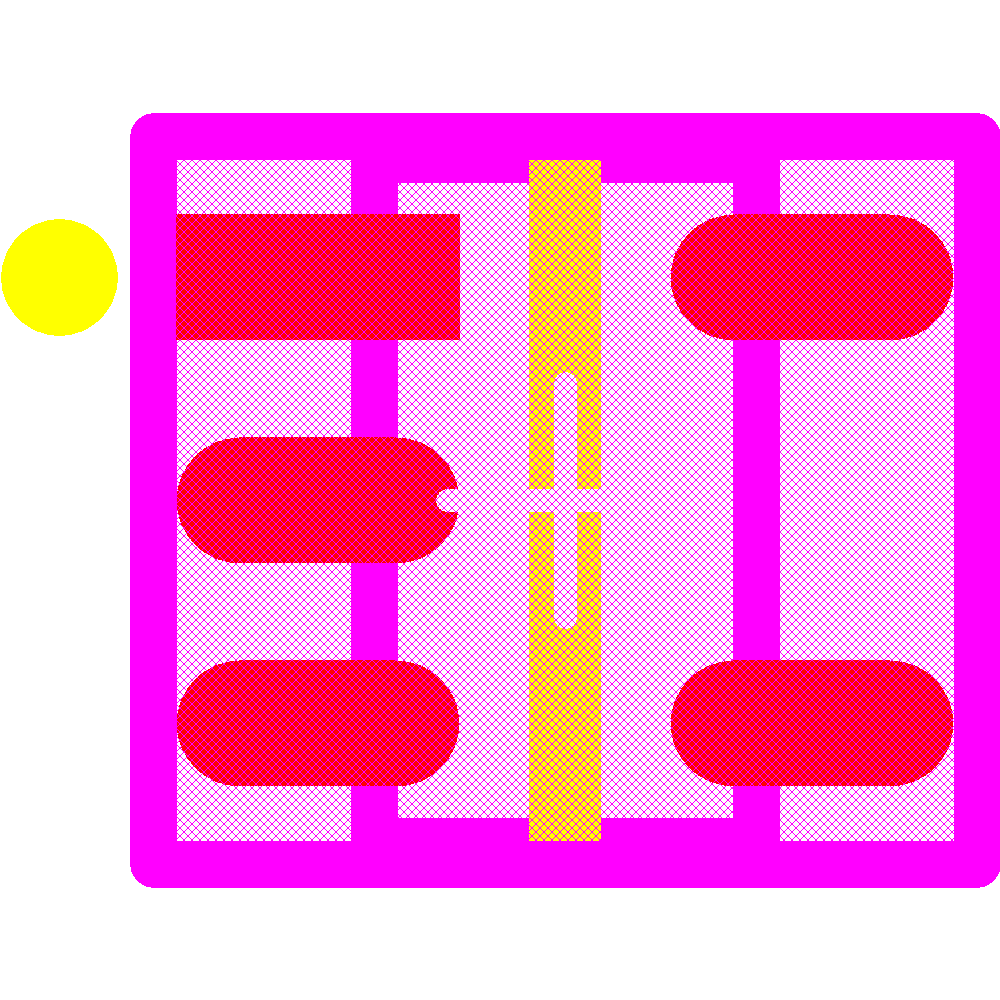

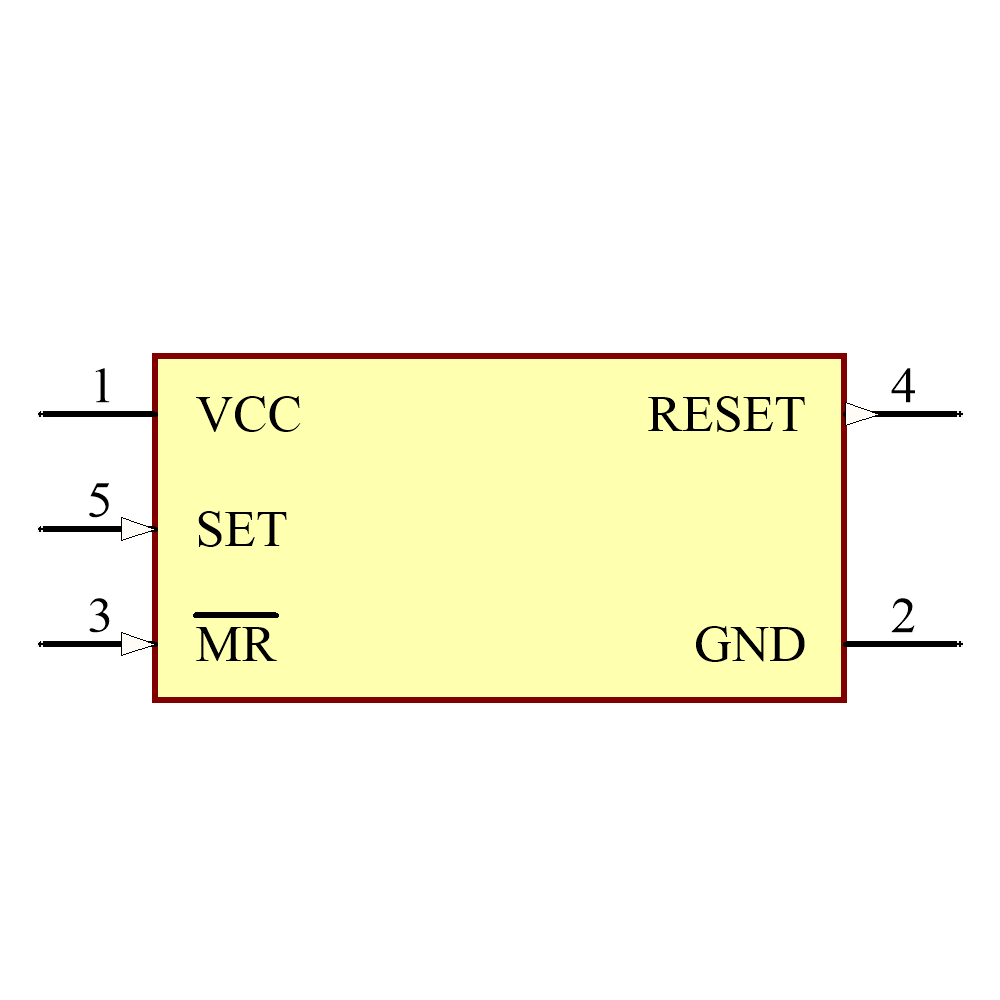

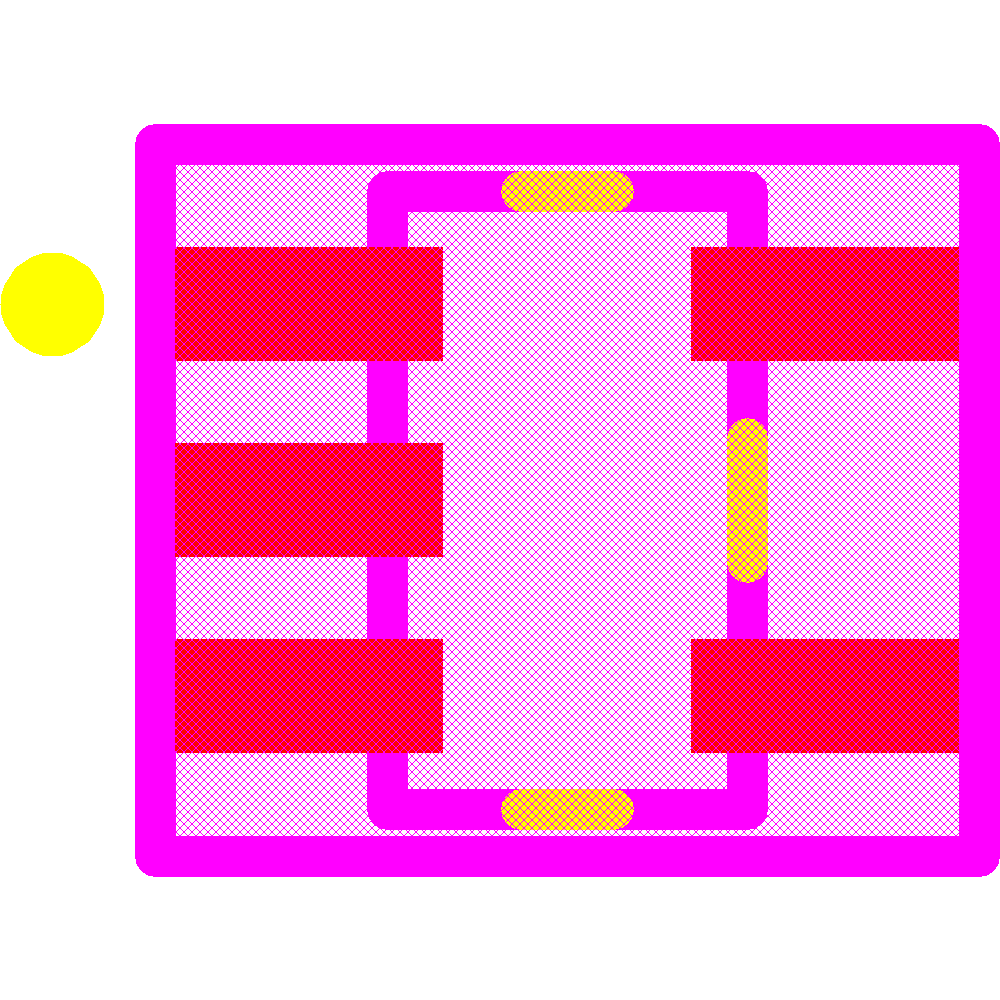

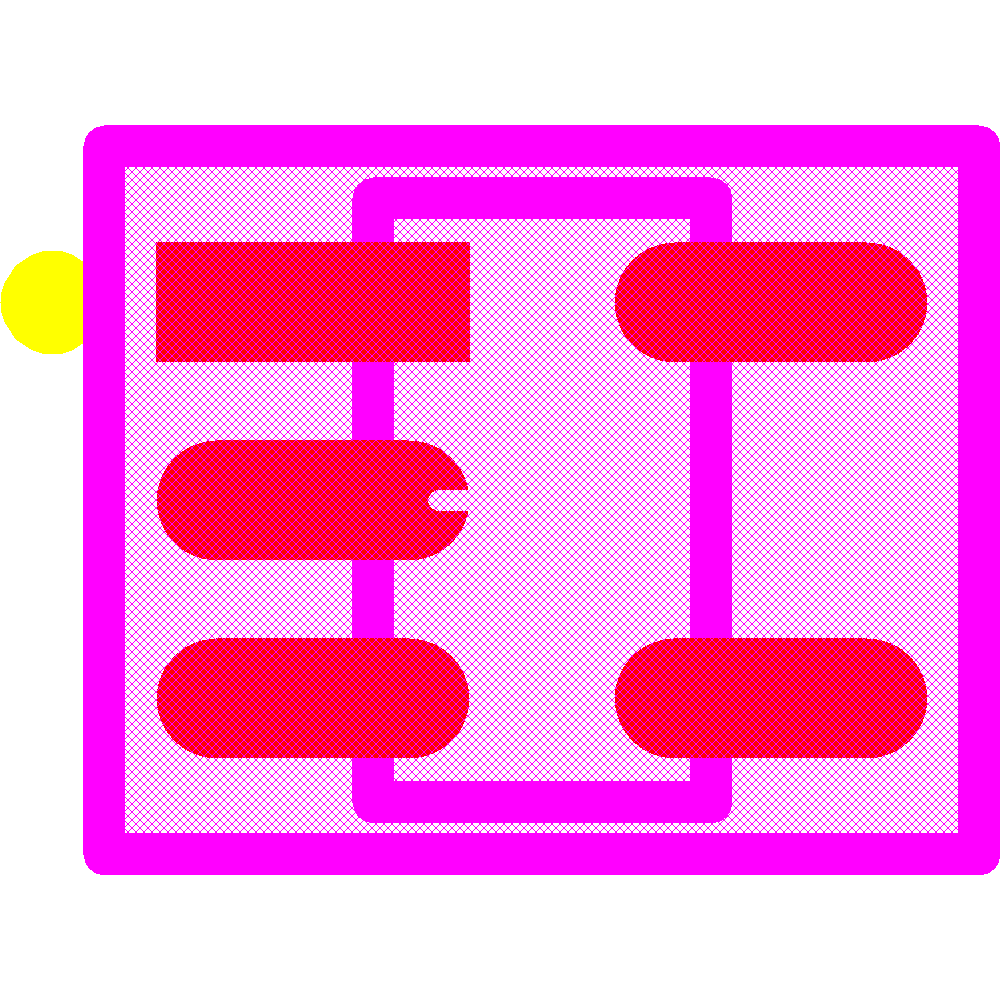

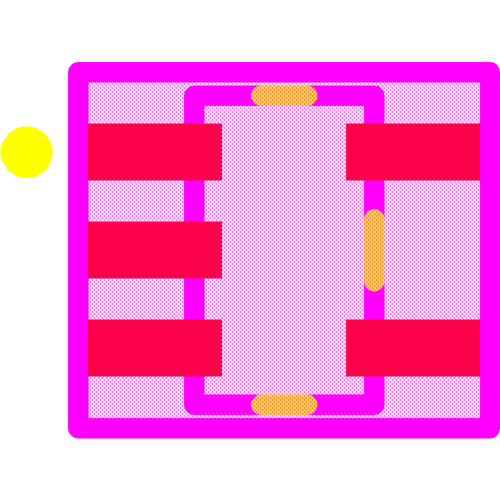

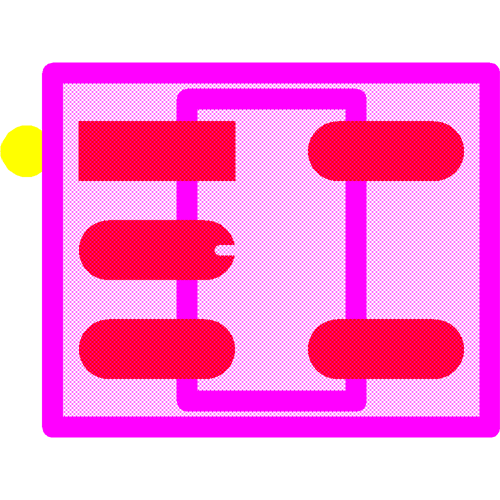

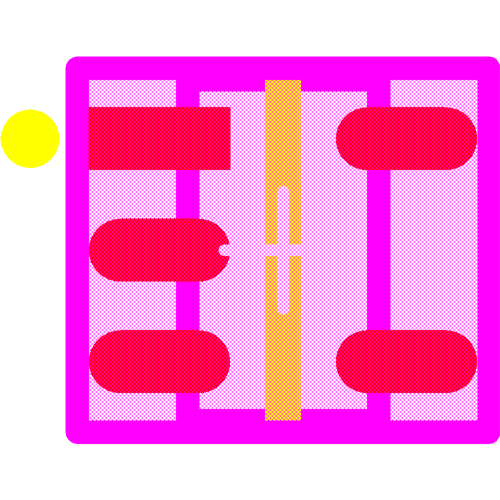

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Torex | Production | ||
| Torex | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 10000
|
$ | 2.19 | 2.08 | 1.86 | 1.75 | ||||
