Integrated Circuits (ICs) > Power Management ICs > LDO Voltage Regulators

MAX8559ETAJJ+T - Analog Devices

NO LEAD Not Qualified 0.12V 2012 Linear Voltage Regulator IC 150C 0.3A 3mm 2.9355V

Technical Details

Accuracy	1%
Dropout Voltage	60mV
Evaluation Kit	Yes
Input Bias Current	180µA
Lead Free	Lead Free
Lifecycle Status	Production
Max Input Voltage	6.5V
Max Operating Temperature	85°C
Max Power Dissipation	379mW
Min Current Limit	310mA
Min Input Voltage	2.5V
Min Operating Temperature	-40°C
Mount	Surface Mount
Noise	32
Number of Outputs	2
Number of Pins	8
Number of Regulators	2
Output Current	300mA
Output Type	Fixed
Output Voltage	1.8V
Polarity	Positive
Quiescent Current	290µA
Radiation Hardening	No
Reference Voltage	1.25V
RoHS	Compliant
Watchdog Timer	No

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

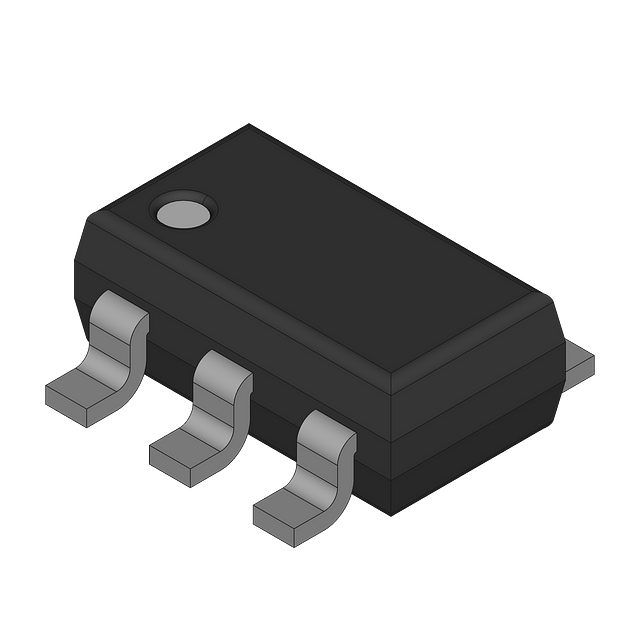

Images

Analog Devices MAX8559ETAJJ+T | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Worldway Electronics

Lifecycle Status Indicator

Production

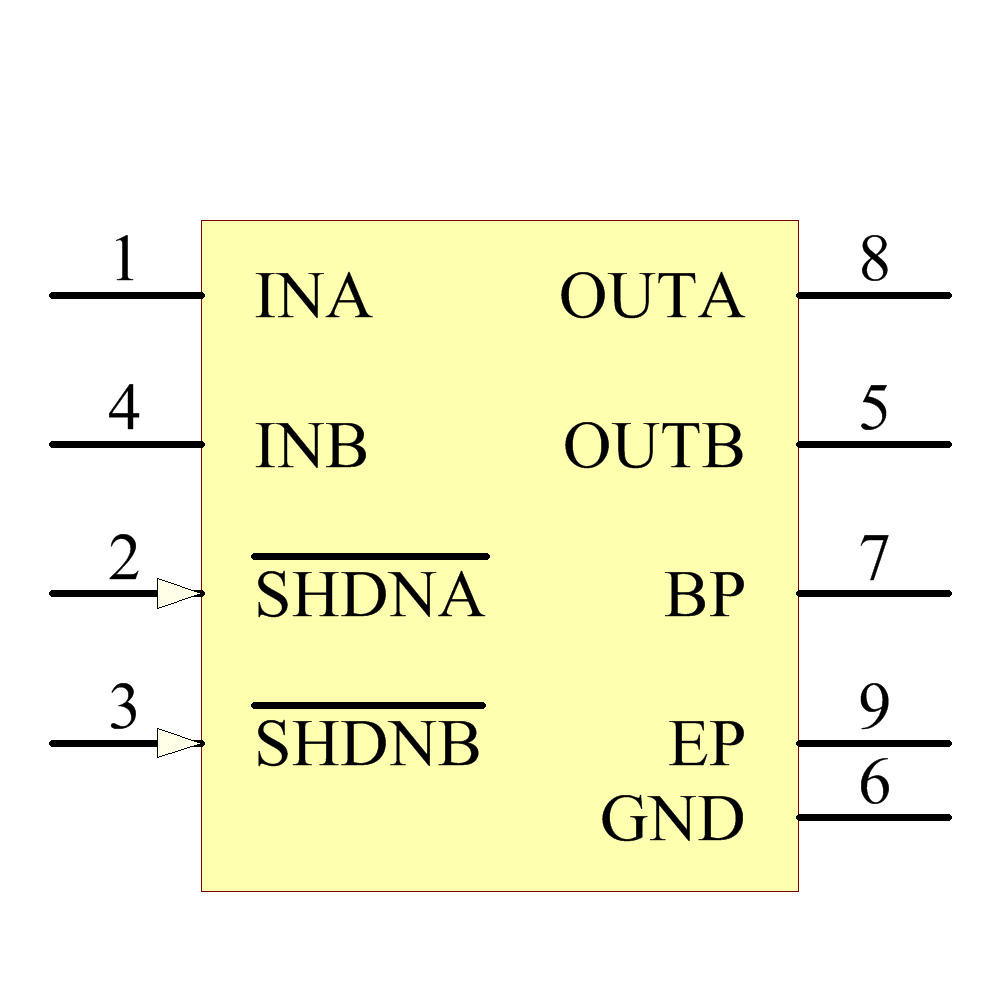

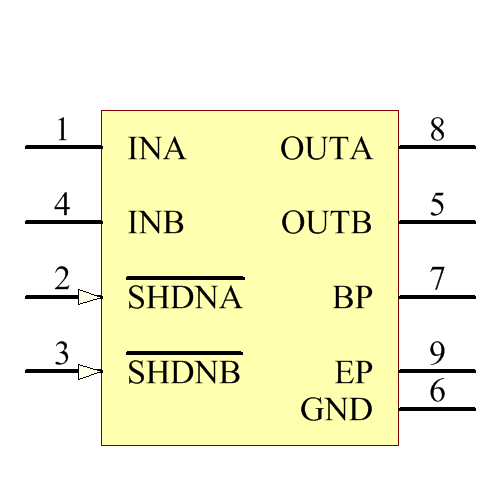

Symbol

MAX8559ETAJJ+T Symbol - Analog Devices

MAX8559ETAJJ+T Symbol - Analog Devices

MAX8559ETAJJ+T Symbol - Analog Devices

MAX8559ETAJJ+T Symbol - Analog Devices

‹ ›

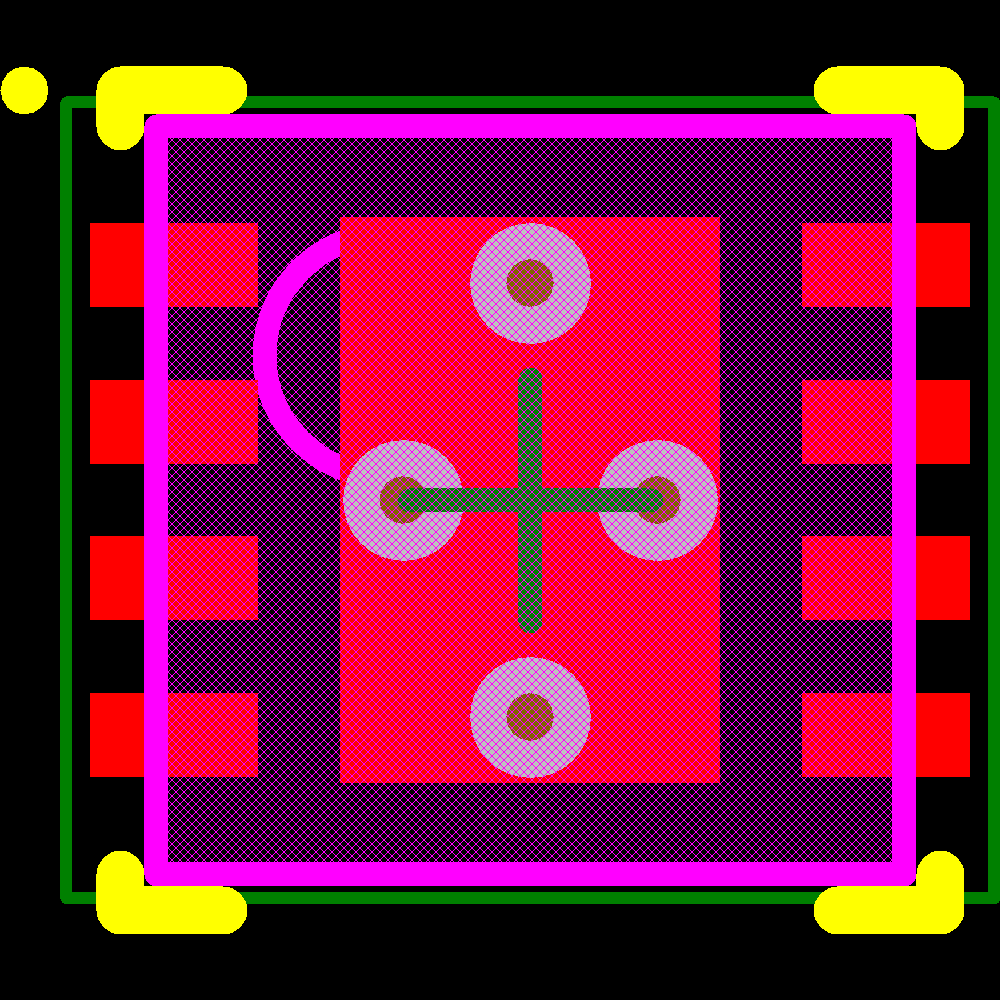

Footprint

MAX8559ETAJJ+T Footprint - Analog Devices

MAX8559ETAJJ+T Footprint - Analog Devices

MAX8559ETAJJ+T Footprint - Analog Devices

MAX8559ETAJJ+T Footprint - Analog Devices

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Analog Devices	MAX8559ETAJJ	Unknown

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Rochester Electronics

US: 2500

$

1.41

1.17

1.05

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Win Source

215054-MAX8559ETAJJ+T

CN: 25000

$

1.7487

1.4345

1.1654

1.1654

Worldway Electronics

HK: 18697

$

0.3128

0.3128

0.3032

0.2872

0.2872

ICPartonline

HK: 33747

$

0.9535

0.9058

0.9058

0.8582

0.8105

0.7628

Fmall Co., Limited

HK: 20340

$

0.9002

0.9002

0.9002

0.8422

0.7938

0.726

Aztech

IT: 127

$

12.00

12.00

12.00

12.00

12.00

12.00

AAA CHIPS

HK: 25069

$

1.5102

1.2389

1.2389

1.20

1.1232

1.1232

Eurochip Technologies LTD

IL: 69666

$

1.02

1.02

1.02

1.02

1.02

1.02

Antdic Electronics

CN: 34469

$

0.9535

0.9058

0.9058

0.8582

0.7628

0.7151

Fly-Wing Technology

HK: 25009

$

1.4383

1.1799

1.1799

1.1429

1.0697

1.0697

Fly-Wing Technology

HK: 2966

$

12.1586

11.4704

11.4704

10.8211

9.6308

9.6308

Anlinkda

HK: 21510

$

1.369

1.226

1.226

1.051

1.03

0.989

RC Electronics

CN: 19315

$

0.99

0.91

0.91

0.83

0.79

0.76

Lixinc

CN: 19001

$

1.11

1.11

1.11

1.11

1.11

1.026

ZTZ Technology Limited

CN: 8621

$

0.9702

0.8918

0.8918

0.8134

0.7742

0.7448

Vigor Components

SG: 2500

$

1.11

1.11

1.11

1.11

1.11

1.11

Quest

US: 1748

$

3.00

2.25

1.125

1.125

0.9375

0.825

Quest

US: 1748

$

3.328

2.496

1.8304

1.664

1.248

1.248

ALLICDATA ELECTRONICS

HK: 1000

$

0.67

0.6499

0.6499

0.6365

0.6231

0.603

Bison Technologies

MAX8559ETAJJ+T-26100

CN: 5030

$

0.72

0.72

0.72

XingHuan International

CN: 13822

$

Lingto Electronic Ltd.

CN: 12536

$

1.11

1.0545

1.0545

0.999

0.9879

0.9768
