MXD1816XR22+T - Analog Devices
Processor Supervisor 2.18V 2.5V/3V/3.3V/5V 3-Pin SC-70 T/R
Technical Details
| Height | 1.1mm |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 105°C |
| Max Power Dissipation | 174mW |
| Max Reset Threshold Voltage | 2.25V |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 2.12V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 3 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 9µA |
| Output Current | 20mA |
| Overvoltage Threshold | 2.25V |
| Reset | Active Low |
| Reset Timeout | 150ms |
| RoHS | Compliant |
| Threshold Voltage | 2.18V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.12V |
| Watchdog Timer | No |
Compliance
RoHS : Unconfirmed

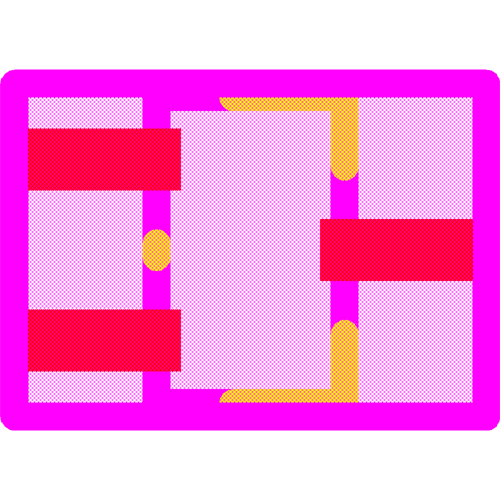

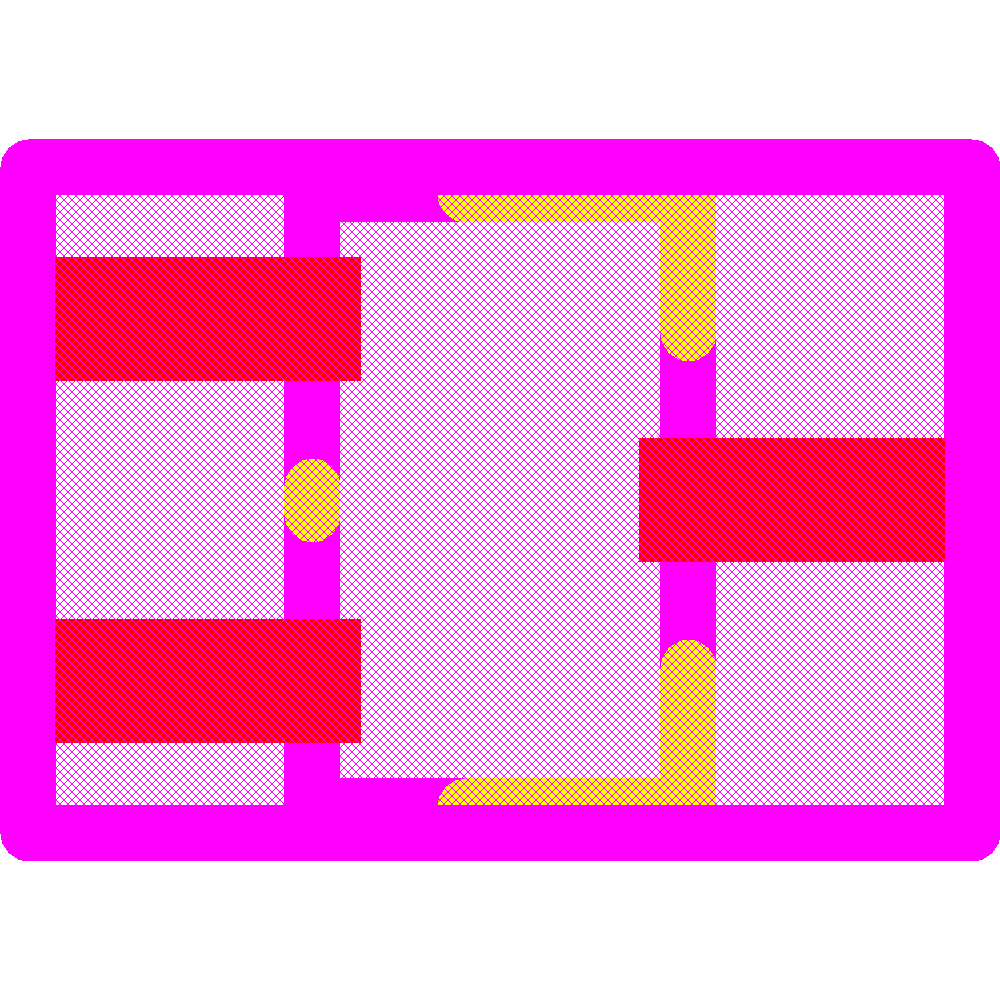

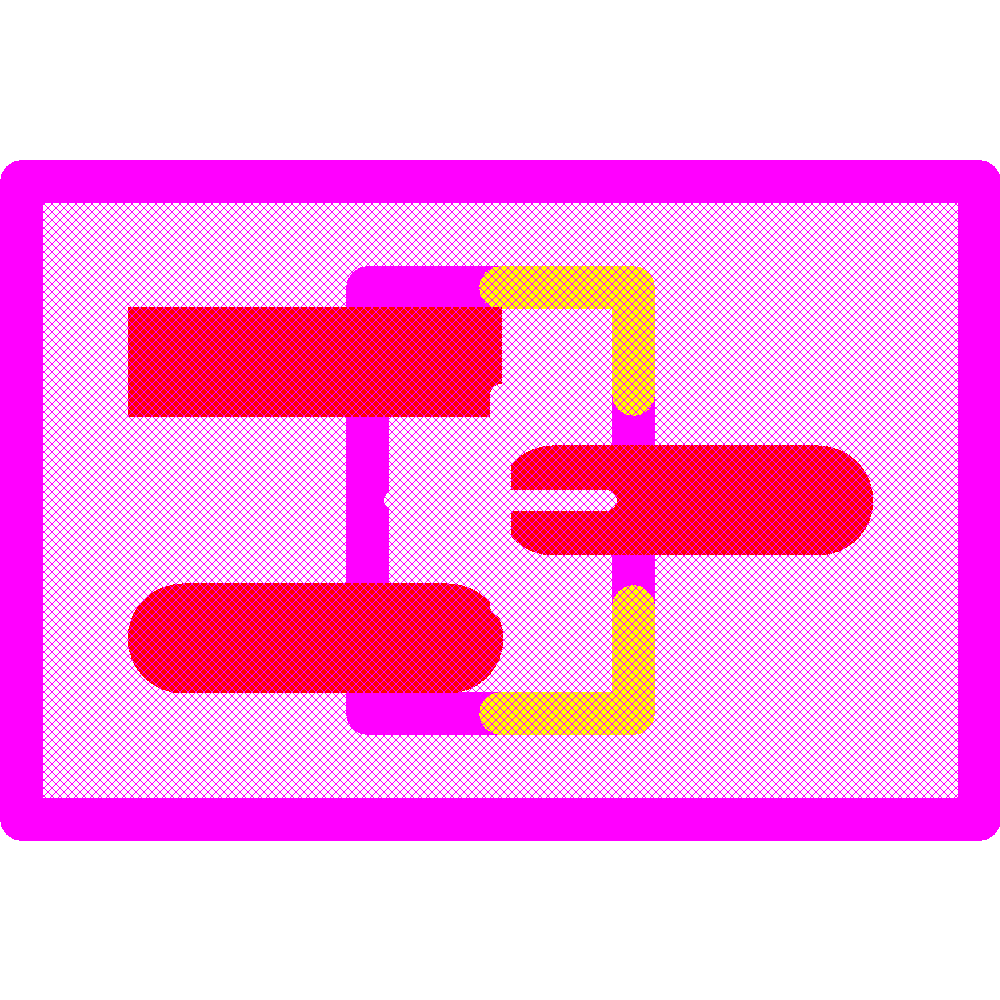

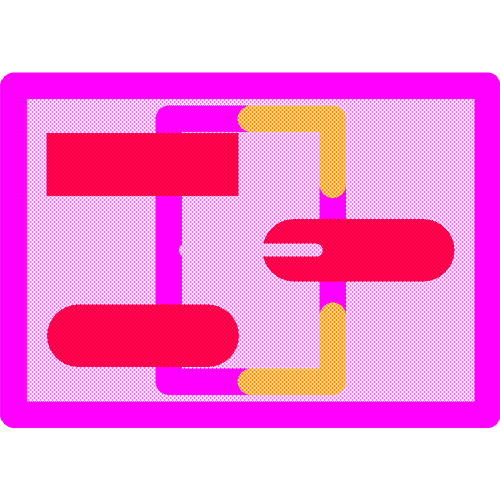

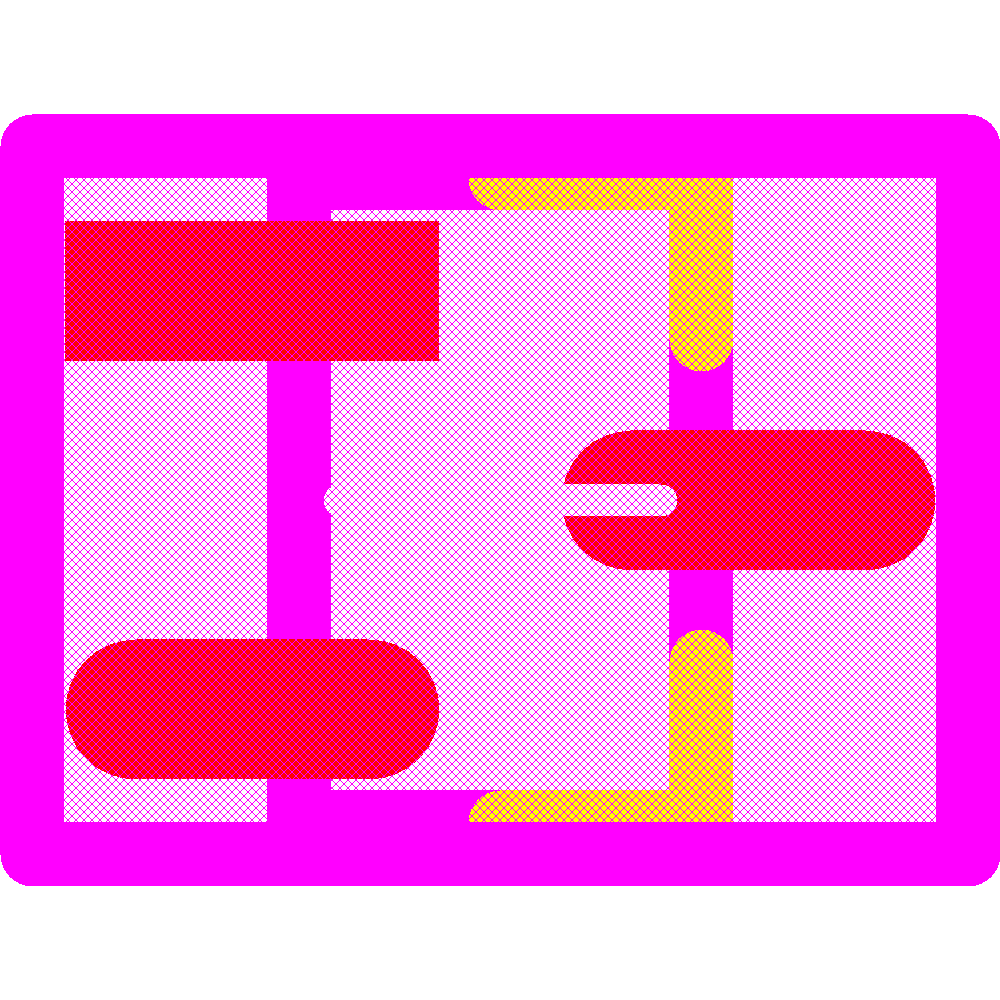

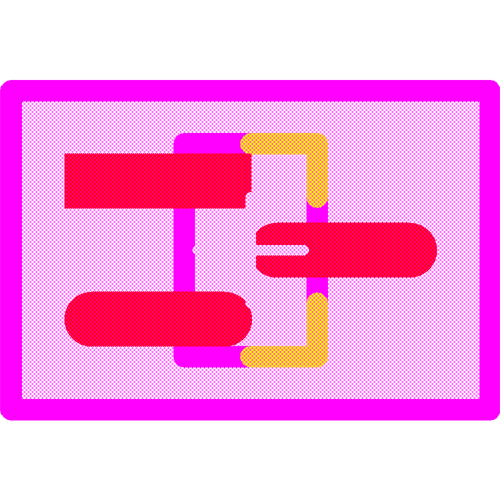

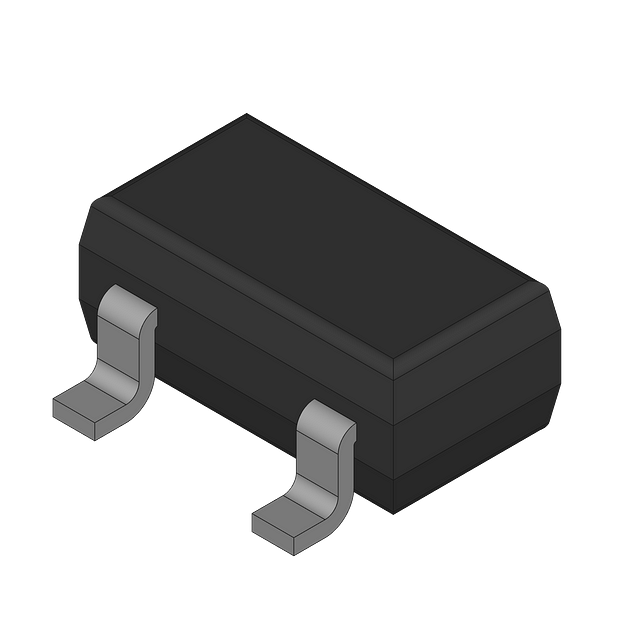

Images
