Technical Details
| Case/Package | SOT-23-3 |
| Height | 1.12mm |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 105°C |
| Max Power Dissipation | 320mW |
| Max Reset Threshold Voltage | 2.97V |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 2.8V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 3 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 9µA |
| Output Current | 20mA |
| Overvoltage Threshold | 2.97V |
| Radiation Hardening | No |
| Reset | Active High |
| Reset Timeout | 150ms |
| RoHS | Compliant |
| Threshold Voltage | 2.88V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.8V |
| Watchdog Timer | No |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

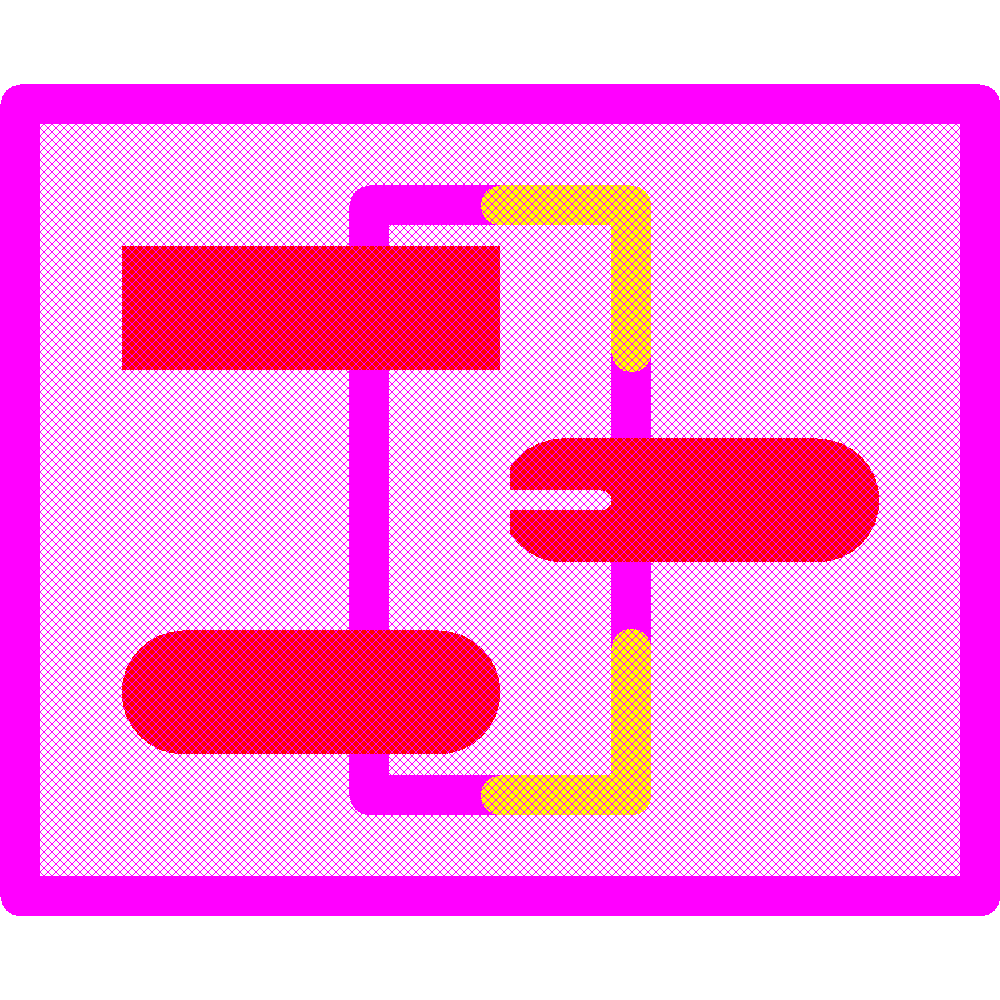

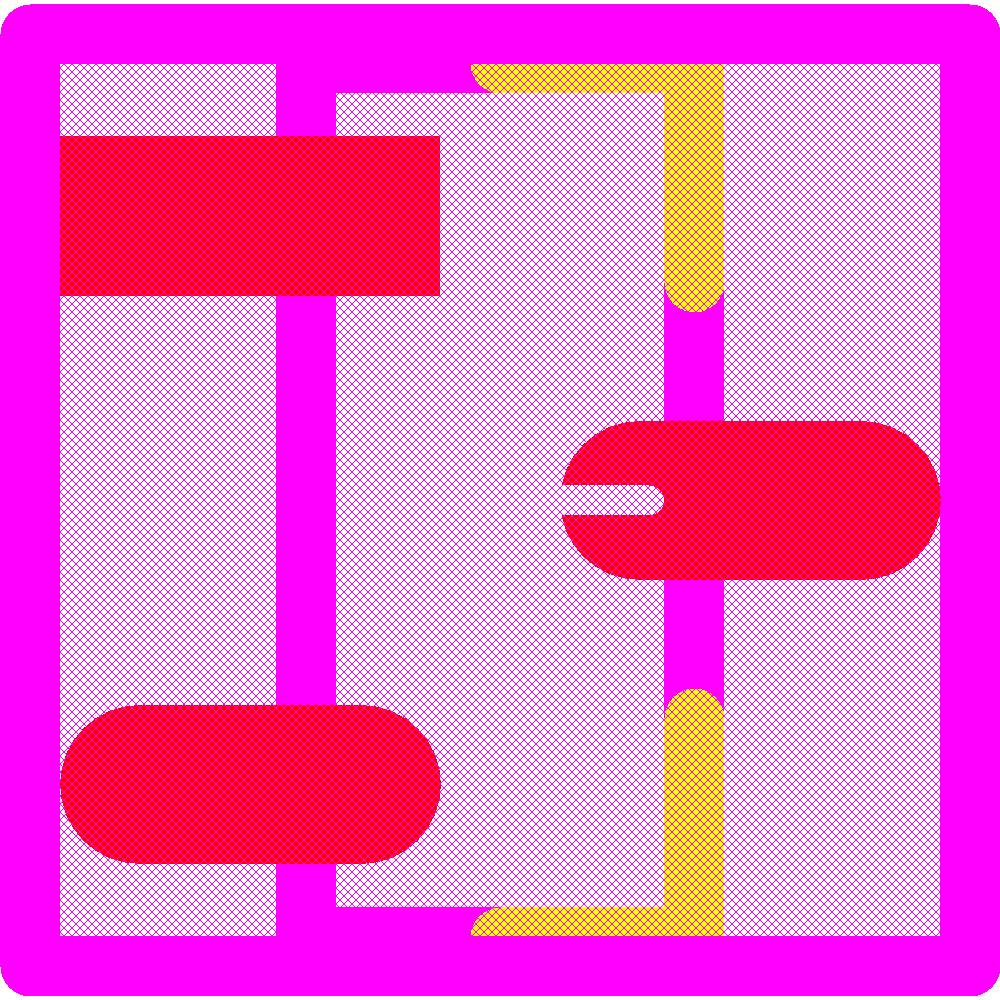

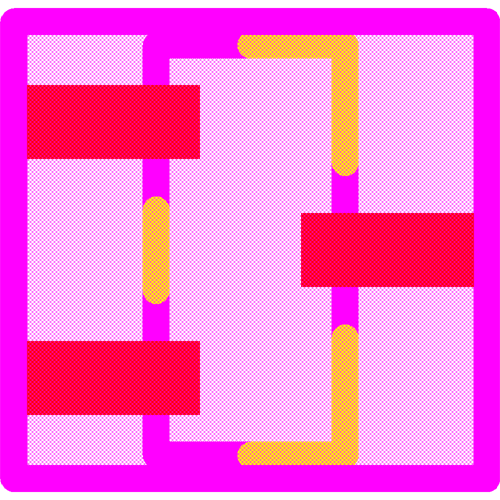

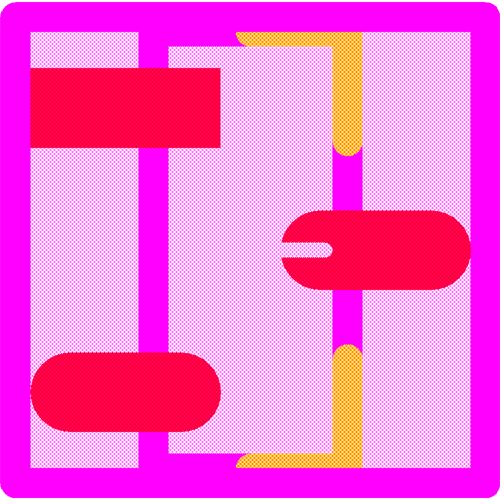

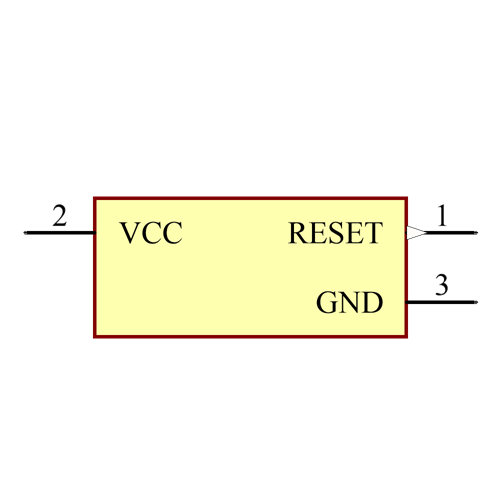

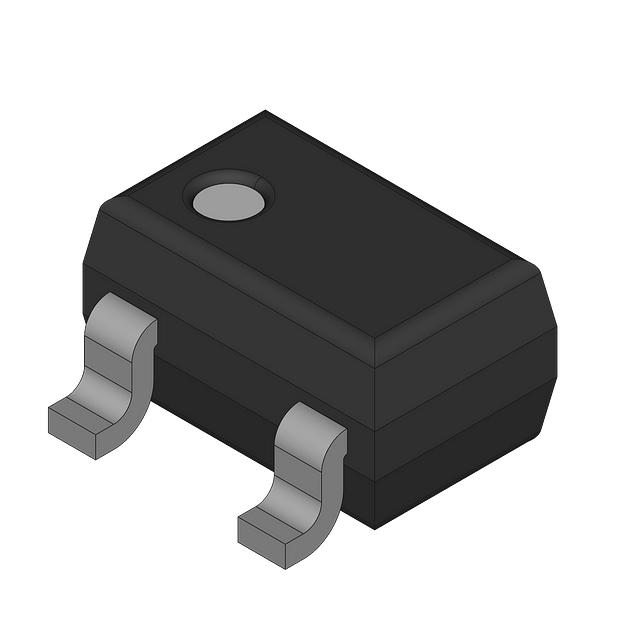

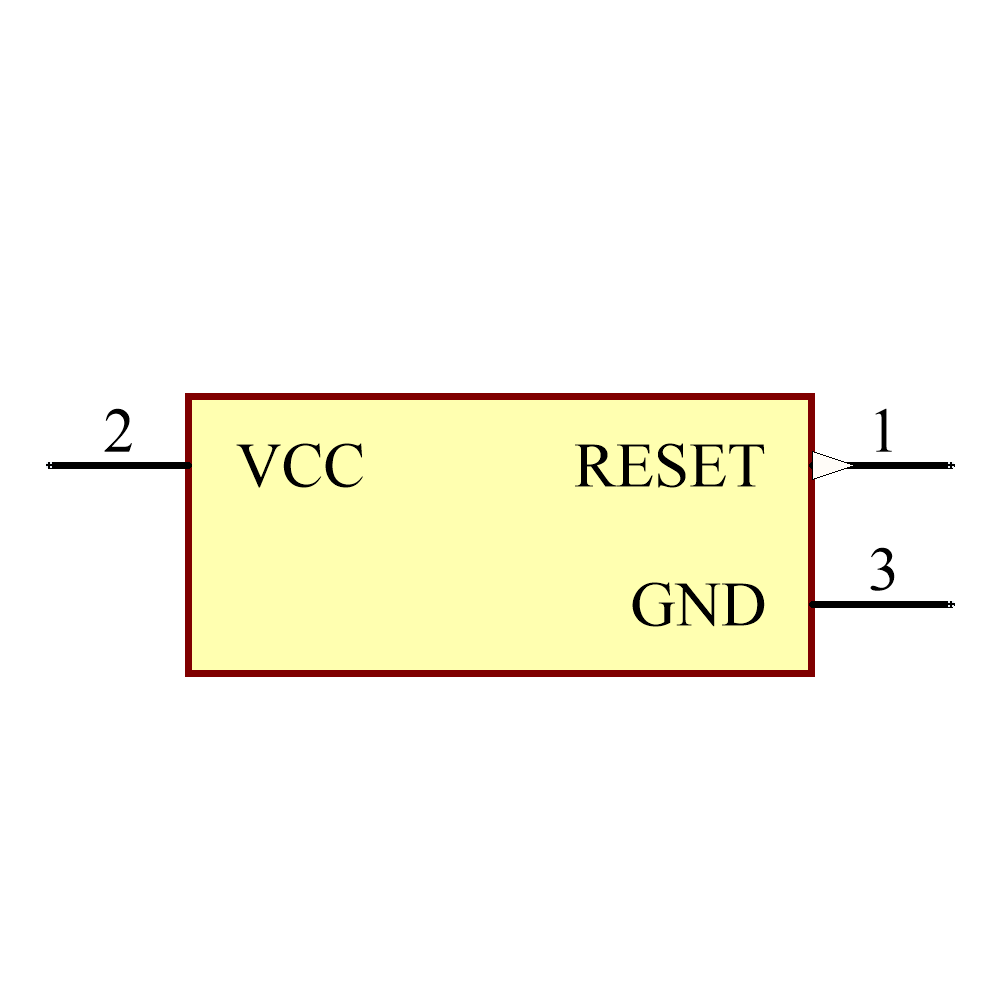

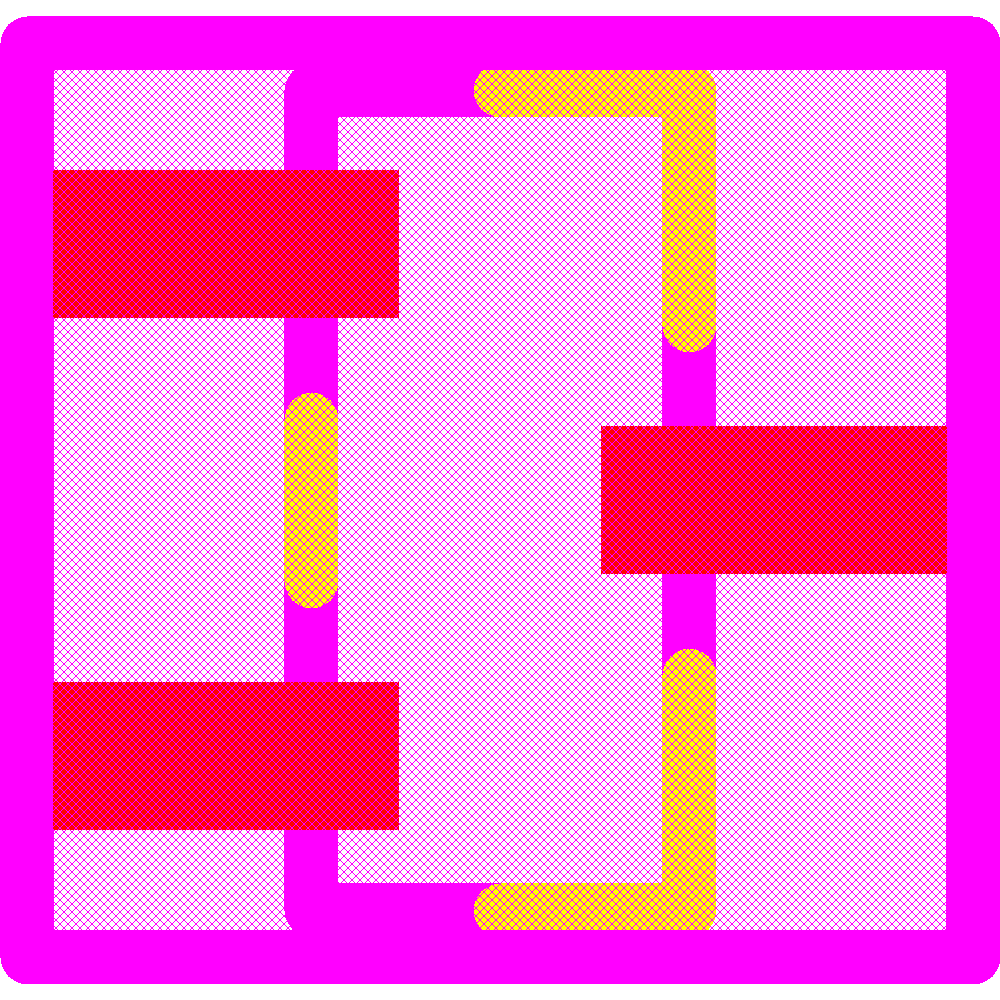

Images
Rochester Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 17500
|
$ | 2.30 | 2.19 | 1.96 | 1.84 | ||||
