REF43GSZ - Analog Devices

IC VREF SERIES 0.1% 8SOIC Series Voltage Reference IC Fixed 2.5V V ±0.1% 20 mA 8-SOIC

Technical Details

Case/Package	R
Current Rating	20A
Height	1.5mm
Length	5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Input Voltage	40V
Max Operating Temperature	85°C
Max Output Current	20mA
Max Output Voltage	2.5V
Min Input Voltage	4.5V
Min Operating Temperature	-40°C
Min Output Voltage	2.5V
Nominal Supply Current	340µA
Number of Channels	1
Number of Pins	8
Operating Supply Current	450µA
Output Current	20mA
Output Type	Fixed
Output Voltage	2.5V
Packaging	Bulk
Quiescent Current	450µA
Radiation Hardening	No
REACH SVHC	No
Reference Type	Series
Reference Voltage	2.5V
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|85
Temperature Coefficient	25ppm/°C
Tolerance	0.1%
Width	4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Analog Devices REF43GSZ | Analog Devices

Analog Devices

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

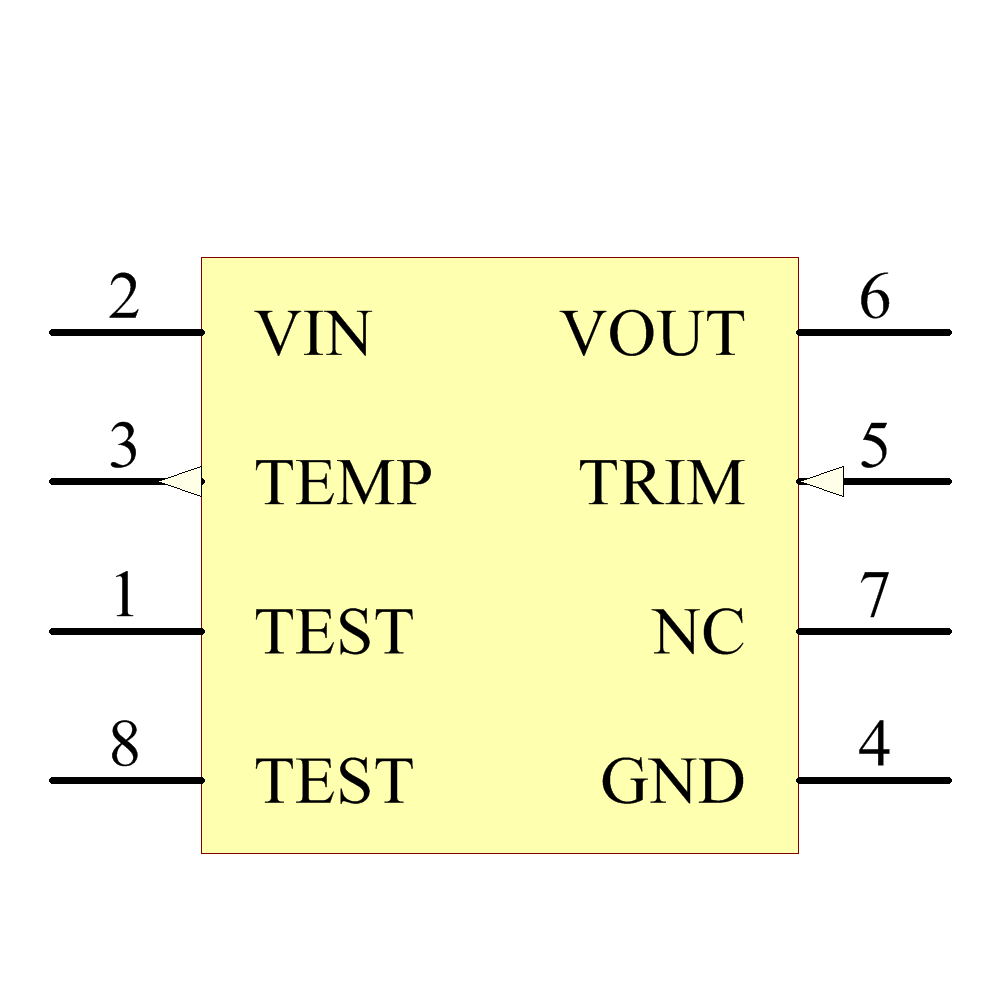

REF43GSZ Symbol - Analog Devices

REF43GSZ Symbol - Analog Devices

REF43GSZ Symbol - Analog Devices

REF43GSZ Symbol - Analog Devices

‹ ›

Footprint

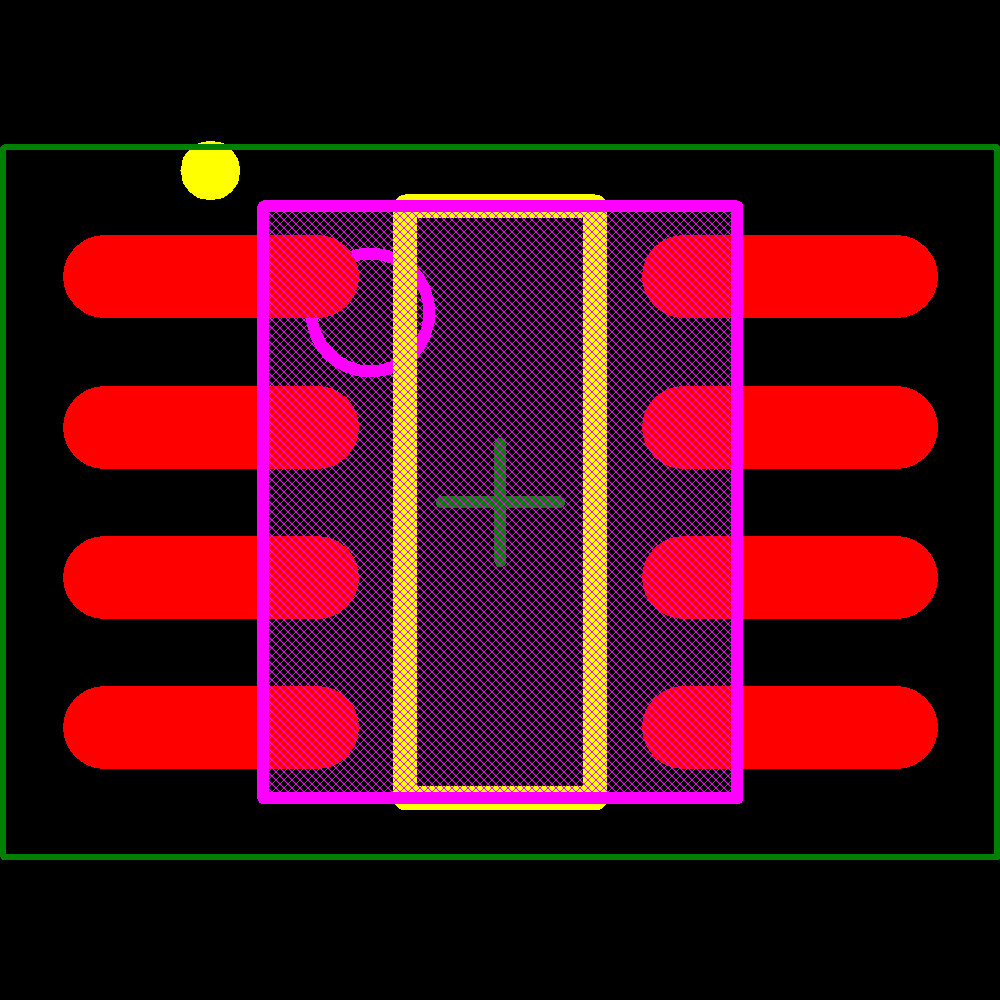

REF43GSZ Footprint - Analog Devices

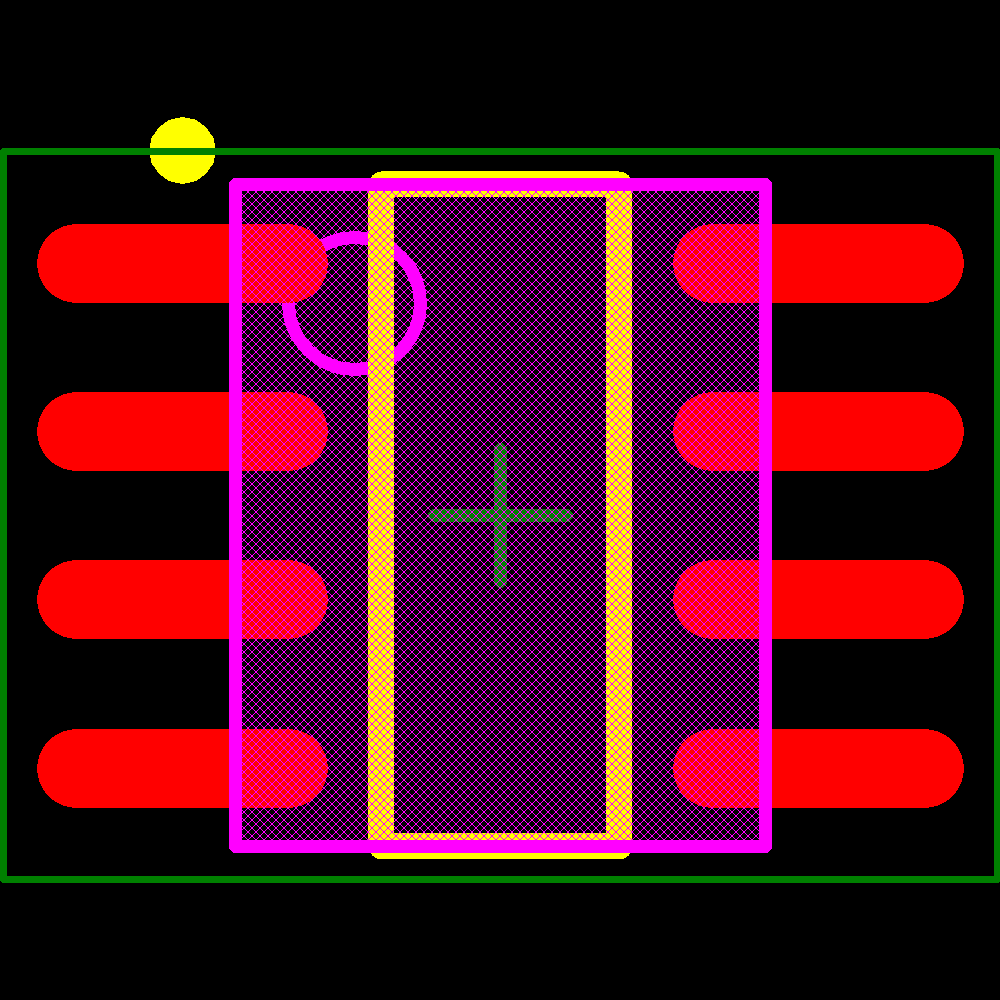

REF43GSZ Footprint - Analog Devices

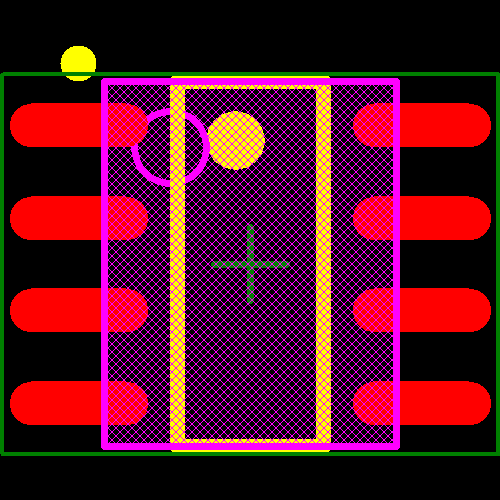

REF43GSZ Footprint - Analog Devices

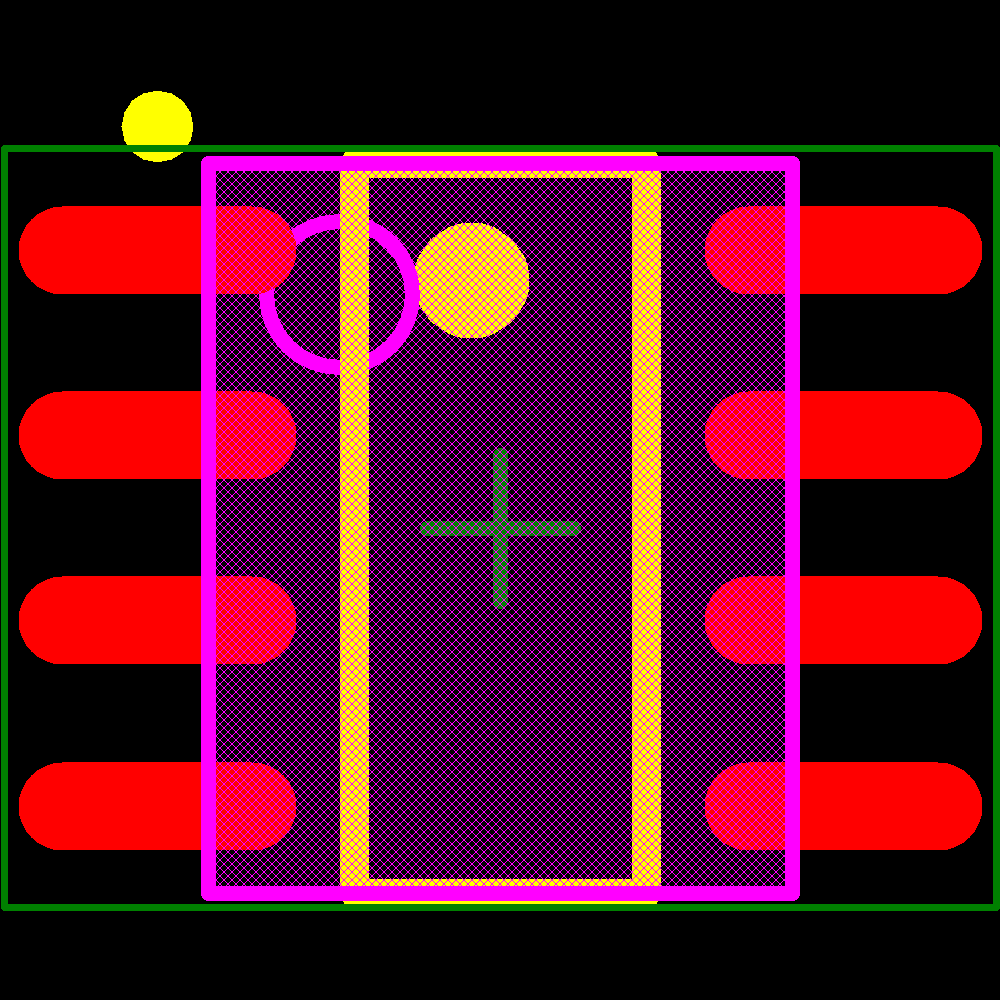

REF43GSZ Footprint - Analog Devices
