25436NAH6 - APEM
Switch Slide ON ON SPDT Top Slide 1A 30VDC 20000Cycles PC Pins Thru-Hole
Technical Details
| Actuator Length | 6mm |
| Actuator Material | Glass, Nylon, Polyamide |
| Contact Current Rating | 1A |
| Contact Material | Silver |
| Contact Resistance | 10mΩ |
| Current Rating | 1A |
| Electrical Life | 10kcycles |
| Height | 14.1mm |
| Life (Cycles) | 10kcycles |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 20kcycles |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Orientation | Straight |
| Packaging | Bulk |
| RoHS | Compliant |
| Switch Function | On-On |
| Switch Travel | 4mm |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| Voltage Rating (DC) | 30V |
Compliance
RoHS : Unconfirmed

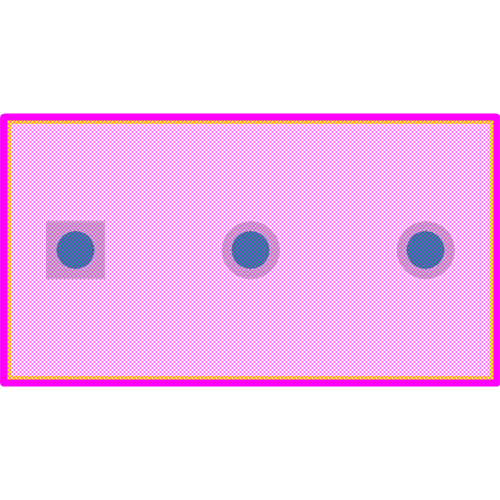

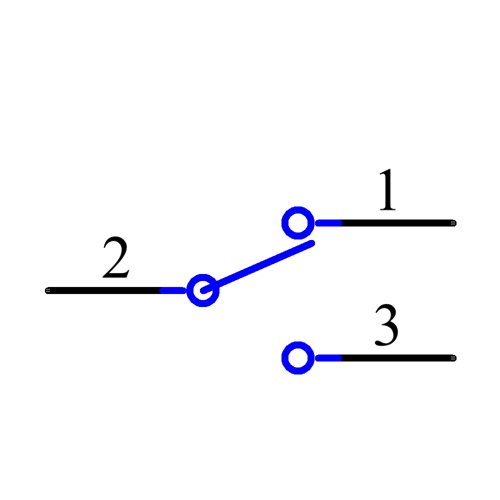

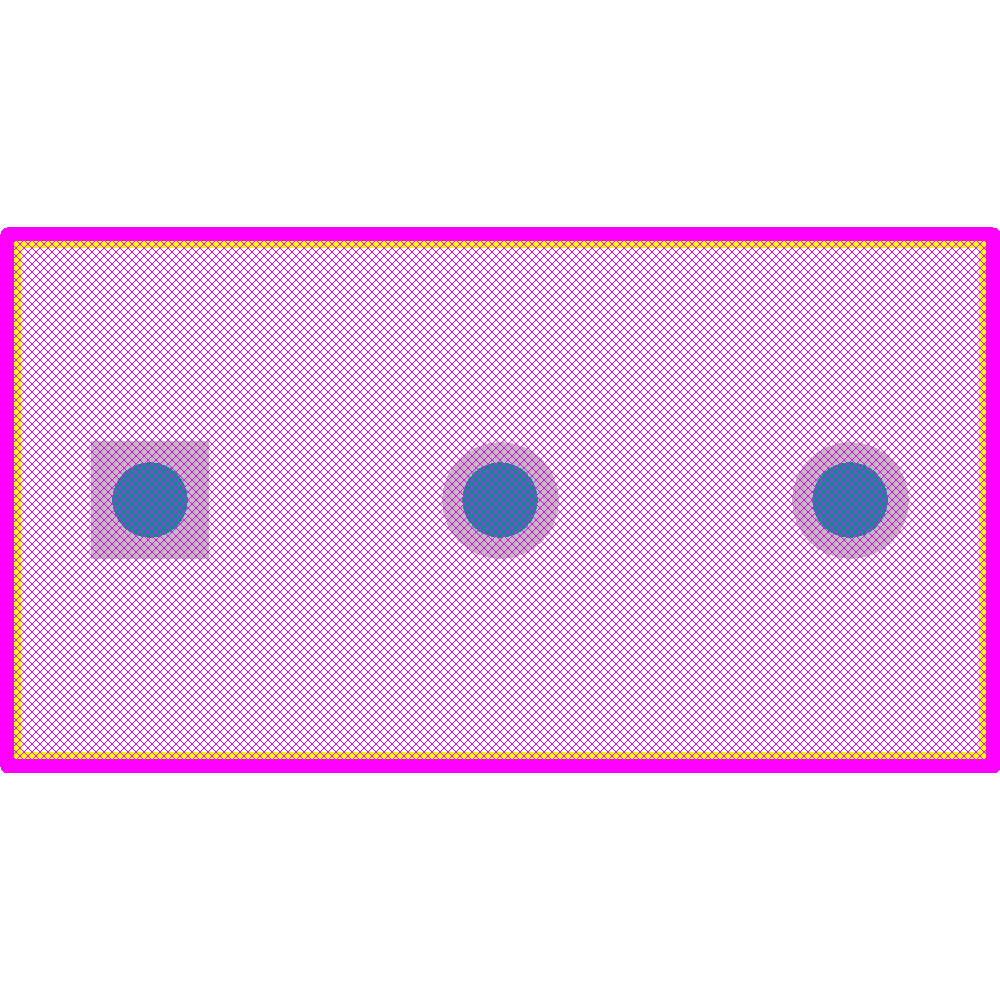

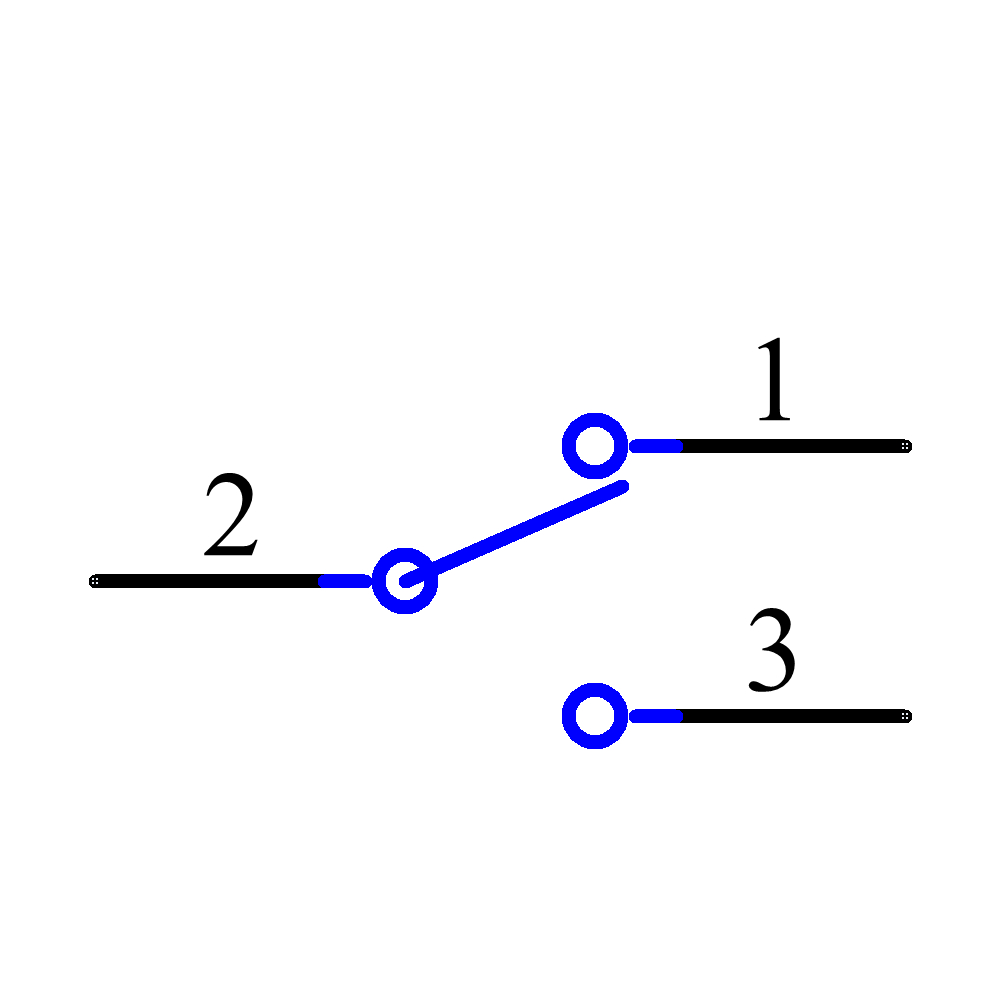

Images
