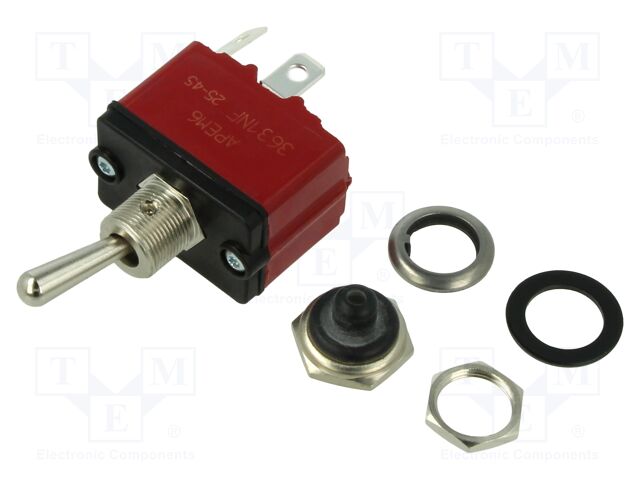

3631NF/2 - APEM
Switch, Toggle, Sealed, SPST, On-off, Std Actuator, Non-illum, 6A, 250VAC, Solder/qc
Technical Details
| Actuator Length | 17.5mm |
| Actuator Material | Brass |
| Contact Current Rating | 12A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Contact Resistance | 10mΩ |
| Country of Origin | UK |
| Current Rating | 12A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| Height | 35mm |
| Housing Material | Phenolic |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Illumination Type | Illuminated, Non-Illuminated |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2013-01-31 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Number of Pins | 1 |
| Number of Poles | 1 |
| Number of Positions | 2 |
| REACH SVHC | No |
| RoHS | Compliant |
| Switch Function | On-Off |
| Switching Current | 6A |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| Voltage Rating (DC) | 28V |
| Width | 21.5mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
