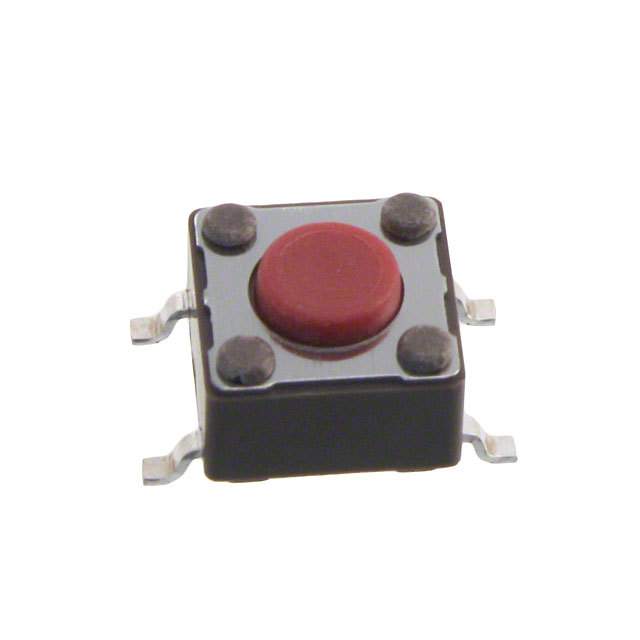

ADTSM61RVTR - APEM
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 2.55N SMD T/R
Technical Details
| Actuator Length | 787.4µm |
| Actuator Material | Nylon, Polyamide |
| Color | Black, Red |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Country of Origin | UK |
| Current Rating | 50mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 3.5052mm |
| Housing Material | Stainless Steel |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2007-05-18 |
| Length | 6.1976mm |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 12V |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 250µm |
| Terminal Material | Brass |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 12V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
