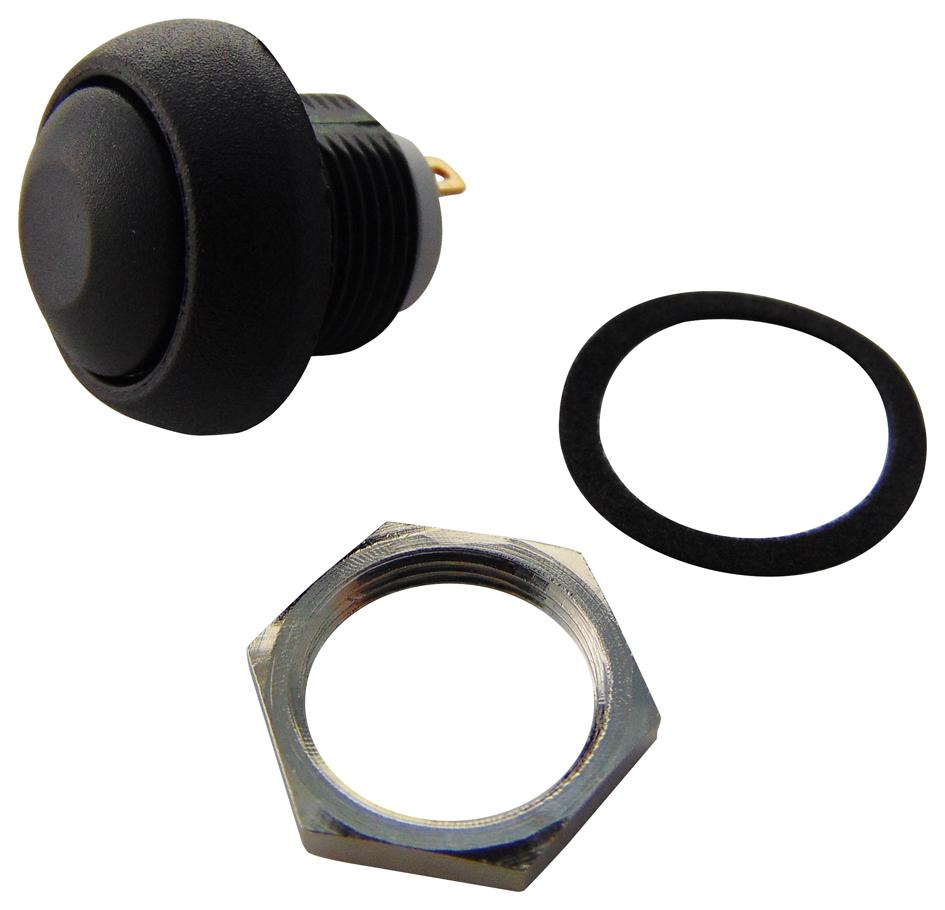

ISR3SAD200 - APEM
Pushbutton Switch, SPST, Momentary, 0.1A, 50VDC, Solder Terminal, Panel Mount-threaded
Technical Details
| Actuator Length | 2mm |
| Actuator Material | Polyamide |
| Color | Black |
| Contact Current Rating | 400mA |
| Contact Material | Silver |
| Contact Plating | Gold |
| Contact Resistance | 50mΩ |
| Contact Voltage Rating (AC) | 32V |
| Country of Origin | UK |
| Current Rating | 100mA |
| Depth | 17.5mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 500kcycles |
| Flammability Rating | UL94 V-0 |
| Height | 9.8mm |
| Housing Material | Thermoplastic |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.31 |
| Introduction Date | 2007-09-04 |
| Lead Free | Lead Free |
| Length | 12mm |
| Life (Cycles) | 500kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 50V |
| Mechanical Life | 1Mcycles |
| Min Operating Temperature | -40°C |
| Mount | Front, Panel |
| Number of Positions | 2 |
| Operating Force | 5N |
| Packaging | Bulk |
| Ratings | Dust Tight, IP67, Waterproof |
| REACH SVHC | No |
| RoHS | Compliant |
| Sealable | CORROSION PROOF, EPOXY TERMINAL SEALED, IP67 |
| Switch Function | Off-Mom |
| Termination | Solder |

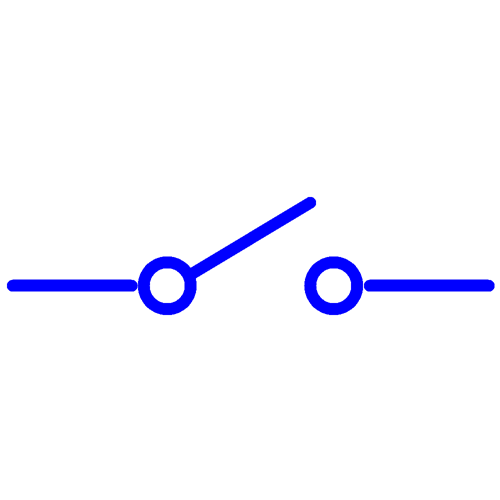

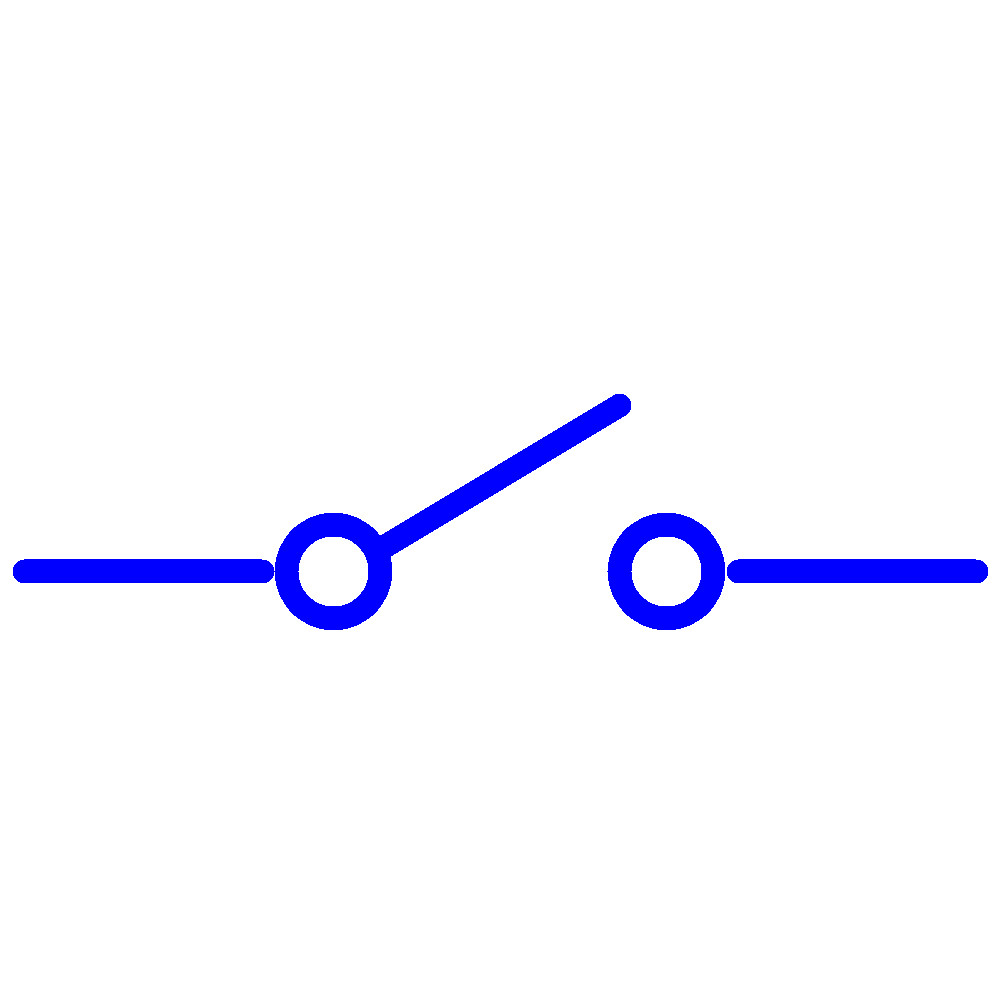

| Throw Configuration | SPST |
| Voltage Rating (AC) | 32V |
| Voltage Rating (DC) | 48V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
