MJTP1212A - APEM
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 1.57N Thru-Hole
Technical Details
| Actuator Length | 3.5mm |
| Actuator Material | Acetal, Polyoxymethylene |
| Contact Current Rating | 50mA |
| Contact Material | Bronze |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Current Rating | 50mA |
| Electrical Life | 100kcycles |
| Height | 4mm |
| Illumination Type | Illuminated, Non-Illuminated |
| Length | 12mm |
| Life (Cycles) | 100kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Positions | 1 |
| Operating Force | 2.06N |
| Orientation | Straight |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 300µm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 12V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

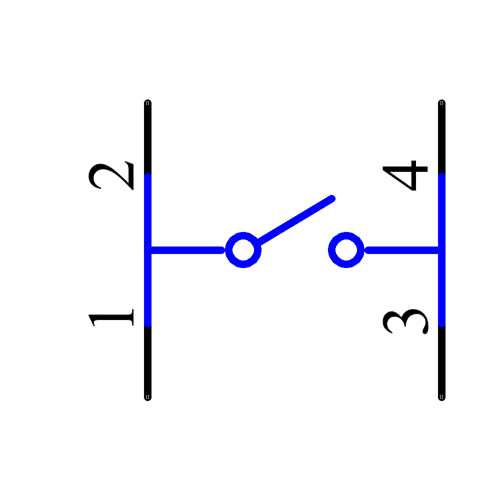

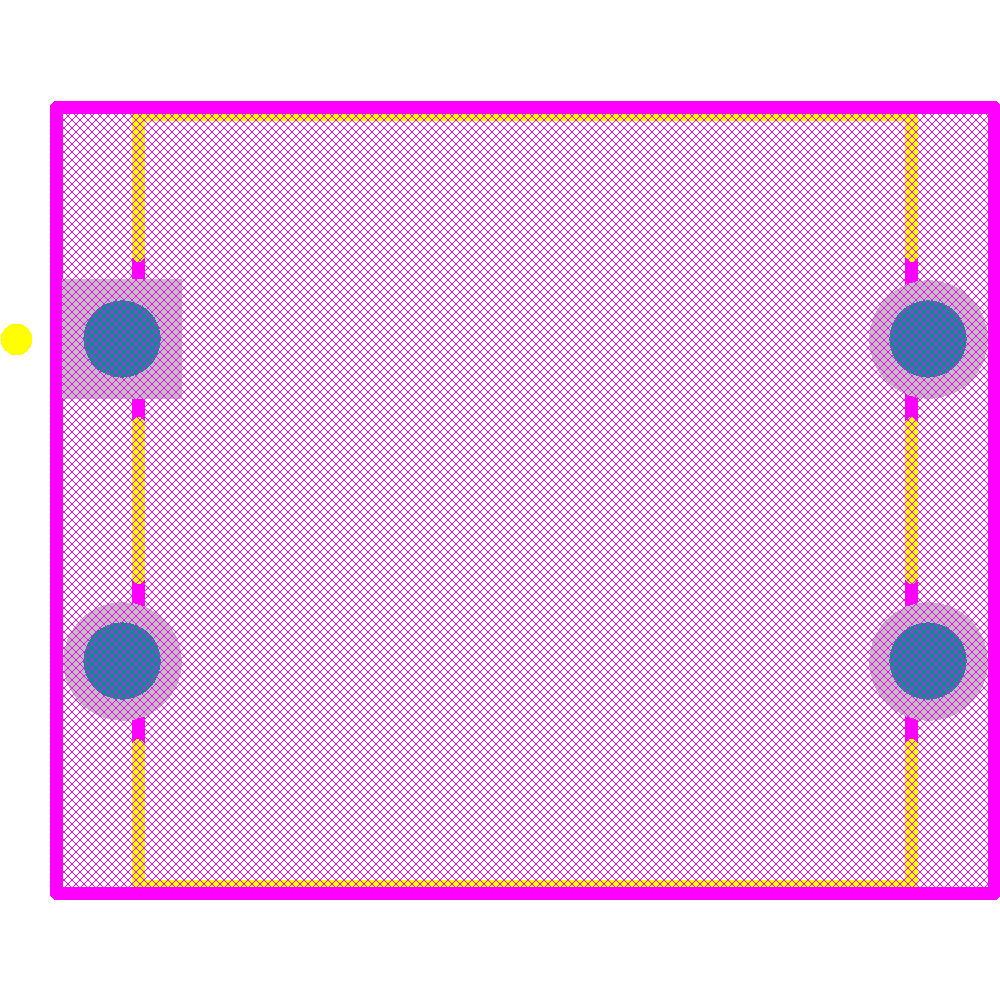

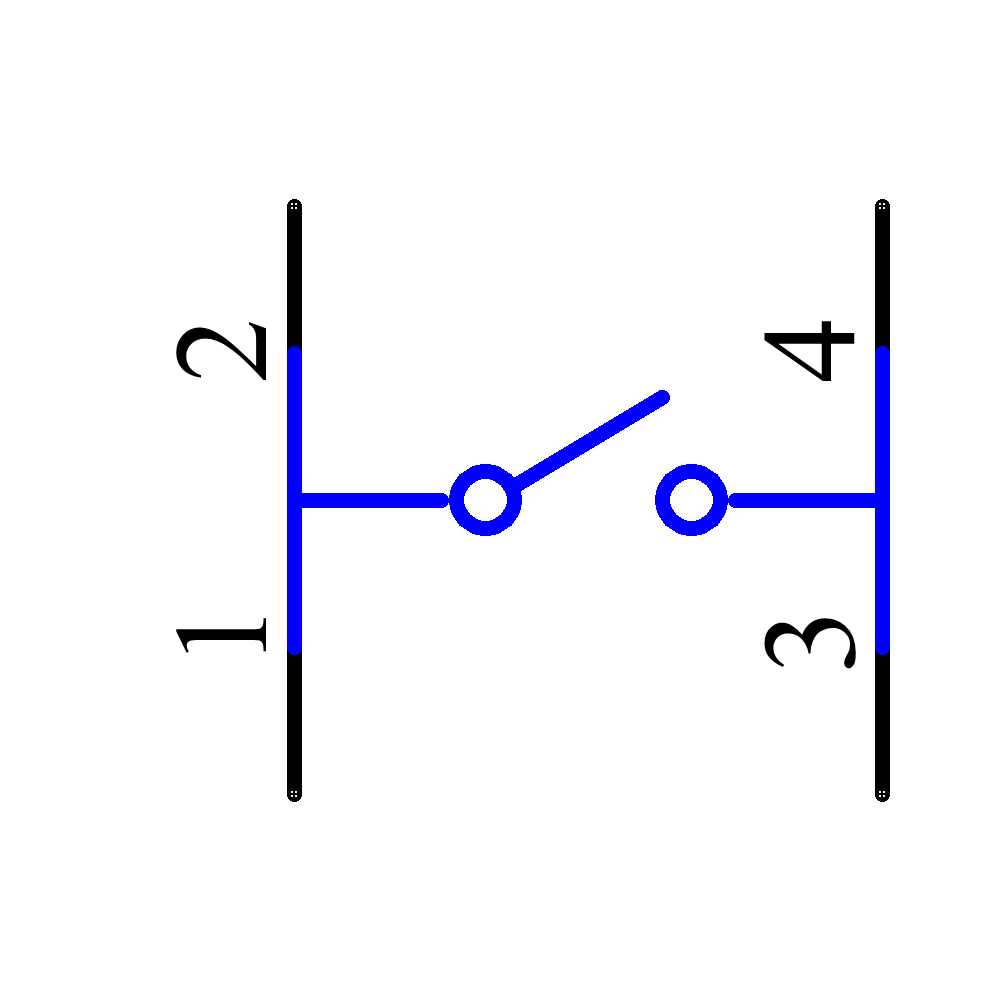

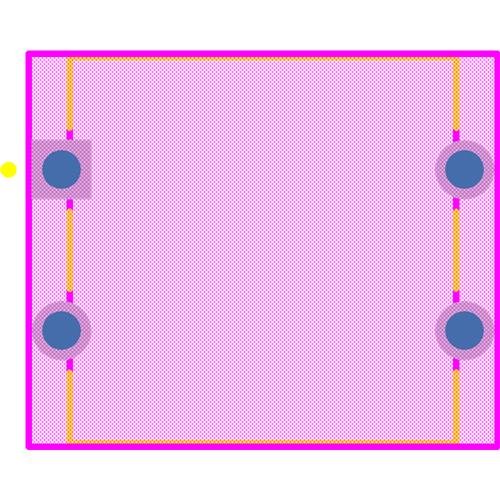

Images
