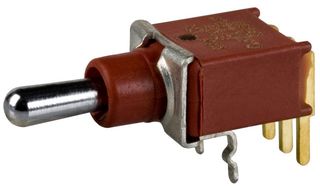

TL39P000000 - APEM
Switch Toggle ON OFF ON SPDT Short Lever PC Pins 20VAC 20VDC 0.4VA PC Mount
Technical Details
| Actuator Length | 5.2832mm |
| Actuator Material | Brass |
| Color | Blue |
| Contact Current Rating | 20mA |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Resistance | 20mΩ |
| Contact Voltage Rating (AC) | 20V |
| Country of Origin | UK |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 30kcycles |
| Height | 8.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.65 |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2014-10-30 |
| Length | 8.1mm |
| Lifecycle Status | Production |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Min Operating Temperature | -30°C |
| Mount | PC Mount, Through Hole |
| Orientation | Straight |
| REACH SVHC | No |
| RoHS | Compliant |
| Sealable | EPOXY |
| Switch Function | On-Off-On |
| Terminal Material | Brass |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 20V |
| Voltage Rating (DC) | 20V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
