TP33WS83500 - APEM
SPST, Off-(on), Momentary, 0.02A, 20VDC, Solder Terminal, Surface Mount-right Angle
Technical Details
| Actuator Length | 4.4958mm |
| Actuator Material | Plastic |
| Contact Current Rating | 20mA |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Resistance | 50mΩ |
| Contact Voltage Rating (AC) | 20V |
| Electrical Life | 60kcycles |
| Height | 5.55mm |
| Insulation Resistance | 1GΩ |
| Length | 10.16mm |
| Lifecycle Status | Production |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Min Operating Temperature | -40°C |
| Mount | PCB, Surface Mount |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| Power Rating | 400mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | MOISTURE PROOF, SHOCK PROOF |
| Switch Function | Off-Mom |
| Terminal Material | Brass |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 20V |
| Voltage Rating (DC) | 20V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

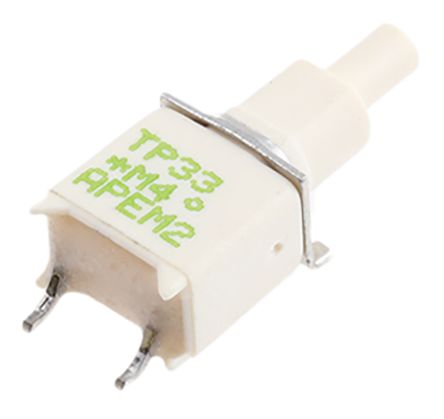

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Grayhill | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| APEM | Production | ||
| C&K Components | Production |
