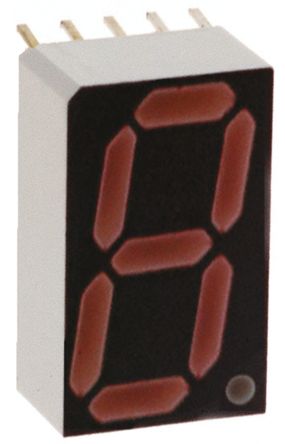

HDSP-H151 - Avago

AVAGO TECHNOLOGIES HDSP-H151 7-Segment LED Display, 1, 14.22 mm, Red, Common Anode, 16 mcd, 100 mA

Technical Details

Case/Package	DIP
Character Height	14.22mm
Character Width	7.8mm
China RoHS	Compliant
Color	Red
Depth	17.02mm
Dominant Wavelength	637nm
Element Configuration	Common Anode
Forward Current	40mA
Forward Voltage	3V
Height	17.018mm
Harmonized Tariff Schedule (HTS) Code	8541.40.20.00
Illumination Color	Red
Introduction Date	1992-01-01
Lead Free	Lead Free
Length	12.57mm
Lifecycle Status	Production
Luminous Intensity	16mcd
Max Operating Temperature	100°C
Max Power Dissipation	96mW
Min Operating Temperature	-20°C
Mount	Through Hole
Number of Characters	1
Number of Circuits	1
Number of Elements	8
Number of Pins	10
Number of Segments	7
Operating Supply Voltage	2V
Peak Wavelength	645nm
Power Consumption	96mW
Power Dissipation	96mW
Radiation Hardening	No
REACH SVHC	Yes
Reverse Voltage	15V
RoHS	Compliant
Test Current	20mA
Viewing Area (height)	14.22mm
Wavelength	637nm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Avago HDSP-H151 | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Agilent	HDSP-H151-KL000	Obsolete
ROHM	LA6960	Obsolete
Avago	HDSP-H101-CD000	Obsolete
Lumex	LDS-C515RI	Unknown
Avago	HDSP-5551	Production
Avago	HDSP-H101-DE000	Obsolete
CML Innovative Technologies	CMN6960	Unknown
Lumex	LDS-A515RI	Production
NTE Electronics	NTE3078	Obsolete
Avago	HDSP-H111	Production

See more alternatives See less alternatives
