HSMD-C170 - Avago
LED ORANGE DIFFUSED CHIP SMD Orange 604nm LED Indication - Discrete 2.2V 0805 (2012 Metric)
Technical Details
| Case/Package | 0805 |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| China RoHS | Compliant |
| Color | Orange |
| Contact Plating | Gold |
| Country of Origin | Mainland China, Taiwan |
| Depth | 1.25mm |
| Dominant Wavelength | 604nm |
| Forward Current | 20mA |
| Forward Voltage | 2.6V |
| Height | 800µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Illumination Color | Orange |
| Introduction Date | 1999-08-06 |
| Lead Free | Lead Free |
| Length | 2mm |
| Lens Color | Clear, White |
| Lens Style | Diffused |
| Lens Transparency | Diffused |
| Lifecycle Status | Production |
| Luminous Intensity | 2.8mcd |
| Max Junction Temperature (Tj) | 95°C |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 52mW |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Cut Tape |
| Peak Wavelength | 605nm |
| Power Dissipation | 52mW |
| Power Rating | 52mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Shape | Rectangular |
| Terminal Pitch | 1.6mm |
| Test Current | 20mA |
| Viewing Angle | 170° |
| Voltage Rating (DC) | 2.2V |
| Wavelength | 604nm |
| Width | 1.25mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images

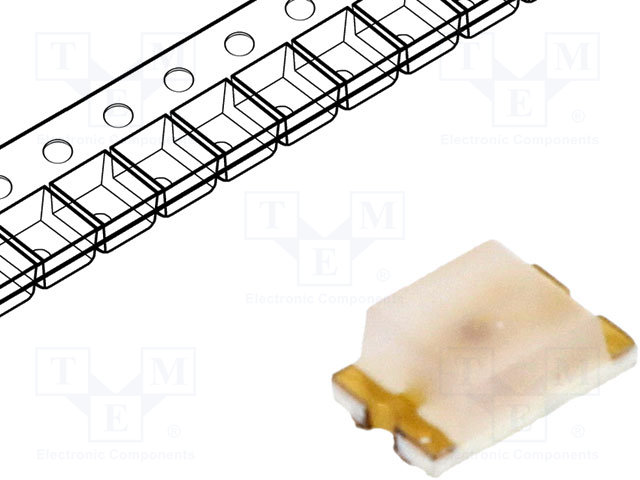

TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Agilent | Obsolete | ||
| Stanley Electric | Obsolete | ||
| Citizen Finetech Miyota | Unknown | ||
| Panasonic | Obsolete | ||
| ROHM | NRND | ||
| Stanley Electric | Obsolete | ||
| Toshiba | Obsolete | ||
| Kingbright | Production | ||
| Lite-On | Production | ||
| Citizen Electronics | Obsolete |
