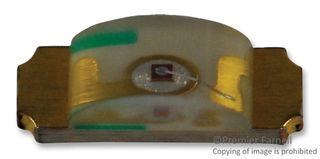

HSMS-C110 - Avago
LED RED DIFFUSED CHIP SMD R/A "Red 626nm LED Indication - Discrete 2.1V 2-SMD, No Lead"
Technical Details
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Color | Orange |
| Country of Origin | Mainland China, Taiwan |
| Depth | 1mm |
| Dominant Wavelength | 626nm |
| Forward Current | 25mA |
| Forward Voltage | 2.6V |
| Height | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Illumination Color | Red |
| Introduction Date | 1999-08-06 |
| Length | 3.2mm |
| Lens Color | Clear, White |
| Lens Style | Diffused |
| Lens Transparency | Diffused |
| Lifecycle Status | Production |
| Luminous Intensity | 2.8mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 3 |
| Packaging | Cut Tape |
| Peak Wavelength | 630nm |
| Power Dissipation | 78mW |
| Power Rating | 65mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Shape | Rectangular |
| Test Current | 20mA |
| Viewing Angle | 130° |
| Voltage Rating (DC) | 2.1V |
| Wavelength | 626nm |
| Width | 1.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images

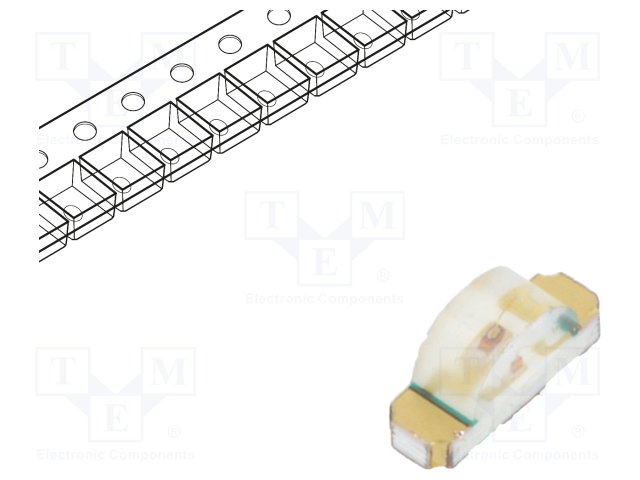

TME
