0ZCJ0100FF2E - Bel Fuse
PTC Resettable Fuse 1A(hold) 1.8A(trip) 6VDC 100A 0.6W 0.3s 0.55Ohm SMD Solder Pad 1206 T/R Automotive
Technical Details
| Case/Package | 1206 |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1mm |
| Hold Current | 1A |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2013-04-06 |
| Lead Free | Lead Free |
| Length | 3.5mm |
| Lifecycle Status | Production |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Maximum Resistance 1 Hour (R1max) | 210mΩ |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Packaging | Tape & Reel (TR) |
| REACH SVHC | Yes |
| Resistance | 55mΩ |
| RoHS | Compliant |
| Time to Trip | 300ms |
| Trip Current | 1.8A |
| Width | 1.8mm |
| Working Voltage | 6V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

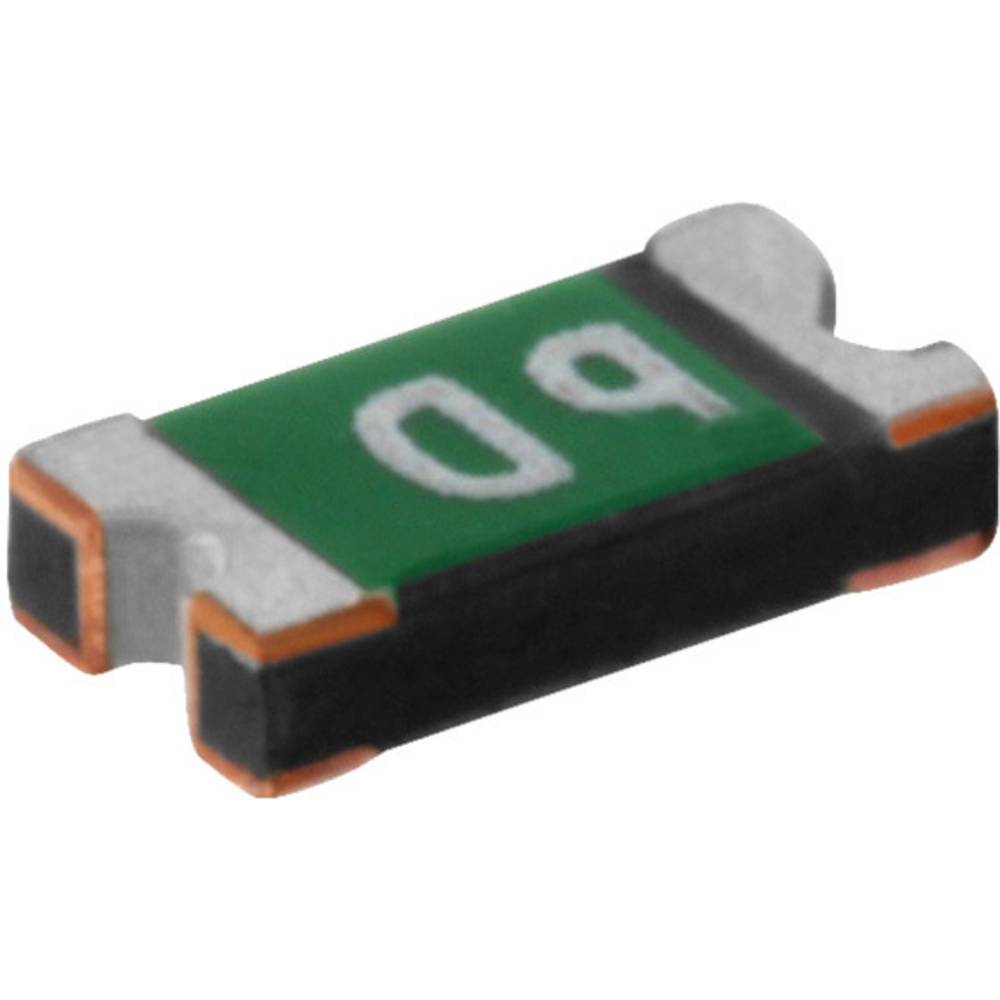

Images

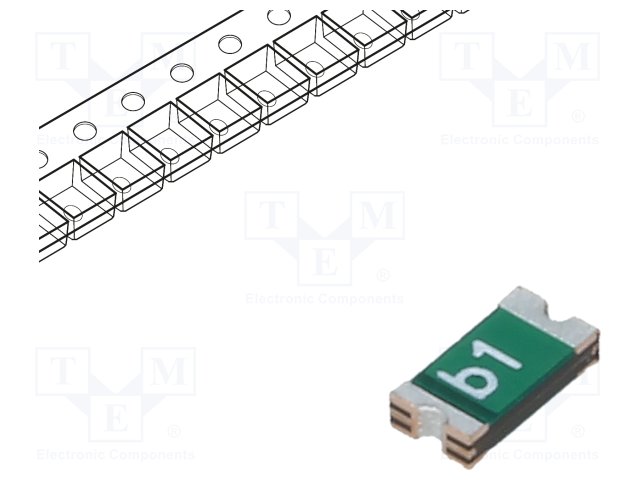

TME
