0ZCK0075FF2E - Bel Fuse
PTC Resettable Fuse 0.75A(hold) 1.5A(trip) 6VDC 40A 0.6W 0.2s 0.09Ohm SMD Solder Pad 0805 T/R
Technical Details
| Case/Package | 0805 |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| China RoHS | Compliant |
| Current Rating | 40A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.25mm |
| Hold Current | 750mA |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2013-04-06 |
| Lead Free | Lead Free |
| Length | 2.3mm |
| Lifecycle Status | Production |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Maximum Resistance 1 Hour (R1max) | 350mΩ |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Packaging | Digi-Reel® |
| REACH SVHC | Yes |
| Resistance | 90mΩ |
| RoHS | Compliant |
| Time to Trip | 200ms |
| Trip Current | 1.5A |
| Voltage Rating | 6V |
| Width | 1.5mm |
| Working Voltage | 6V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

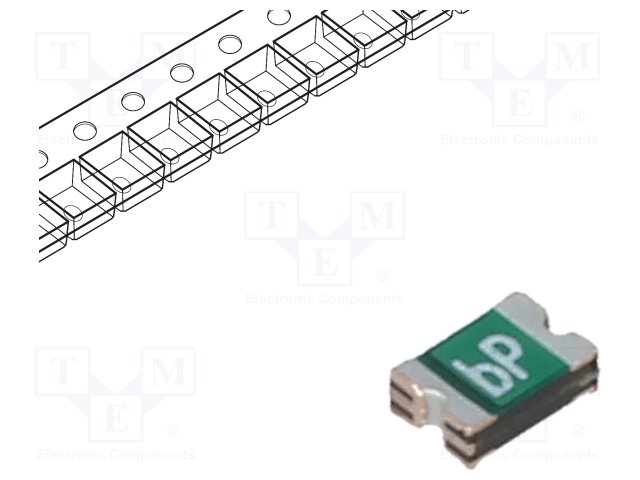

Images
