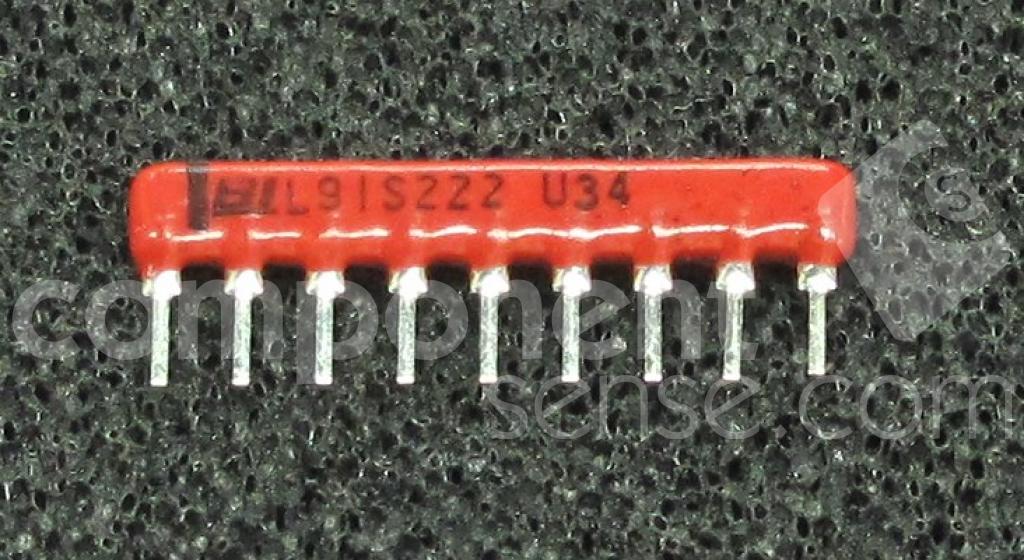

L091S222 - BI Technologies
Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.125W, 2200ohm, 100V, 2% +/-Tol, 100ppm/Cel, Through Hole...
Technical Details
| Case/Package | Conformal |
| Country of Origin | Japan |
| Depth | 2.41mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 4.95mm |
| Harmonized Tariff Schedule (HTS) Code | 8533.21.00.50 |
| Introduction Date | 2000-10-27 |
| Lead Length | 3.556mm |
| Lead Pitch | 2.54mm |
| Length | 22.86mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Elements | 8 |
| Number of Resistors | 8 |
| Number of Terminals | 9 |
| Packaging | Bulk |
| Power Dissipation | 125mW |
| REACH SVHC | Yes |
| Resistance | 2.2kΩ |
| RoHS | Non-Compliant |
| Temperature Coefficient | 100ppm/°C |
| Terminal Pitch | 2.54mm |
| Termination | Pin |
| Tolerance | 2% |
| Width | 2.41mm |
| Working Voltage | 100V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
