4814P-2-103LF - Bourns
Res Thick Film NET 10K Ohm 2% 1.12W ±100ppm/C BUS 14-Pin SOM Gull Wing SMD Automotive T/R
Technical Details
| Case/Package | SOIC |
| China RoHS | Non-Compliant |

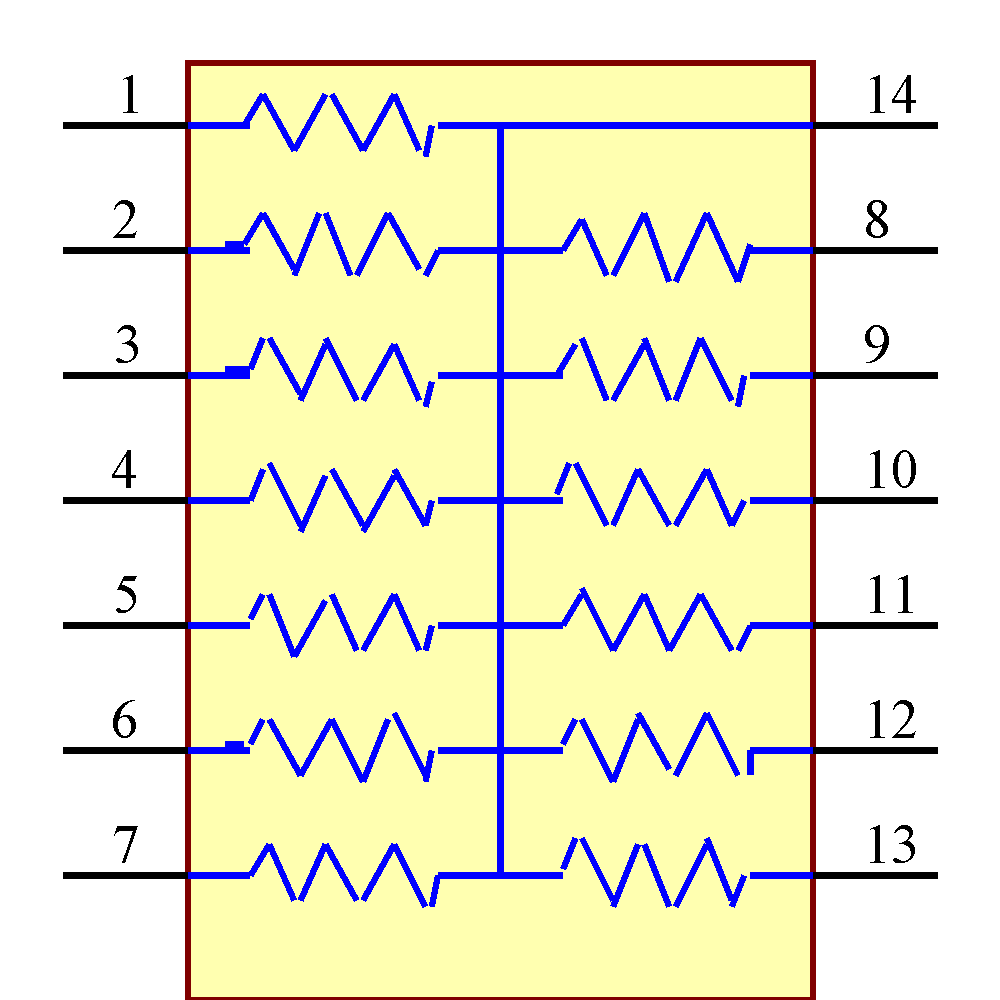

| Circuit Type | Bussed |
| Composition | Thick Film |
| Depth | 7.62mm |
| Height | 2.03mm |
| Lead Pitch | 1.27mm |
| Length | 9.91mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 13 |
| Number of Pins | 14 |
| Number of Resistors | 13 |
| Number of Terminals | 14 |
| Power Dissipation | 1.12W |
| Power Per Element | 80mW |
| Power Rating | 1.12W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Resistance | 10kΩ |
| RoHS | Compliant |
| Schedule B | 8533210025, 8533210025|8533210025|8533210025|8533210025|8533210025 |
| Temperature Coefficient | 100ppm/°C |
| Terminal Pitch | 1.27mm |
| Termination | Gull Wing |
| Tolerance | 2% |
| Voltage Rating | 50V |
| Voltage Rating (DC) | 50V |
| Width | 5.59mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
