4816P-T01-100LF - Bourns
Res Thick Film NET 10 Ohm 1 Ohm 1.28W ±250ppm/C ISOL 16-Pin SOM Gull Wing SMD Automotive Tube
Technical Details
| Case/Package | Molded |
| China RoHS | Non-Compliant |

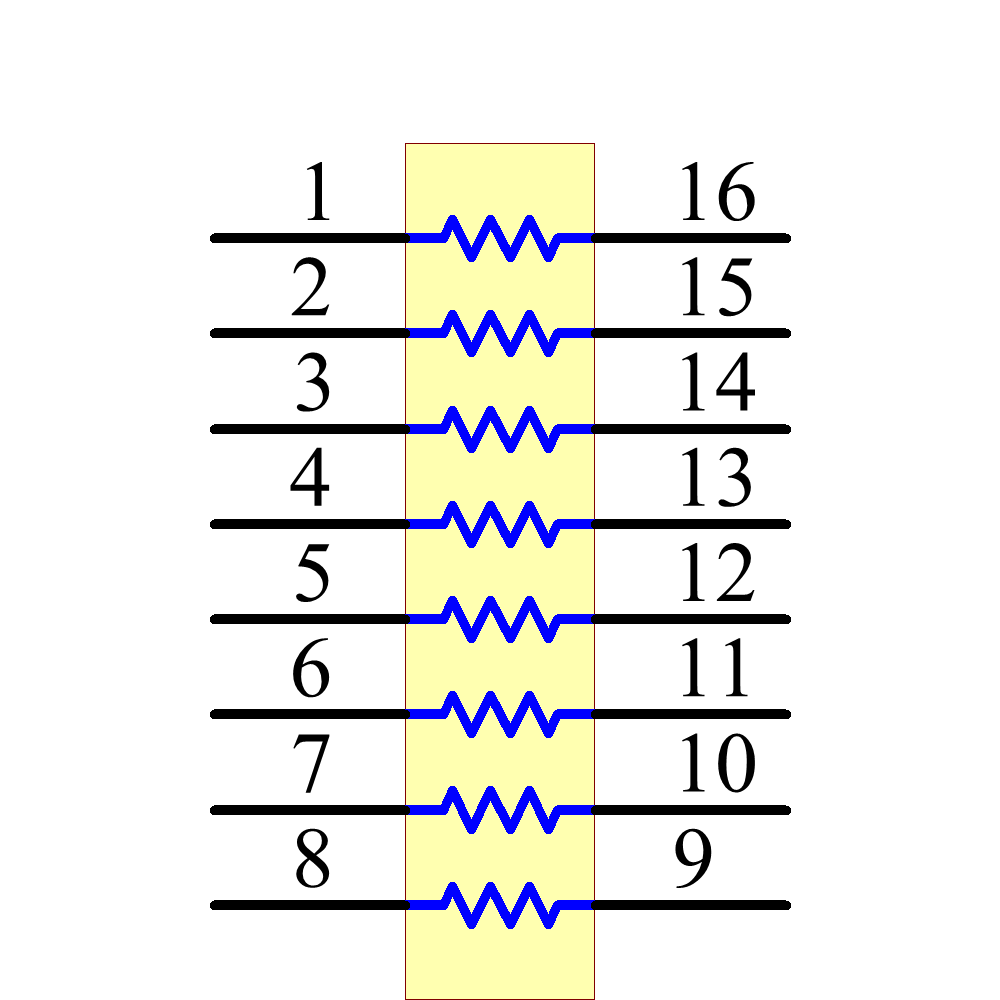

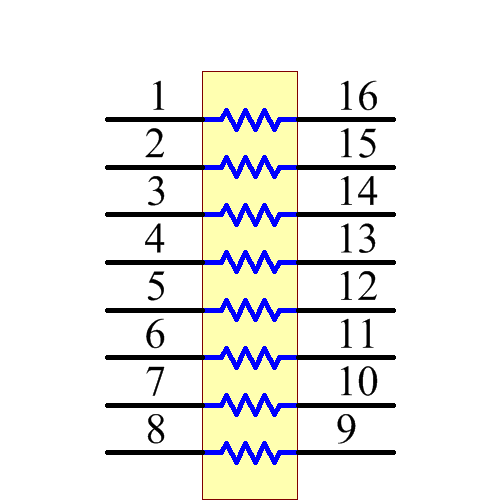

| Circuit Type | Isolated |
| Contact Plating | Tin |
| Depth | 7.62mm |
| Height | 2.03mm |
| Insulation Resistance | 10MΩ |
| Lead Length | 130µm |
| Lead Pitch | 1.27mm |
| Length | 11.18mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Pins | 16 |
| Number of Resistors | 8 |
| Number of Terminals | 16 |
| Packaging | Cut Tape |
| Power Dissipation | 1.28W |
| Power Per Element | 160mW |
| Power Rating | 1.28W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Resistance | 10Ω |
| RoHS | Compliant |
| Schedule B | 8533210025, 8533210025|8533210025, 8533210025|8533210025|8533210025, 8533210025|8533210025|8533210025|8533210025 |
| Temperature Coefficient | 250ppm/°C |
| Terminal Pitch | 1.27mm |
| Termination | Gull Wing, SMD/SMT |
| Tolerance | 2% |
| Voltage Rating | 50V |
| Voltage Rating (DC) | 50V |
| Width | 5.59mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

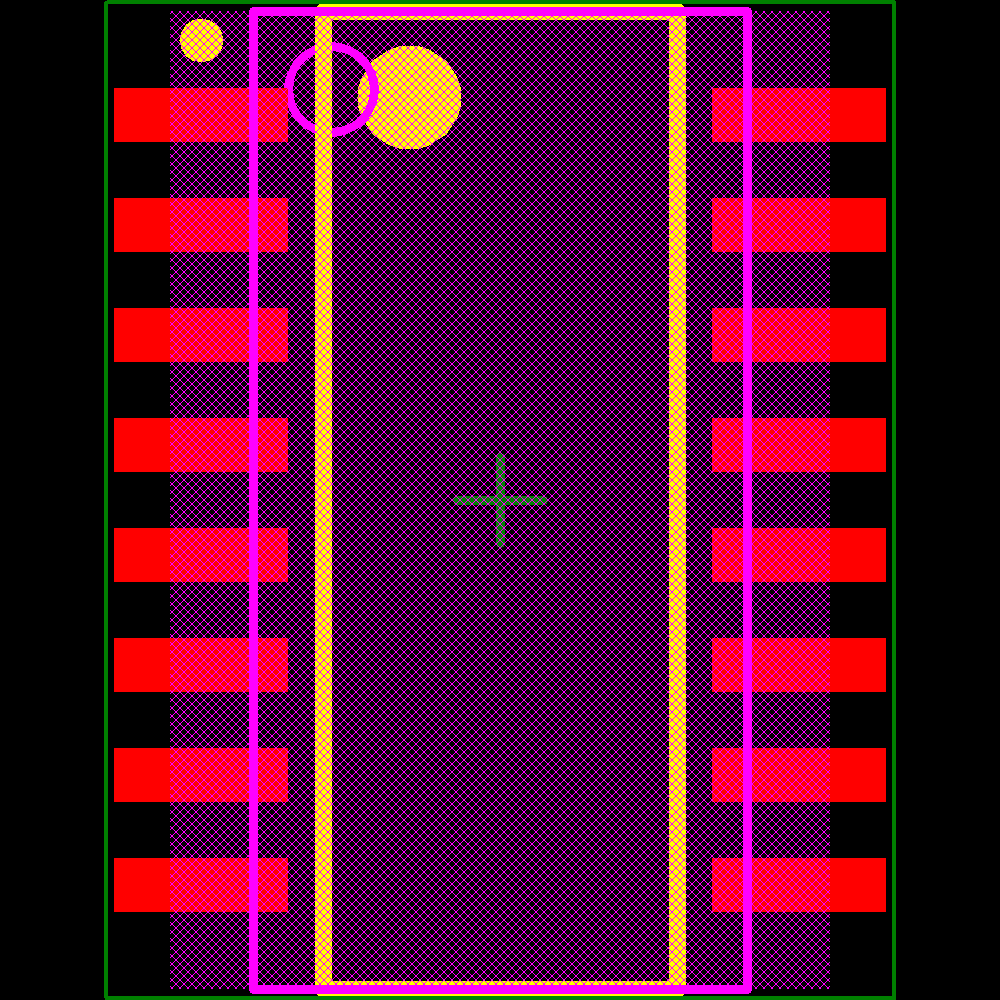

Images
