Electromechanical  >  Switches  >  Tactile Switches

Bourns - 7914H-1-000

7914H-1-000 - Bourns

Switch Tactile N.O. SPST Round Button PC Pins 0.1A 16VAC 16VDC 100000Cycle 2.94N Thru-Hole Tube

 Datasheets

Technical Details

Actuator Length 1.4478mm
Actuator Material Rubber
China RoHS Compliant
Contact Current Rating 100mA
Contact Material Stainless Steel
Contact Plating Gold
Contact Resistance 100mΩ
Contact Voltage Rating (AC) 16V
Current Rating 100mA
Depth 5mm
Dielectric Material Thermoplastic
Export Control Classification Number (ECCN) Code EAR99
Height 2.17mm
Housing Material Stainless Steel
Harmonized Tariff Schedule (HTS) Code 8536.50.90.40
Illumination Type Non-Illuminated
Insulation Resistance 100MΩ
Introduction Date 2004-11-04
Length 5mm
Life (Cycles) 500kcycles
Lifecycle Status Production
Max Current Rating 100mA
Max Operating Temperature 125°C
Max Voltage Rating (AC) 16V
Max Voltage Rating (DC) 16V
Mechanical Life 100kcycles
Min Operating Temperature -55°C
Mount Through Hole
Number of Positions 1
Operating Force 3.92N
Orientation Straight
REACH SVHC Yes
RoHS Compliant
Sealable WATER PROOF
Switch Function Off-Mom
Termination PC Pins
Throw Configuration SPST
Voltage Rating (DC) 16V

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

Bourns 7914H-1-000 | Master Electronics

Master Electronics

Datasheets

 Onlinecomponents.com
 Master Electronics
 Verical

Lifecycle Status Indicator

   Production
Symbol

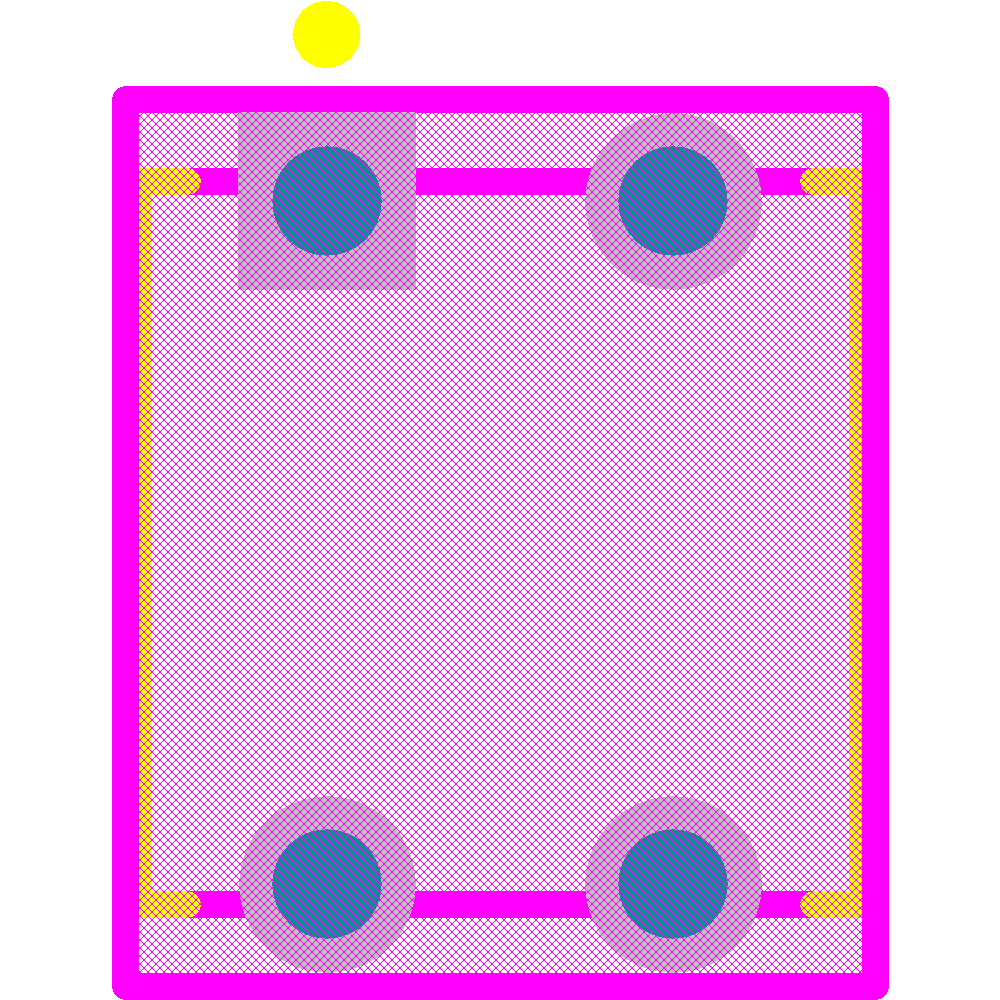

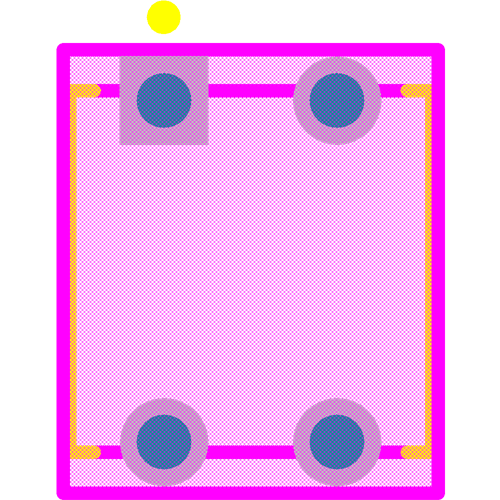

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Bourns
7914J-1-050E
Obsolete
Bourns
7914H-1-024
Production
Bourns
7914H-1-032
Production
Bourns
7914H-1-050
Production
Bourns
7914G-1-050E
Production

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Onlinecomponents.com
7914H-1-000
US: 143
 $ 0.4813 0.4588
 Historical Pricing  Historical Stock Levels
Quantity
Location
Master Electronics
7914H-1-000
US: 143
 $ 0.574 0.574 0.574 0.574 0.4813 0.4588
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
7914H-1-000
US: 143
 $ 0.6977 0.6977
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
7914H-1-000
US: 50
 $ 0.7903 0.7903 0.7903 0.7903
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
7914H-1-000
US: 119
 $ 0.5019 0.5019 0.5019 0.5019 0.5019 0.5019
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
7914H-1-000-ND
DE: 708
 $ 0.9615 0.8222 0.9615 0.6827 0.5653 0.5023
 Historical Pricing  Historical Stock Levels
Quantity
Location
TTI
7914H-1-000
US: 200
 $ 0.558 0.544 0.479 0.47
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
652-7914H-1-000
US: 1490
 $ 0.76 0.685 0.629 0.608 0.49 0.475
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Abacus
7914H-1-000
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
7914H-1-000
US: 0
 $ 0.4576 0.4416 0.40 0.40
 Historical Pricing  Historical Stock Levels
Quantity
Location
TTI Europe
7914H-1-000
DE: 0
 $ 0.5227 0.5227
 Historical Pricing  Historical Stock Levels
Quantity
Location
TTI Asia
7914H-1-000
SG: -3
 $ 0.511 0.504 0.48 0.48
 Historical Pricing  Historical Stock Levels
Quantity
Location
Anglia
7914H-1-000
GB: 0
 $ 0.694 0.6369 0.5457 0.5457
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
7914H-1-000
US: 0
 $ 1.49 1.18 0.994 0.892 0.68 0.633
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Component Stockers USA
7914H-1-000
US: 21887
 $ 0.61 0.61 0.61 0.56 0.46 0.46
 Historical Pricing  Historical Stock Levels
Quantity
Location
Fly-Wing Technology
7914H-1-000
HK: 2619
 $ 0.7656 0.7392 0.7392 0.6456 0.5461 0.5461
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
7914H-1-000
HK: 732
 $ 0.7735 0.6726 0.6726 0.6005 0.5613 0.5043
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
7914H-1-000
US: 169
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Suntronic
7914H-1-000
CN: 32599
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
7914H-1-000
US: 1608
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
