Electromechanical > Switches > Tactile Switches

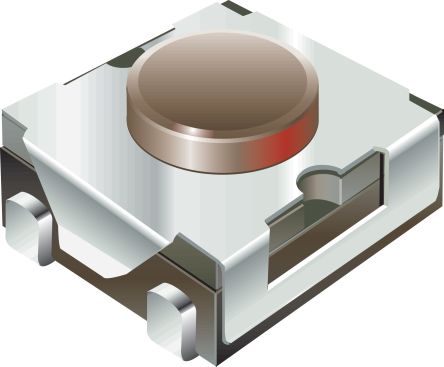

7914J-1-000E - Bourns

Switch Tactile N.O. SPST Round Button J-Hook 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD T/R

Technical Details

Actuator Length	1.4478mm
Actuator Material	Rubber
China RoHS	Compliant
Contact Current Rating	100mA
Contact Material	Stainless Steel
Contact Plating	Gold
Contact Resistance	100mΩ
Contact Voltage Rating (AC)	16V
Country of Origin	Taiwan
Current Rating	100mA
Depth	5mm
Dielectric Material	Thermoplastic
Export Control Classification Number (ECCN) Code	EAR99
Height	2.54mm
Housing Material	Stainless Steel
Harmonized Tariff Schedule (HTS) Code	8536.50.90.40
Illumination Type	Illuminated, Non-Illuminated
Insulation Resistance	100MΩ
Introduction Date	2004-10-01
Lead Free	Lead Free
Length	5mm
Lifecycle Status	Production
Max Current Rating	100mA
Max Operating Temperature	125°C
Max Voltage Rating (AC)	16V
Max Voltage Rating (DC)	16V
Mechanical Life	100kcycles
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Pins	4
Number of Positions	1
Operating Force	3.92N
Packaging	Tape and Reel
REACH SVHC	Yes
RoHS	Compliant
Sealable	WATER PROOF
Switch Function	Off-Mom
Termination	J-Hook
Throw Configuration	SPST
Voltage Rating (AC)	16V
Voltage Rating (DC)	16V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Bourns 7914J-1-000E | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Bourns	7914J-1-032E	Production
Bourns	7914G-1-000	Production
Bourns	7914J-1-000	Production
Bourns	7914G-1-032	Production
Bourns	7914G-1-000E	Production
Bourns	7914G-1-050	Production
Bourns	7914J-1-024	Production
Bourns	7914J-1-024E	Production
Bourns	7914G-1-024	Production
Bourns	7914G-1-024E	Production

See more alternatives See less alternatives
