7914J-1-032 - Bourns
Switch Tactile N.O. SPST Round Button J-Hook 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD Tube
Technical Details
| Actuator Length | 812.8µm |
| Actuator Material | Rubber |
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Contact Current Rating | 100mA |
| Contact Material | Stainless Steel |
| Contact Plating | Gold |
| Contact Resistance | 100mΩ |
| Contact Voltage Rating (AC) | 16V |
| Current Rating | 100mA |
| Depth | 5mm |
| Dielectric Material | Thermoplastic |
| Height | 2.54mm |
| Housing Material | Stainless Steel |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Length | 5mm |
| Life (Cycles) | 500kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 100mA |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (DC) | 16V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Operating Force | 3.92N |
| Orientation | Straight |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8536509065|8536509065, 8536509065|8536509065|8536509065|8536509065|8536509065 |
| Sealable | WATER PROOF |
| Switch Function | Off-Mom |
| Termination | J-Hook |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 16V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

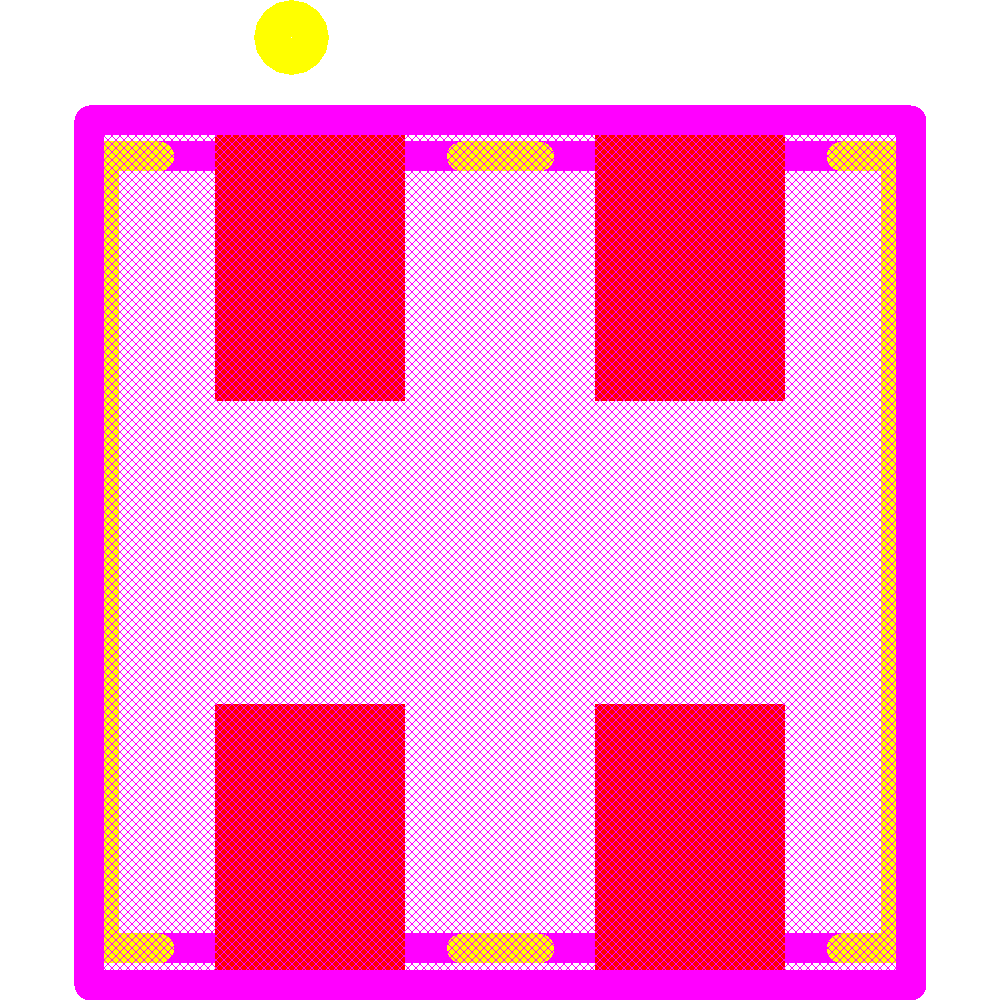

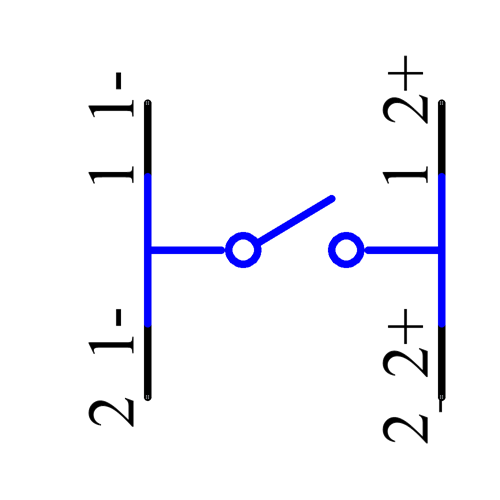

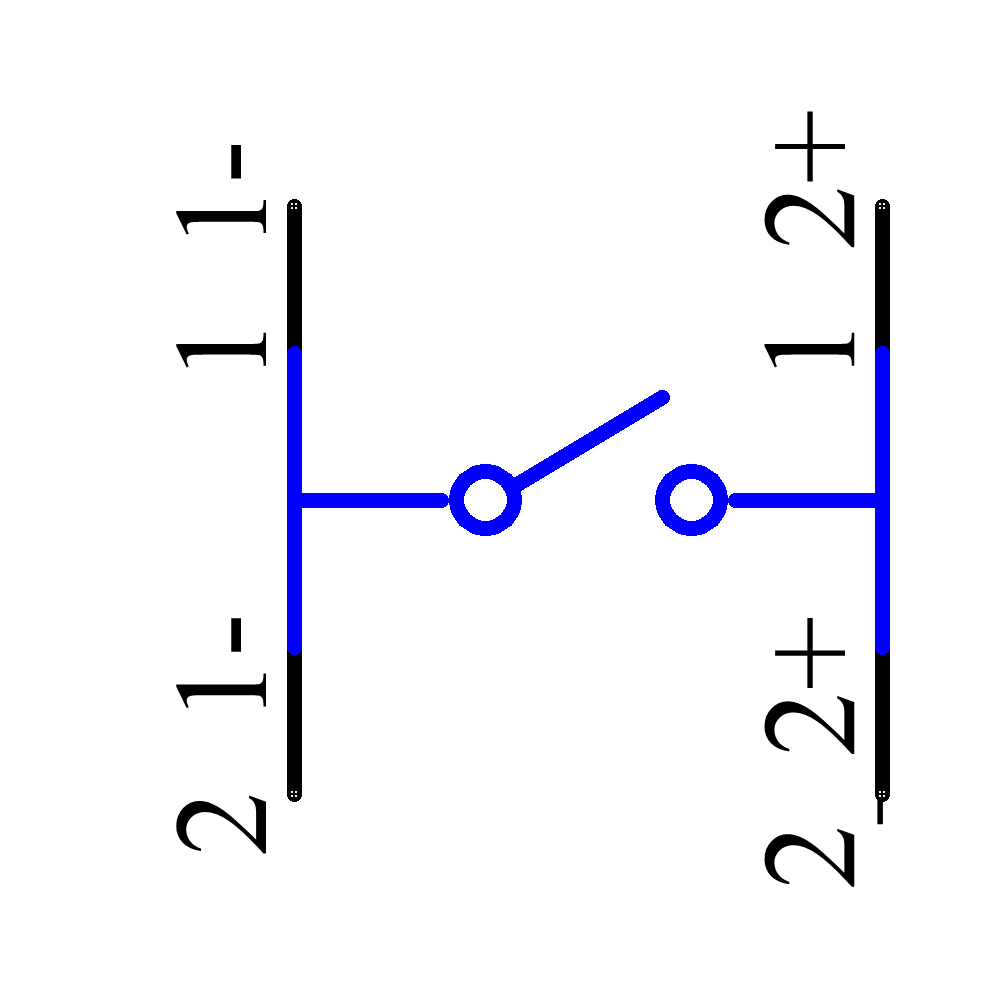

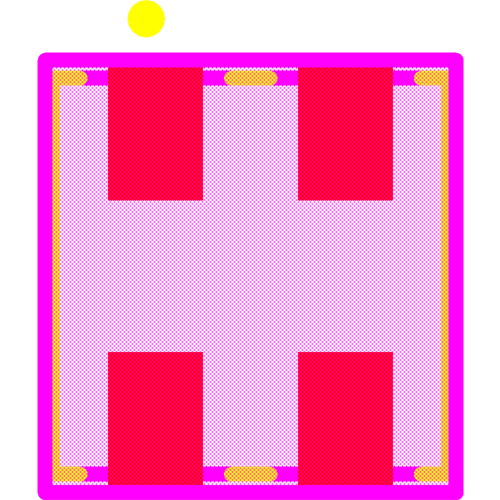

Images
