7914S-1-000E - Bourns
Switch Tactile N.O. SPST Round Button 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD Embossed T/R
Technical Details
| Actuator Length | 1.6764mm |
| Actuator Material | Rubber |
| Case/Package | 100 |
| China RoHS | Compliant |
| Contact Current Rating | 100mA |
| Contact Material | Stainless Steel |
| Contact Plating | Gold |
| Contact Resistance | 100mΩ |
| Contact Voltage Rating (AC) | 16V |
| Current Rating | 100mA |
| Dielectric Material | Thermoplastic |
| Height | 5.44mm |
| Housing Material | Stainless Steel |
| Illumination Type | Illuminated, Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Length | 5.18mm |
| Life (Cycles) | 500kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 100mA |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 16V |
| Max Voltage Rating (DC) | 16V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Operating Force | 3.92N |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | WATER PROOF |
| Switch Function | Off-Mom |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 16V |
| Voltage Rating (DC) | 16V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

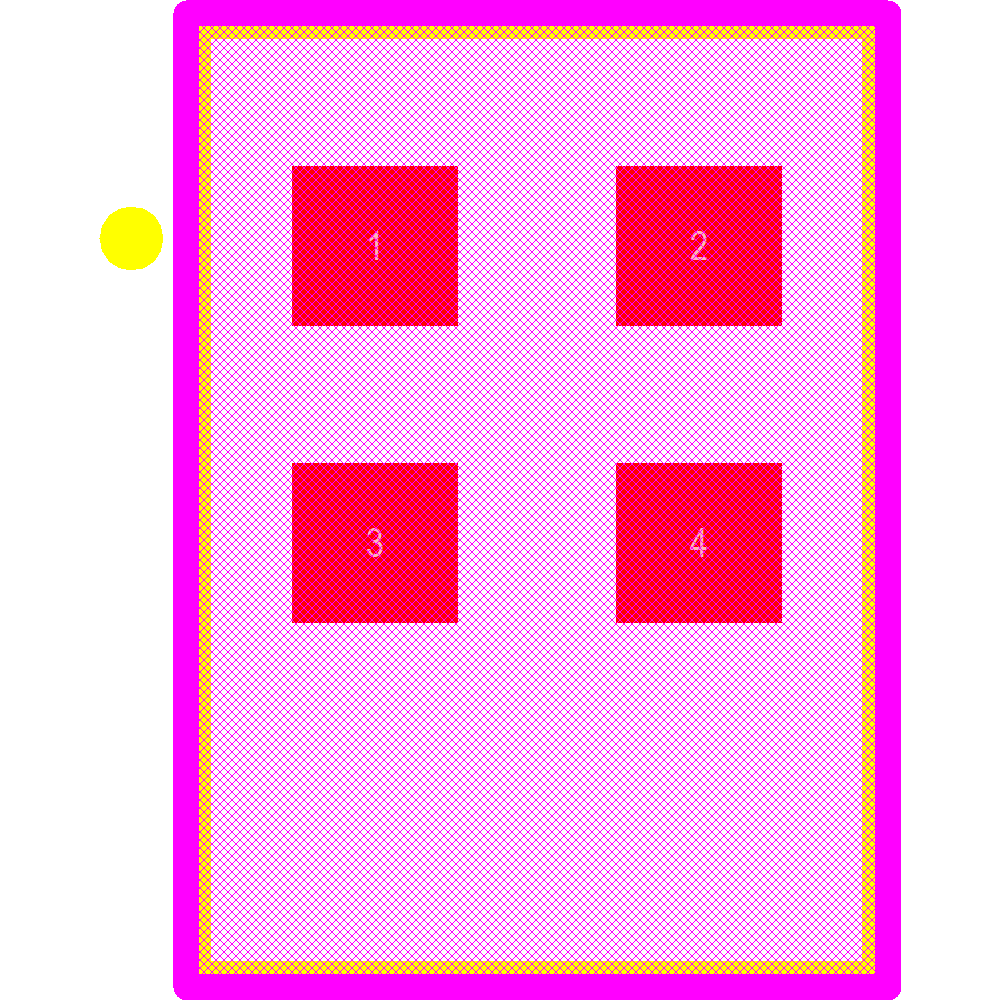

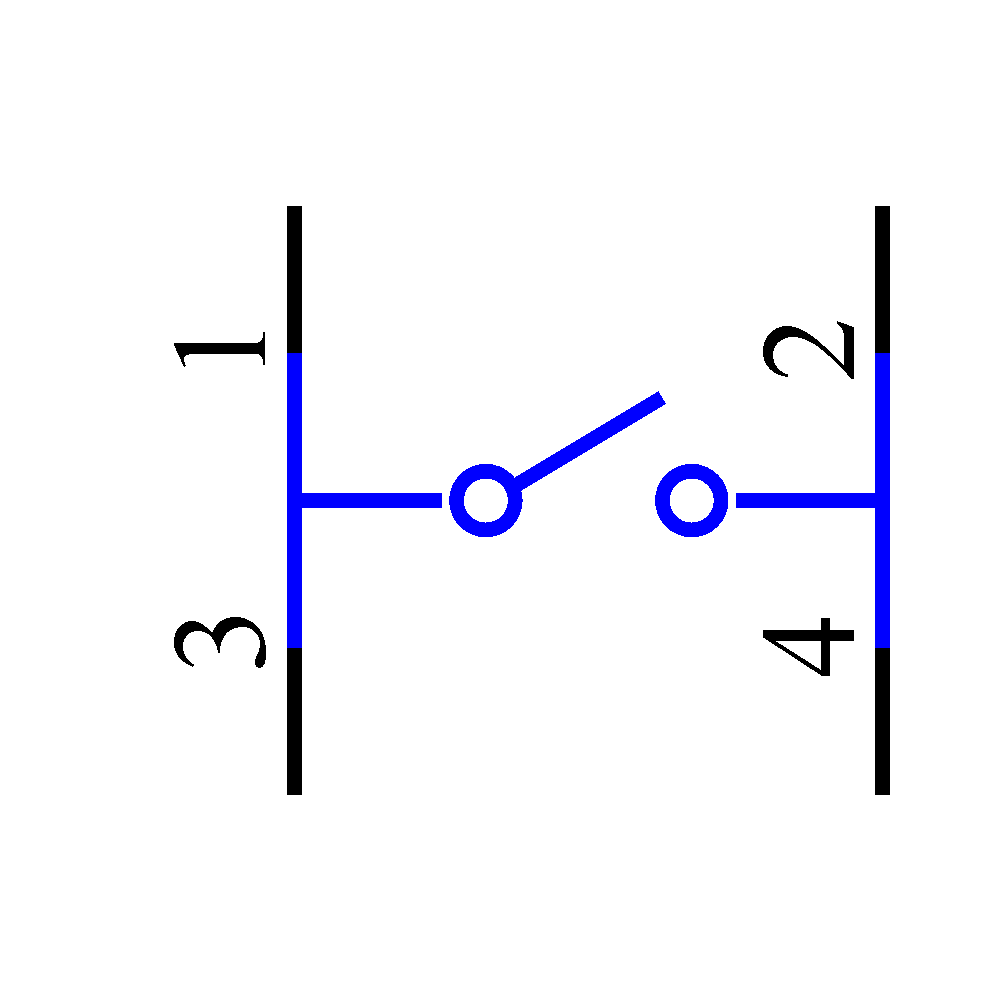

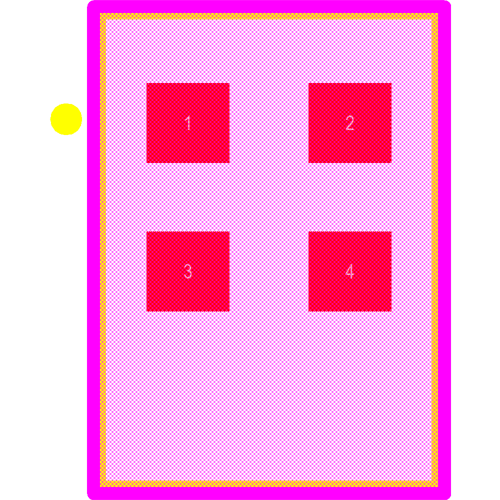

Images
