Bourns - CAT16-103J4LF

CAT16-103J4LF - Bourns

Res Thick Film Array 10K Ohm 5% 0.25W(1/4W) ±200ppm/C ISOL 8-Pin 1206(4 X 0603) Concave SMD T/R

 Datasheets

Technical Details

Case/Package 1206
Case Code (Imperial) 1206
Case Code (Metric) 3216
China RoHS Non-Compliant
Circuit Type Isolated
Composition Thick Film
Contact Plating Tin
Country of Origin Taiwan
Depth 1.55mm
Export Control Classification Number (ECCN) Code EAR99
Height 500µm
Harmonized Tariff Schedule (HTS) Code 8533.21.00.20
Introduction Date 2004-03-17
Length 3.2mm
Lifecycle Status Production
Max Operating Temperature 125°C
Military Standard Not
Min Operating Temperature -55°C
Mount Surface Mount
Number of Circuits 4
Number of Elements 1
Number of Pins 8
Number of Resistors 4
Number of Terminals 8
Packaging Cut Tape
Power Dissipation 250mW
Power Per Element 62.5mW
Radiation Hardening No
REACH SVHC Yes
Resistance 10kΩ
RoHS Compliant
Schedule B 8533210025, 8533210025|8533210025, 8533210025|8533210025|8533210025, 8533210025|8533210025|8533210025|8533210025
Temperature Coefficient 200ppm/°C
Terminal Pitch 800µm
Termination Concave
Tolerance 5%
Voltage Rating 50V
Voltage Rating (DC) 50V
Width 1.55mm
Working Voltage 50V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

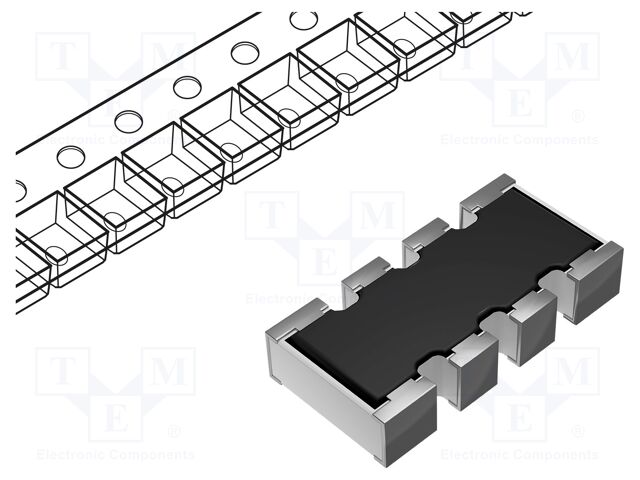

Bourns CAT16-103J4LF | TME

TME

Datasheets

 RS
 RS
 Farnell

Lifecycle Status Indicator

   Production

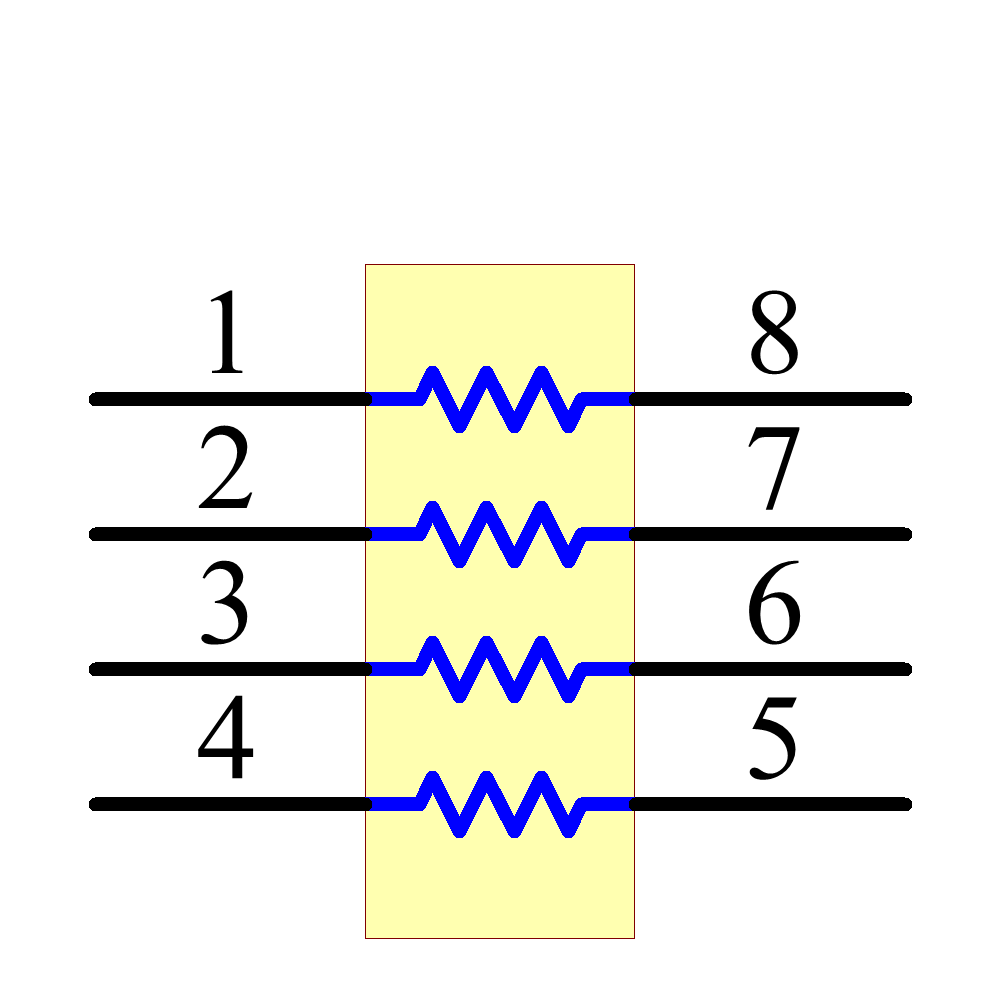

Symbol

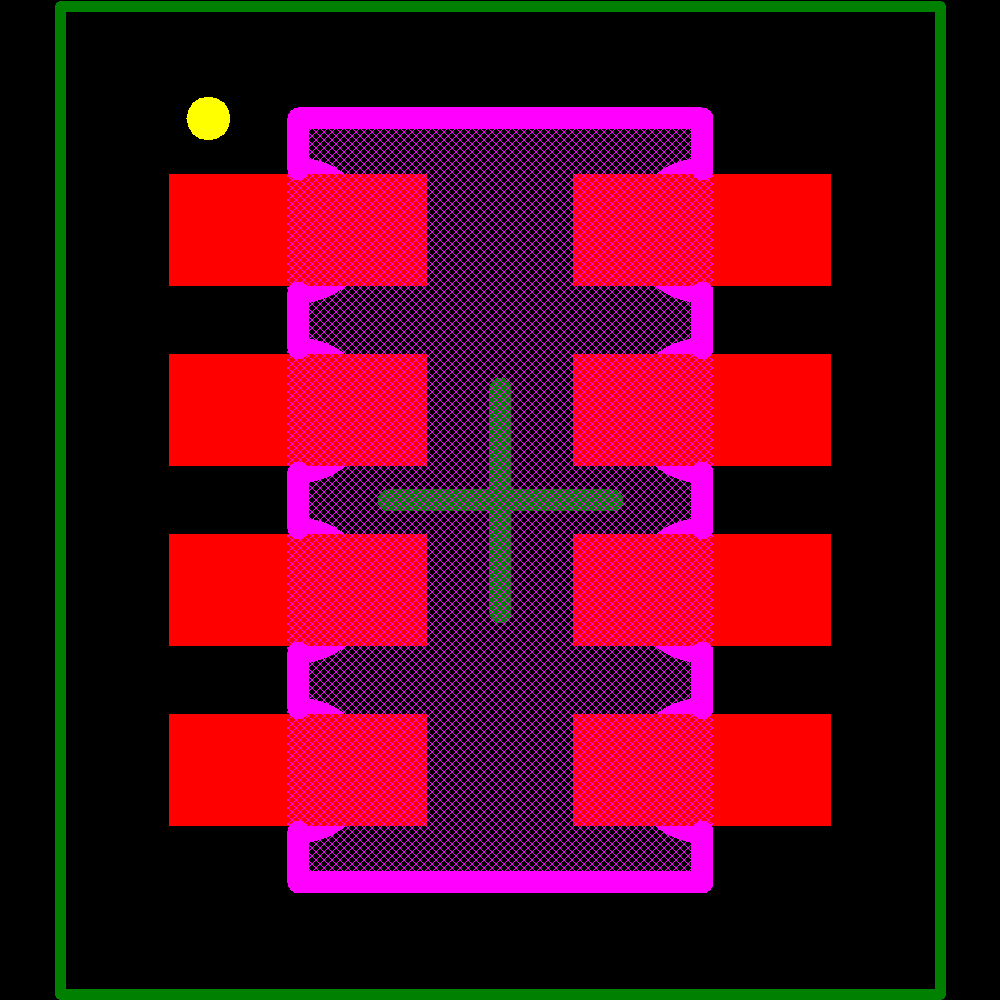

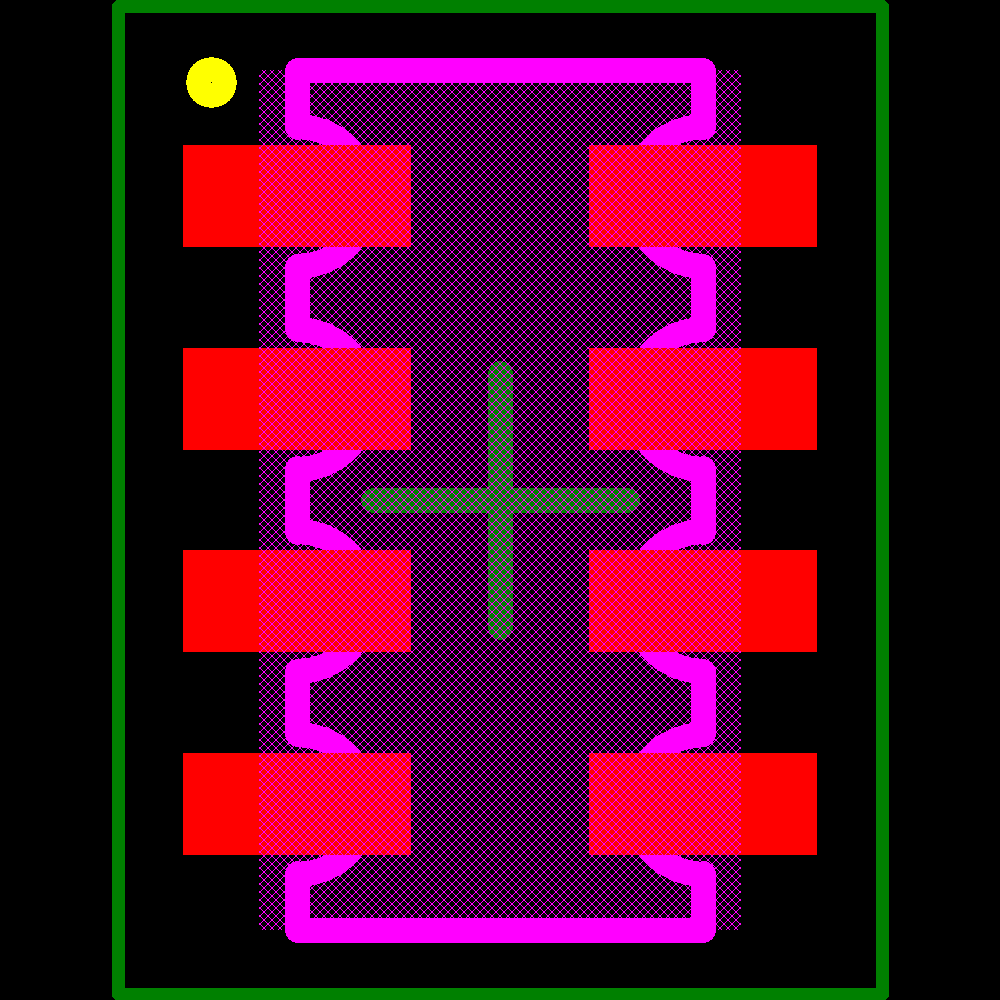

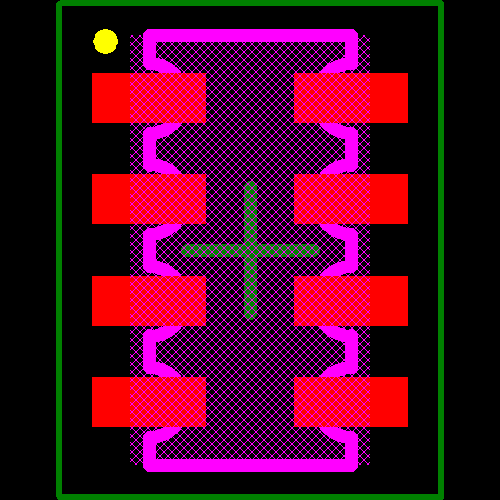

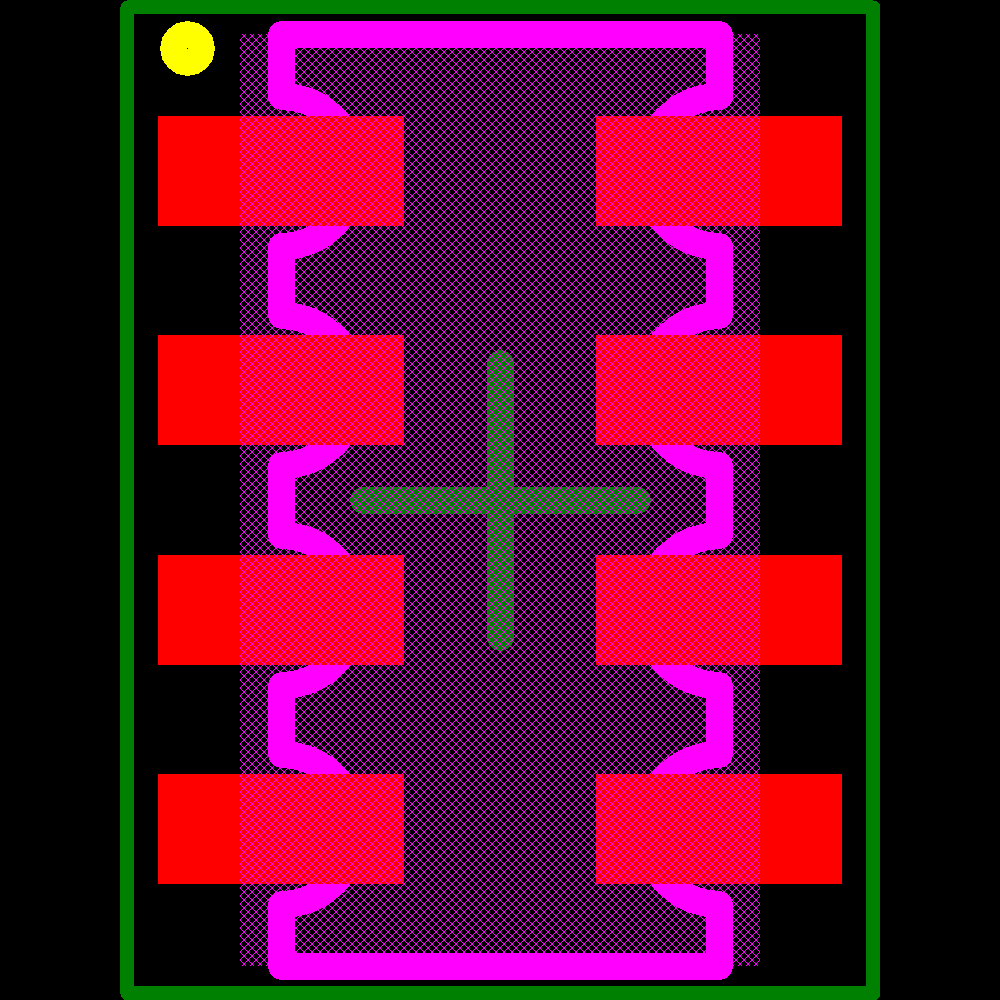

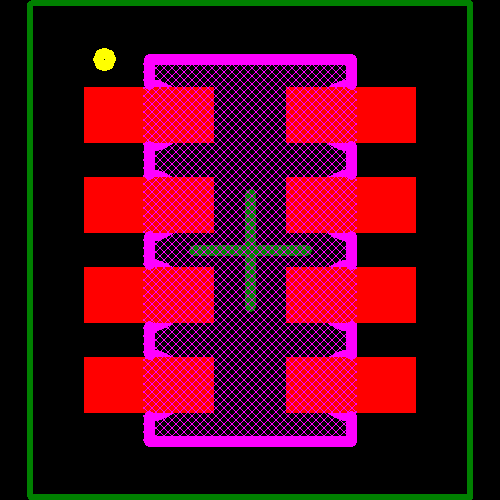

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Bourns
CAT16-103J4
Obsolete
KYOCERA AVX
CRC3A4E103JT
Unknown
KYOCERA AVX
CRB3A4E103JT
Unknown
Bourns
CAY16-1002F4LF
Production
Bourns
CAY16-103J4LF
Production
Bourns
CAT16-1002F4LF
Production
CTS Components
742C083103JTR
Obsolete
BI Technologies
BCN164AB152J13
Production
CTS Components
742C083102JPTR
Production
CTS Components
742C083562JP
Production

See more alternatives See less alternatives
