CAY16-103J4LF - Bourns
Res Thick Film Array 10K Ohm 5% 0.25W(1/4W) ±200ppm/C ISOL 8-Pin 1206(4 X 0603) Convex SMD T/R
Technical Details
| Case/Package | 0603 |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| China RoHS | Non-Compliant |
| Circuit Type | Isolated |
| Composition | Thick Film |
| Country of Origin | Taiwan |
| Depth | 1.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 500µm |
| Harmonized Tariff Schedule (HTS) Code | 8533.21.00.20 |
| Introduction Date | 2004-09-14 |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Contacts | 8 |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Number of Terminals | 8 |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Power Per Element | 62.5mW |
| Power Rating | 100mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 10kΩ |
| RoHS | Compliant |
| Schedule B | 8533210025, 8533210025|8533210025, 8533210025|8533210025|8533210025, 8533210025|8533210025|8533210025|8533210025 |
| Temperature Coefficient | 200ppm/°C |
| Terminal Pitch | 800µm |
| Termination | Convex |
| Tolerance | 5% |
| Voltage Rating | 75V |
| Voltage Rating (DC) | 25V |
| Weight | 2.012816mg |
| Width | 1.6mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

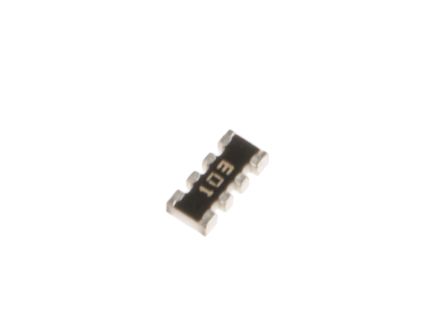

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Bourns | Obsolete | ||
| Bourns | Obsolete | ||
| Bourns | Production | ||
| Bourns | Production | ||
| Bourns | Production | ||
| KYOCERA AVX | Unknown | ||
| KYOCERA AVX | Unknown | ||
| Bourns | Production | ||
| Bourns | Production | ||
| Walsin Technologies | Production |
